Toyota Caldina
2002-09 → 2007-06 · chassis AZT24#,ST246,ZZT241 · catalogue 274150 · Japan
Supported model
Data version 2008-04

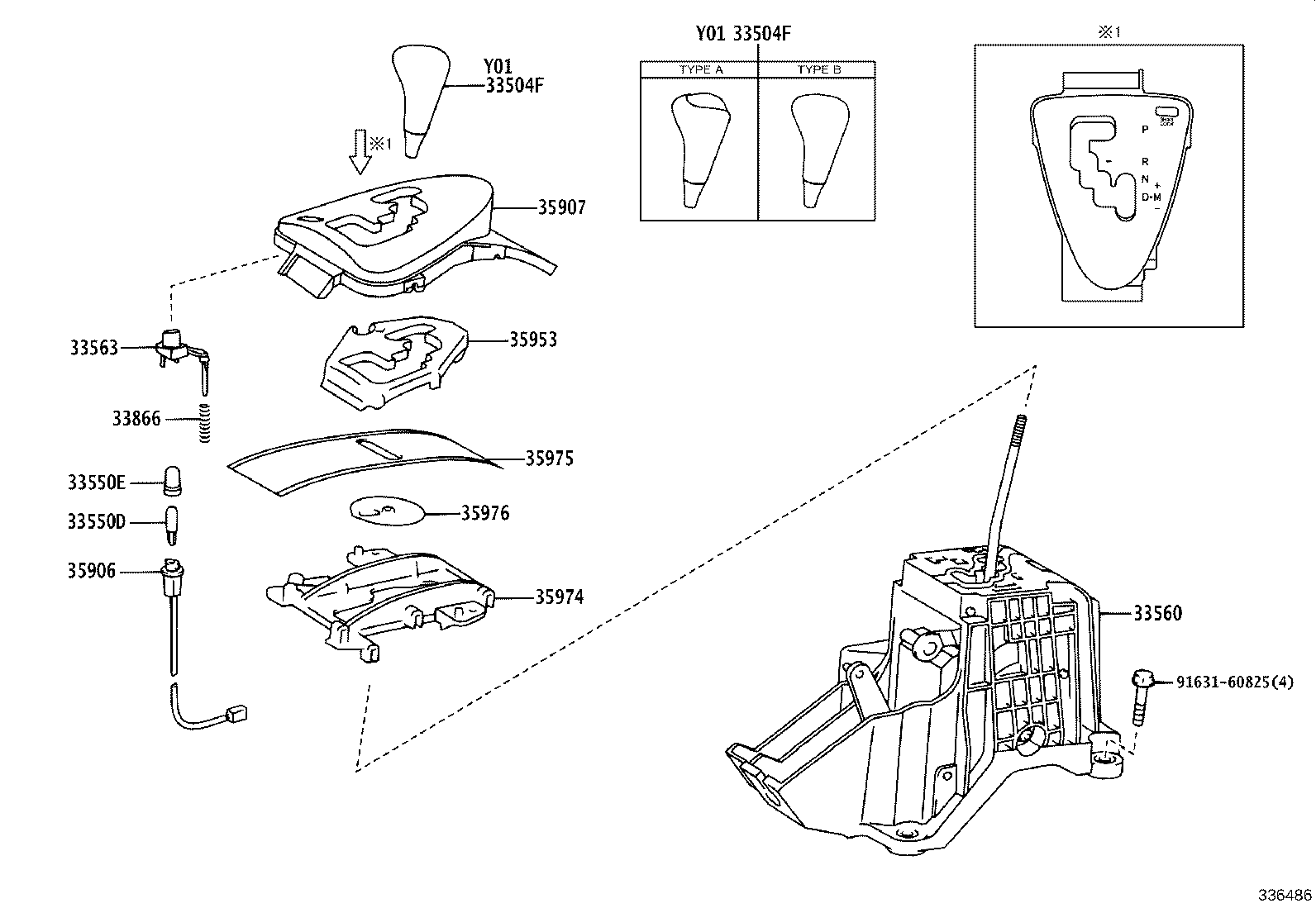

Shift Lever & Retainer
17 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 33504F | Knob Sub-assy, Shift Lever |
| 33550D | Bulb, Position Indicator Lamp |
| 33550E | Cap, Position Indicator Lamp |
| 33560 | Unit Assy, Shift Lock Control |
| 33563 | Button, Shift Lock Release |

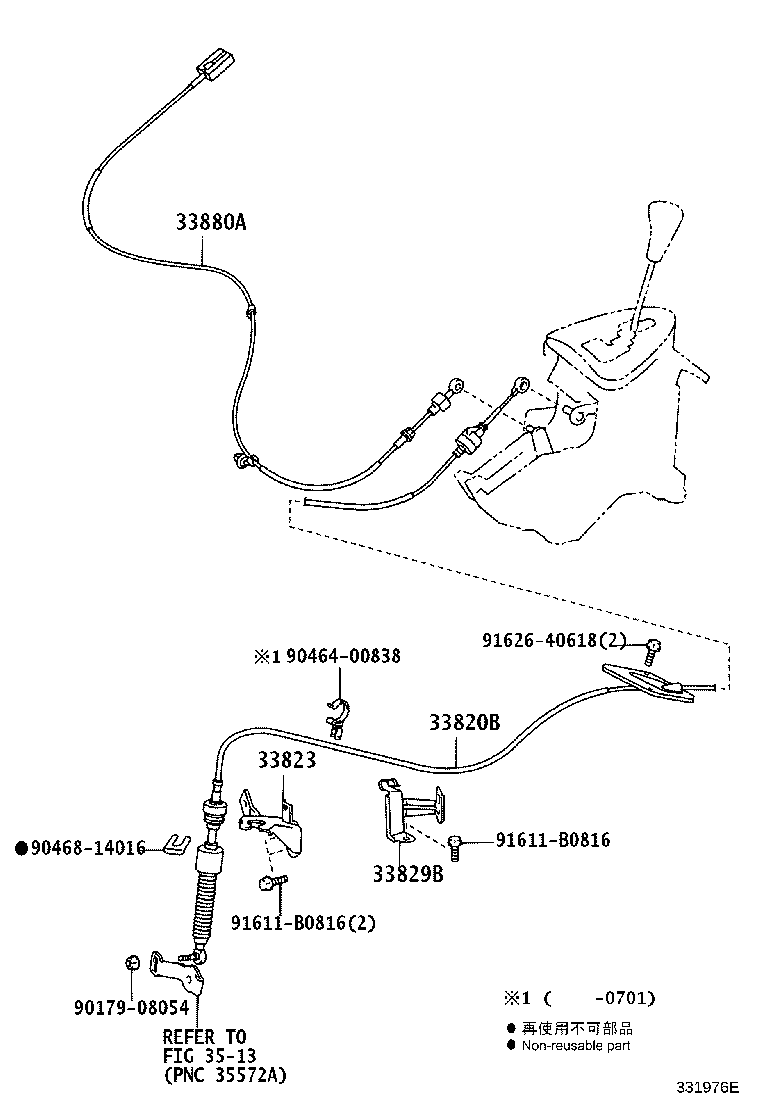

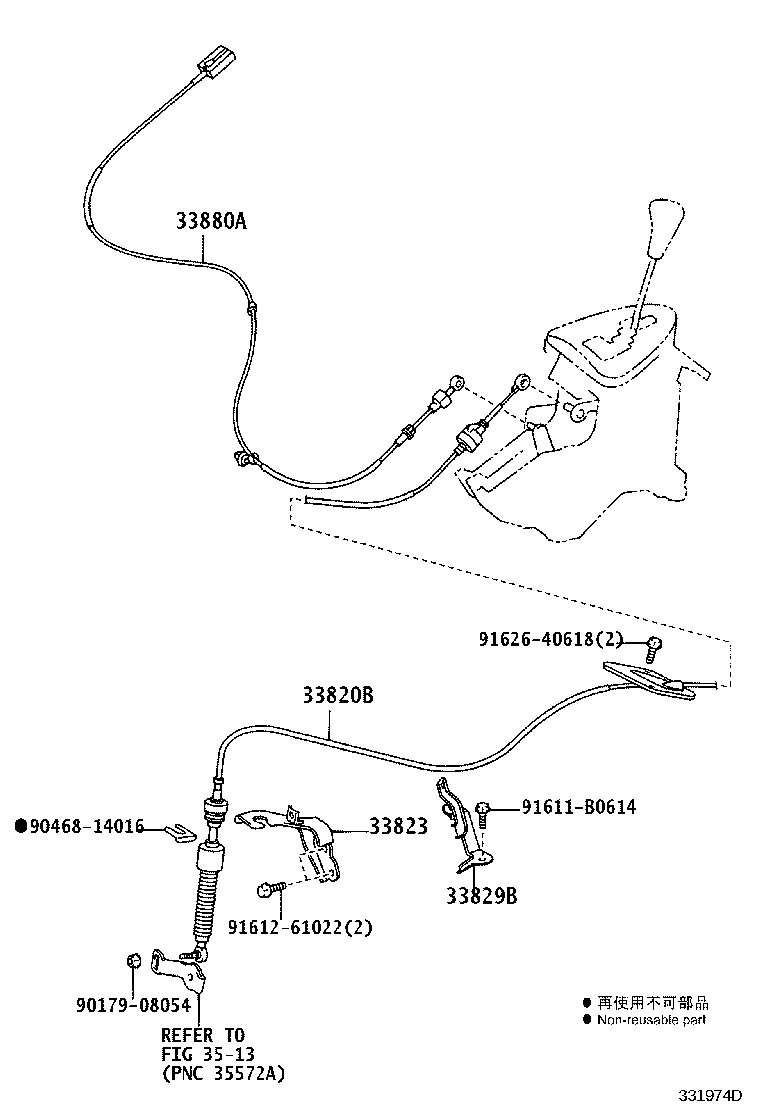

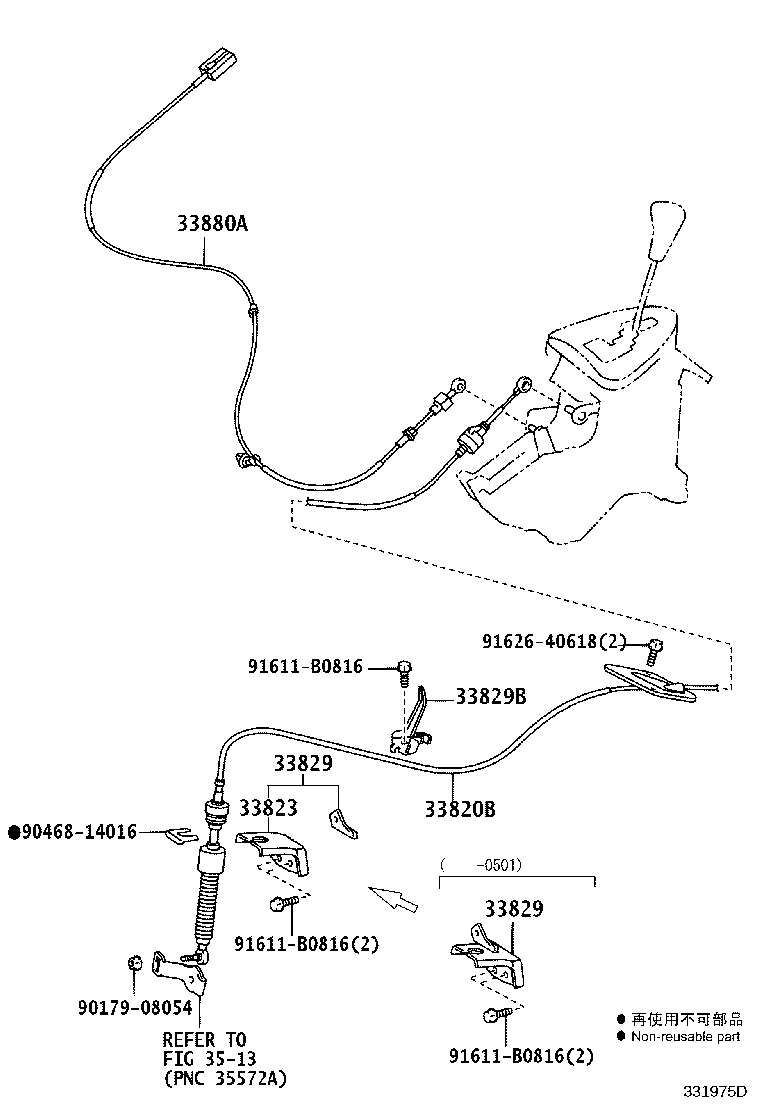

| 33820B | Cable Assy, Transmission Control |
| 33823 | Bracket, Transmission Control Cable, NO.1 |
| 33829 | Support, Transmission Control Cable |
| 33829B | Clamp, Transmission Control Cable |
| 33866 | Spring, Shift Lock Release |
| 33880A | Cable Assy, Parking Lock (FOR FLOOR SHIFT) |
| 35906 | Wire Sub-assy, Indicator Lamp |
| 35907 | Housing Sub-assy, Position Indicator (FOR FLOOR SHIFT) |
| 35953 | Guide, Position Indicator Light |
| 35974 | Housing, Position Indicator, Lower |
| 35975 | Cover, Slide (FOR POSITION INDICATOR) |
| 35976 | Cover, Slide, NO.2 (FOR POSITION INDICATOR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
