Toyota Caldina

2002-09 → 2007-06 · chassis AZT24#,ST246,ZZT241 · catalogue 274150 · Japan

Supported model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (ATM)

3 part groups · 3 illustrations

Illustrations

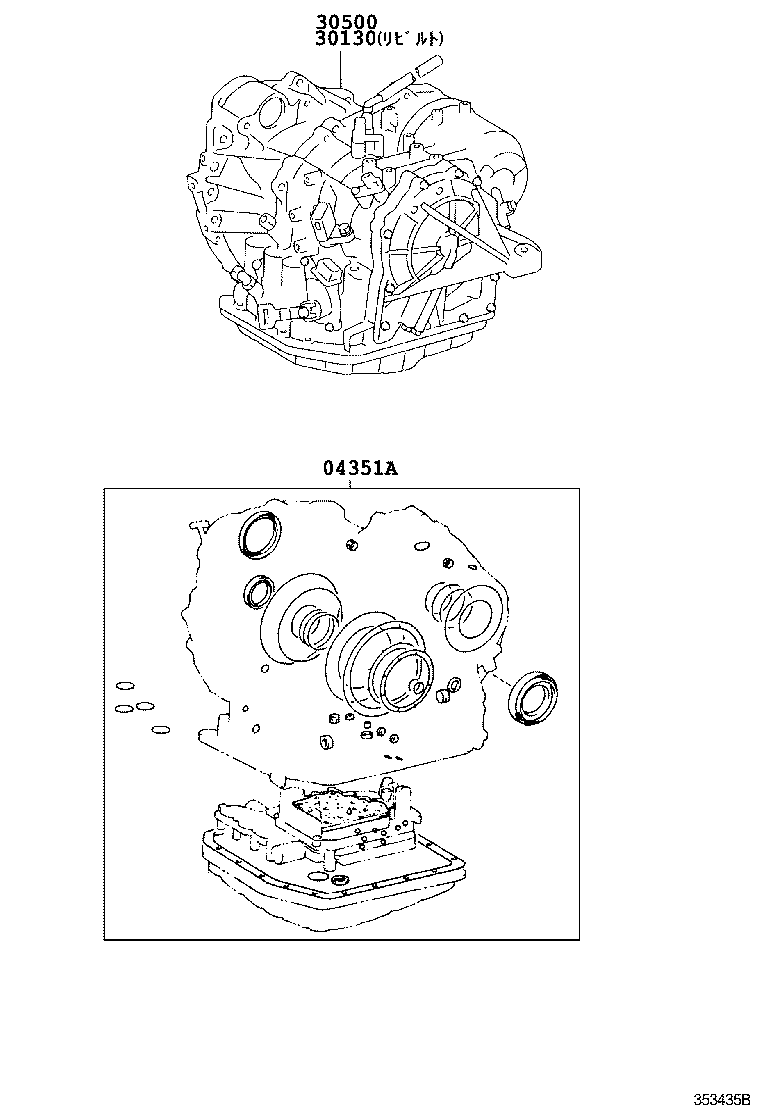

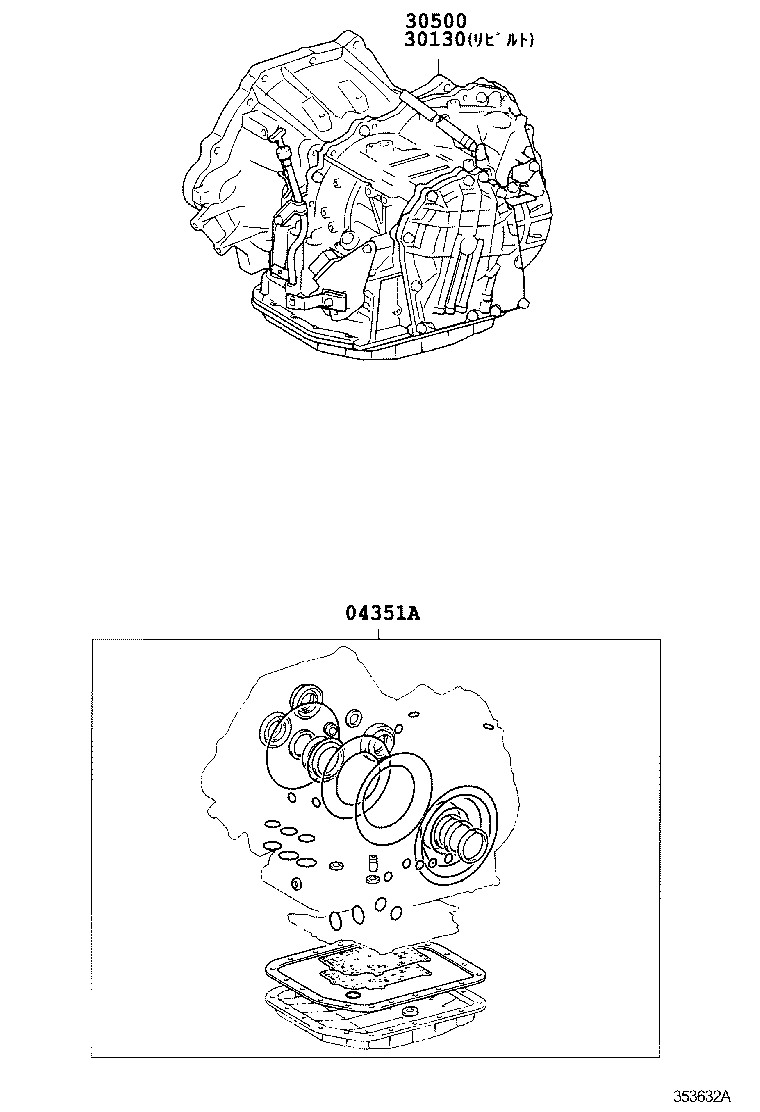

Figure 353548A 353548A 2002-09 → — Figure 353632A 353632A 2002-09 → — Figure 353435B 353435B 2002-09 → —

Part groups

PNCDescription
04351A Gasket Kit, Transaxle Overhaul(ATM)
30130 Transaxle Assy, Rebuilt
30500 Transaxle Assy, Automatic
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
