Toyota Caldina

2002-09 → 2007-06 · chassis AZT24#,ST246,ZZT241 · catalogue 274150 · Japan

Supported model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

13 part groups · 2 illustrations

Illustrations

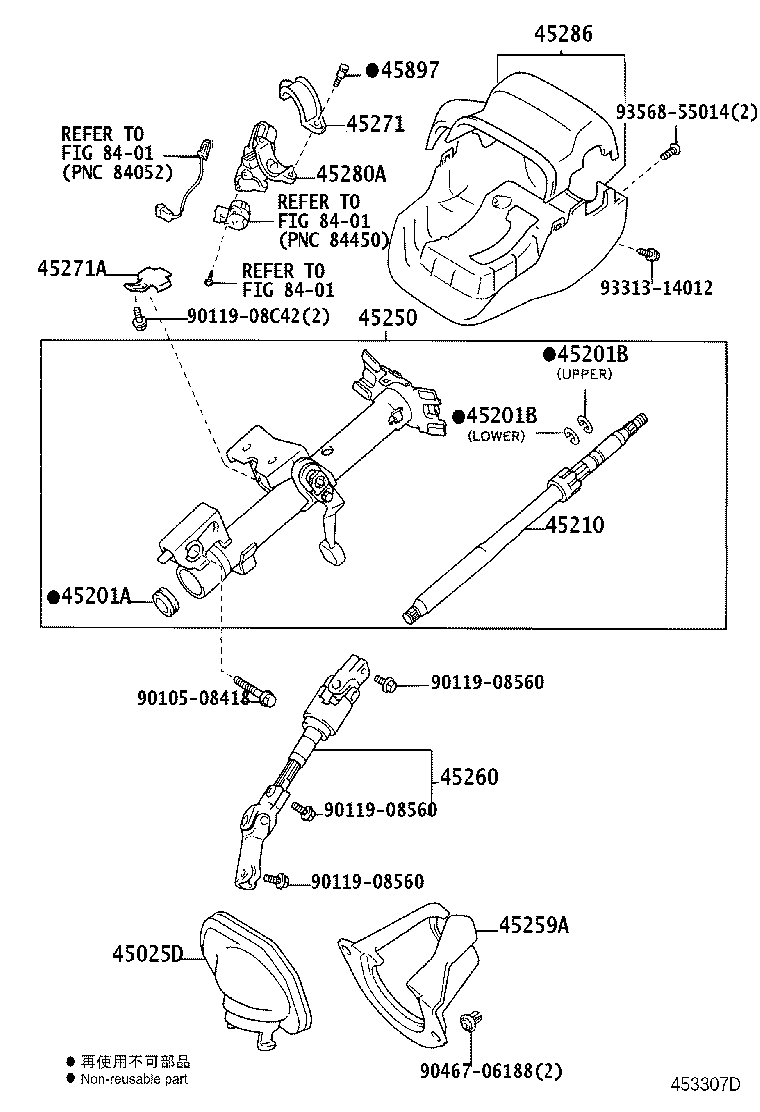

Figure 453306D 453306D 2002-09 → — Figure 453307D 453307D 2002-09 → —

Part groups

PNCDescription
45025D Cover Sub-assy, Steering Column Hole, NO.1
45201A Bearing(FOR STEERING MAIN SHAFT)
45201B Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45210 Shaft Assy, Steering Main
45221 Shaft, Steering Intermediate
45250 Column Assy, Steering
45259A Sheet, Column Hole Cover Silencer
45260 Shaft Assy, Steering Intermediate, NO.2
45271 Clamp, Steering Column, Upper
45271A Clamp, Steering Column, Upper NO.2
45280A Bracket Assy, Steering Column, Upper
45286 Cover, Steering Column
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
