Toyota Caldina

2002-09 → 2007-06 · chassis AZT24#,ST246,ZZT241 · catalogue 274150 · Japan

Supported model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vane Pump & Reservoir (POWER STEERING)

17 part groups · 4 illustrations

Illustrations

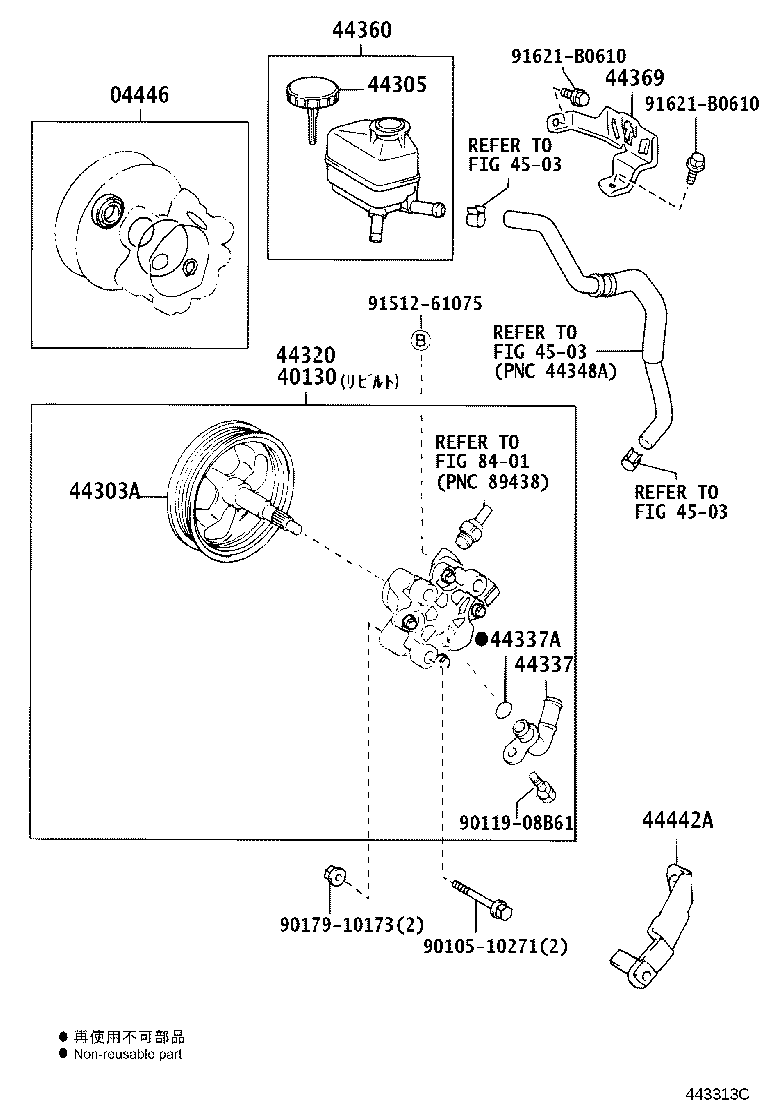

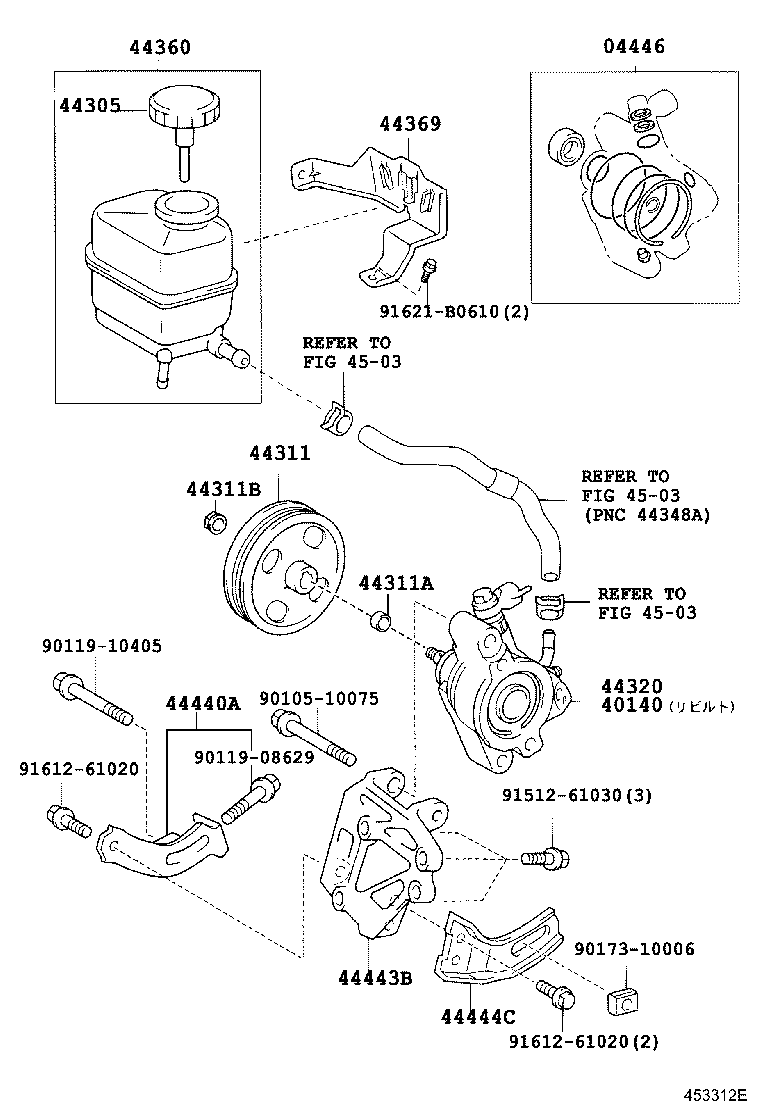

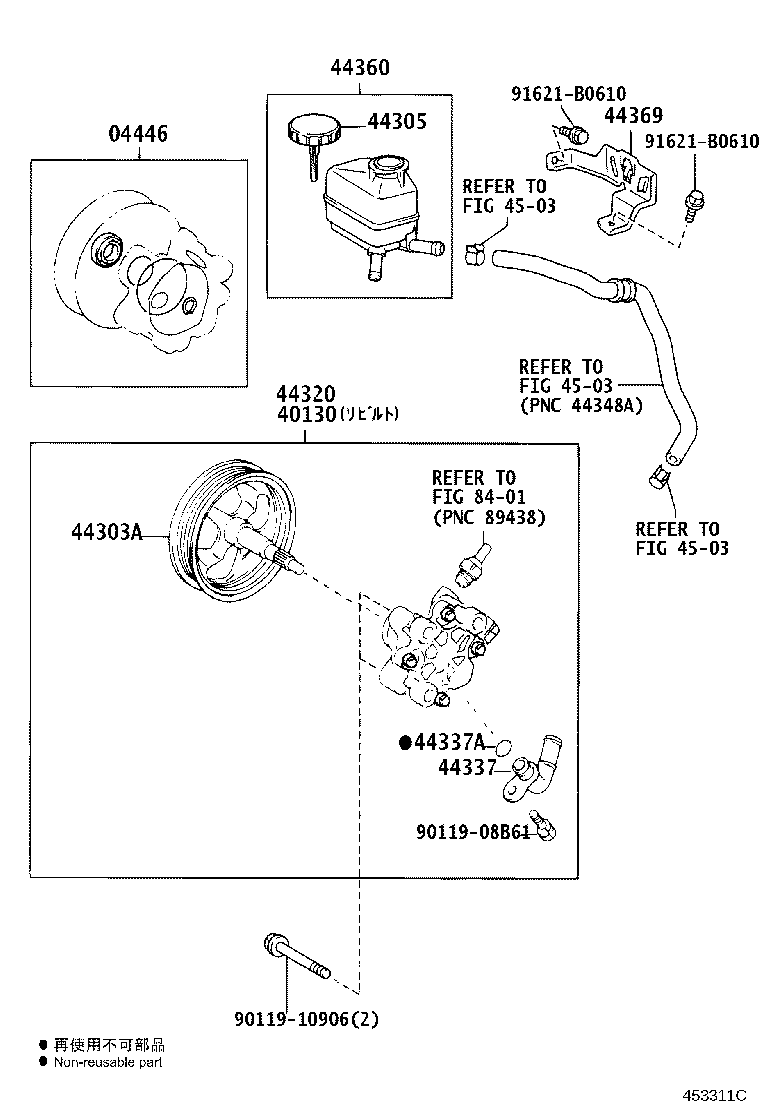

Figure 453310D 453310D 2002-09 → — Figure 453311C 453311C 2002-09 → — Figure 453312E 453312E 2002-09 → — Figure 453313C 453313C 2002-09 → —

Part groups

PNCDescription
04446 Gasket Kit, Power Steering Pump
40130 Pump Assy,Vane Rebuilt
40140 Pump Assy,Vane Rebuilt
44303A Shaft Sub-assy, W/Pulley
44305 Cap Sub-assy, Vane Pump Oil Reservoir
44311 Pulley, Vane Pump
44311A Key, Vane Pump Pulley
44311B Nut(FOR VANE PUMP PULLEY)
44320 Pump Assy, Vane
44337 Union, Power Steering Suction Port
44337A Ring, O(FOR POWER STEERING SUCTION PORT)
44360 Reservoir Assy, Vane Pump Oil
44369 Bracket, Oil Reservoir, NO.1
44440A Bracket Assy, Pump
44442A Bracket, Vane Pump, Rear
44443B Bracket, Vane Pump
44444C Stay, Vane Pump, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
