Toyota Caldina

2002-09 → 2007-06 · chassis AZT24#,ST246,ZZT241 · catalogue 274150 · Japan

Supported model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

7 part groups · 4 illustrations

Illustrations

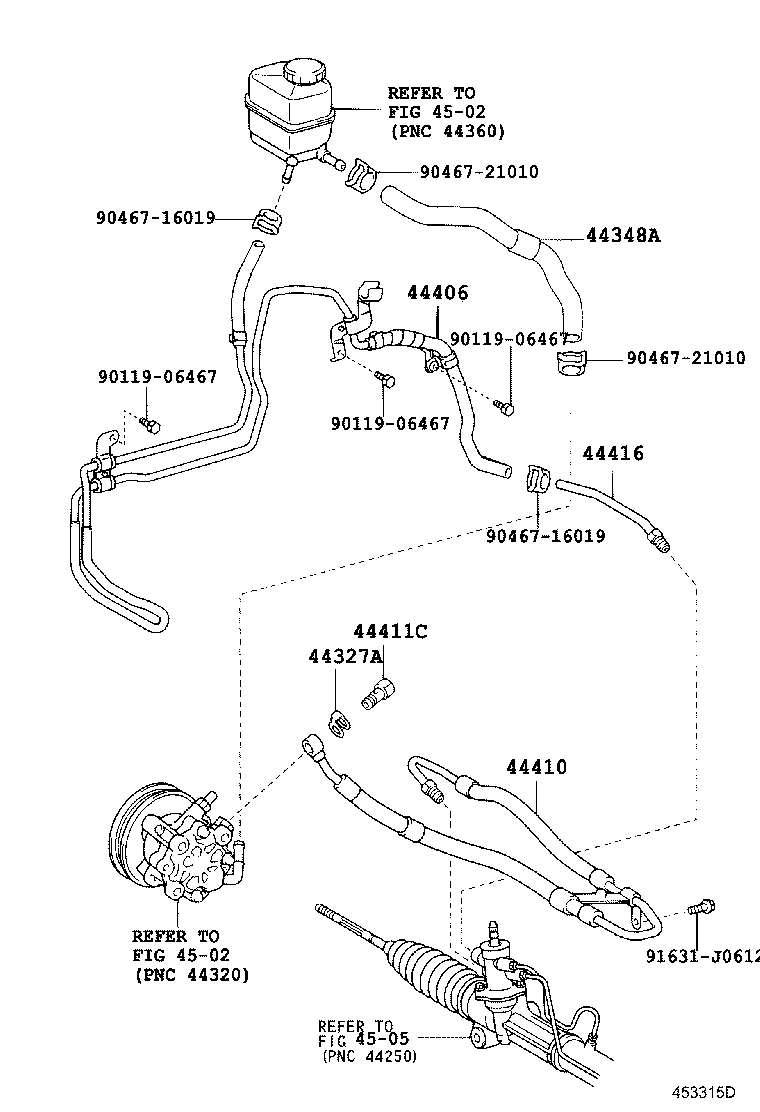

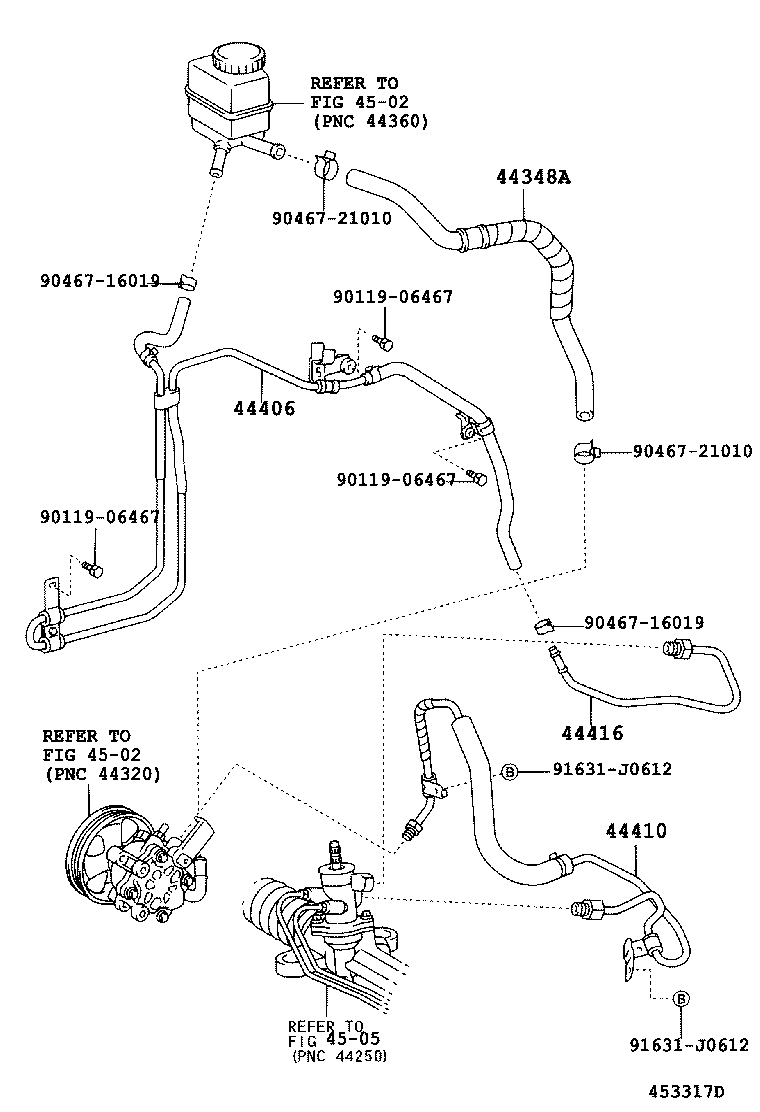

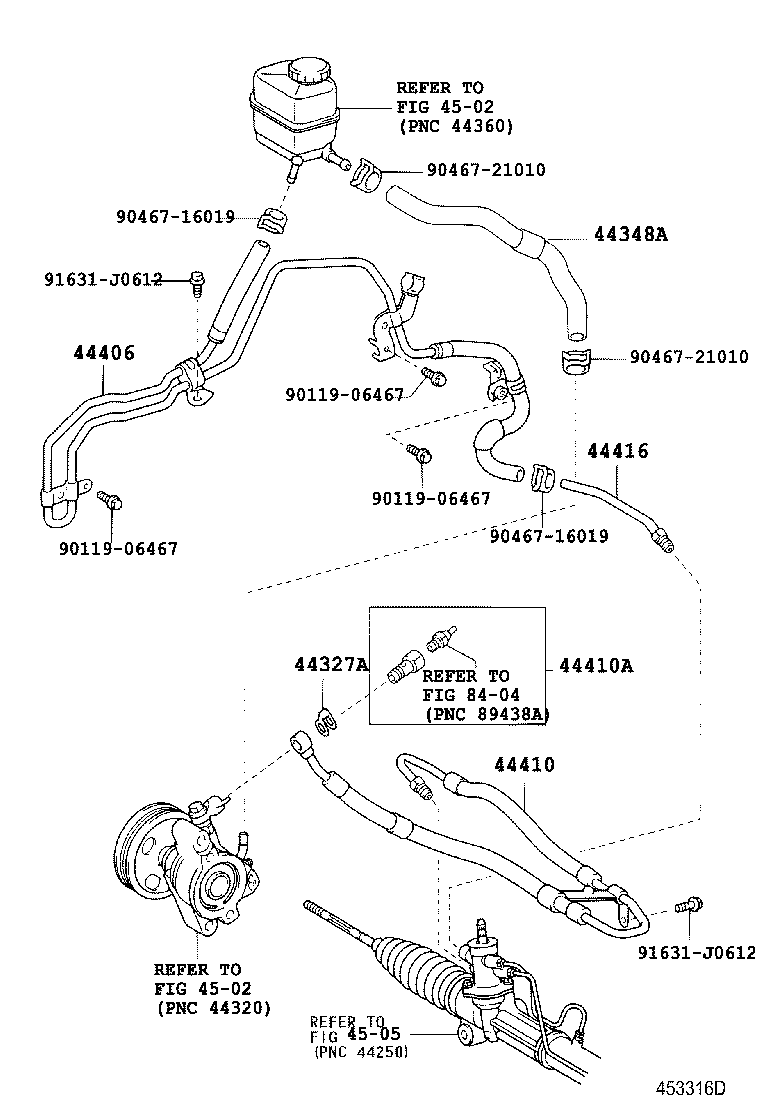

Figure 453314D 453314D 2002-09 → — Figure 453315D 453315D 2002-09 → — Figure 453316D 453316D 2002-09 → — Figure 453317D 453317D 2002-09 → —

Part groups

PNCDescription
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44416 Tube, Return(FOR STEERING GEAR OUTLET)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
