Toyota Caldina

2002-09 → 2007-06 · chassis AZT24#,ST246,ZZT241 · catalogue 274150 · Japan

Supported model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

15 part groups · 3 illustrations

Illustrations

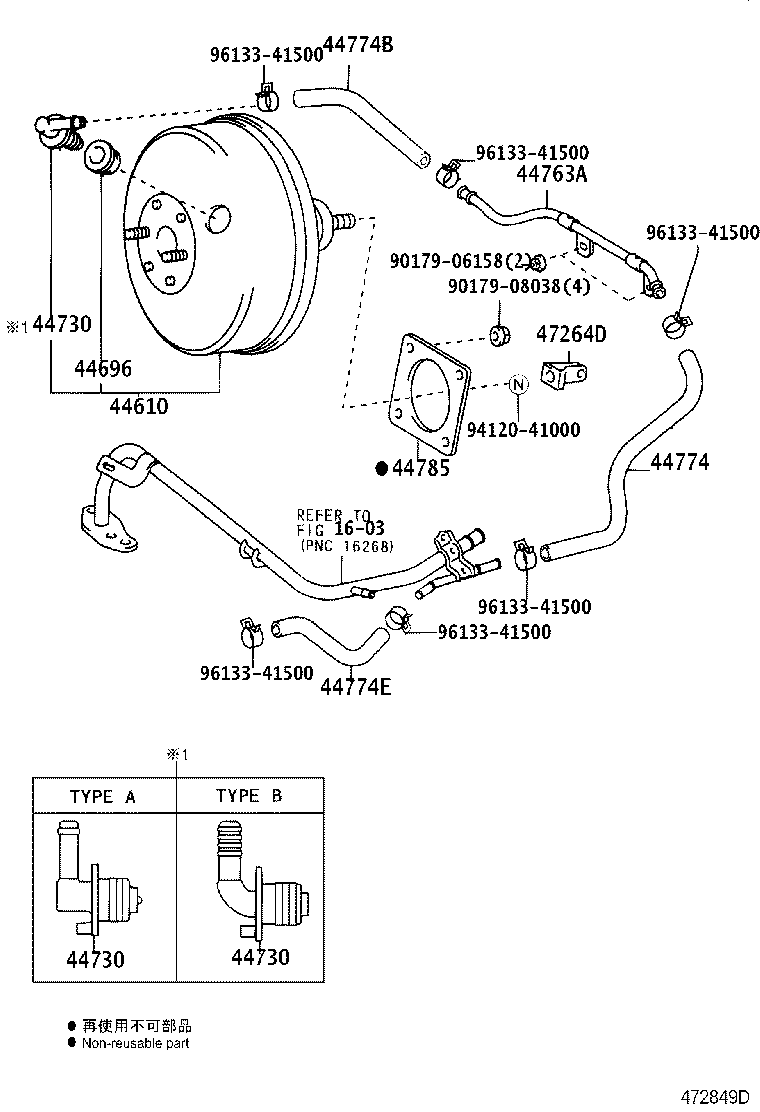

Figure 472848E 472848E 2002-09 → — Figure 473233B 473233B 2002-09 → — Figure 472849D 472849D 2002-09 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730F Union, Vacuum Hose(FOR MANIFOLD SIDE)
44730R Bolt, Union(FOR VACUUM HOSE UNION)
44730S Gasket(FOR VACUUM HOSE UNION)
44758 Bracket, Vacuum Check Valve
44763A Tube, Hose TO Hose, NO.1
44773F Hose, Union TO Check Valve
44774 Hose, Union TO Connector Tube
44774B Hose, Union TO Connector Tube
44774E Hose, Union TO Connector Tube
44776 Hose, Brake Booster
44785 Gasket, Brake Booster
47264D Clevis, Brake Master Cylinder Push Rod
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
