Toyota Caldina

2002-09 → 2007-06 · chassis AZT24#,ST246,ZZT241 · catalogue 274150 · Japan

Supported model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

21 part groups · 2 illustrations

Illustrations

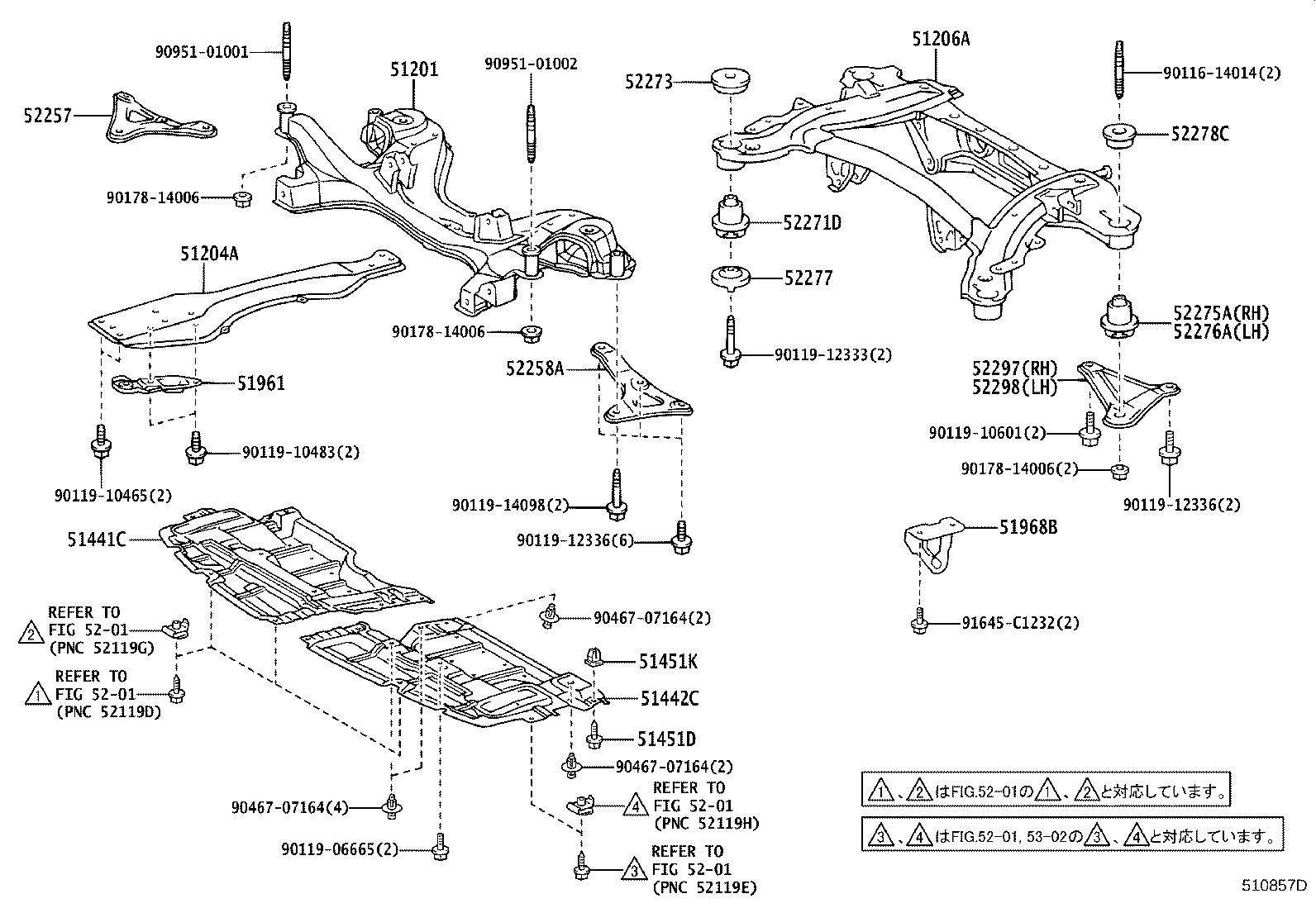

Figure 510858E 510858E 2002-09 → — Figure 510857D 510857D 2002-09 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51204A Member Sub-assy, Engine Mounting, Center
51206A Member Sub-assy, Rear Suspension
51441C Cover, Engine Under, RH
51442C Cover, Engine Under, LH
51451D Screw, NO.1
51451K Grommet, Screw, NO.1
51961 Hook, NO.1
51968B Hook, Transport, Rear LH
52257 Brace, Front Suspension Member, Rear RH
52258A Brace, Front Suspension Member, Rear LH
52271D Cushion, Rear Suspension Member Body Mounting, Front
52272 Stopper, Rear Suspension Member, Upper
52273 Stopper, Rear Suspension Member, Lower
52274A Stopper, Rear Suspension Member, Lower LH
52275A Cushion, Rear Suspension Member Body Mounting, Rear
52276A Cushion, Rear Suspension Member Body Mount, Rear LH
52277 Retainer, Rear Suspension Member Lower Stopper, RH
52278C Stopper, Rear Suspension Member, Rear Lower
52297 Brace, Rear Suspension Member, Rear Lower RH
52298 Brace, Rear Suspension Member, Rear Lower LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
