Rear Bumper & Bumper Stay

10 part groups · 2 illustrations

Illustrations

Figure 520922J

520922J 2002-09 → 2005-01

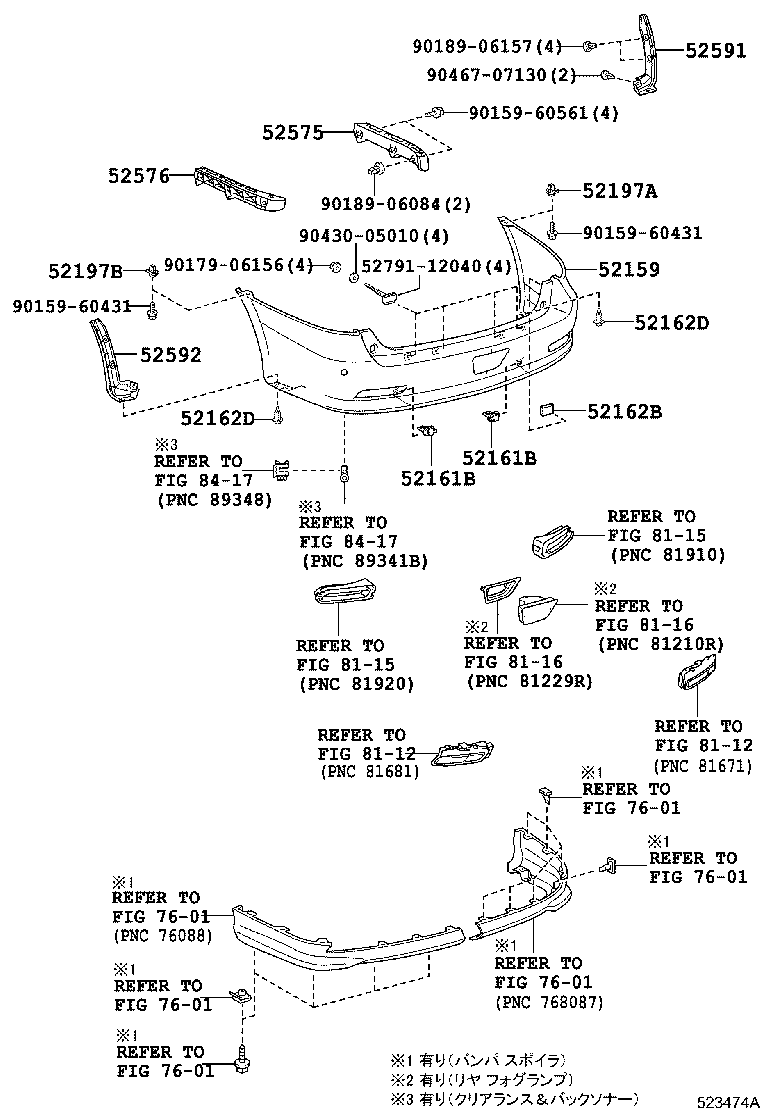

Figure 523474A

523474A 2005-01 → —

Part groups

PNC	Description
52159	Cover, Rear Bumper
52161B	Piece, Rear Bumper
52162B	Plate, Rear Bumper, NO.1
52162D	Piece, Rear Bumper
52197A	Bracket, Rear Bumper Seal, RH
52197B	Bracket, Rear Bumper Seal, LH
52575	Retainer, Rear Bumper Side, RH
52576	Retainer, Rear Bumper Side, LH
52591	Seal, Rear Bumper Side, RH
52592	Seal, Rear Bumper Side, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
