Toyota Caldina

2002-09 → 2007-06 · chassis AZT24#,ST246,ZZT241 · catalogue 274150 · Japan

Supported model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

25 part groups · 2 illustrations

Illustrations

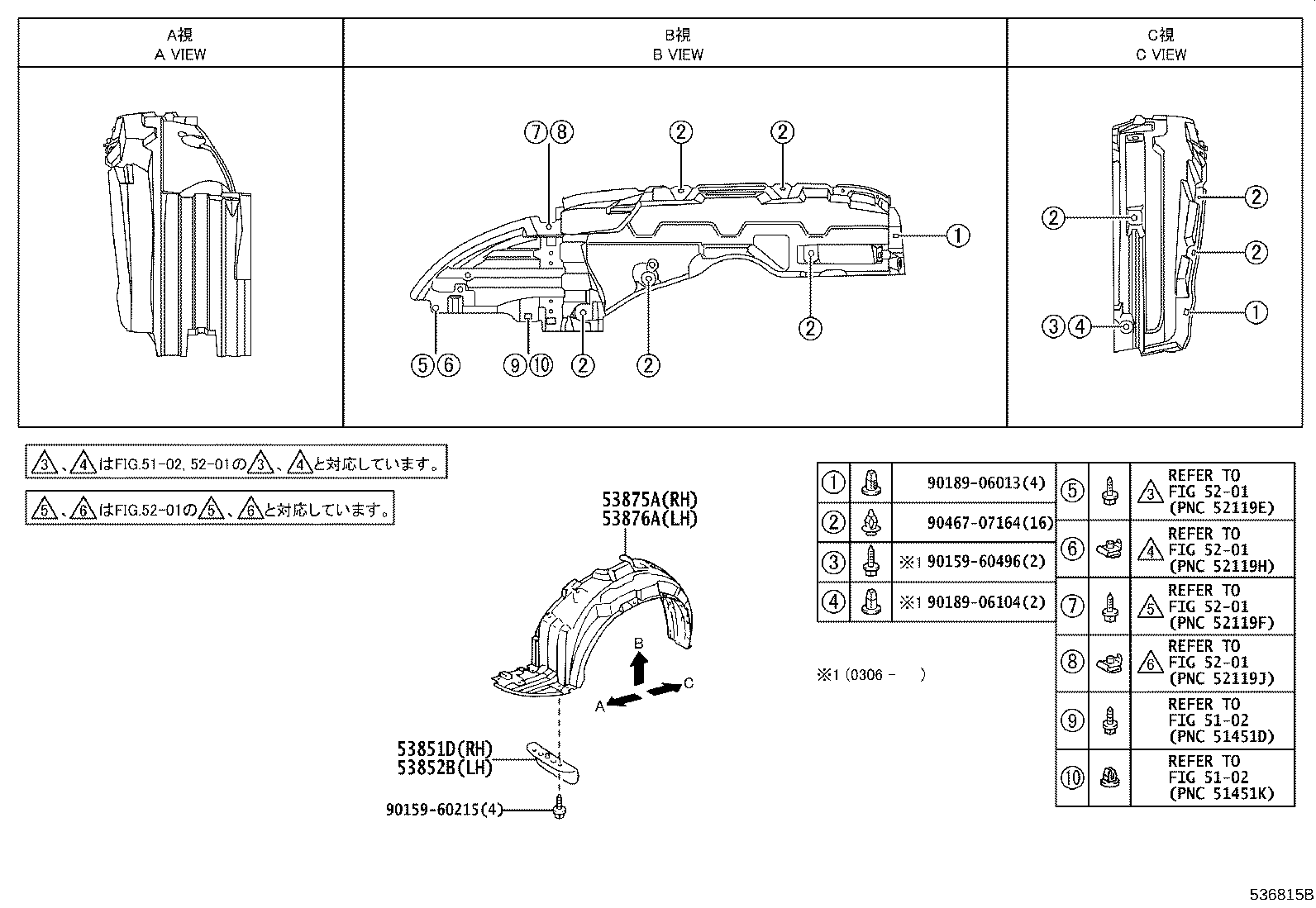

Figure 531374K 531374K 2002-09 → — Figure 536815B 536815B 2002-09 → —

Part groups

PNCDescription
53153K Guide, Radiator Grille Side Air, RH
53154L Guide, Radiator Grille Side Air, LH
53301 Hood Sub-assy
53341B Insulator, Hood
53381 Seal, Hood TO Radiator Support
53388D Seal, Hood TO Front Fender, RH
53389B Seal, Hood TO Front Fender, LH
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53825A Protector, Front Fender, Upper RH
53826A Protector, Front Fender, Upper LH
53827L Protector, Front Fender Side Panel, RH
53828K Protector, Front Fender Side Panel, LH
53851D Pad, Front Wheel Opening Extension, RH
53852B Pad, Front Wheel Opening Extension, LH
53875A Liner, Front Fender, RH
53876A Liner, Front Fender, LH
53878K Spacer, Front Fender, RH
53879E Spacer, Front Fender, LH
76109 Guide Sub-assy, Hood Air Intake
76181 Bulge, Hood
76183 Protector, Hood Bulge, NO.1
76184 Protector, Hood Bulge, NO.2
76185 Protector, Hood Bulge, NO.3
76187 Retainer, Hood Air Intake Guide, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
