Toyota Caldina
2002-09 → 2007-06 · chassis AZT24#,ST246,ZZT241 · catalogue 274150 · Japan
Supported model
Data version 2008-04
Instrument Panel & Glove Compartment
31 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

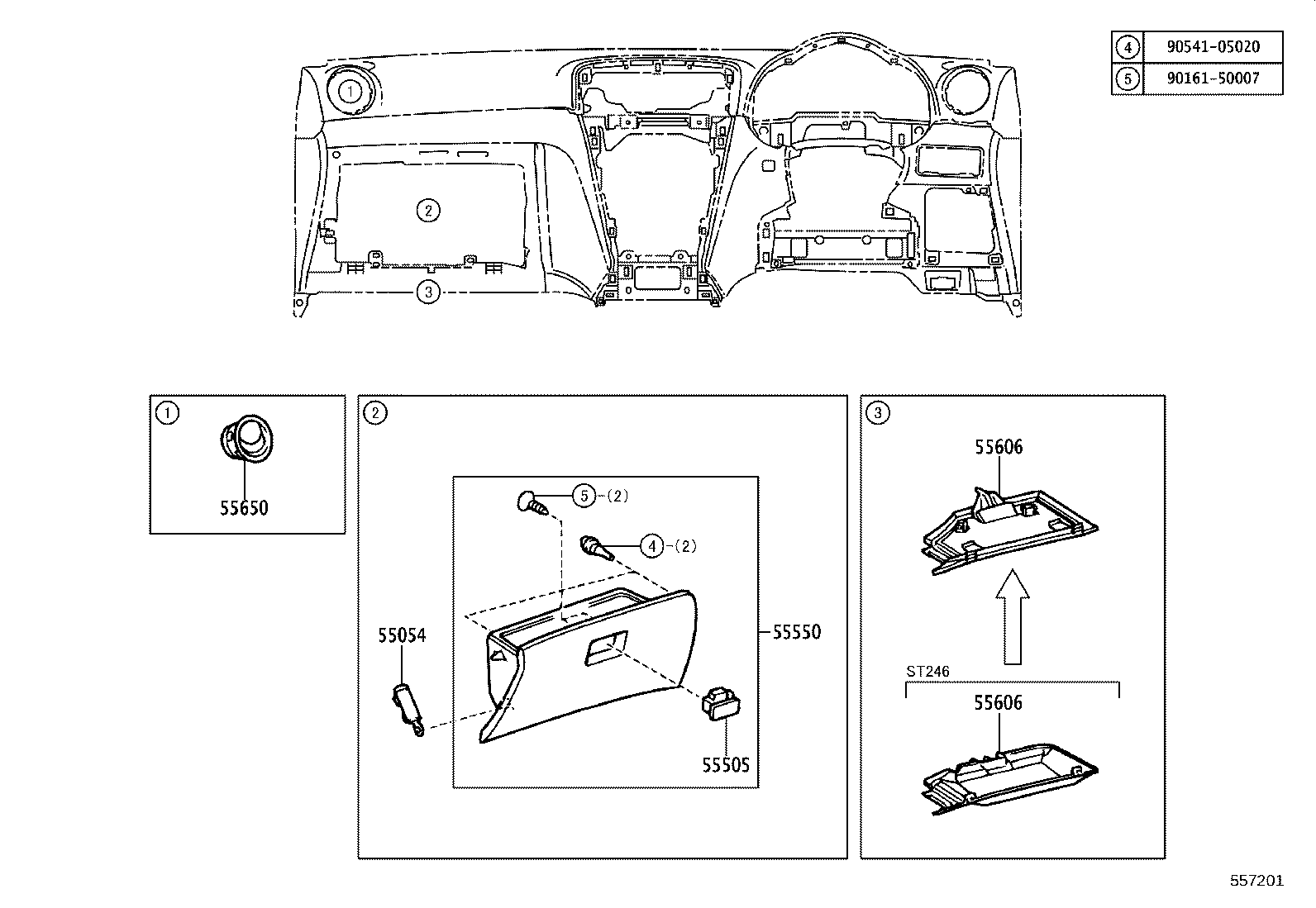

| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55244B | Silencer, Front Panel Side, NO.2 |
| 55302A | Panel Sub-assy, Instrument, Upper |
| 55303B | Panel Sub-assy, Instrument, Lower |
| 55306B | Brace Sub-assy, Instrument Panel TO Cowl |
| 55307C | Brace Sub-assy, Instrument Panel, NO.2 |
| 55331 | Reinforcement, Instrument Panel |
| 55343B | Brace, Instrument Panel TO Cowl, Center |
| 55356C | Cushion, Instrument Panel, NO.2 |
| 55406B | Panel Sub-assy, Instrument Cluster Finish, Lower Center |

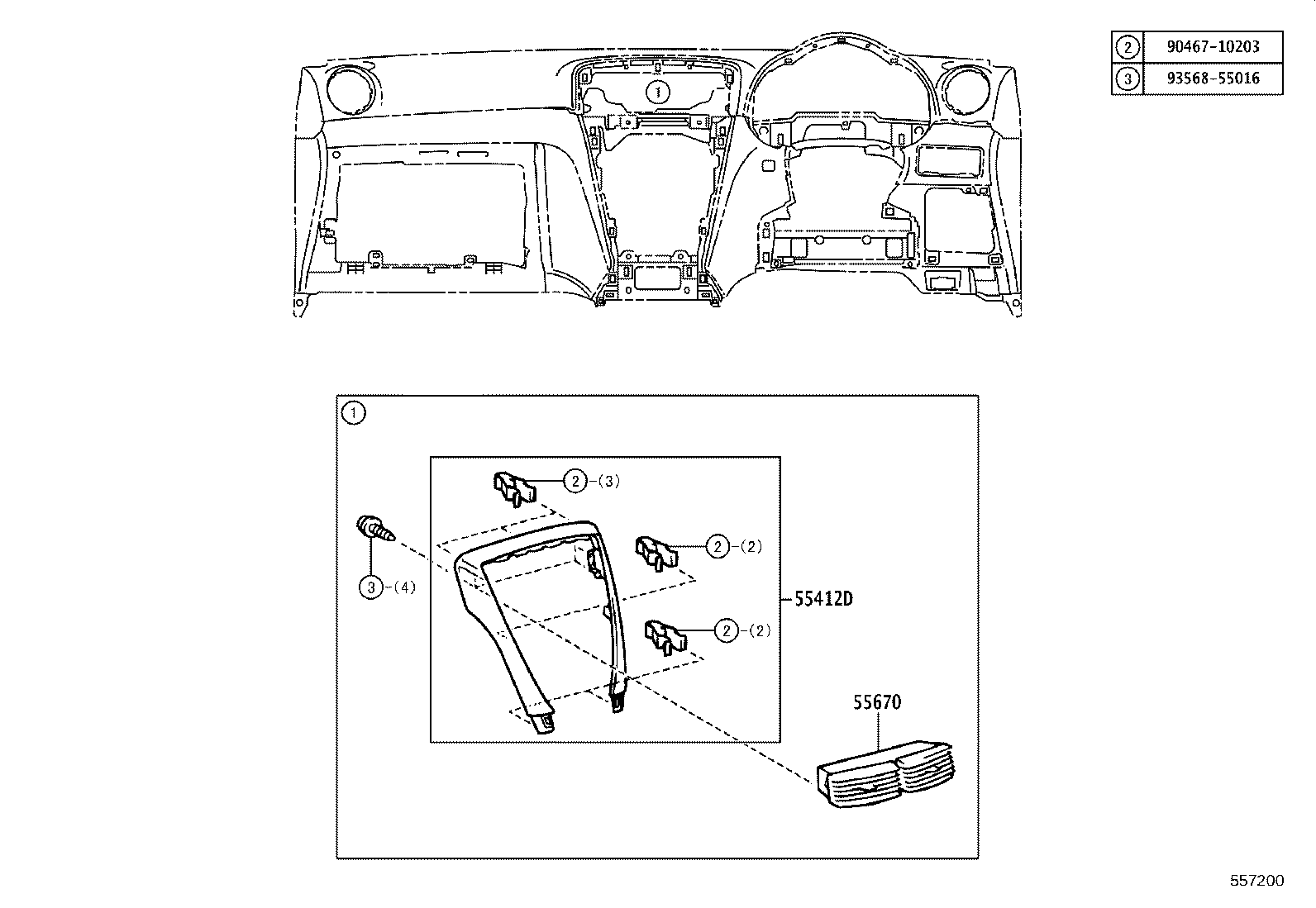

| 55412D | Panel, Instrument Cluster Finish, Center |

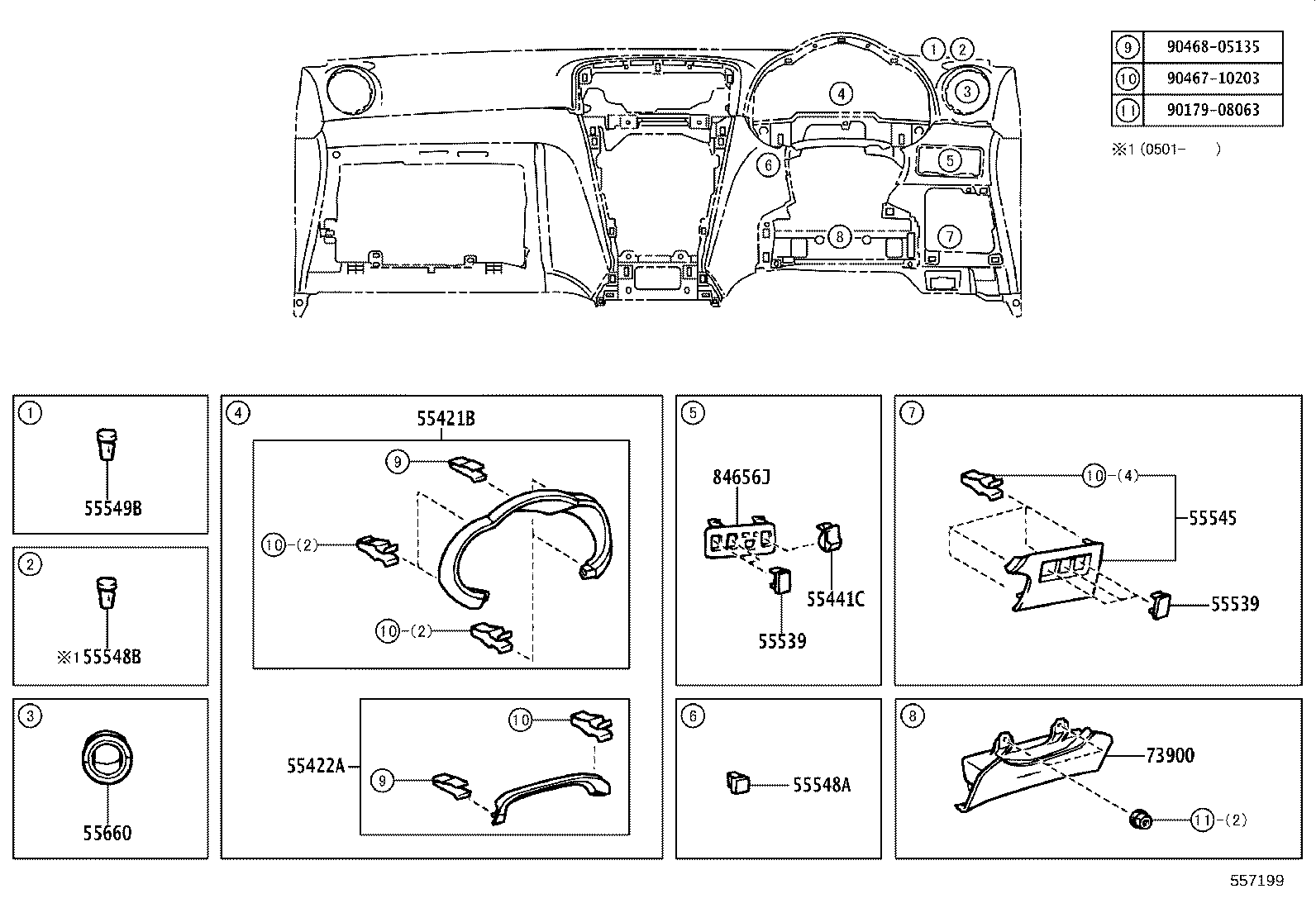

| 55421B | Panel, Instrument Cluster Finish, Upper |
| 55422A | Panel, Instrument Cluster Finish, Lower |
| 55441C | Box, Instrument Panel Coin |
| 55505 | Lock Sub-assy, Glove Compartment Door |
| 55539 | Cover, Spare Switch Hole |
| 55545 | Cover, Fuse Box Opening |
| 55548A | Cover, Instrument Panel Hole |
| 55548B | Cover, Instrument Panel Hole |
| 55549B | Cover, Instrument Panel Hole, NO.2 |
| 55550 | Door Assy, Glove Compartment |
| 55561A | Striker, Glove Compartment Door Lock |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55961A | Nozzle, Side Defroster, RH |
| 55962B | Nozzle, Side Defroster, LH |
| 73900 | Airbag Assy, Instrument Panel, Lower NO.1 |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
| 84656J | Cover, Bezel Switch Hole |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
