Toyota Caldina

2002-09 → 2007-06 · chassis AZT24#,ST246,ZZT241 · catalogue 274150 · Japan

Supported model Data version 2008-04

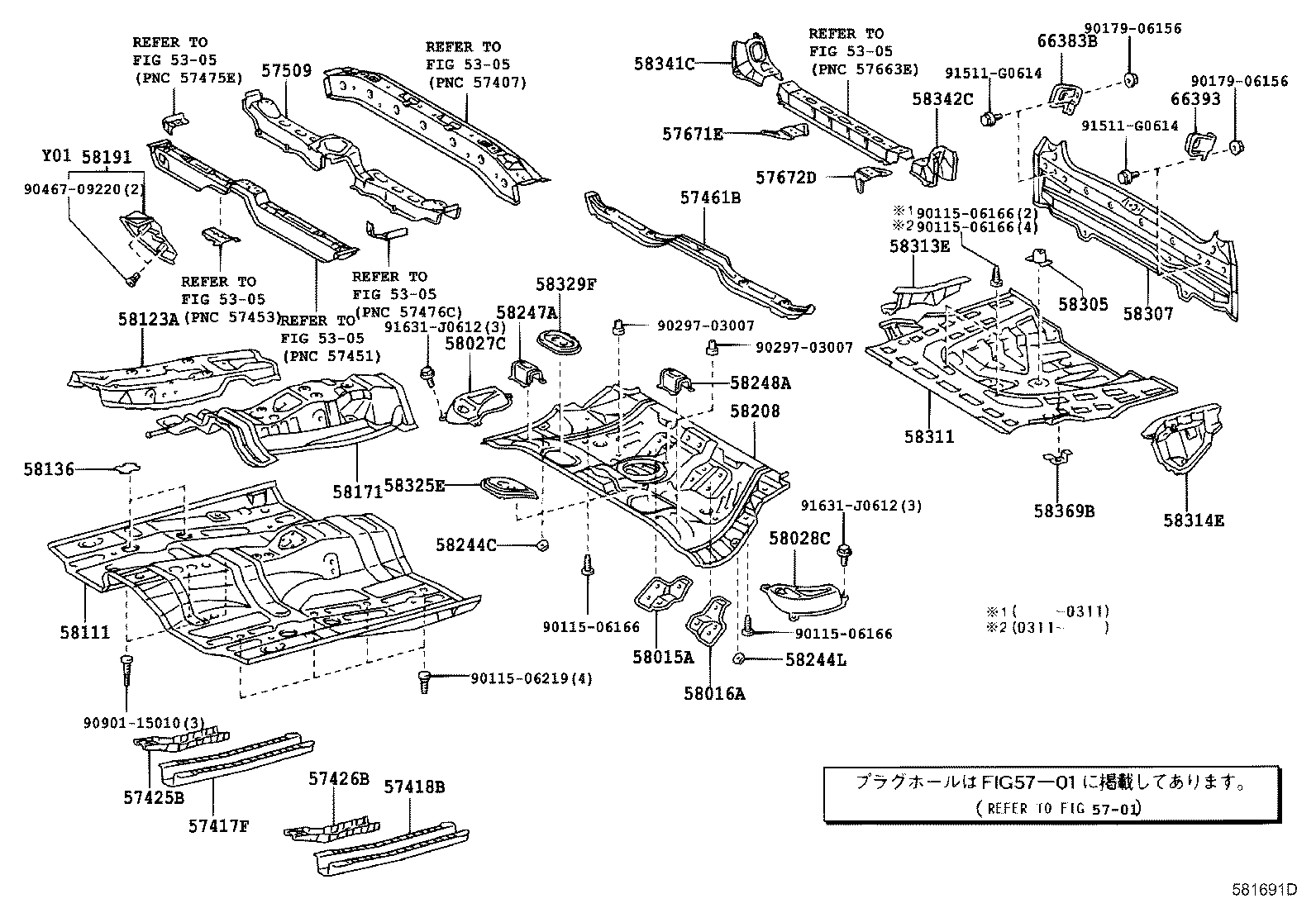

Floor Pan & Lower Back Panel

37 part groups · 2 illustrations

PNC	Description
57417F	Reinforcement, Front Floor Under, RH
57418B	Reinforcement, Front Floor Under, LH
57425B	Reinforcement, Front Floor, NO.2 RH
57426B	Reinforcement, Front Floor, NO.2 LH
57435E	Member, Center Floor Side, RH
57436D	Member, Center Floor Side, LH
57461B	Member Sub-assy, Center Floor Cross, NO.1
57509	Reinforcement Sub-assy, Front Floor, Center
57671E	Bracket, Rear Seatback Hinge Mounting, RH
57672D	Bracket, Rear Seatback Hinge Mounting, LH
58015A	Reinforce Sub-assy, Belt Anchor, NO.3 RH
58016A	Reinforce Sub-assy, Belt Anchor, NO.3 LH
58027C	Panel Sub-assy, Center Floor Side, RH
58028C	Panel Sub-assy, Center Floor Side, LH
58111	Pan, Front Floor
58123A	Support, Shift & Select Lever
58136	Cover, Front Floor Hole
58171	Reinforcement, Parking Brake Base
58191	Footrest, Front Floor
58208	Pan, Center Floor
58244C	Bracket, Rear Seat Cushion Mounting, RH
58244L	Bracket, Rear Seat Cushion Mounting, RH
58247A	Reinforcement, Rear Seat Cushion Hinge, RH
58248A	Reinforcement, Rear Seat Cushion Hinge, LH
58251B	Brace, Floor Panel, Front
58305	Bracket Sub-assy, Spare Wheel Clamp
58307	Panel Sub-assy, Body Lower Back
58311	Pan, Rear Floor
58313E	Extension, Rear Floor Side Panel, RH
58314E	Extension, Rear Floor Side Panel, LH
58325E	Cover, Rear Floor Service Hole
58329F	Cover, Rear Floor Service Hole, NO.2
58341C	Bracket, Rear Absorber Mounting, NO.1 RH
58342C	Bracket, Rear Absorber Mounting, NO.1 LH
58369B	Bracket, Fuel Tube, NO.3
66383B	Bracket, Rope Hook, NO.1 RH
66393	Bracket, Rope Hook, NO.1 LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
