Toyota Caldina
2002-09 → 2007-06 · chassis AZT24#,ST246,ZZT241 · catalogue 274150 · Japan
Supported model
Data version 2008-04

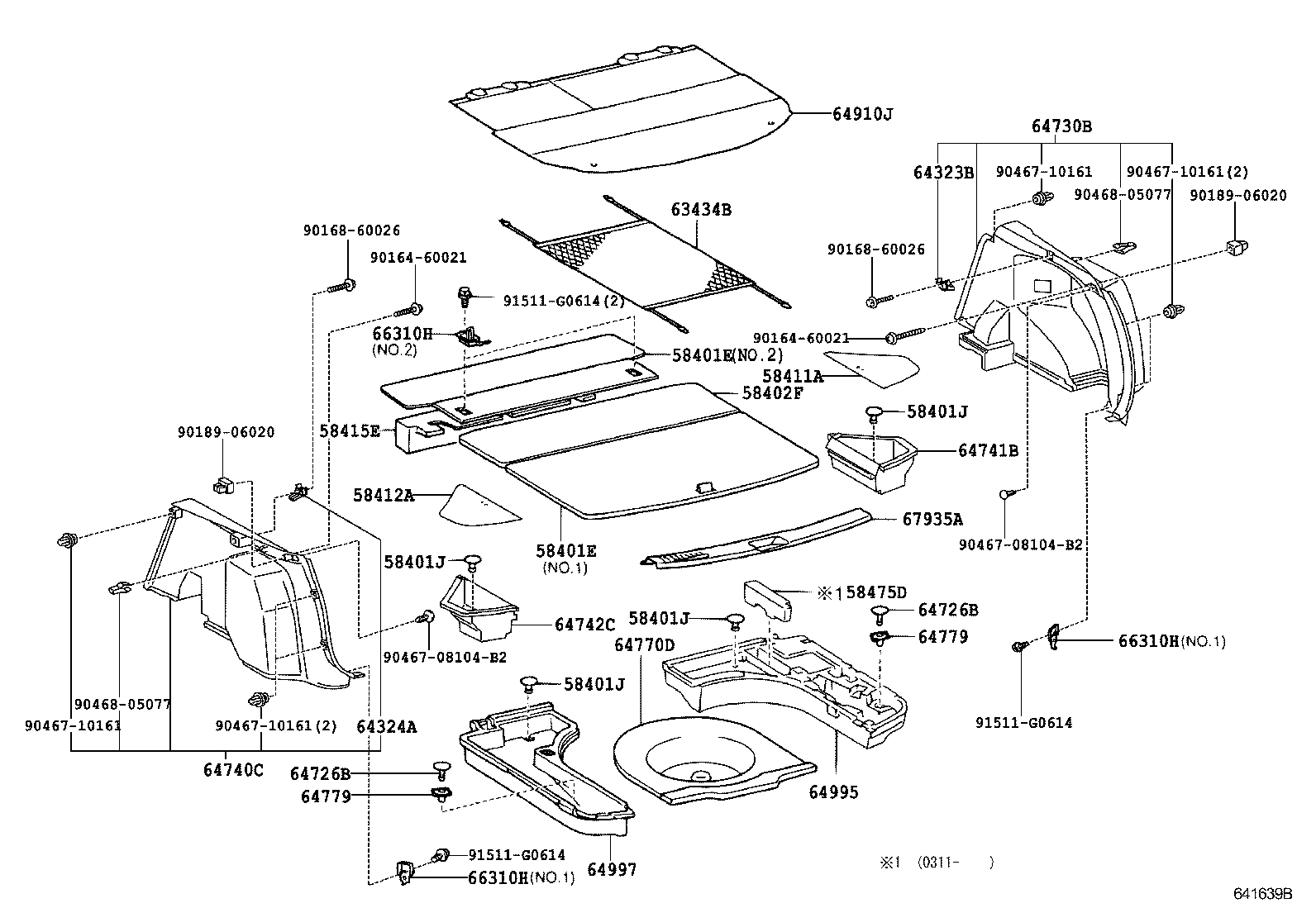

Deck Board & Deck Trim Cover
38 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 58401E | Board Sub-assy, Deck |
| 58401J | Clip(FOR DECK BOAD) |
| 58402F | Board Sub-assy, Rear Floor, NO.2 |
| 58411A | Board, Deck, NO.1 |
| 58412A | Board, Deck, NO.2 |
| 58415E | Board, Rear Floor, NO.1 |
| 58475D | Cover, Ecu Service |
| 63434B | Net, Room Rack |
| 64230 | Net Assy, Room Partition |
| 64231B | Hook, Room Partition Net, Front RH |
| 64232B | Hook, Room Partition Net, Front LH |
| 64233C | Hook, Room Partition Net, Rear RH |
| 64234C | Hook, Room Partition Net, Rear LH |
| 64323B | Clamp, Tonneau Cover |
| 64324A | Clamp, Package Tray Trim, LH |
| 64703B | Panel Assy, Deck Trim Side, RH |
| 64704 | Cover Sub-assy, Deck Side Trim, LH |
| 64707C | Knob, Jack Cover |
| 64707G | Stopper, Jack Cover |
| 64725F | Hook, Luggage Compartment Trim, NO.1 |
| 64725H | Hook, Quarter Trim, |
| 64726B | Clip, Deck Rear Trim |
| 64730B | Panel Assy, Deck Trim Side, RH |
| 64740C | Panel Assy, Deck Trim Side, LH |
| 64741B | Box, Deck Side Trim, RH |
| 64742C | Box, Deck Side Trim, LH |
| 64770D | Cover Assy, Spare Wheel |
| 64779 | Tray, Spare Wheel Cover |
| 64786A | Plate, Jack Cover |
| 64910J | Cover Assy, Tonneau |
| 64937A | Cap, Tonneau Cover Holder, NO.1 |
| 64938 | Hook, Tonneau Cover, A |
| 64955 | Clamp, Tonneau Cover Sub |
| 64995 | Box, Deck Floor, RH |
| 64997 | Box, Deck Floor, LH |
| 66310H | Hook Assy, Rope |
| 66311 | Hook, Rope |
| 67935A | Plate, Back Door Scuff |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
