Toyota Caldina

2002-09 → 2007-06 · chassis AZT24#,ST246,ZZT241 · catalogue 274150 · Japan

Supported model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

23 part groups · 3 illustrations

Illustrations

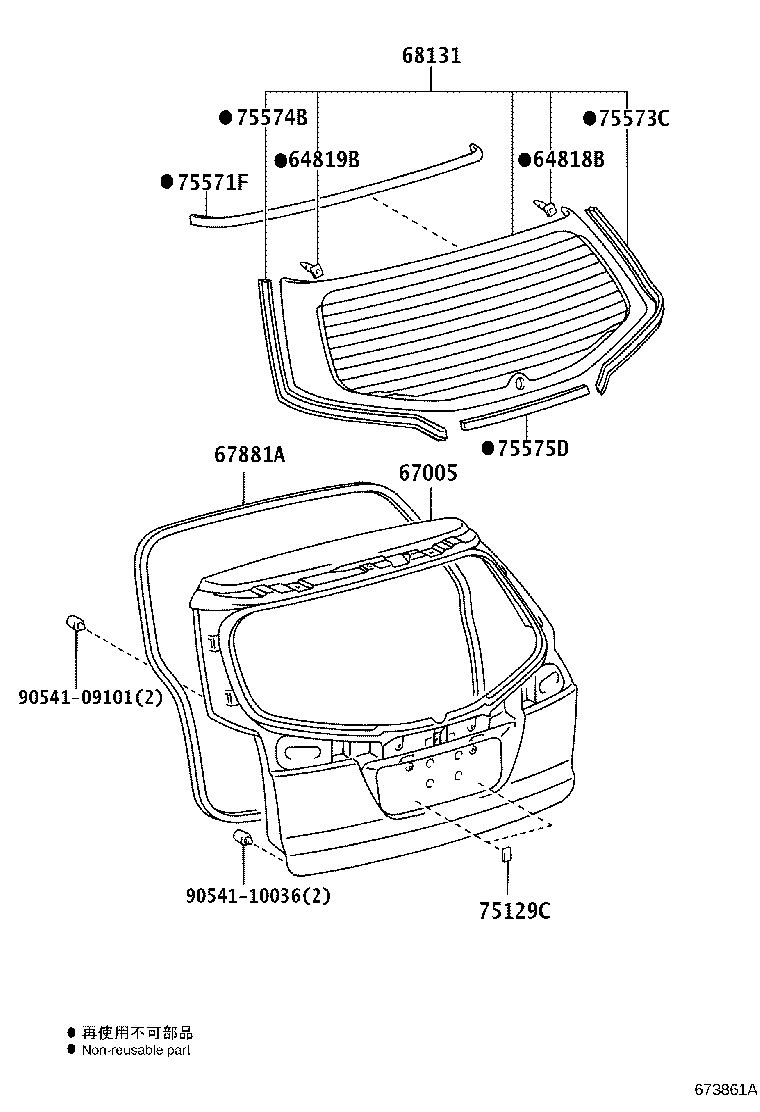

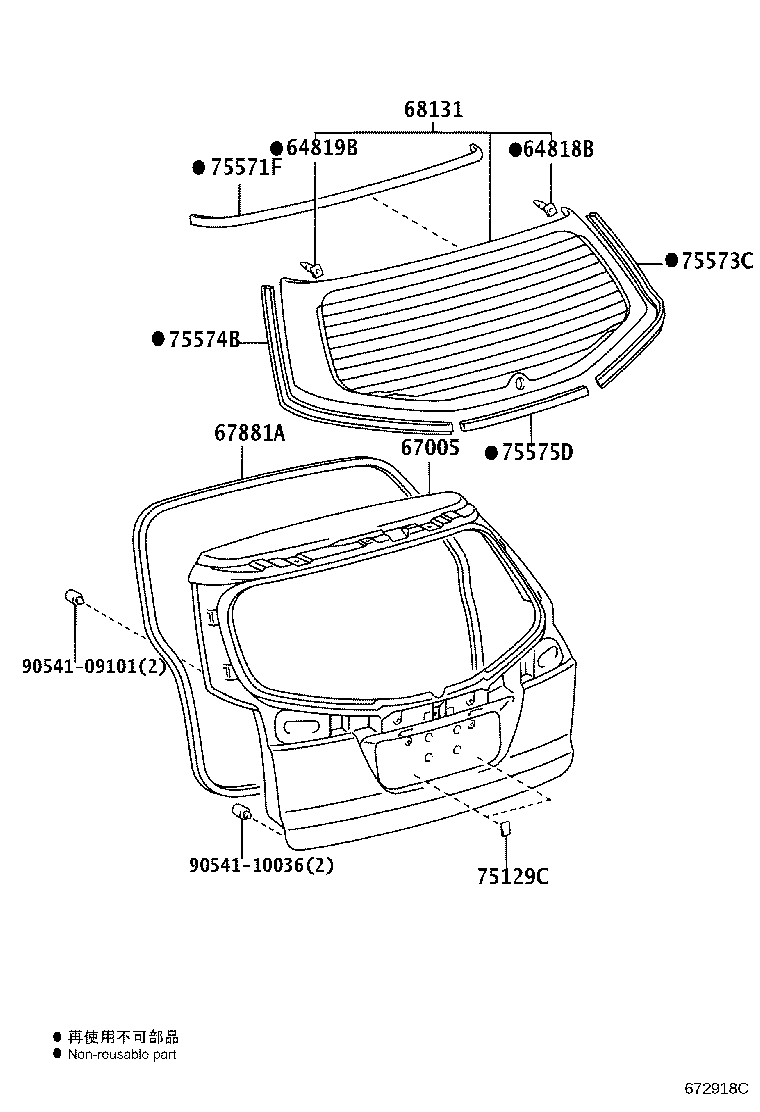

Figure 672884A 672884A 2002-09 → — Figure 672918C 672918C 2002-09 → 2005-01 Figure 673861A 673861A 2005-01 → —

Part groups

PNCDescription
64381C Hanger, Package Tray Trim
64745 Cover, Rear Combination Lamp Service, RH
64746 Cover, Rear Combination Lamp Service, LH
64769E Knob, Jack Cover
64818B Spacer, Back Door Glass, NO.1
64819B Spacer, Back Window Glass, NO.2
67005 Panel Sub-assy, Back Door
67750 Board Assy, Back Door Trim
67765A Cover, Back Door Service Hole, NO.1
67766 Cover, Back Door Service Hole, NO.2
67767B Cover, Back Door Service Hole, NO.3
67768C Cover, Back Door Service Hole, NO.4
67881A Weatherstrip, Back Door
67937B Garnish, Back Door Side, RH
67938A Garnish, Back Door Side, LH
67939B Garnish, Back Door, Center
68131 Glass, Back Door
74811D Handle, Door Pull
75129C Cushion, Rear Licence Plate
75571F Mouldimg, Back Door Window
75573C Moulding, Back Window, Outside
75574B Moulding, Back Window, Outside LH
75575D Moulding, Back Window, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
