Toyota Caldina

2002-09 → 2007-06 · chassis AZT24#,ST246,ZZT241 · catalogue 274150 · Japan

Supported model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

24 part groups · 3 illustrations

Illustrations

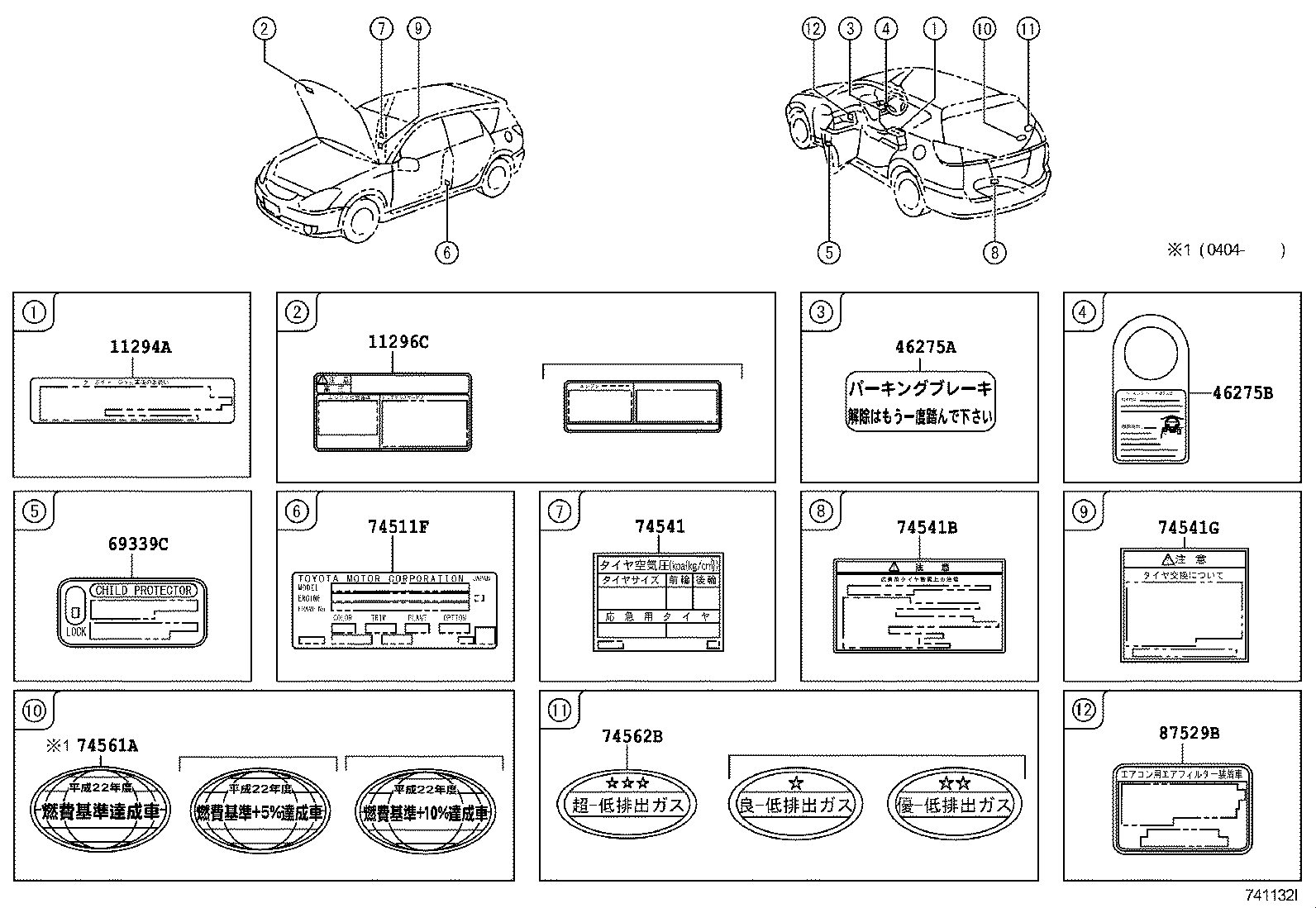

Figure 746138 746138 2002-09 → — Figure 741132I 741132I 2002-09 → — Figure 741593A 741593A 2002-09 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11289B Label, Spark Plug Notice
11291B Plate, Engine Name
11294A Label, Turbocharger Information
11296C Label, Engine Service Information
13564 Label, Timing Belt Replacement Information
16448A Plate, Radiator Caution
16793E Label, Cooling Fan Caution
17791A Label, Maintenance Information
46275A Label, Parking Brake Release Information, NO.1
46275B Label, Parking Brake Release Information, NO.2
69339C Label, Child Protector Information
74511F Label, Name (IDENTIFICATION LASER LABEL)
74541 Plate, Tire Pressure Caution
74541B Plate, Compact Spare Tire Caution
74541G Plate, Safety Caution
74561A Label, Fuel Consumption Information
74562B Label, Emission Information
74579A Label, Unleaded Fuel Information
86793B Label, Television Camera Information
86995E Label, Caution
87529B Label, A/C Filter Information
88723E Label, Cooler Service Caution
89176A Label, Airbag Deployment Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
