Toyota Caldina

2002-09 → 2007-06 · chassis AZT24#,ST246,ZZT241 · catalogue 274150 · Japan

Supported model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

29 part groups · 3 illustrations

Illustrations

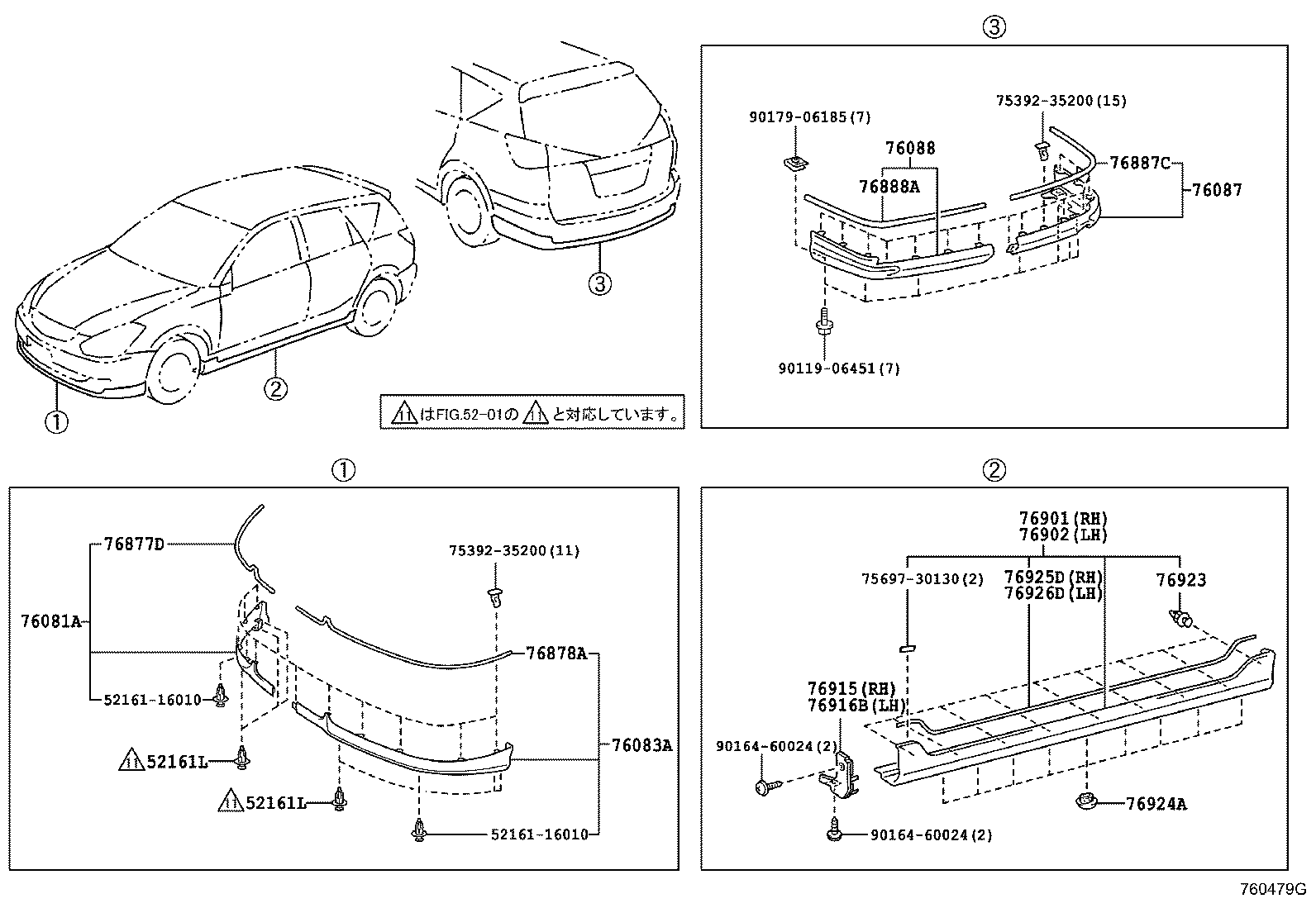

Figure 760297P 760297P 2002-09 → 2005-01 Figure 760479G 760479G 2005-01 → — Figure 760298B 760298B 2002-09 → —

Part groups

PNCDescription
52161L Piece, Front Spoiler
76081A Spoiler Sub-assy, Front RH
76083A Spoiler Sub-assy, Front LH
76087 Spoiler Sub-assy, Rear NO.1
76088 Spoiler Sub-assy, Rear NO.2
76621F Screw, NO.1
76621H Bolt, NO.1
76621J Nut, NO.1
76621K Clip, NO.1
76851A Cover, Front Spoiler, RH
76852A Cover, Front Spoiler, LH
76871 Spoiler, Rear
76872 Protector, Rear Spoiler, NO.1
76873 Protector, Rear Spoiler, NO.2
76874 Protector, Rear Spoiler, NO.3
76877D Protector, Front Spoiler Side, RH
76878A Protector, Front Spoiler Side, LH
76887C Protector, Rear Spoiler, NO.9 RH
76888A Protector, Rear Spoiler, NO.9 LH
76891 Spoiler, Rear NO.1
76892 Spoiler, Rear NO.2
76901 Mudguard Sub-assy, Side, RH
76902 Mudguard Sub-assy, Side, LH
76915 Mudguard, Rear Door, RH
76916B Mudguard, Rear Door, LH
76923 Retainer, Side Mudguard
76924A Retainer, Side Mudguard, NO.2
76925D Protector, Side Mudguard, RH
76926D Protector, Side Mudguard, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
