Toyota Caldina

2002-09 → 2007-06 · chassis AZT24#,ST246,ZZT241 · catalogue 274150 · Japan

Supported model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

68 part groups · 7 illustrations

Illustrations

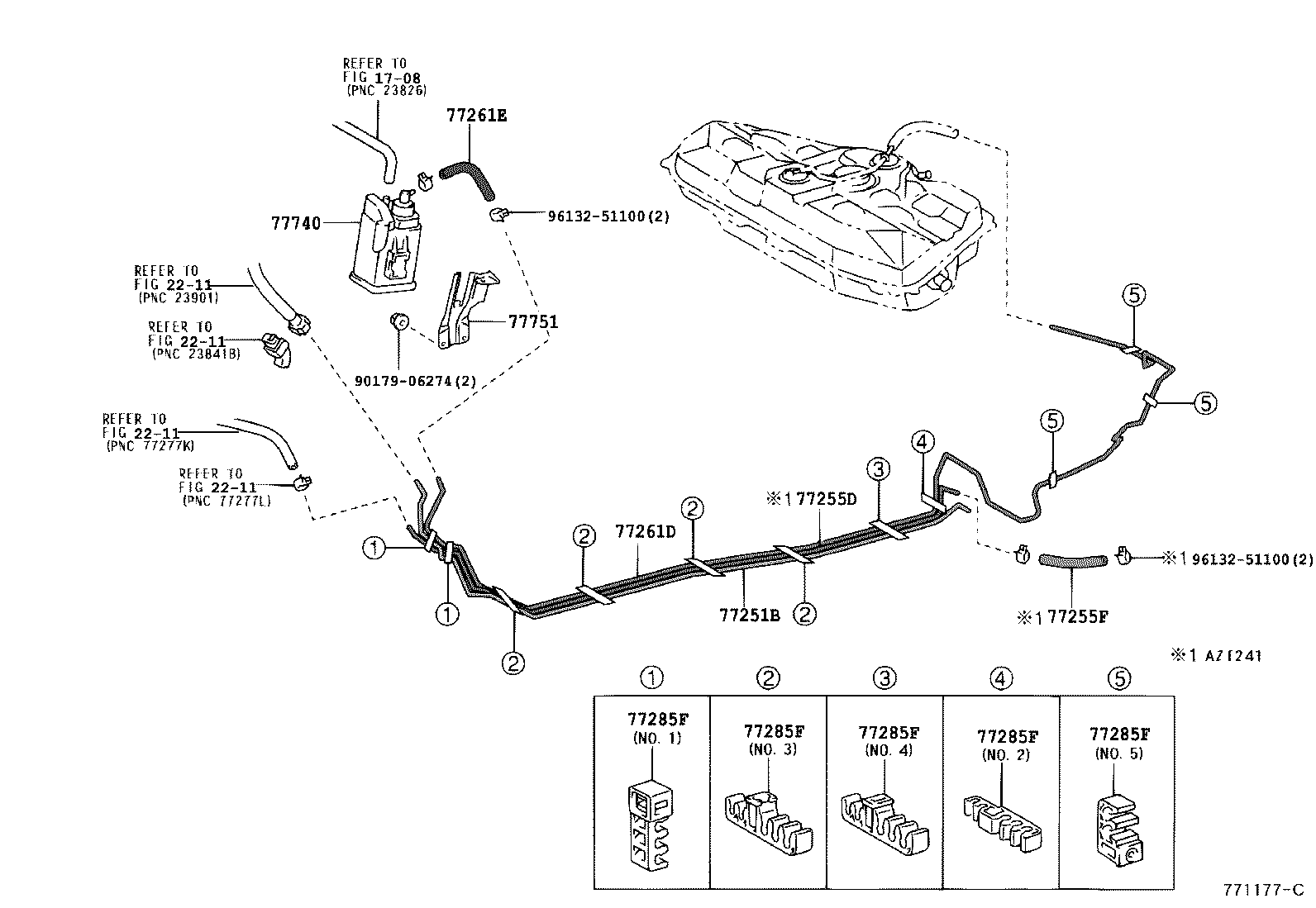

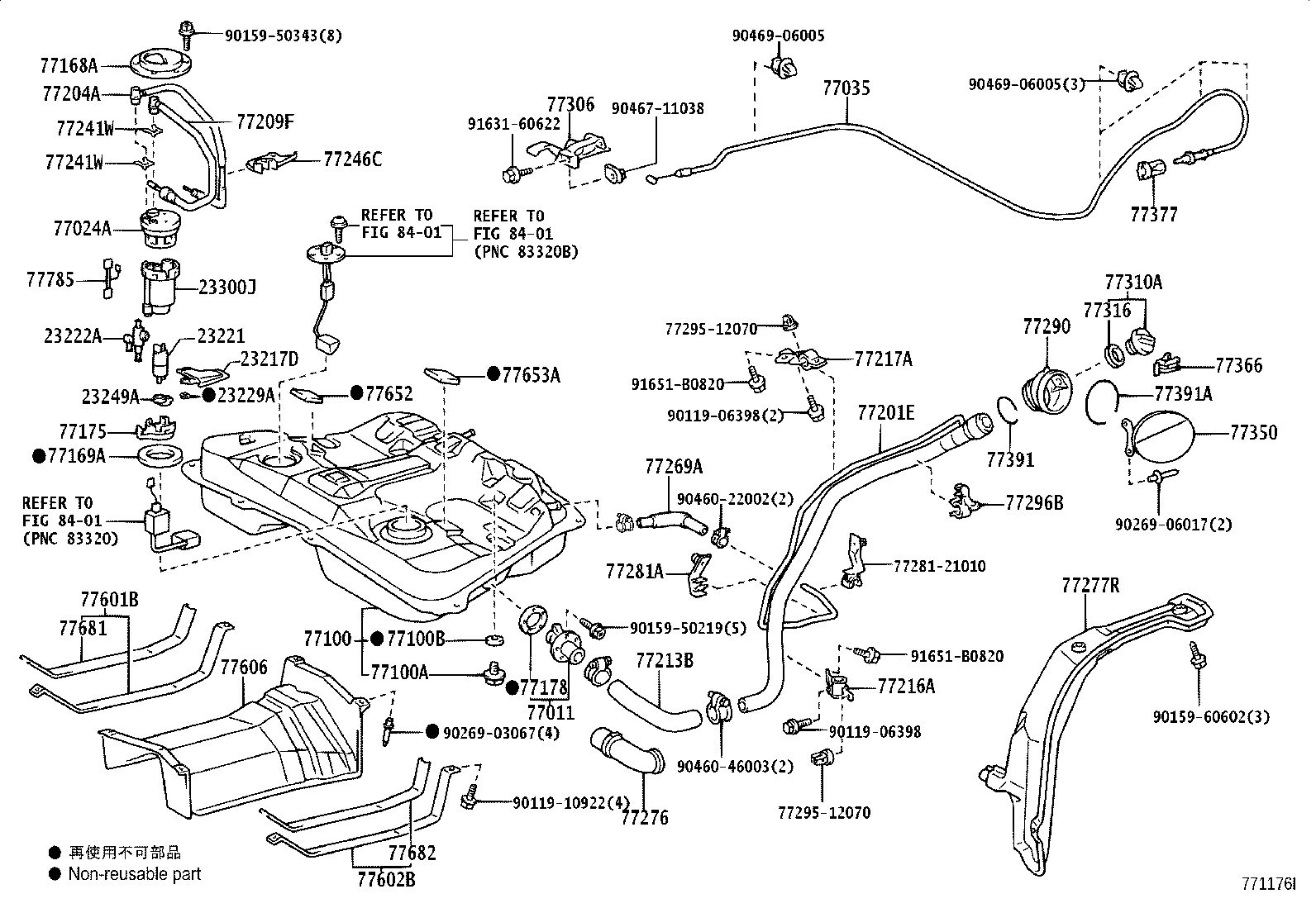

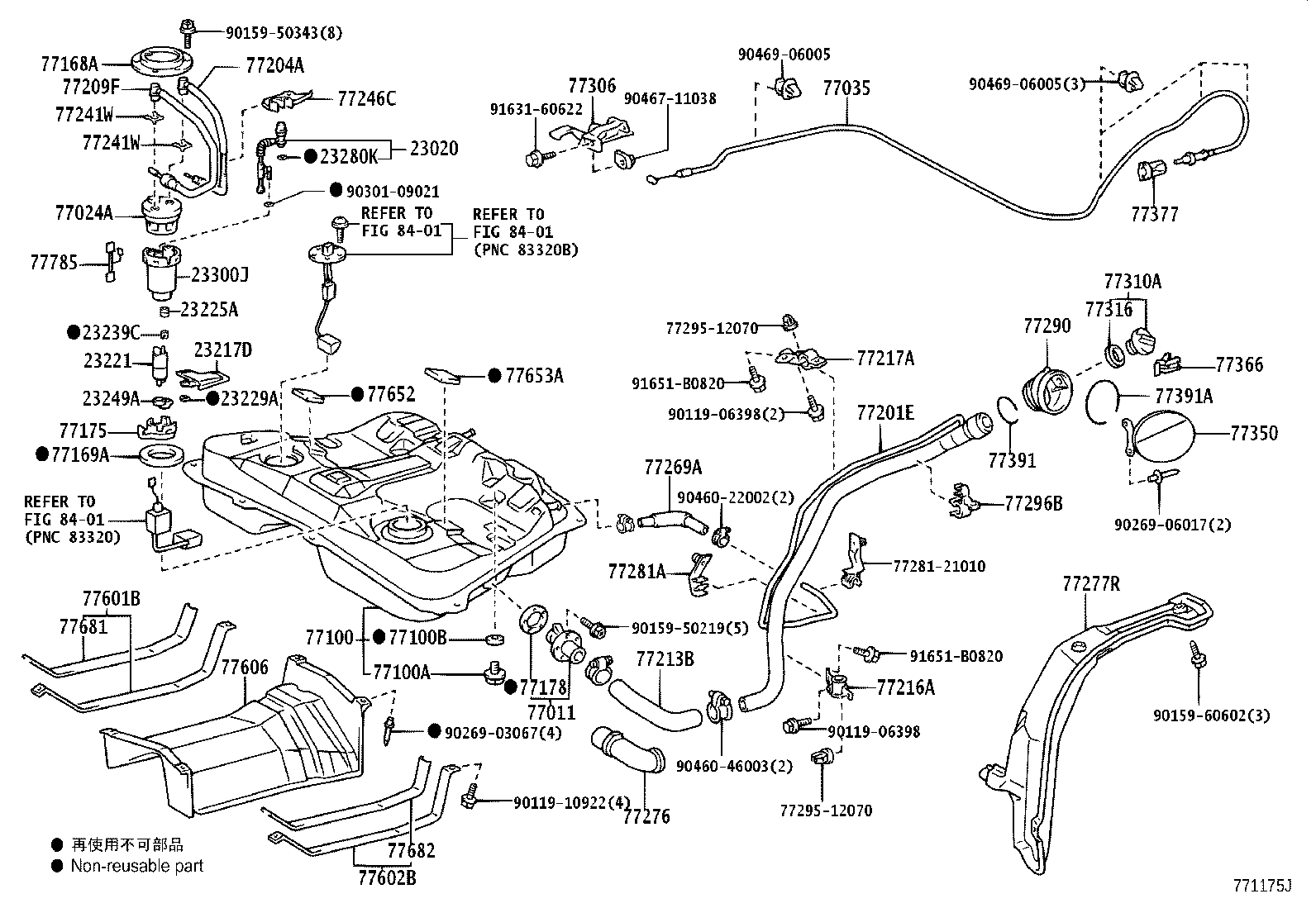

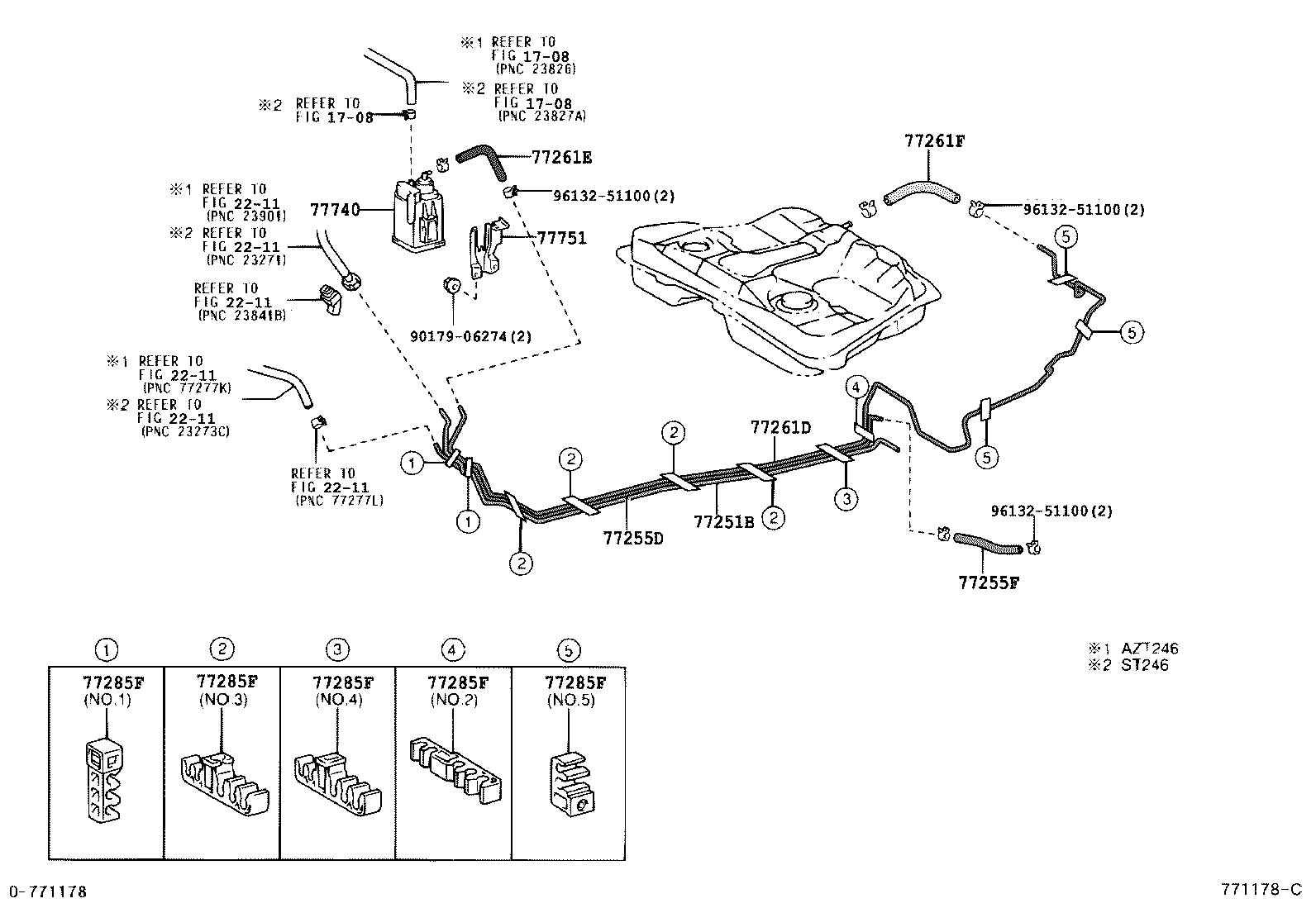

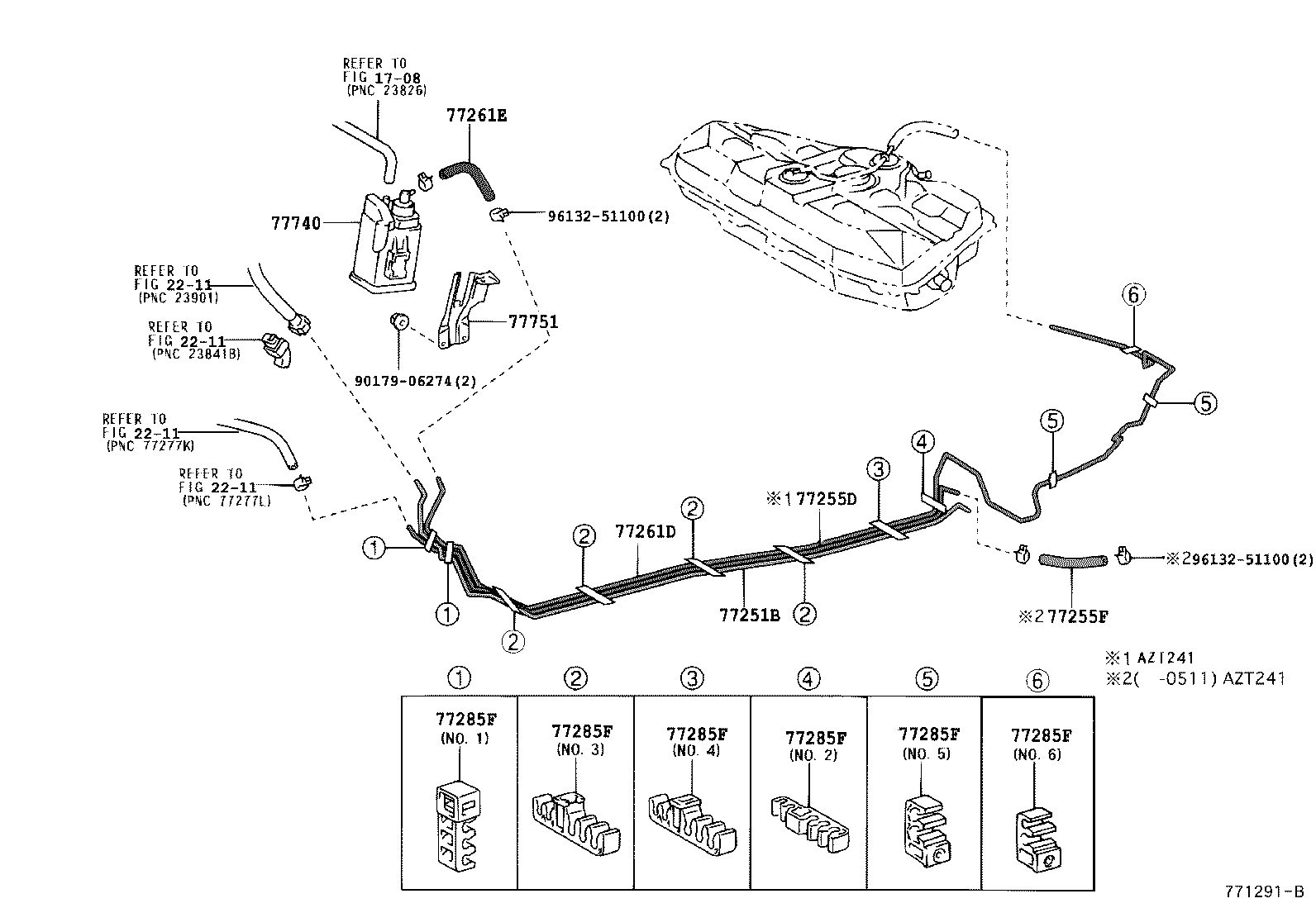

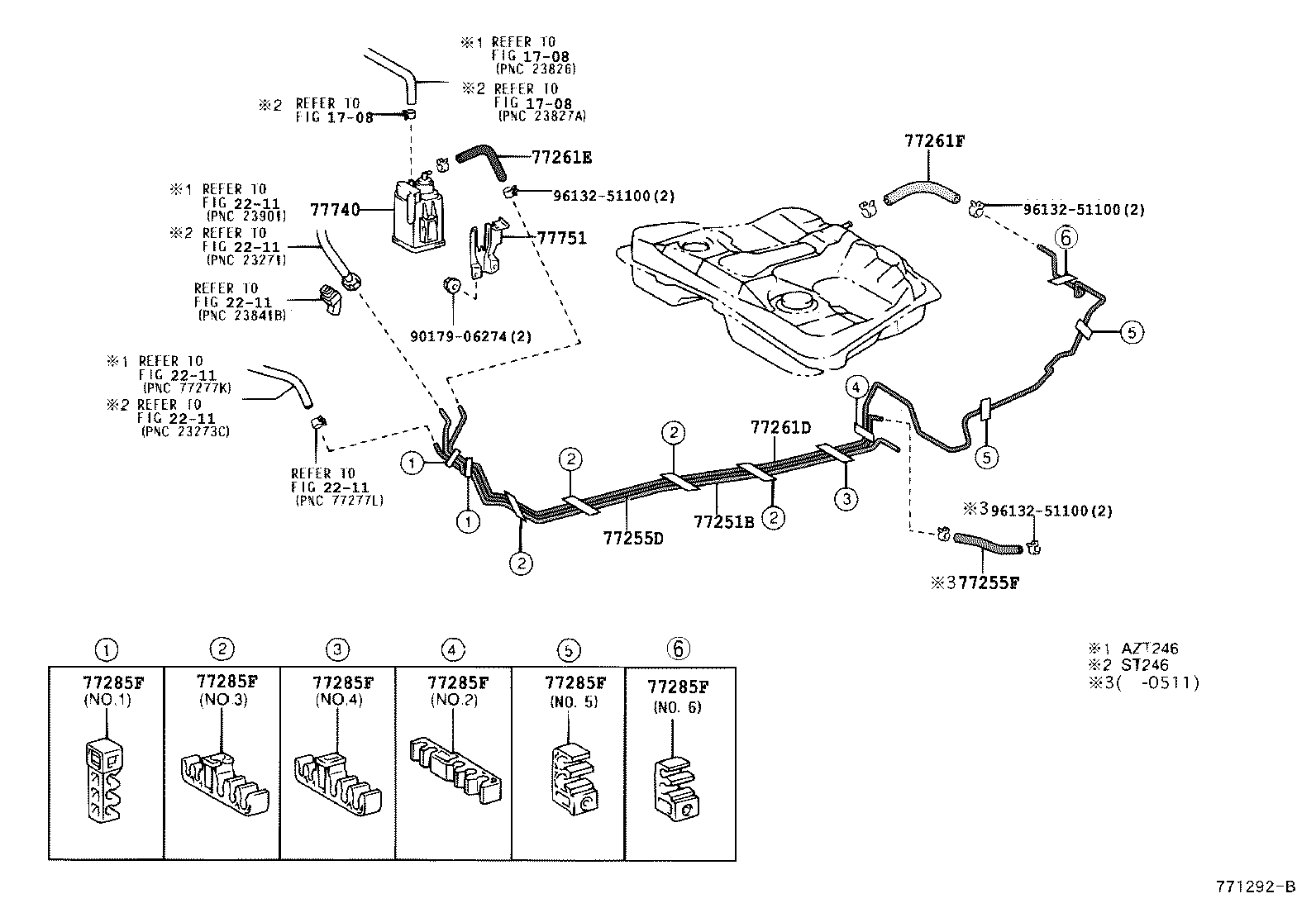

Figure 771174H 771174H 2002-09 → — Figure 771175J 771175J 2002-09 → — Figure 771176I 771176I 2002-09 → — Figure 771177C 771177C 2002-09 → 2002-12 Figure 771178C 771178C 2002-09 → 2002-12 Figure 771291B 771291B 2002-12 → — Figure 771292B 771292B 2002-12 → —

Part groups

PNCDescription
23020 Regulator Assy, Fuel Pressure W/Jet Pump
23217D Filter, Fuel Pump
23221 Pump, Fuel
23222A Tube, Fuel Return Jet
23225A Spacer, Fuel Pump
23229A Clip(FOR FUEL PUMP FILTER)
23239C Seal, Fuel Pump Filter
23249A Rubber, Cushion(FOR FUEL PUMP)
23280J Regulator Assy, Fuel Pressure
23280K Ring, O(FOR FUEL PRESSURE REGULATOR)
23300J Filter Assy, Fuel
77011 Pipe Sub-assy, Fuel Tank Filler, Lower
77024A Plate Sub-assy, Fuel Suction
77035 Cable Sub-assy, Fuel Lid Lock Control
77100 Tank Assy, Fuel
77100A Plug(FOR FUEL TANK)
77100B Gasket(FOR FUEL TANK)
77158A Support, Tank Suction Tube
77168A Plate, Fuel Tank Vent Tube Set
77169A Gasket, Fuel Suction Tube Set
77175 Support, Fuel Suction, NO.2
77178 Gasket, Fuel Tank Filler Pipe, Lower
77179A Gasket, Fuel Tank Breather Tube
77201E Pipe Sub-assy, Fuel Tank Filler
77202A Hose, Fuel, NO.1 (FOR BREATHER TUBE)
77204A Tube, Fuel Tank Return
77209F Tube Sub-assy, Fuel Tank Main
77213B Hose, Fuel Tank TO Filler Pipe
77216A Support, Fuel Tank Filler Pipe, NO.1
77217A Support, Fuel Tank Filler Pipe, NO.2
77241W Clip, Tube Joint
77246C Support, Fuel Main Tube
77249 Hose, Fuel Emission
77251B Tube, Fuel Main
77255D Tube, Fuel Return
77255F Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE)
77261D Tube, Fuel Tank TO Canister
77261E Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77261F Hose, Fuel, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
77269A Hose, Fuel Tank Breather
77276 Protector, Fuel Hose
77277R Protector, Fuel Tank Filler Pipe
77281A Clamp, Fuel Filler Pipe
77285F Clamp, Fuel Tube, NO.1
77286F Clamp, Fuel Tube, NO.2
77289C Clamp, Fuel Tube, NO.4
77290 Shield Assy, Fuel Tank Filler Pipe
77296B Support, Fuel Tube Protector, NO.1
77306 Lever Sub-assy, Fuel Lid Lock Open
77310A Cap Assy, Fuel Tank
77316 Gasket, Fuel Tank Cap
77340A Valve Assy, Fuel Cut Off W/Tube
77350 Lid Assy, Fuel Filler Opening
77366 Spring, Fuel Filler Opening Lid Hinge
77377 Retainer, Fuel Filler Opening Lid Lock
77391 Ring, Fuel Inlet Box
77391A Ring, Fuel Inlet Box
77601B Band Sub-assy, Fuel Tank, NO.1 RH
77602B Band Sub-assy, Fuel Tank, NO.1 LH
77606 Protector Sub-assy, Fuel Tank, NO.1
77641A Protector, Fuel Tank, NO.1
77652 Cushion, Fuel Tank, NO.1
77653A Cushion, Fuel Tank, NO.3
77681 Seat, Fuel Tank Band, RH
77682 Seat, Fuel Tank Band, LH
77740 Canister Assy, Charcoal
77751 Bracket, Charcoal Canister Base
77785 Harness, Fuel Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
