Toyota Caldina

2002-09 → 2007-06 · chassis AZT24#,ST246,ZZT241 · catalogue 274150 · Japan

Supported model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

28 part groups · 3 illustrations

Illustrations

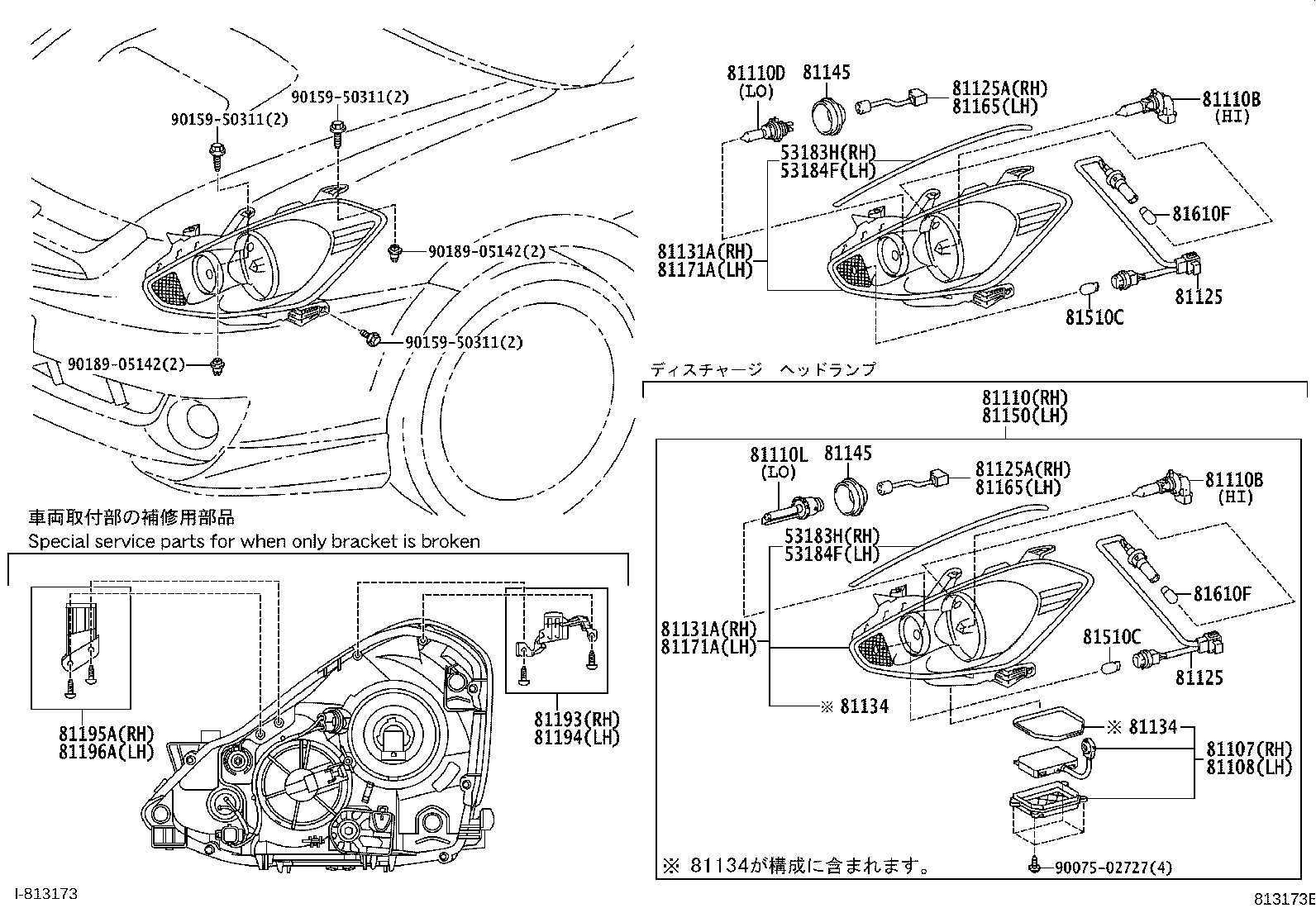

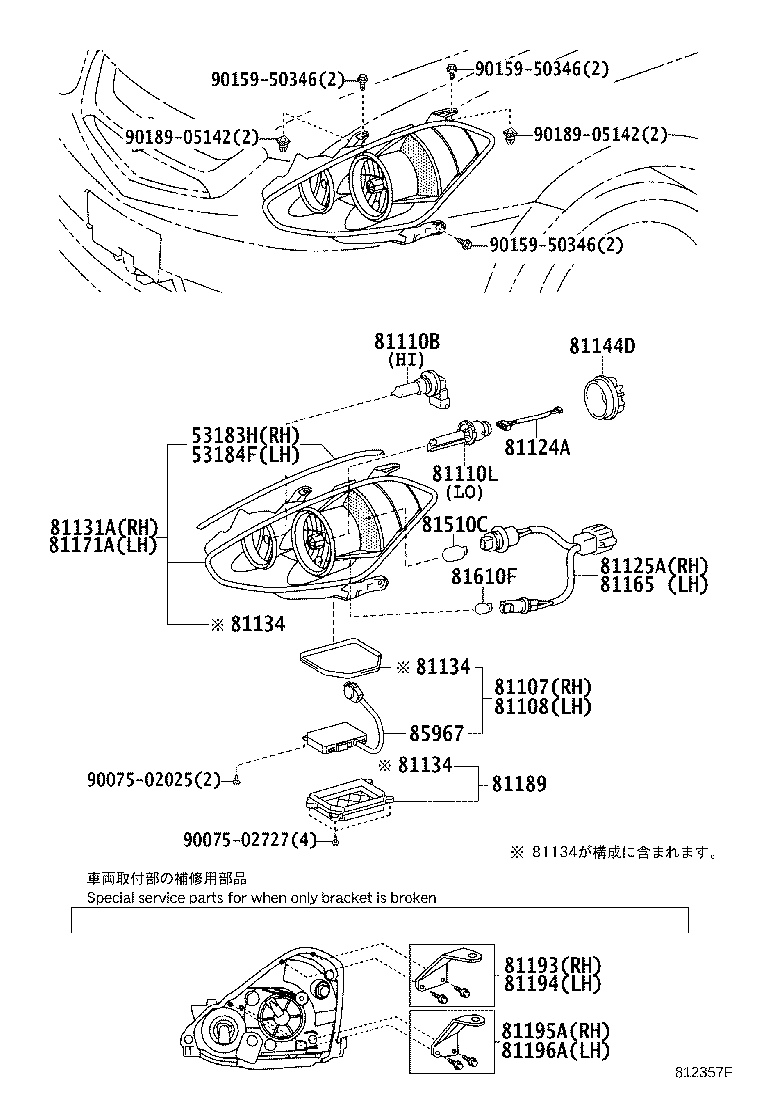

Figure 812356E 812356E 2002-09 → 2005-01 Figure 812357F 812357F 2002-09 → 2005-01 Figure 813173E 813173E 2005-01 → —

Part groups

PNCDescription
53183H Seal, Headlamp Cover, RH
53184F Seal, Headlamp Cover, LH
81107 Computer Sub-assy, Headlamp Light Control, RH
81108 Computer Sub-assy, Headlamp Light Control, LH
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81110L Bulb, Discharge Headlamp
81124A Cord, Headlamp, NO.1
81125 Cord, Headlamp
81125A Cord, Headlamp, RH
81131A Unit, Headlamp, RH
81134 Gasket, Headlamp
81144C Cover, Headlamp Socket
81144D Cap, Headlamp Locking
81145 Cover, Headlamp, NO.2
81145A Adapter Assy
81150 Headlamp Assy, LH
81165 Cord, Headlamp, LH
81171A Unit, Headlamp, LH
81189 Cover, Headlamp
81193 Retainer, Headlamp Protector, Upper RH
81194 Retainer, Headlamp Protector, Upper LH
81195A Retainer, Headlamp Protector, Lower RH
81196A Retainer, Headlamp Protector, Lower LH
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81610F Bulb(FOR CLEARANCE LAMP)
85967 Computer, Light Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
