Toyota Caldina

2002-09 → 2007-06 · chassis AZT24#,ST246,ZZT241 · catalogue 274150 · Japan

Supported model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

33 part groups · 12 illustrations

Illustrations

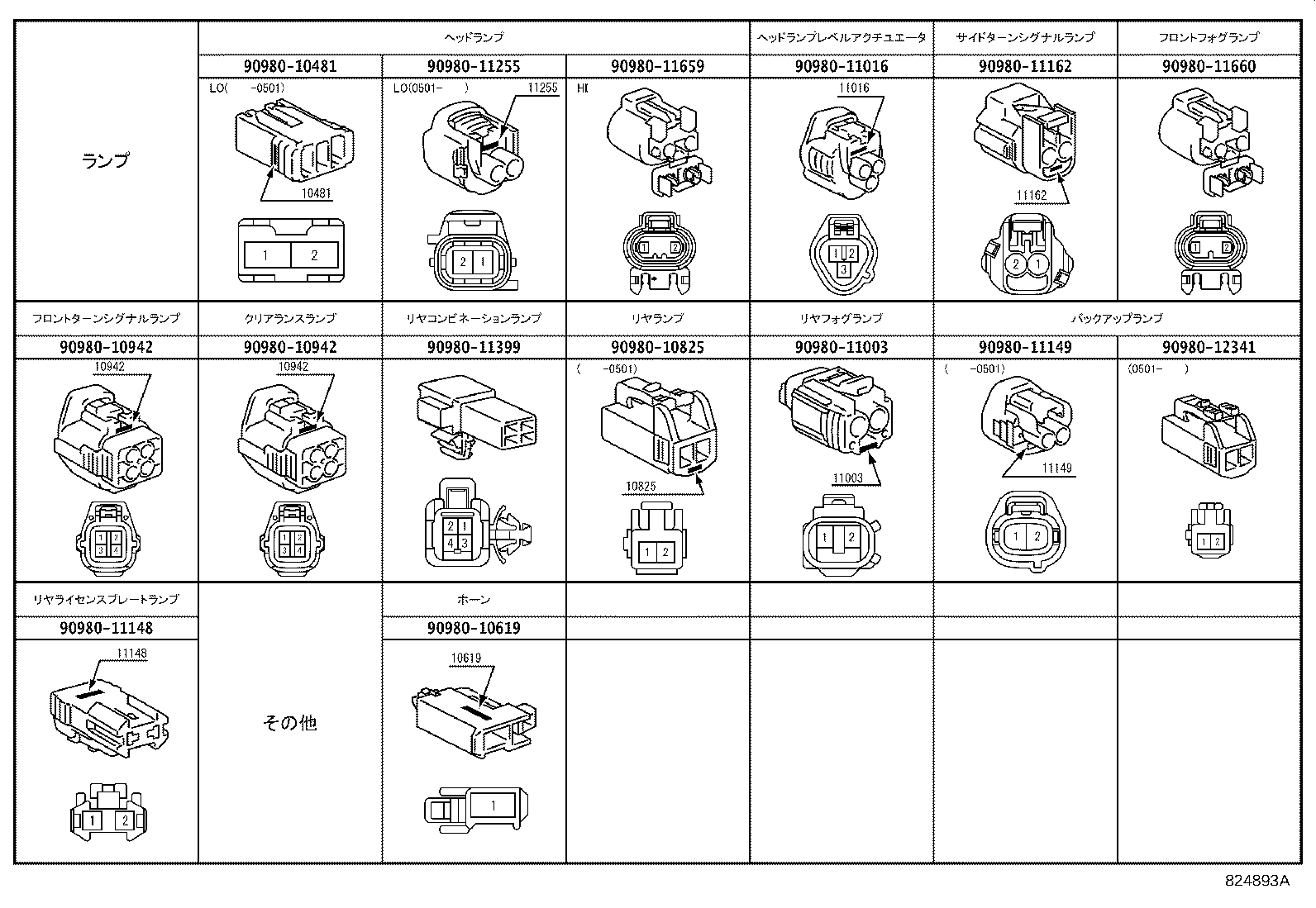

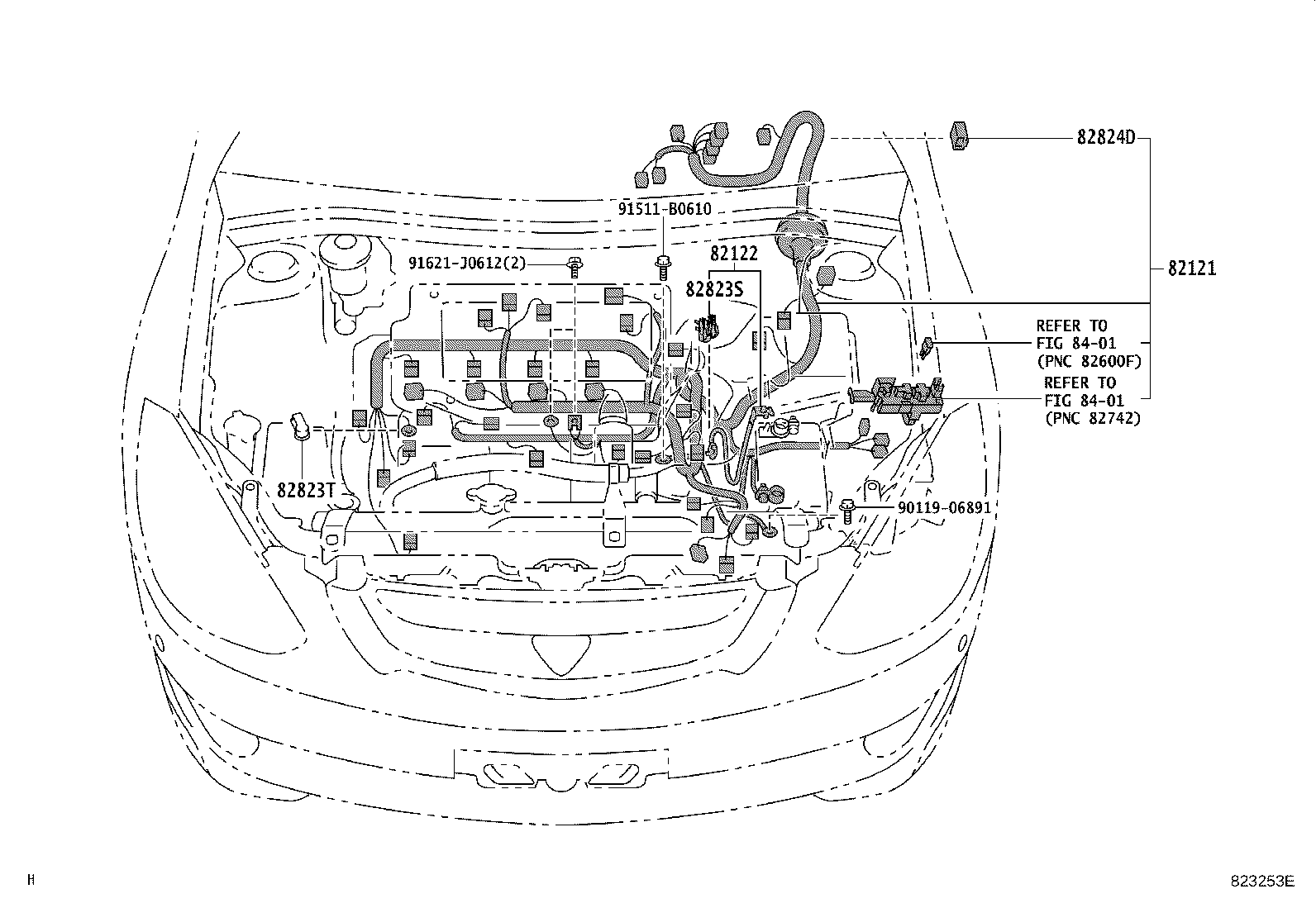

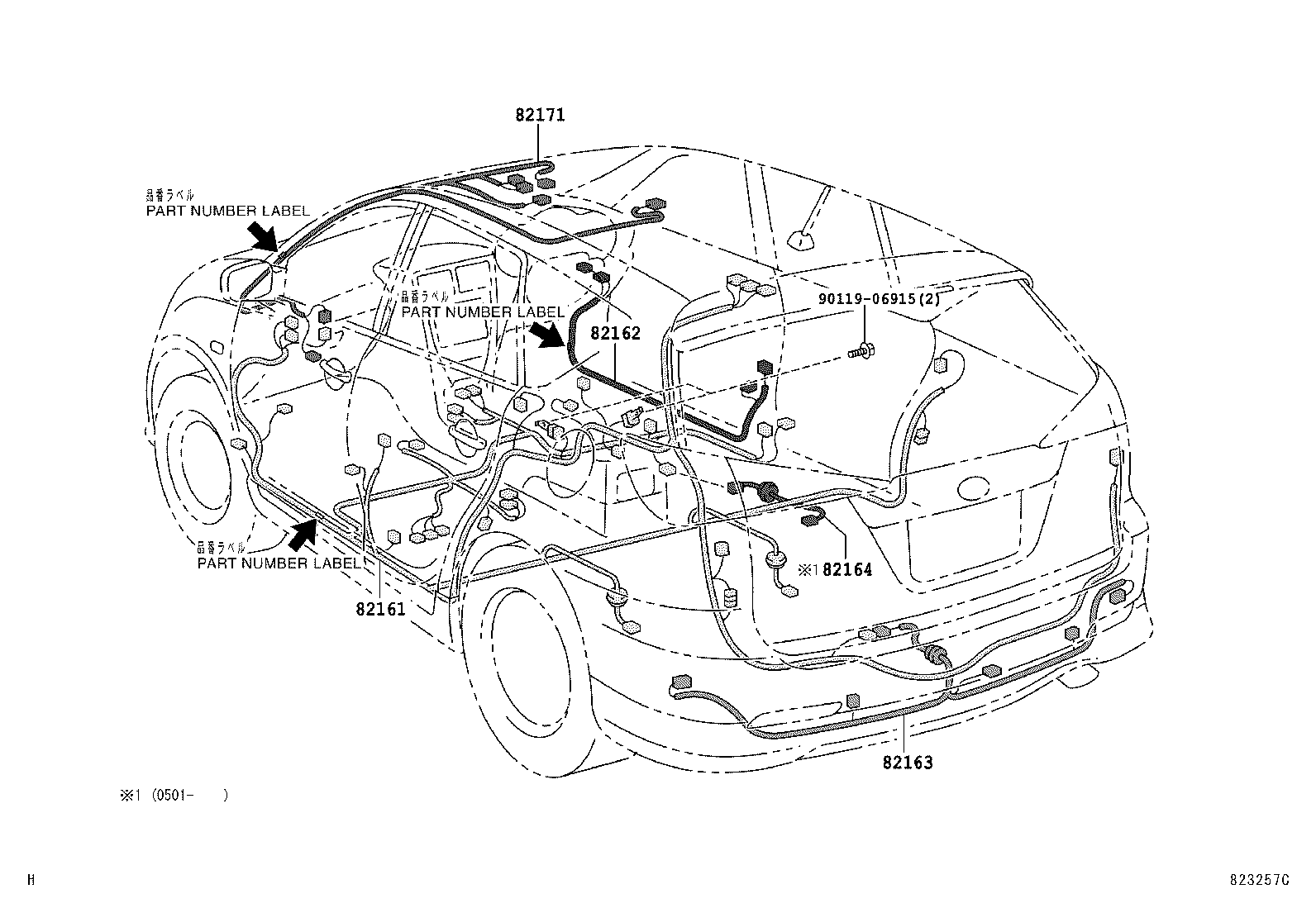

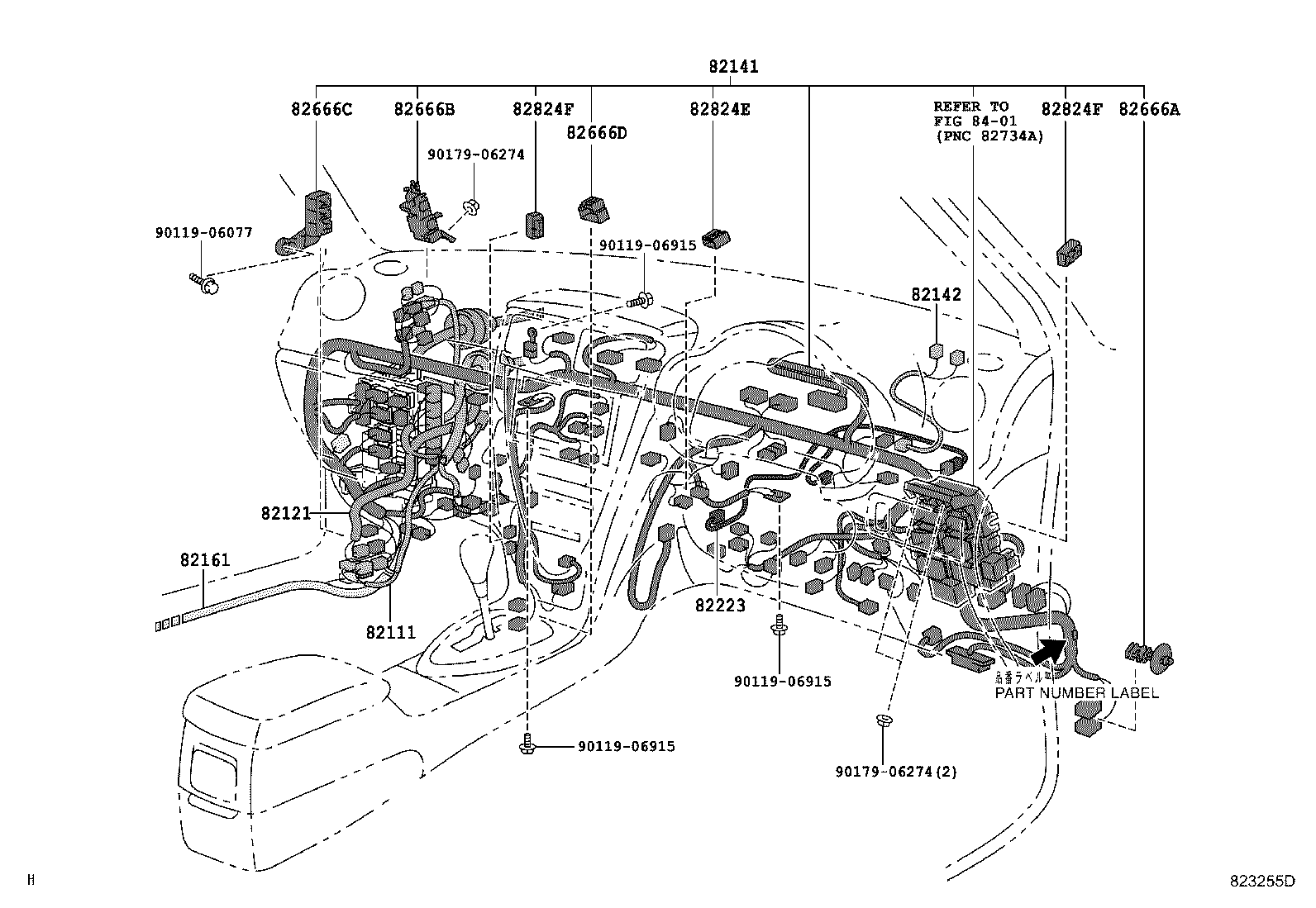

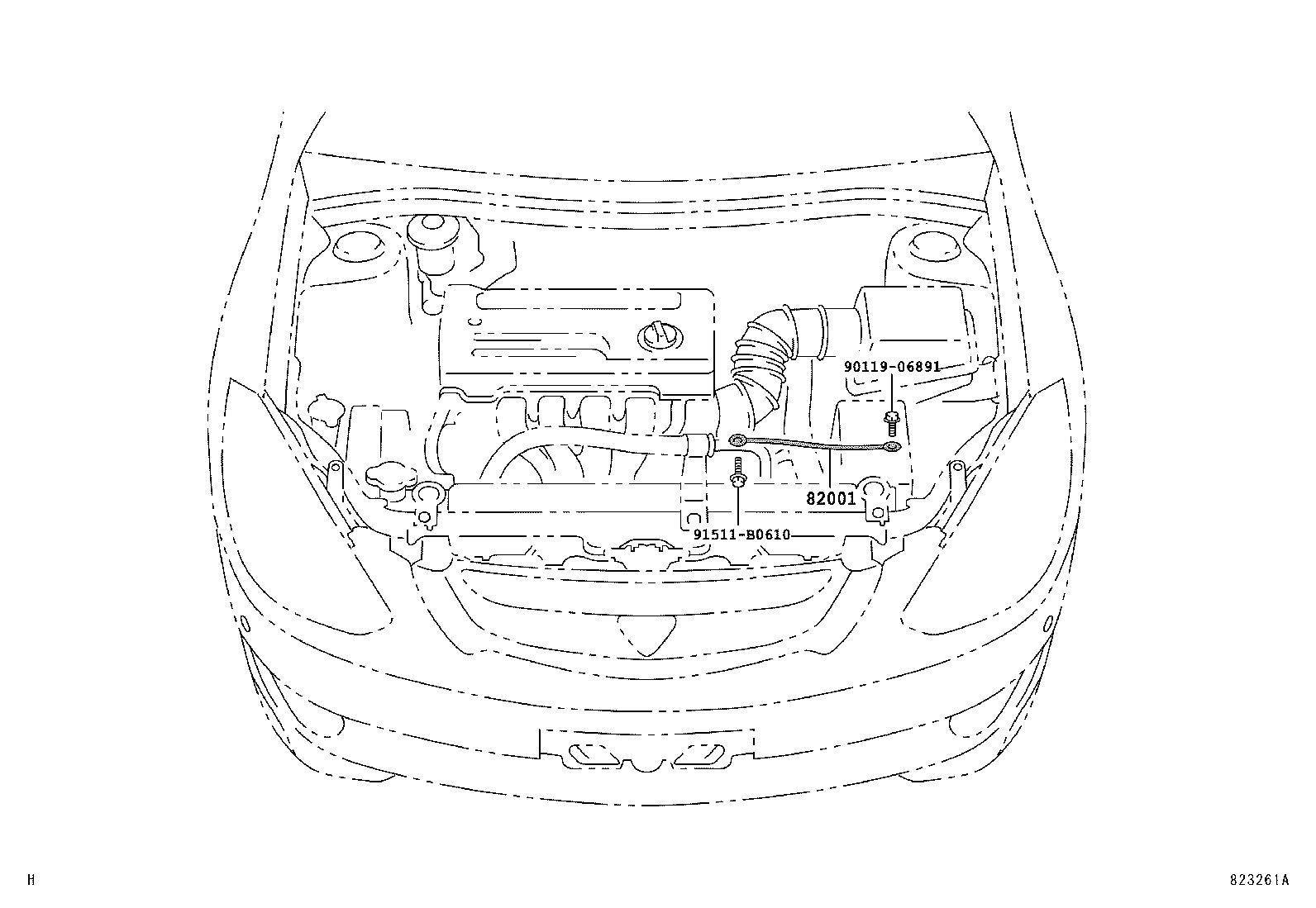

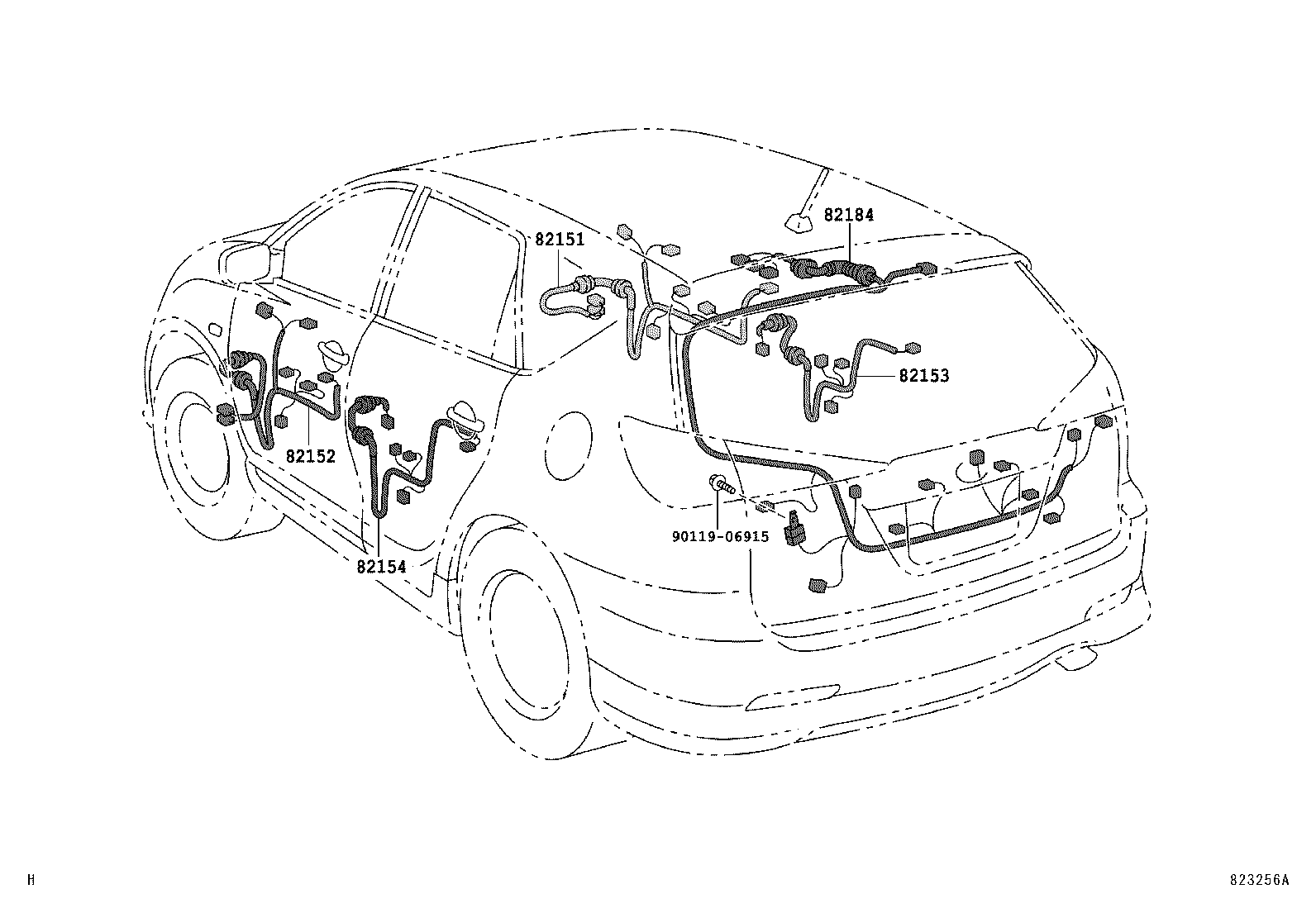

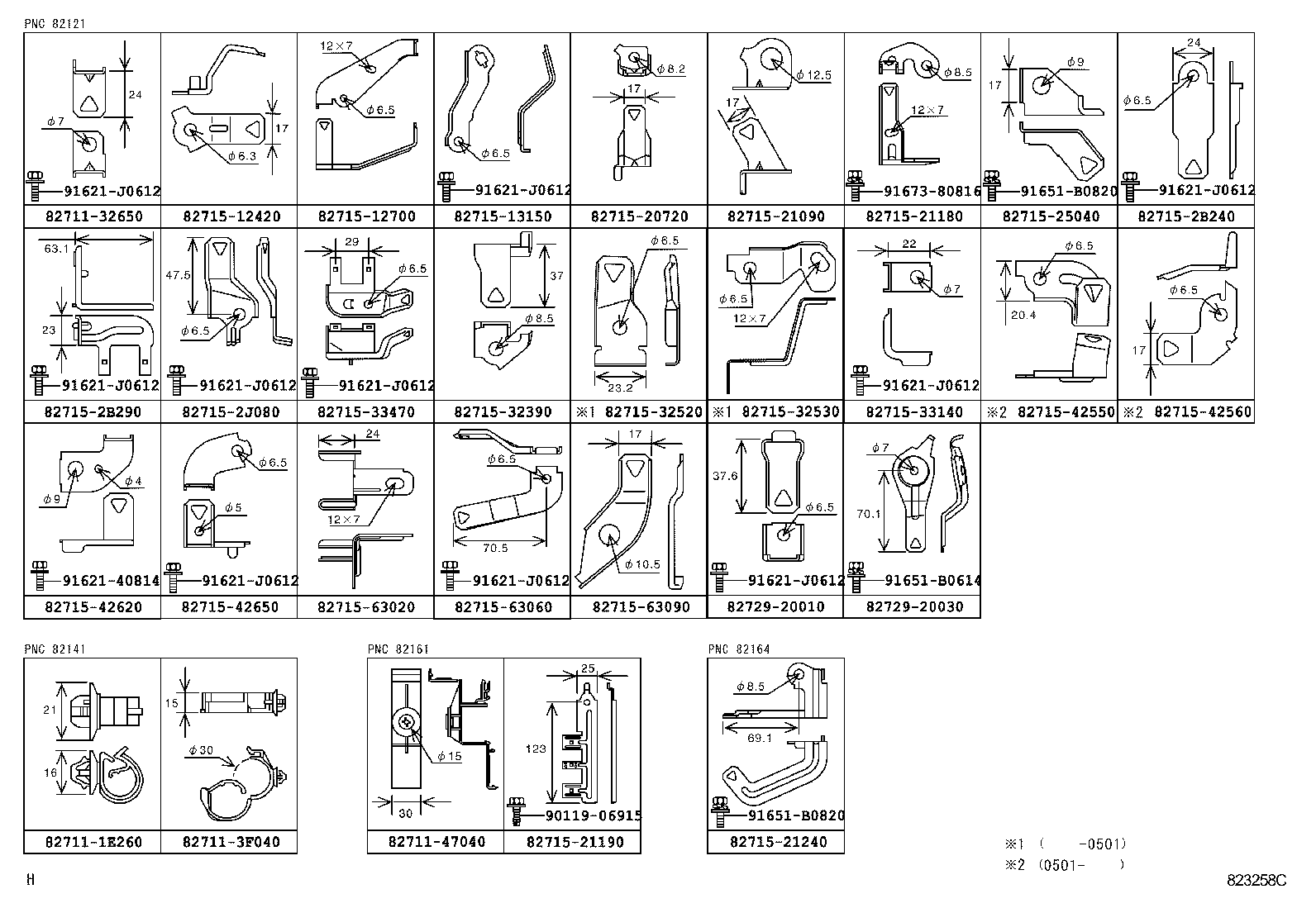

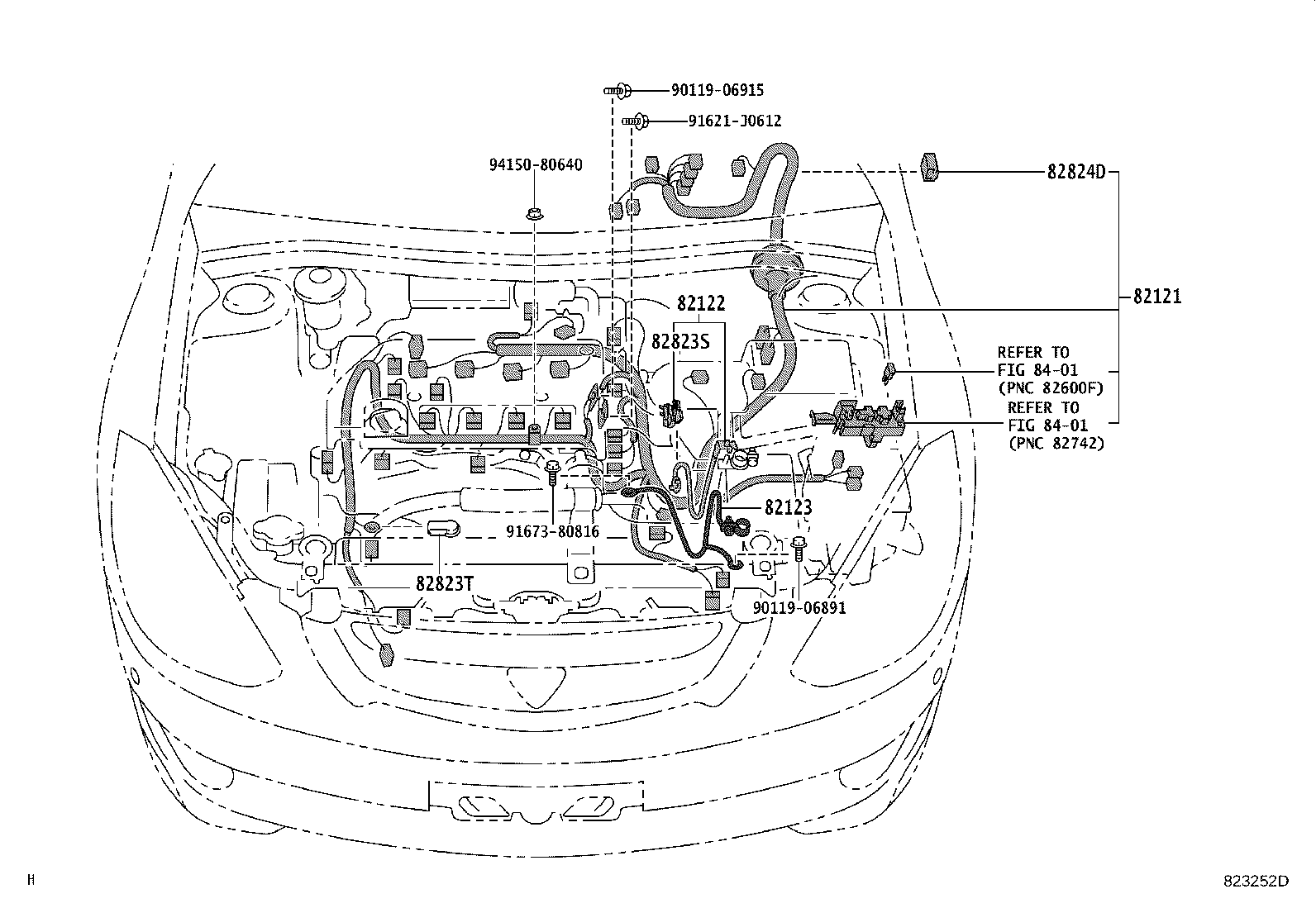

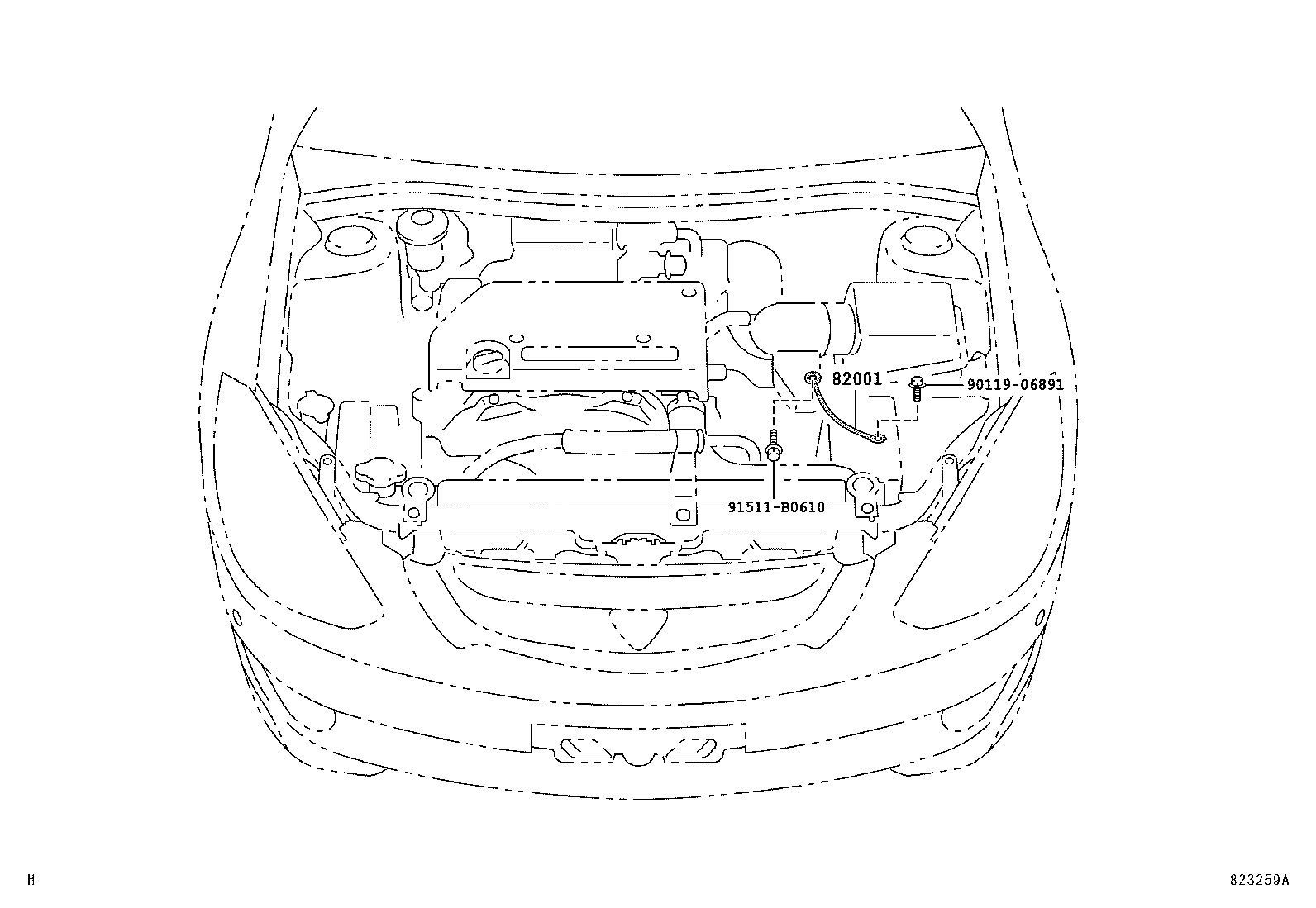

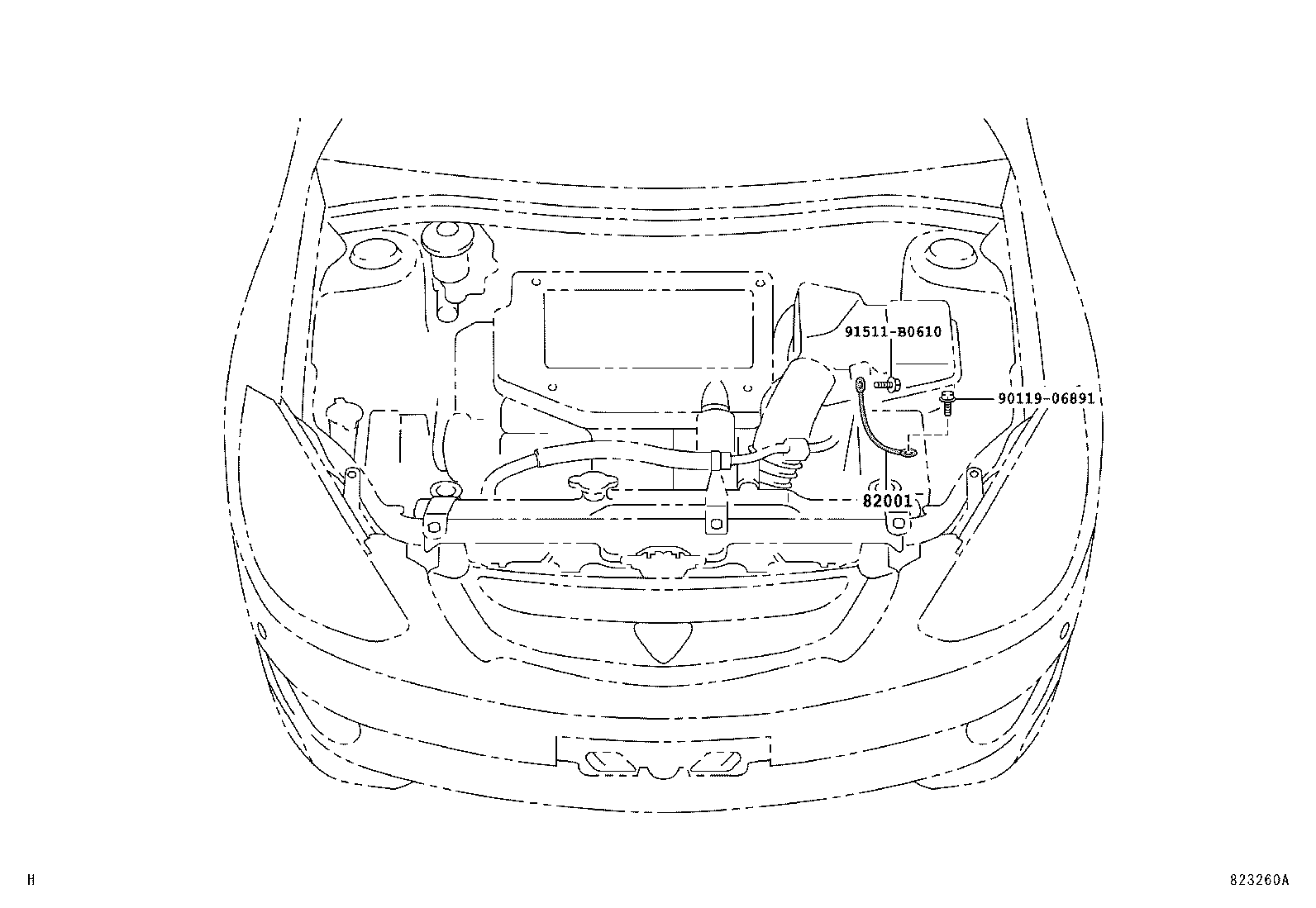

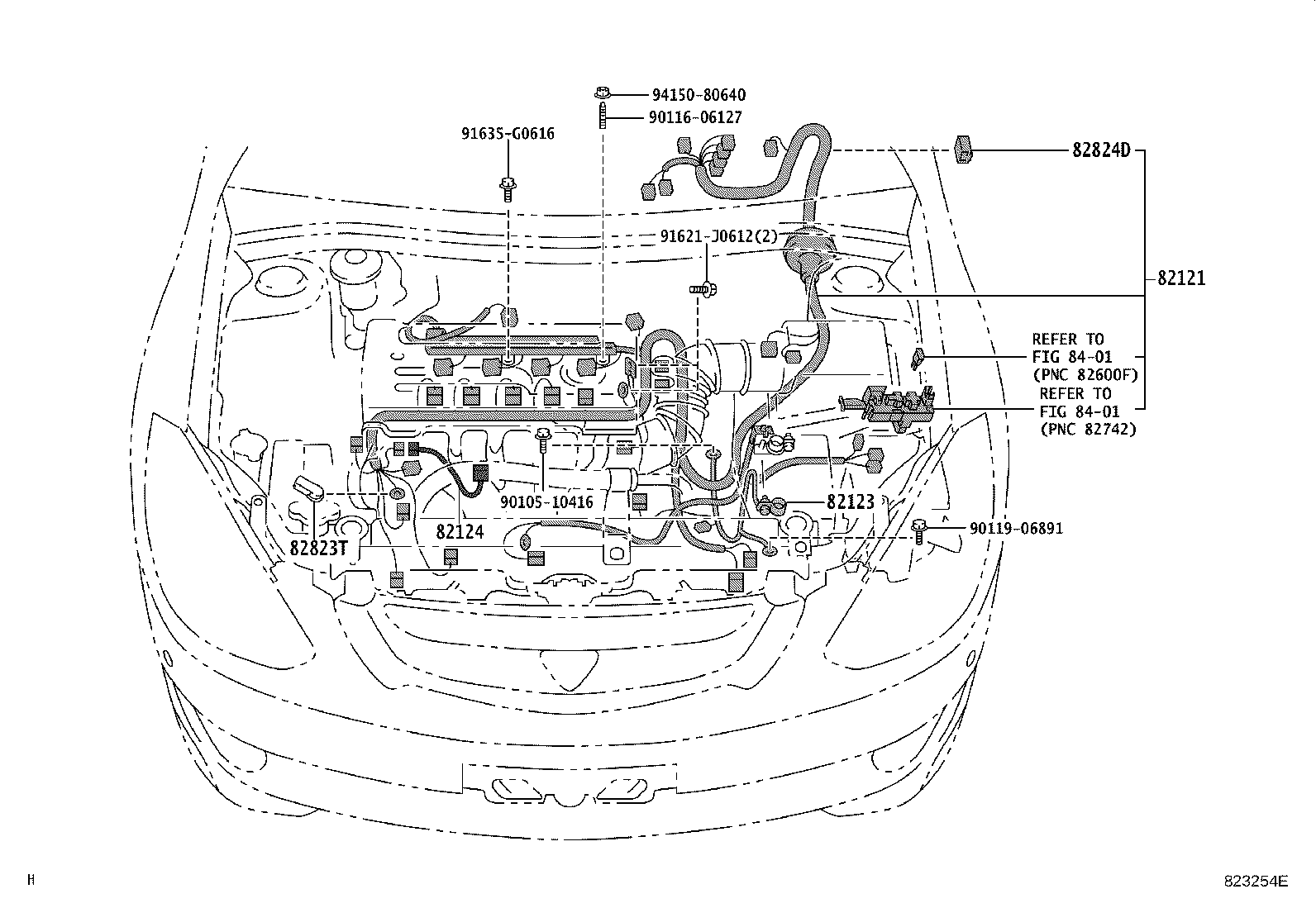

Figure 823251D 823251D 2002-09 → — Figure 823252D 823252D 2002-09 → — Figure 823253E 823253E 2002-09 → — Figure 823254E 823254E 2002-09 → — Figure 823255D 823255D 2002-09 → — Figure 823256A 823256A 2002-09 → — Figure 823257C 823257C 2002-09 → — Figure 823258C 823258C 2002-09 → — Figure 823259A 823259A 2002-09 → — Figure 823260A 823260A 2002-09 → — Figure 823261A 823261A 2002-09 → — Figure 824893A 824893A 2002-09 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164 Wire, Frame
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82217A Wire, Front Window Defogger
82223 Wire, Switch
82345 Diode
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
