Toyota Caldina

2002-09 → 2007-06 · chassis AZT24#,ST246,ZZT241 · catalogue 274150 · Japan

Supported model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

71 part groups · 10 illustrations

Illustrations

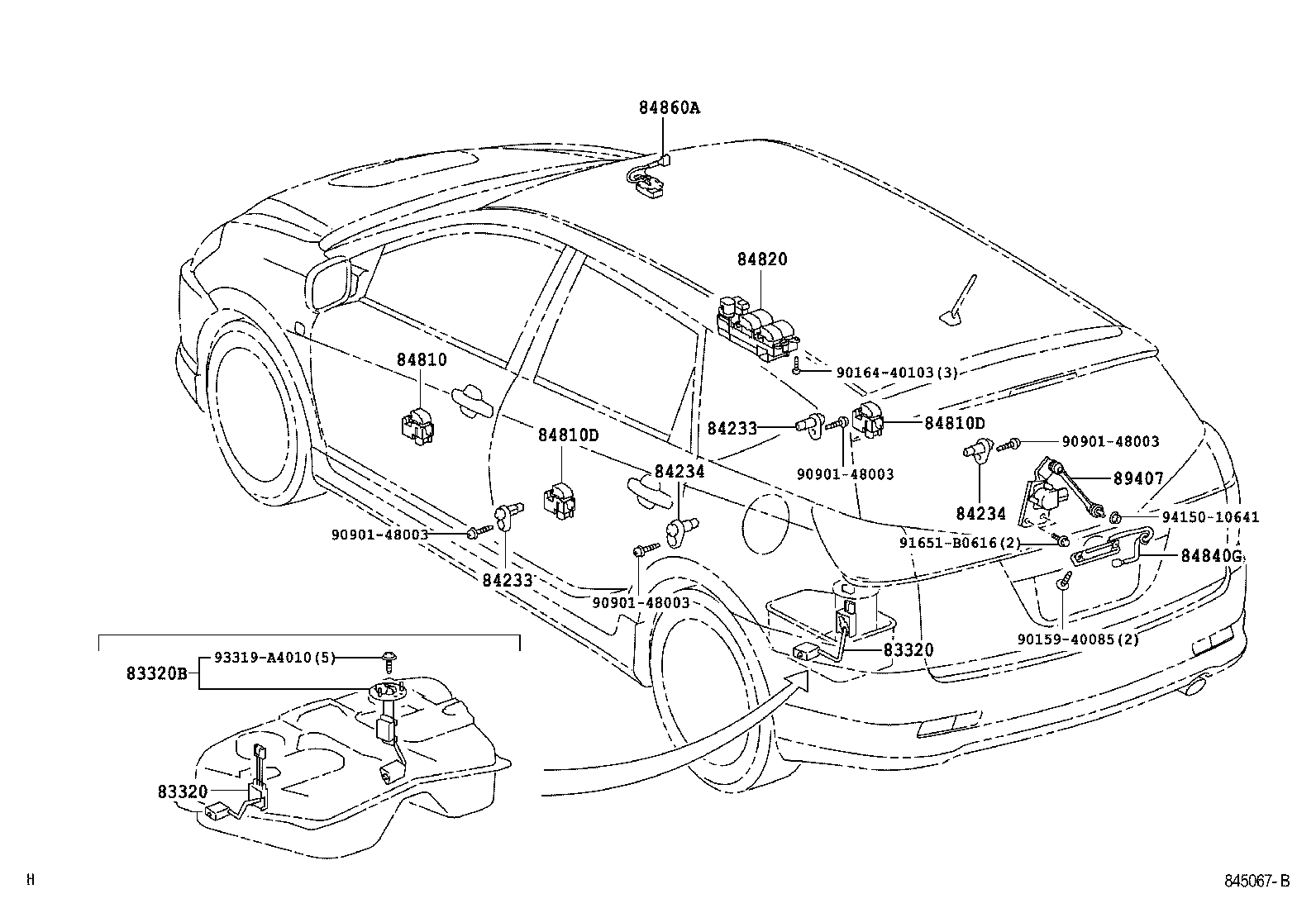

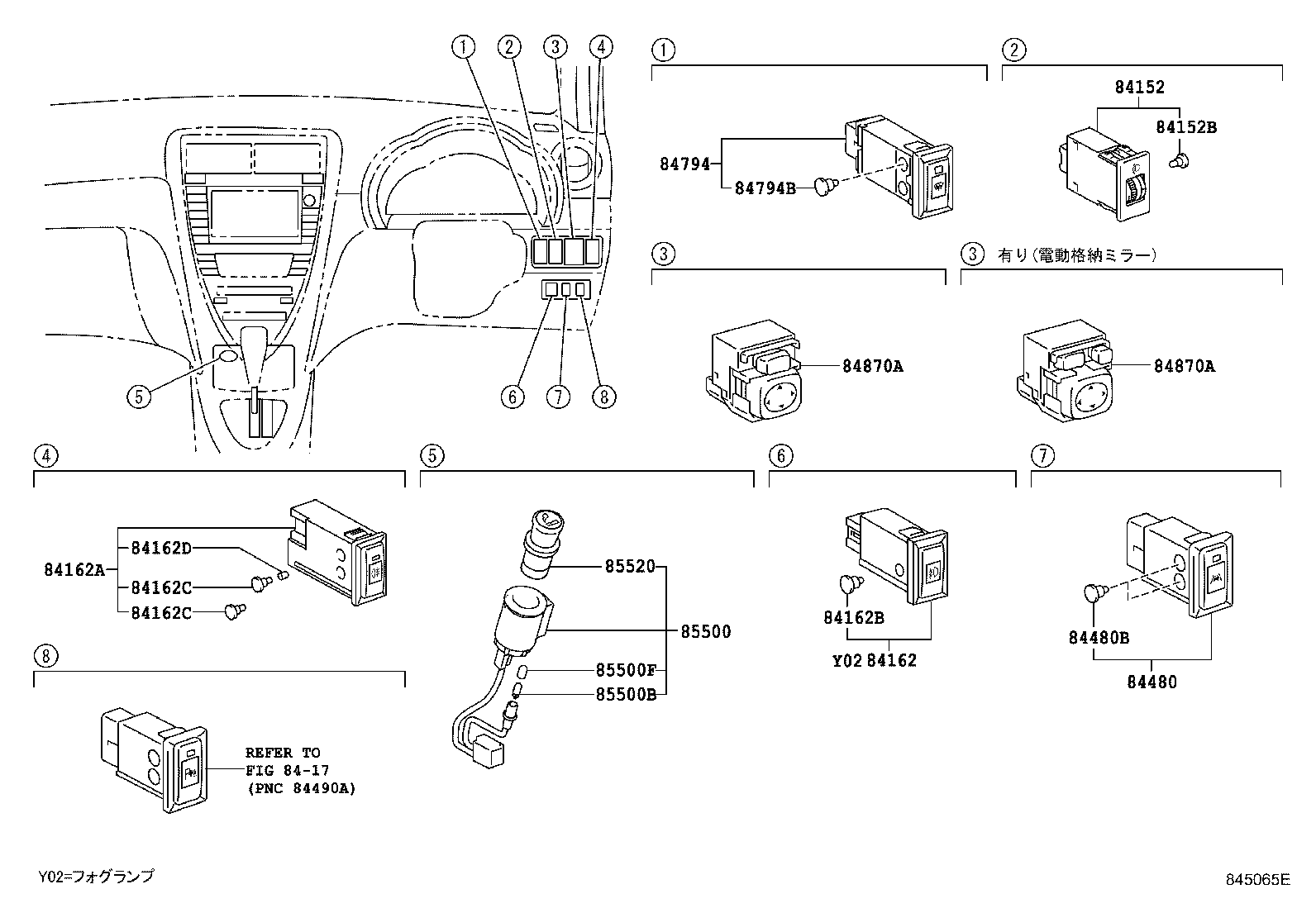

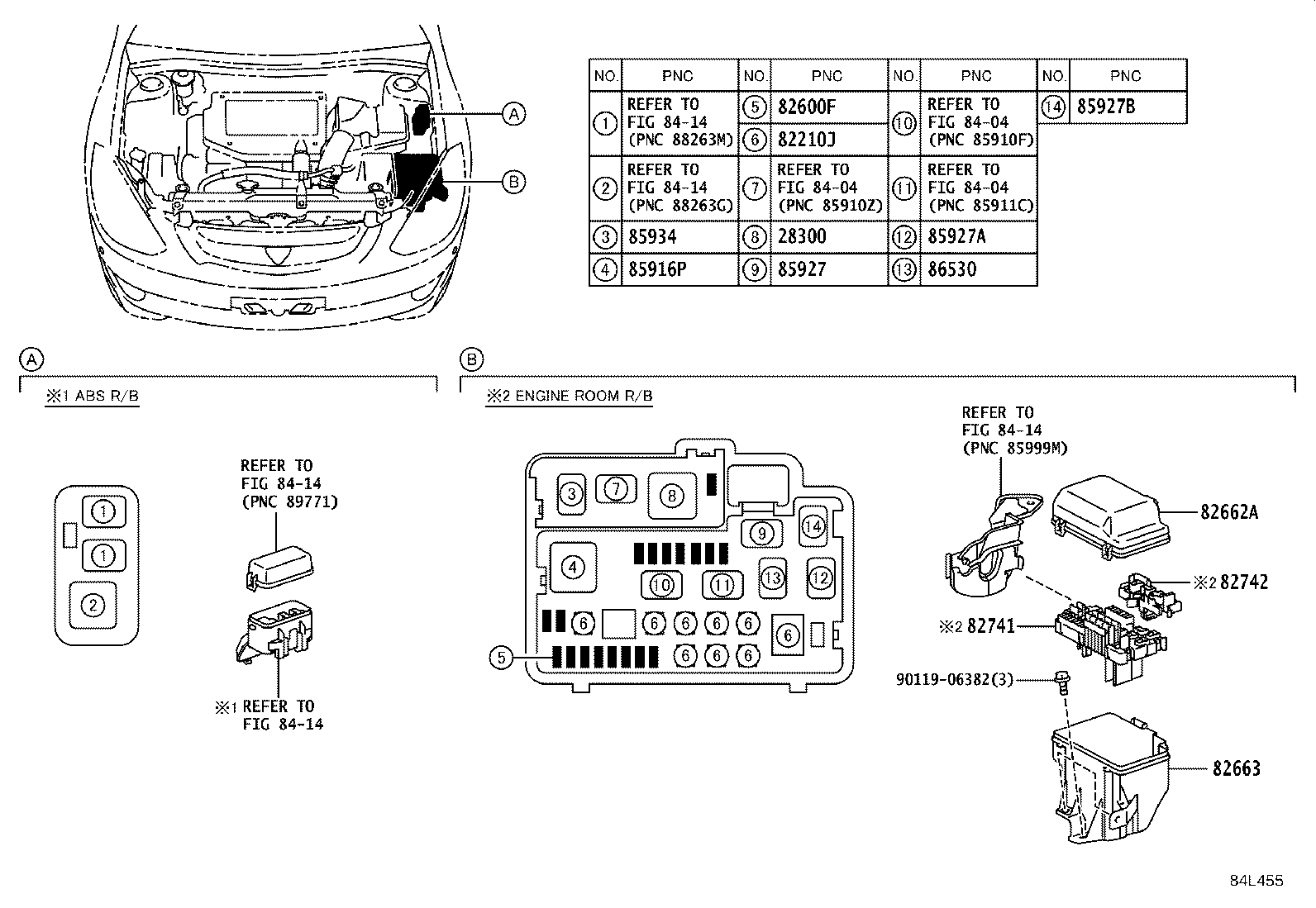

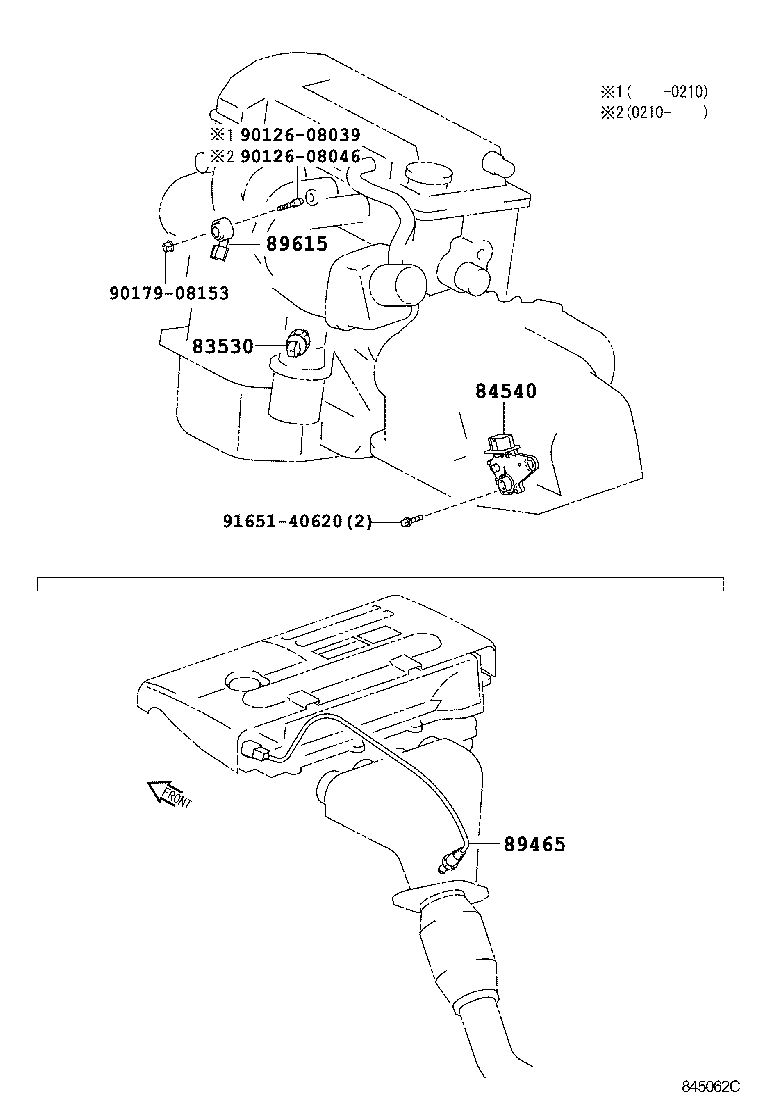

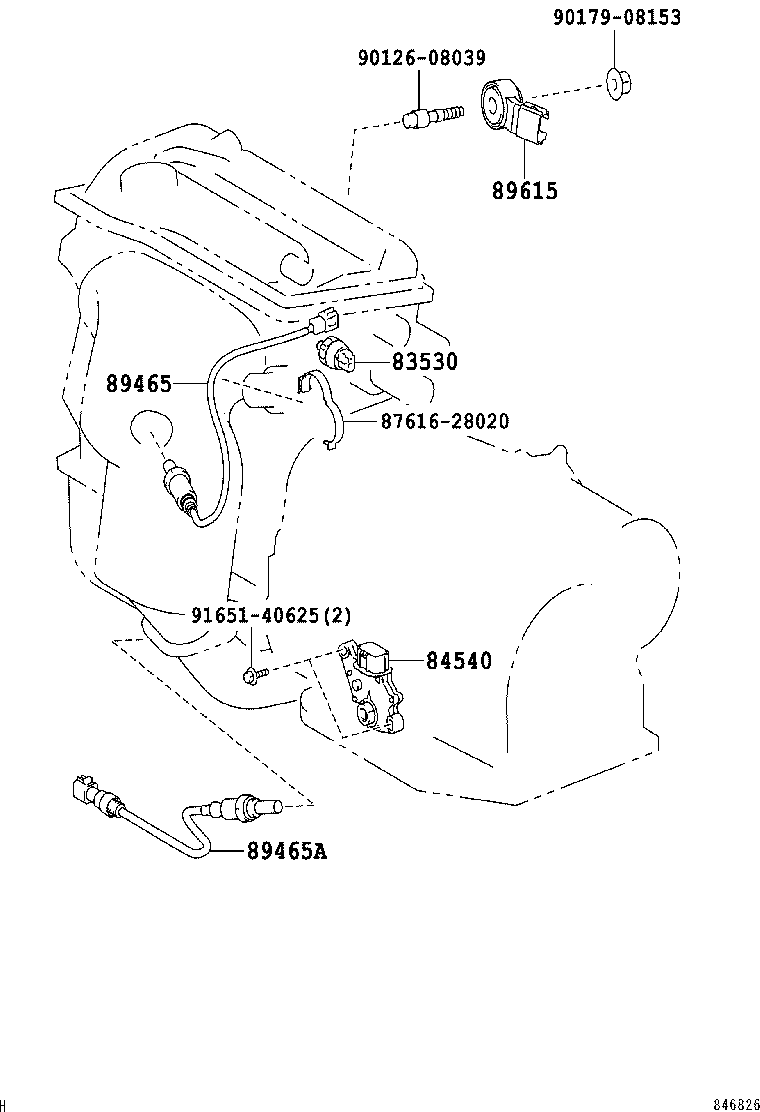

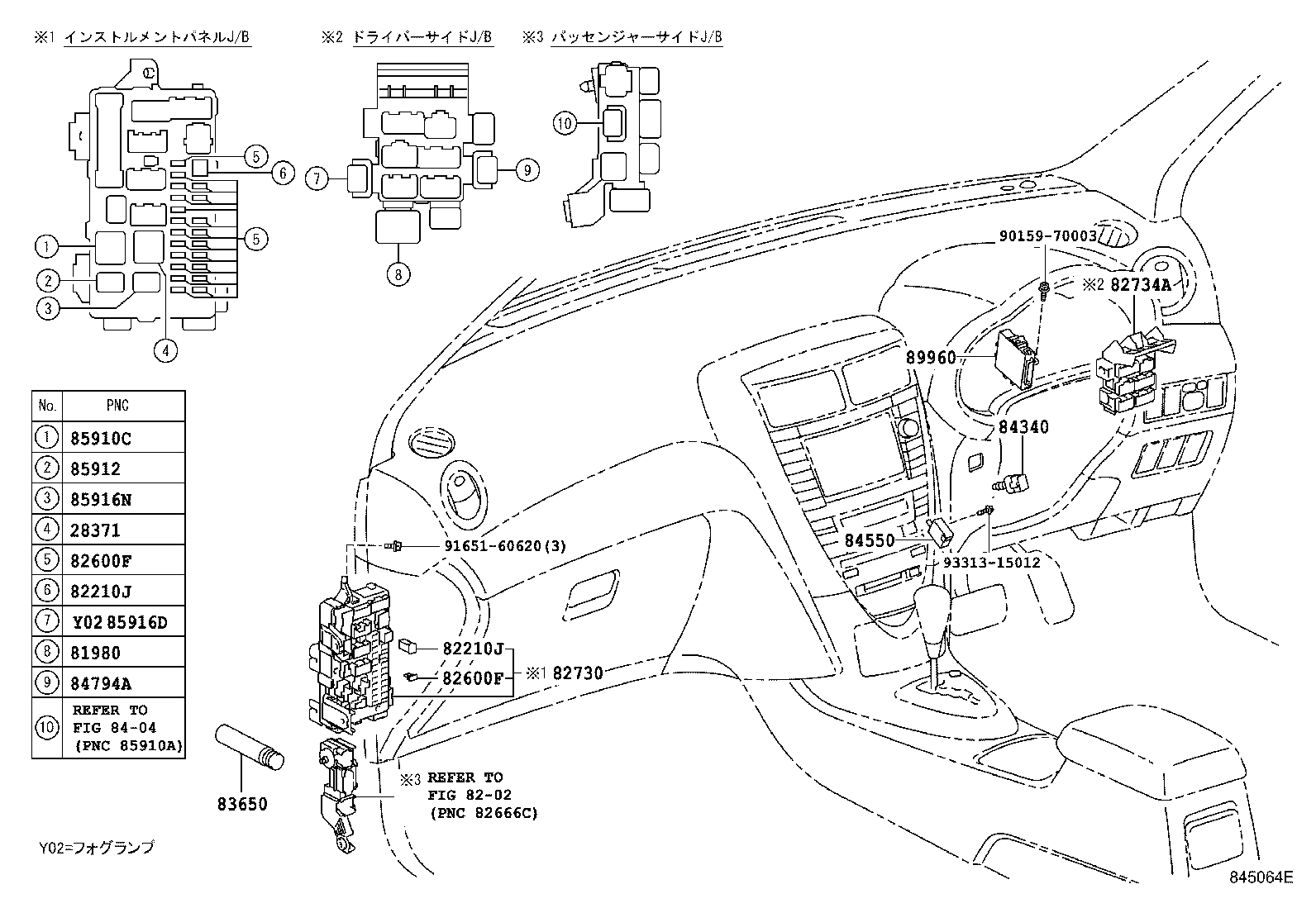

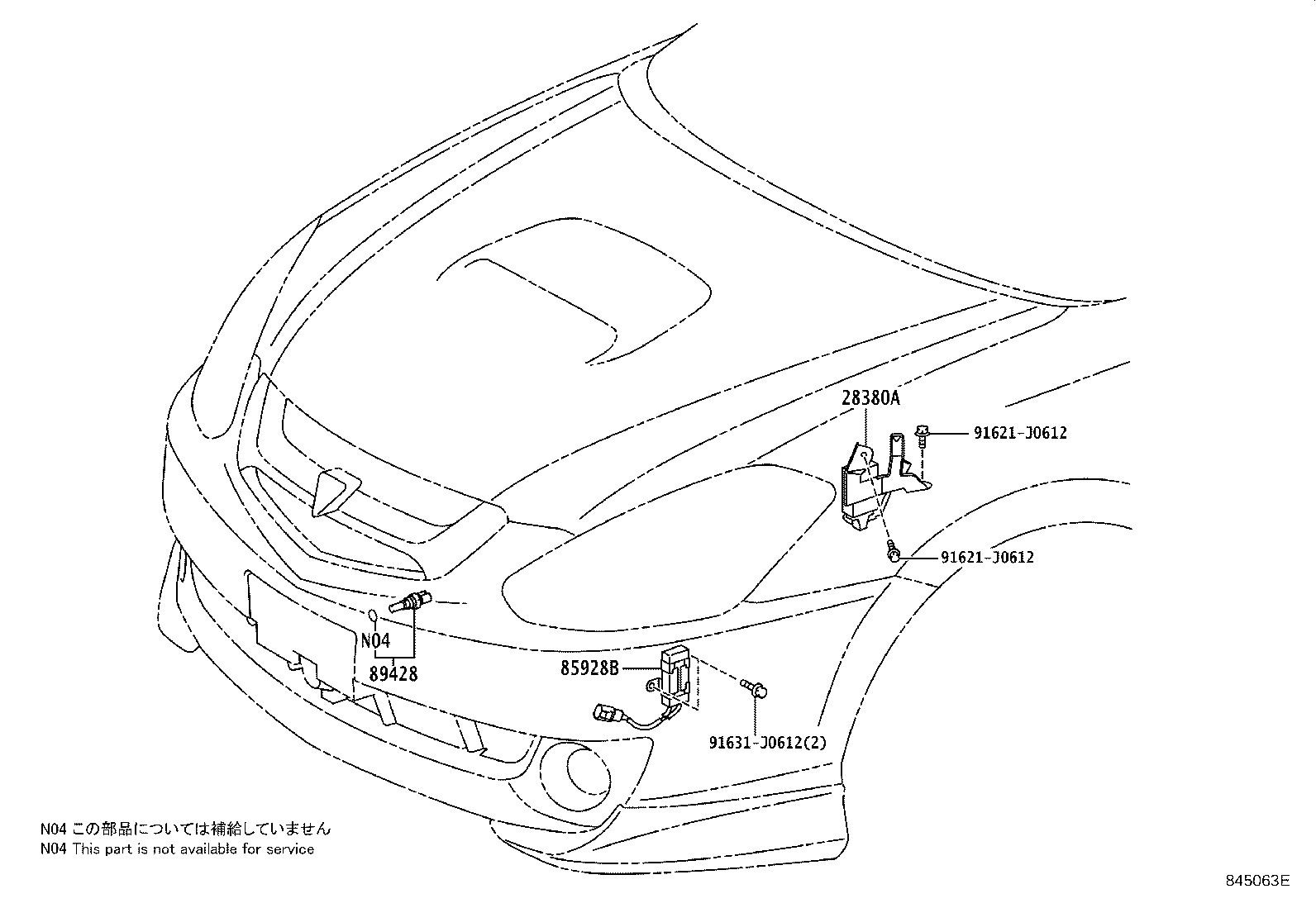

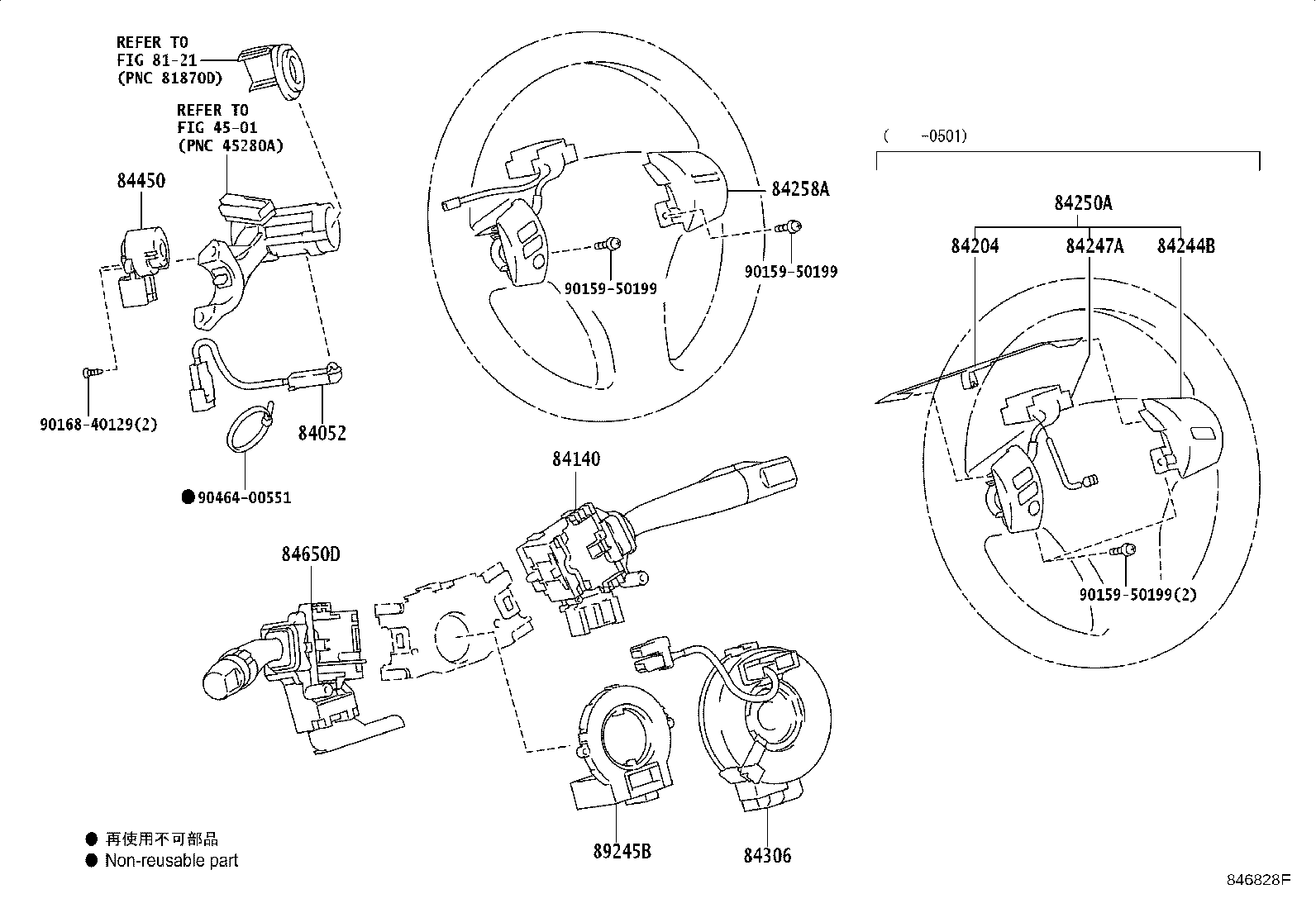

Figure 845060A 845060A 2002-09 → 2005-01 Figure 846826 846826 2005-01 → — Figure 845061A 845061A 2002-09 → — Figure 845062C 845062C 2002-09 → — Figure 845063E 845063E 2002-09 → — Figure 84L455 84L455 2002-09 → — Figure 845064E 845064E 2002-09 → — Figure 845065E 845065E 2002-09 → — Figure 846828F 846828F 2002-09 → — Figure 845067B 845067B 2002-09 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28371 Relay, Ignition, NO.1
28380A Resister, Fuel Pump
81980 Flasher Assy, Turn Signal
82210J Fusible Link
82600F Fuse, Fuse Block
82662A Cover, Relay Block, Upper, NO.1
82663 Cover, Relay Block, Lower
82730 Block Assy, Instrument Panel Junction
82734A Block, Center Junction
82741 Block, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
83320 Gage Assy, Fuel Sender
83320B Gage Assy, Fuel Sender, NO.2
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83650 Fusee
84052 Switch Assy, Un-lock Warning
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84152B Bulb (FOR HEADLAMP LEVELING SWITCH)
84162 Switch, Front Fog Lamp
84162A Switch, Rear Fog Lamp
84162B Bulb, Fog Lamp Switch
84162C Bulb (FOR REAR FOG LAMP SWITCH)
84162D Cap, Rear Fog Lamp Bulb
84204 Cable Sub-assy, Steering Pad Switch
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84244B Switch, Steering Pad, RH
84247A Switch, Steering Pad, LH
84250A Switch Assy, Steering Pad
84258A Cover, Steering Pad, RH
84306 Cable Sub-assy, Spiral
84340 Switch Assy, Stop Lamp
84450 Switch Assy, Ignition OR Starter
84480 Switch Assy, Main
84480B Bulb, Main Switch Assy
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84794 Switch, FR Wiper Deicer
84794A Relay, FR Wiper Deicer
84794B Bulb, FR Wiper Deicer Switch
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84820 Master Switch Assy, Power Window Regulator
84840G Switch Assy, Back Door Opener
84860A Switch Assy, Sliding Roof
84870A Switch Assy, Outer Mirror
85500 Lighter Assy, Cigarette
85500B Bulb, Cigarette Lighter
85500F Cap, Cigarette Lighter Bulb
85520 Knob And Element Assy, Cigarette Lighter
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85912 Relay, Defogger
85916D Relay, Fog Lamp
85916N Relay, Taillamp
85916P Relay, Headlamp
85927 Relay, Cooling Fan
85927A Relay, Cooling Fan, NO.2
85927B Relay, Cooling Fan, NO.3
85928B Resistor, Cooling Fan
85934 Relay, Magnet-clutch
86530 Relay Assy, Horn
89245B Sensor, Steering
89407 Sensor Sub-assy, Height Control, Rear RH
89428 Switch, Temperature Detect, NO.2
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89615 Sensor, Knock Control
89960 Computer Assy, Headlamp Leveling
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
