Toyota Caldina

2002-09 → 2007-06 · chassis AZT24#,ST246,ZZT241 · catalogue 274150 · Japan

Supported model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

22 part groups · 4 illustrations

Illustrations

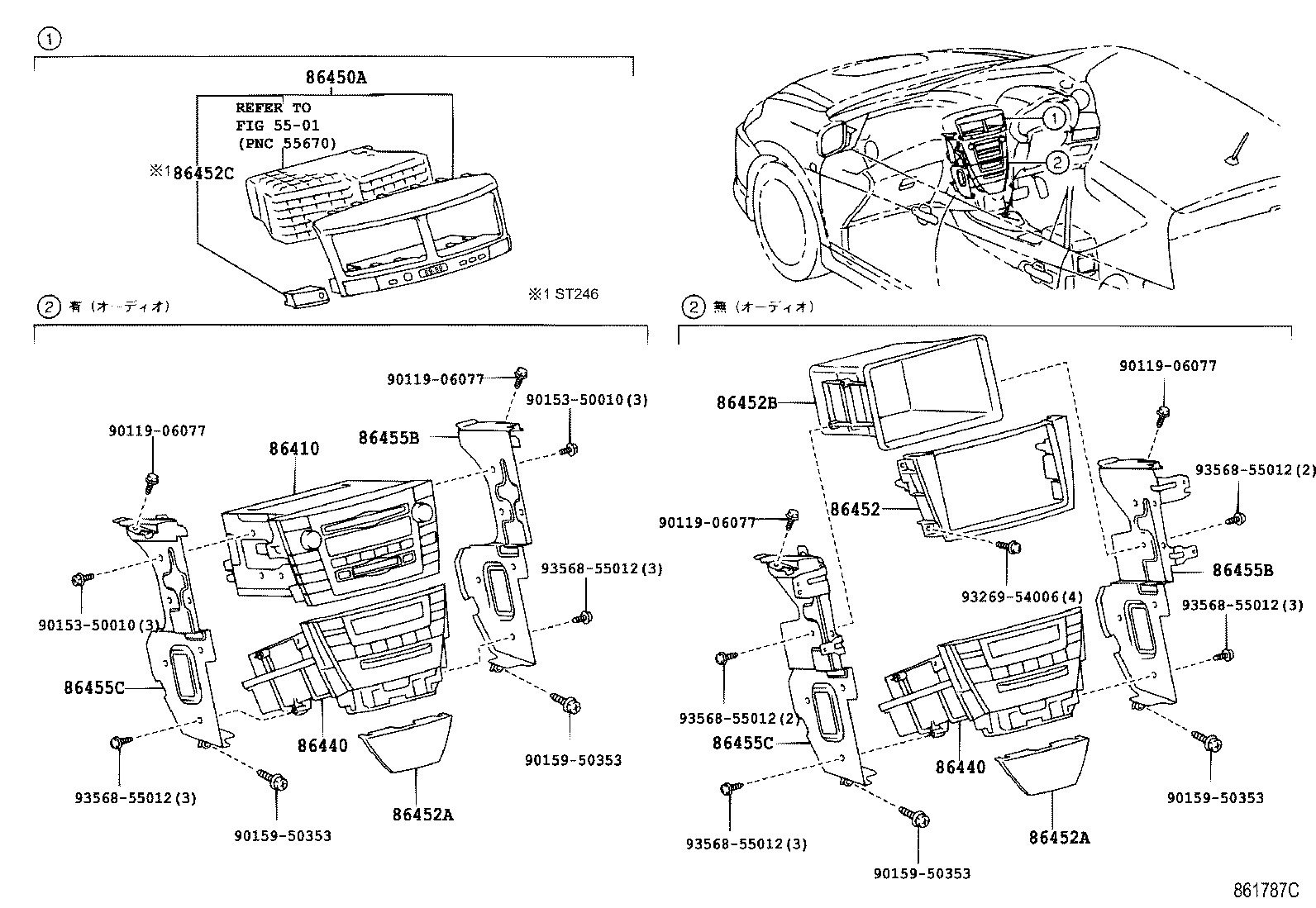

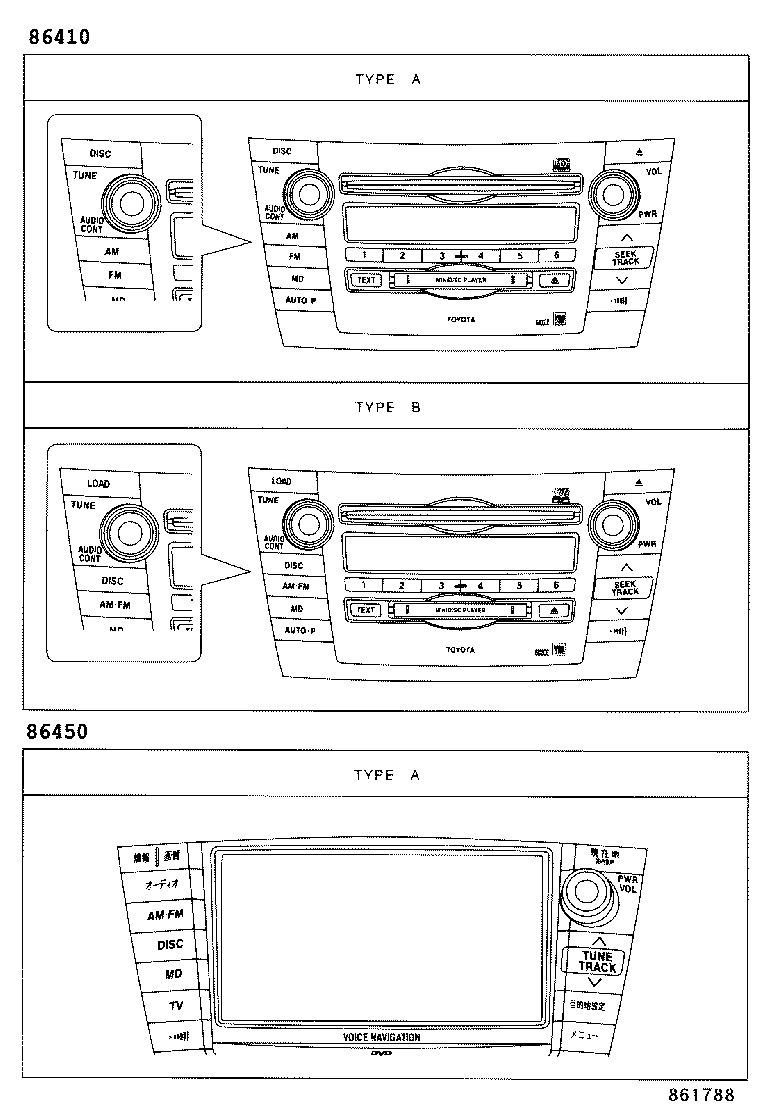

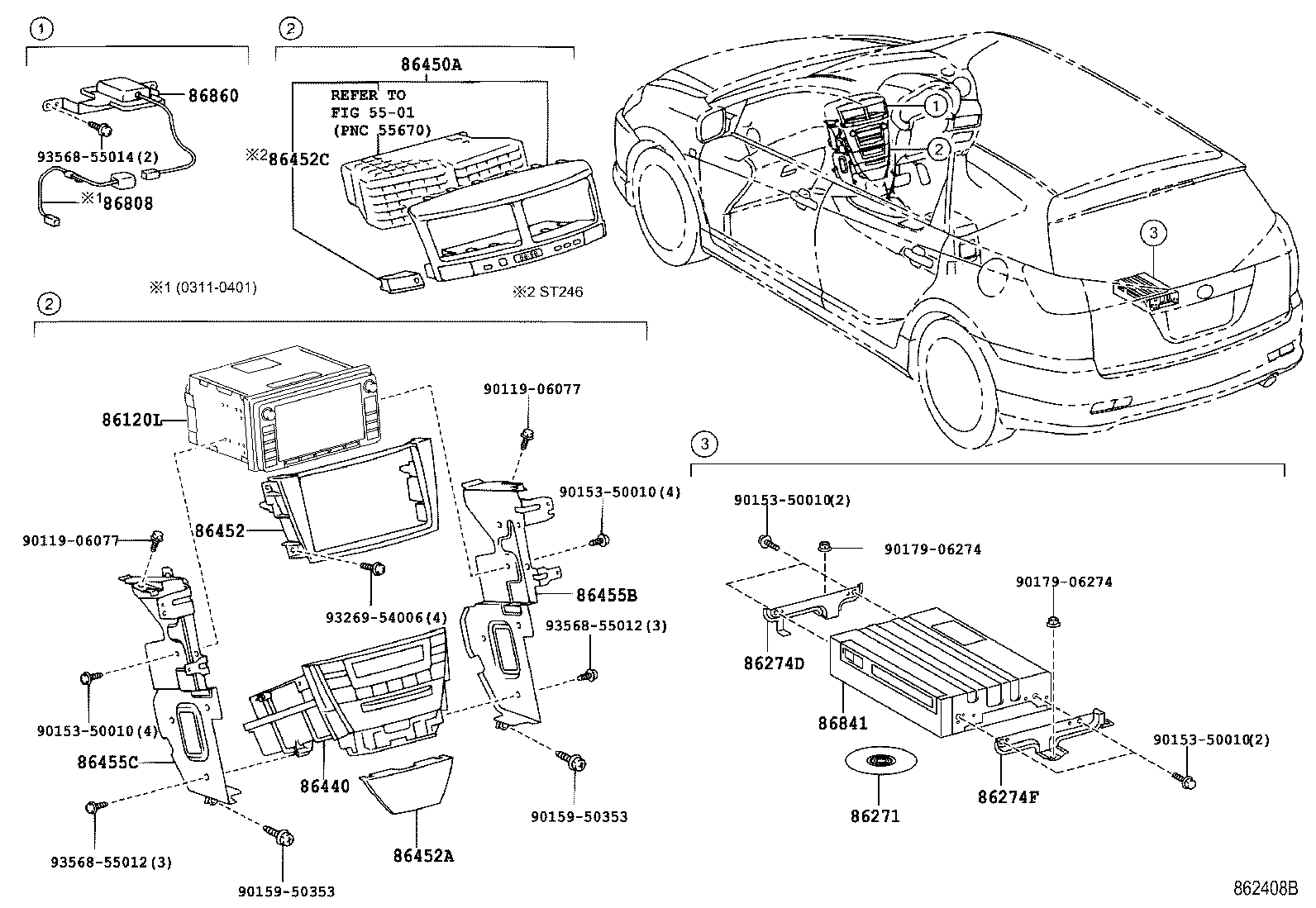

Figure 861786B 861786B 2002-09 → 2003-11 Figure 862408B 862408B 2003-11 → — Figure 861787C 861787C 2002-09 → — Figure 861788 861788 2002-09 → —

Part groups

PNCDescription
86120L Receiver Assy, Navigation
86271 Disc, Disc Player
86274D Bracket, Disc Player
86274F Bracket, Disc Player, NO.2
86410 Audio Assy, Multi-media Module
86420 Navigation Assy, Multi-media Module
86440 Heater Assy, Multi-media Module
86450 Panel Assy, Multi-media Module, NO.1
86450A Panel Assy, Multi-media Module, NO.2
86452 Panel, Sub-cluster Module, NO.1
86452A Panel, Sub-cluster Module, NO.2
86452B Panel, Sub-cluster Module, NO.3
86452C Panel, Sub-cluster Module, NO.4
86454 Rail, Multi-media Module
86455 Case, Multi-media Modul, NO.1
86455A Case, Multi-media Module, NO.2
86455B Case, Multi-media Module, NO.3
86455C Case, Multi-media Module, NO.4
86455D Case, Multi-media Module, NO.5
86808 Cord Sub-assy, Navigation Antenna, NO.1
86841 Computer, Navigation
86860 Antenna Assy, Navigation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
