Heating & Air Conditioning - Control & Air Duct

10 part groups · 3 illustrations

Illustrations

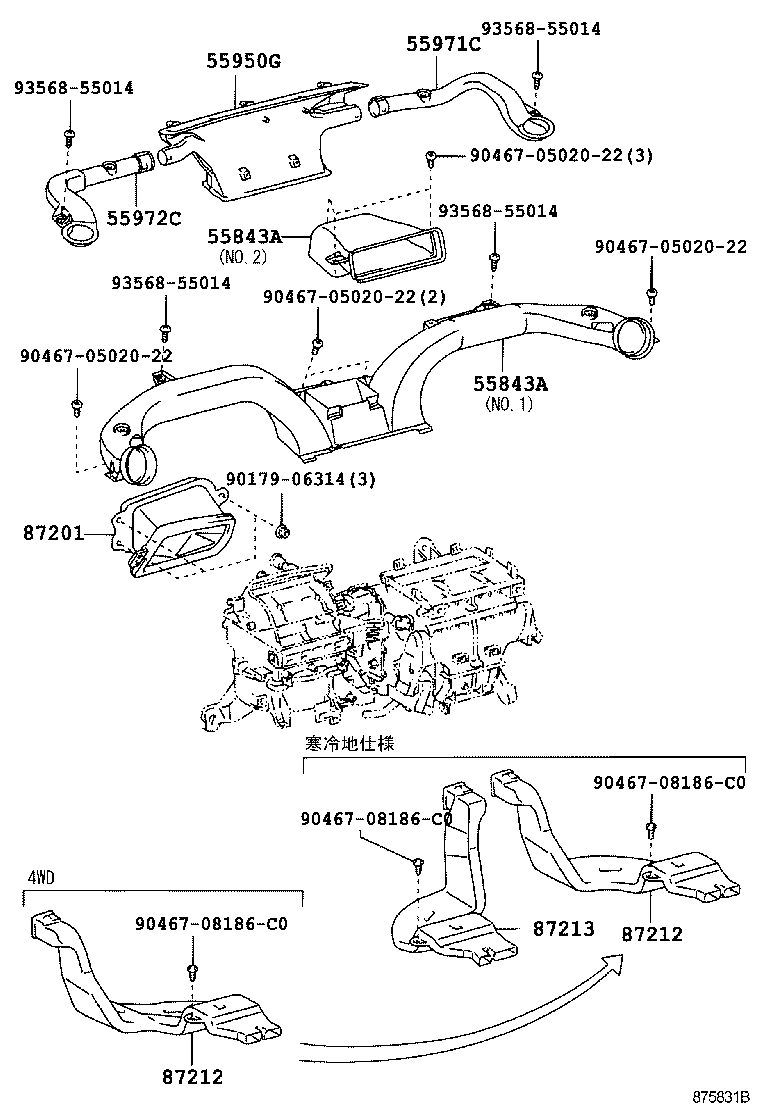

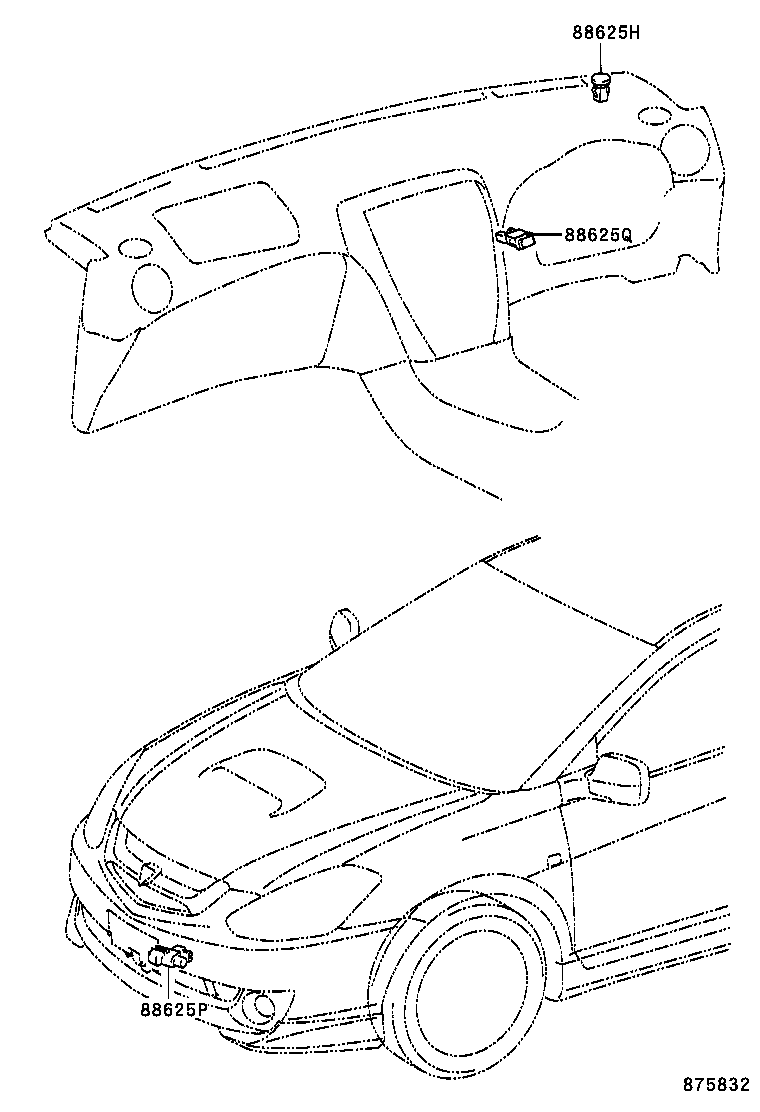

Figure 875830A 875830A 2002-09 → — Figure 875831B 875831B 2002-09 → — Figure 875832 875832 2002-09 → —

Part groups

PNCDescription
55843A Duct, Heater TO Register, NO.1
55950G Nozzle Assy, Defroster
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
87201 Duct Sub-assy, Air, NO.1
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
88625H Thermistor, Cooler (SOLAR SENSOR)
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
