Toyota Caldina

2002-09 → 2007-06 · chassis AZT24#,ST246,ZZT241 · catalogue 274150 · Japan

Supported model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

10 part groups · 3 illustrations

Illustrations

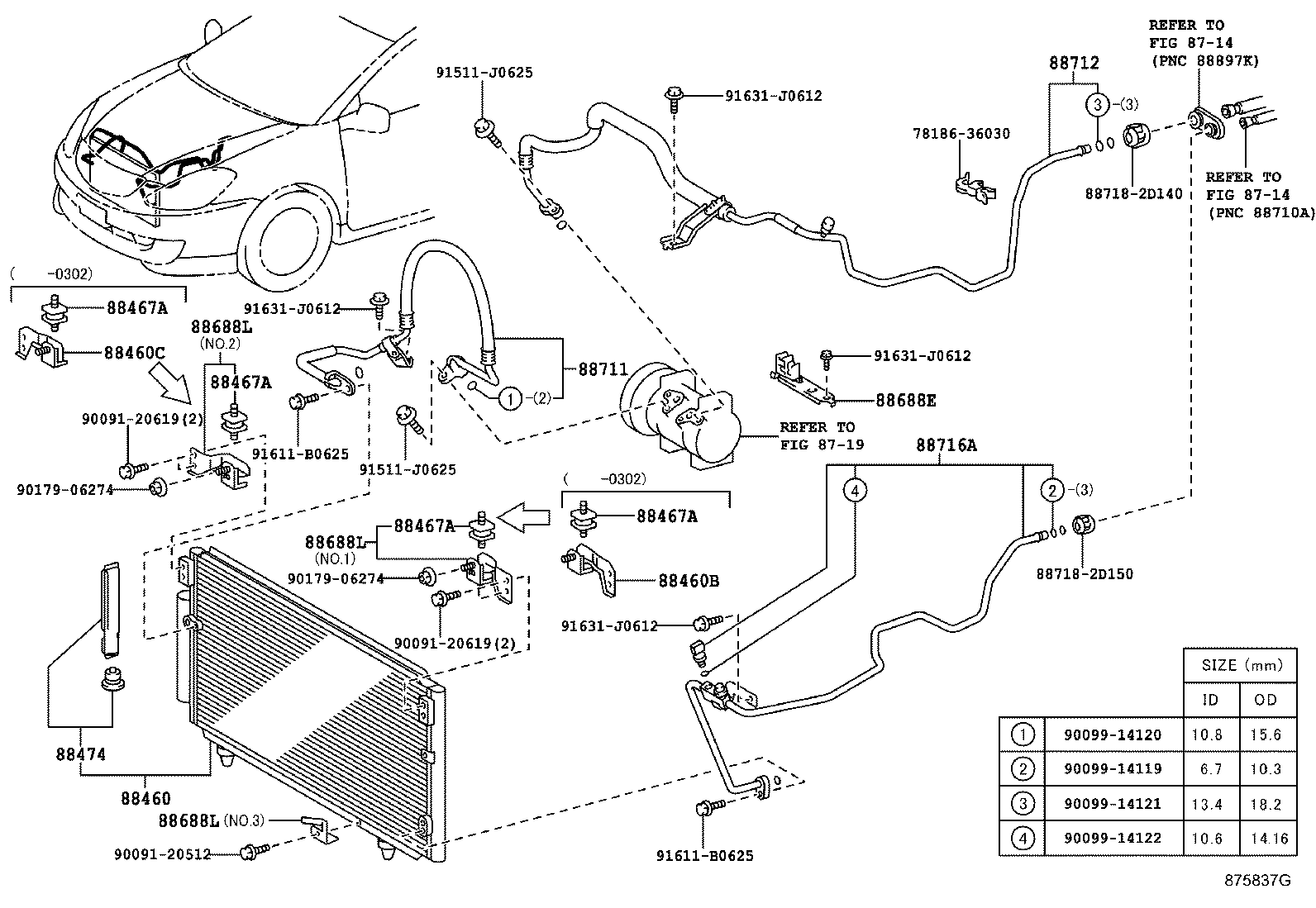

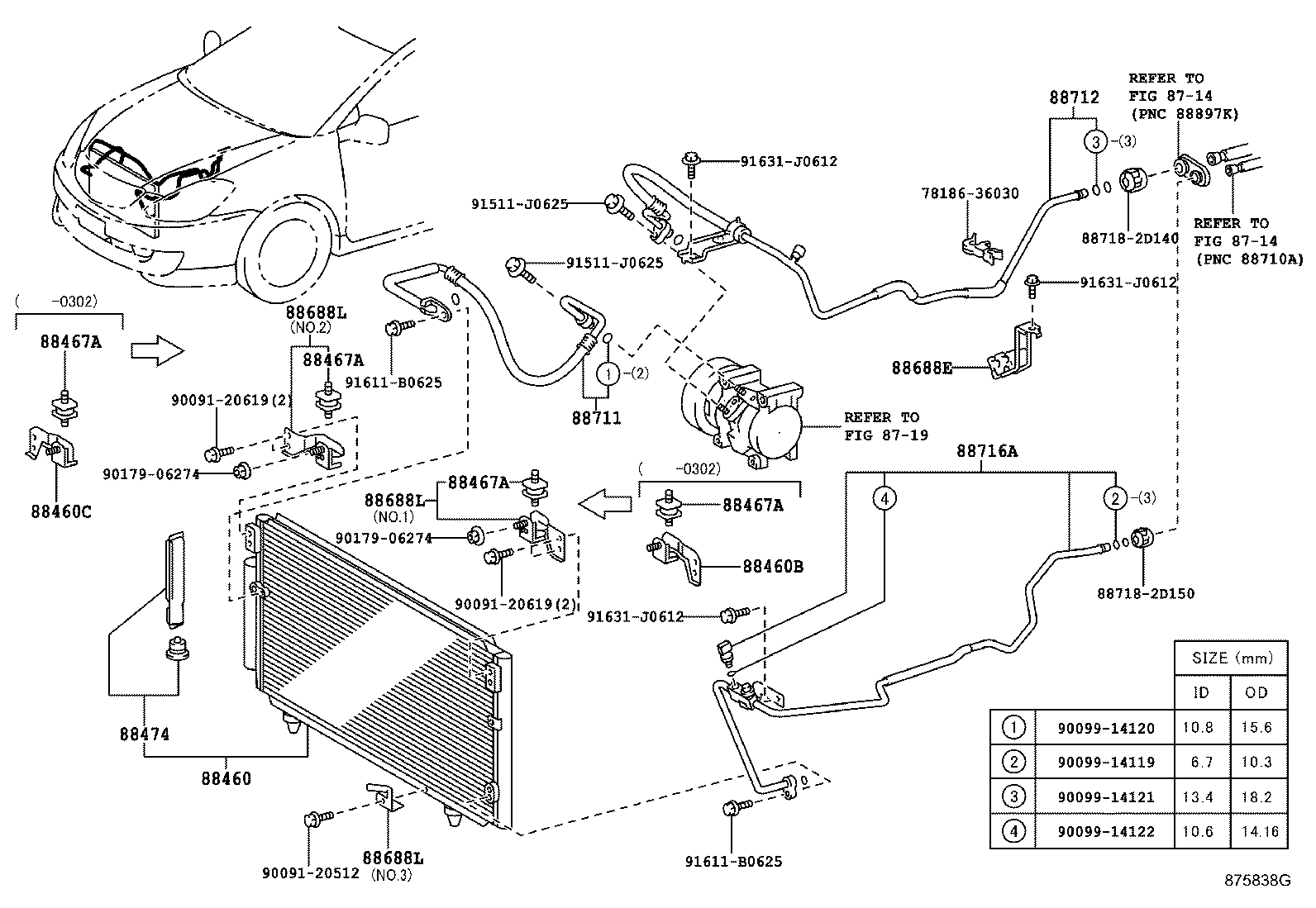

Figure 875836G 875836G 2002-09 → — Figure 875837G 875837G 2002-09 → — Figure 875838G 875838G 2002-09 → —

Part groups

PNCDescription
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88460C Bracket, Cooler Condenser, NO.2
88467A Cushion, Cooler Condenser, NO.2
88474 Dryer, Cooler
88688E Bracket, Cooler Refrigerant Hose, NO.1
88688L Bracket, Condenser Packing
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
