Toyota Caldina
2002-09 → 2007-06 · chassis AZT24#,ST246,ZZT241 · catalogue 274150 · Japan
Supported model
Data version 2008-04

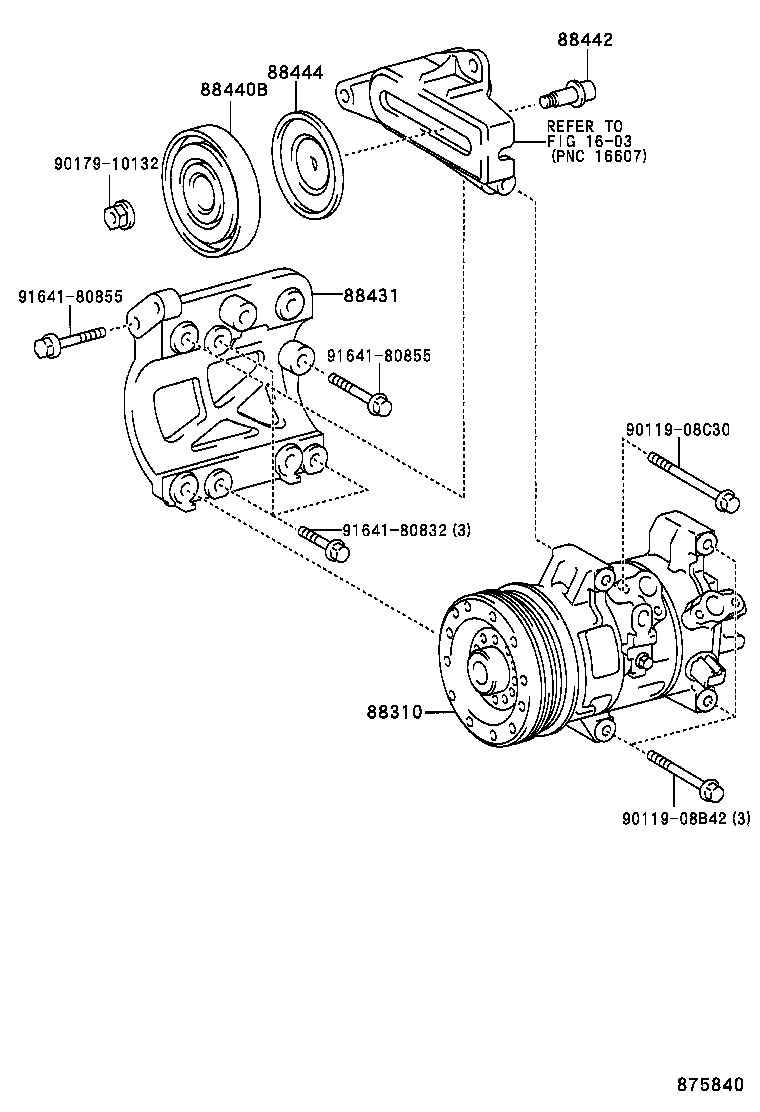

Heating & Air Conditioning - Compressor
8 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 88310 | Compressor Assy, W/Pulley |
| 88320 | Compressor Assy, Cooler |
| 88330A | Washer (FOR MAGNET CLUTCH) |
| 88410 | Clutch Assy, Magnet |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88440B | Pulley Assy, Idle |
| 88442 | Shaft, Idle Pulley |
| 88444 | Bracket, Idle Pulley |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
