Toyota Opa

2000-04 → 2005-04 · chassis ACT10,ZCT1# · catalogue 276110 · Japan

Discontinued model Data version 2005-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube(CVT)

15 part groups · 2 illustrations

Illustrations

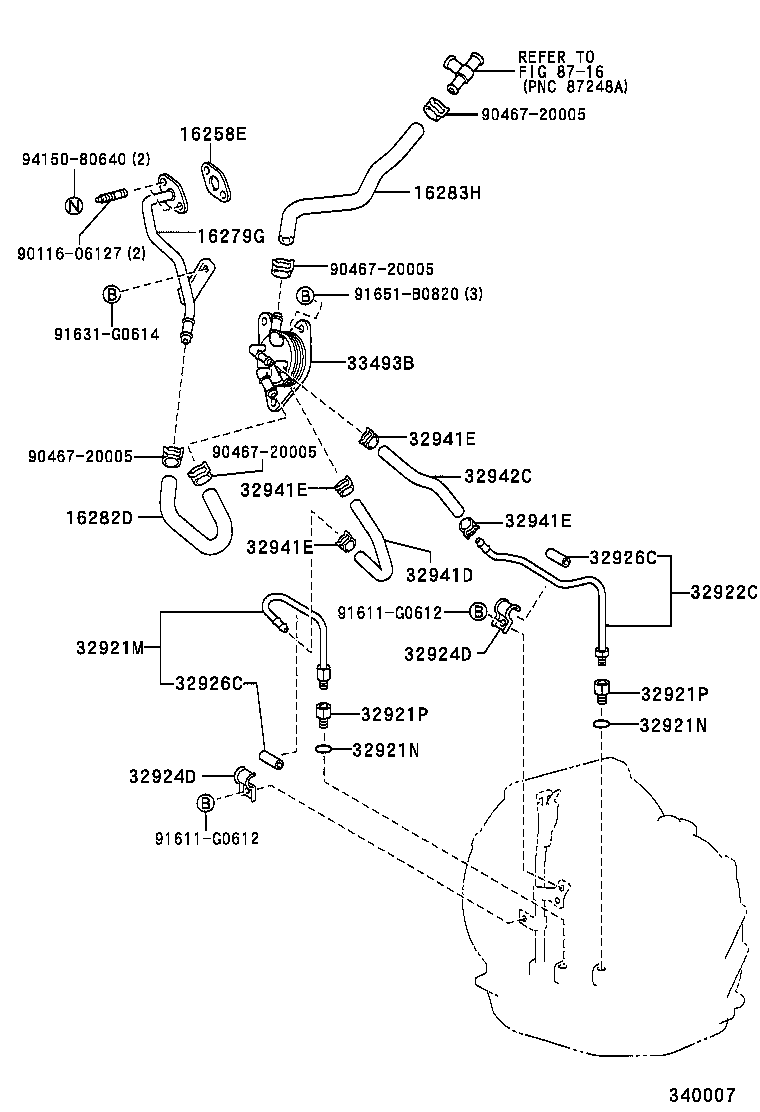

Figure 340001B 340001B 2000-08 → 2002-05 Figure 340007 340007 2002-05 → —

Part groups

PNCDescription
16258E Gasket(FOR WATER BY-PASS PIPE)
16279G Pipe, Water By-pass, NO.3
16282D Hose, Water By-pass, NO.5
16283H Hose, Water By-pass, NO.6
32921M Tube, Oil Cooler Inlet, NO.1
32921N Ring, O(FOR OIL COOLER TUBE UNION)
32921P Union(FOR OIL COOLER TUBE)
32922C Tube, Oil Cooler Outlet, NO.1
32923M Clamp, Oil Cooler Tube
32924D Clamp, Oil Cooler Tube, NO.2
32926C Cushion, Oil Cooler Tube(CVT)
32941D Hose, Oil Cooler Inlet
32941E Clip(FOR OIL COOLER TUBE)
32942C Hose, Oil Cooler Outlet, NO.1
33493B Cooler, Oil
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
