Toyota Opa
2000-04 → 2005-04 · chassis ACT10,ZCT1# · catalogue 276110 · Japan
Discontinued model
Data version 2005-10
Power Steering Tube

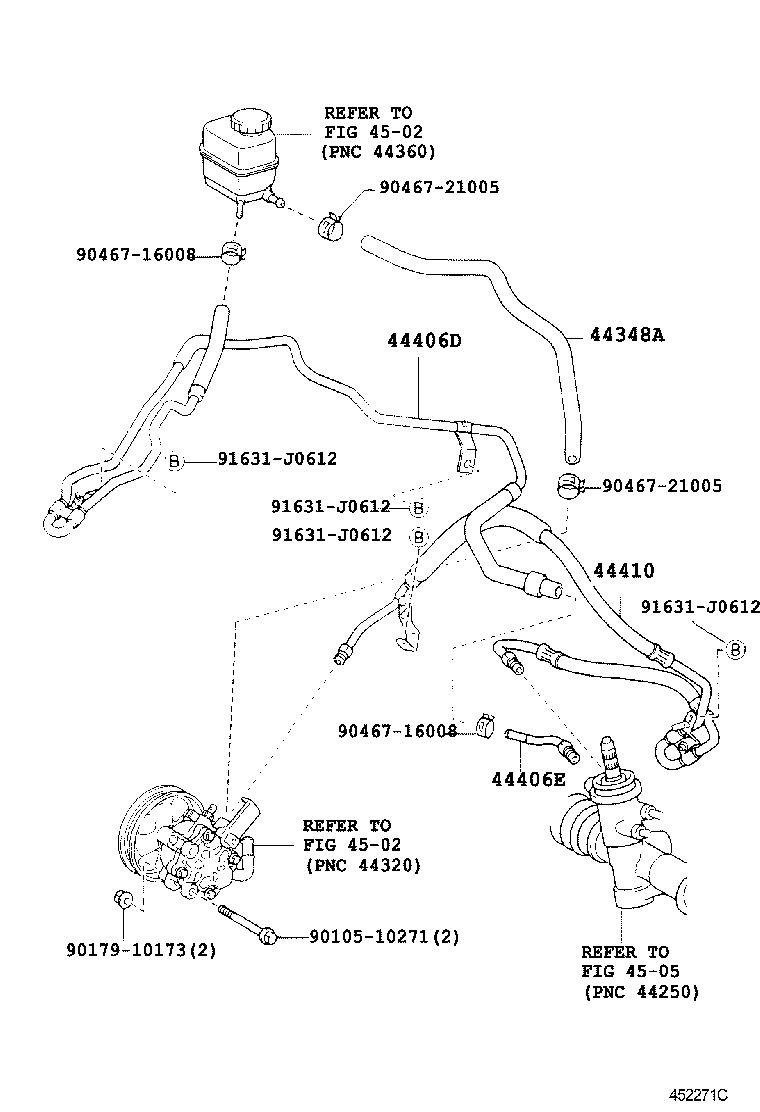

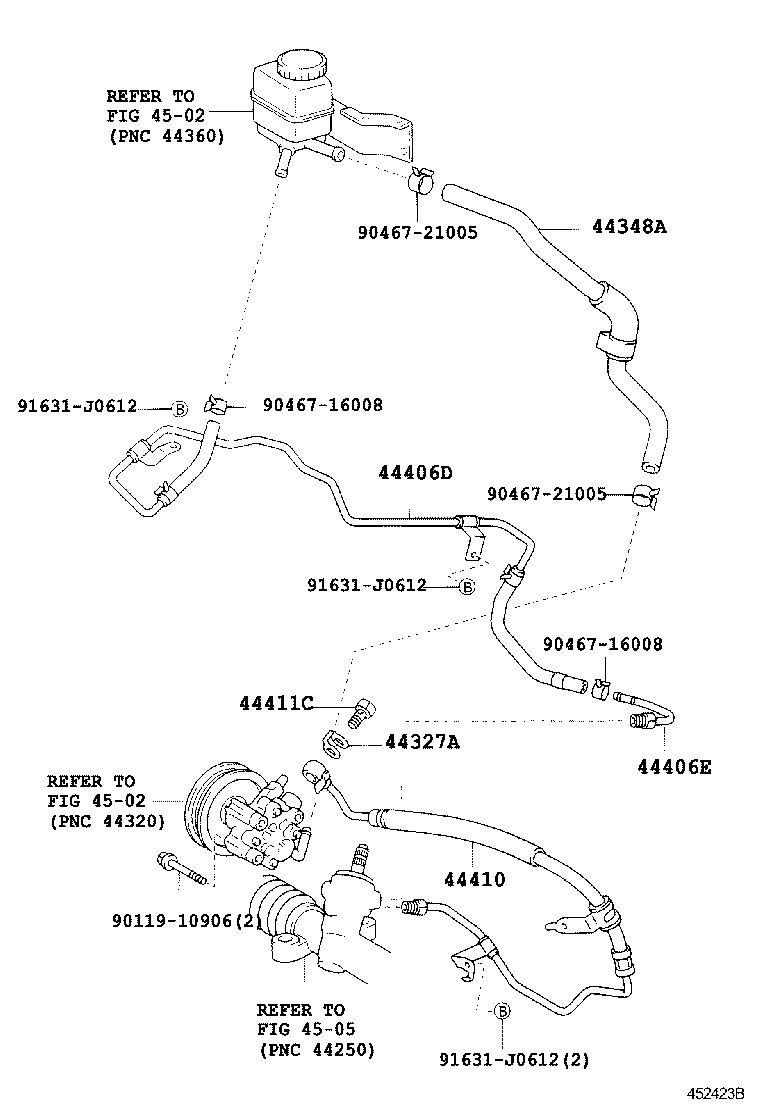

6 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 44327A | Gasket, Pressure Port, NO.1 |
| 44348A | Hose, Oil Reservoir TO Pump, NO.1 |
| 44406D | Tube Sub-assy, Return, NO.1 |
| 44406E | Tube Sub-assy, Return, NO.2 |
| 44410 | Tube Assy, Pressure Feed |
| 44411C | Bolt, Union(FOR PRESSURE FEED HOSE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
