Toyota Opa
2000-04 → 2005-04 · chassis ACT10,ZCT1# · catalogue 276110 · Japan
Discontinued model
Data version 2005-10

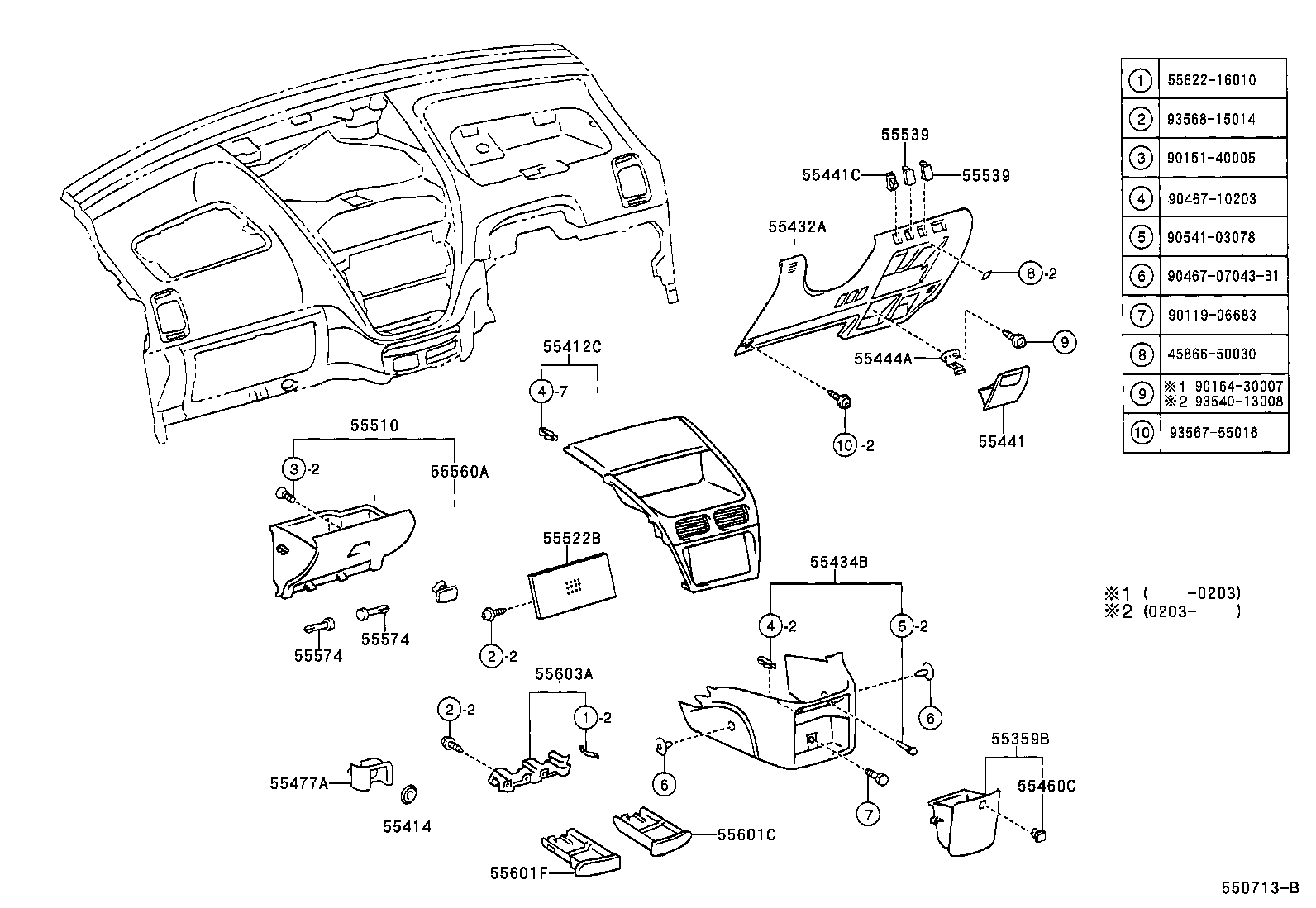

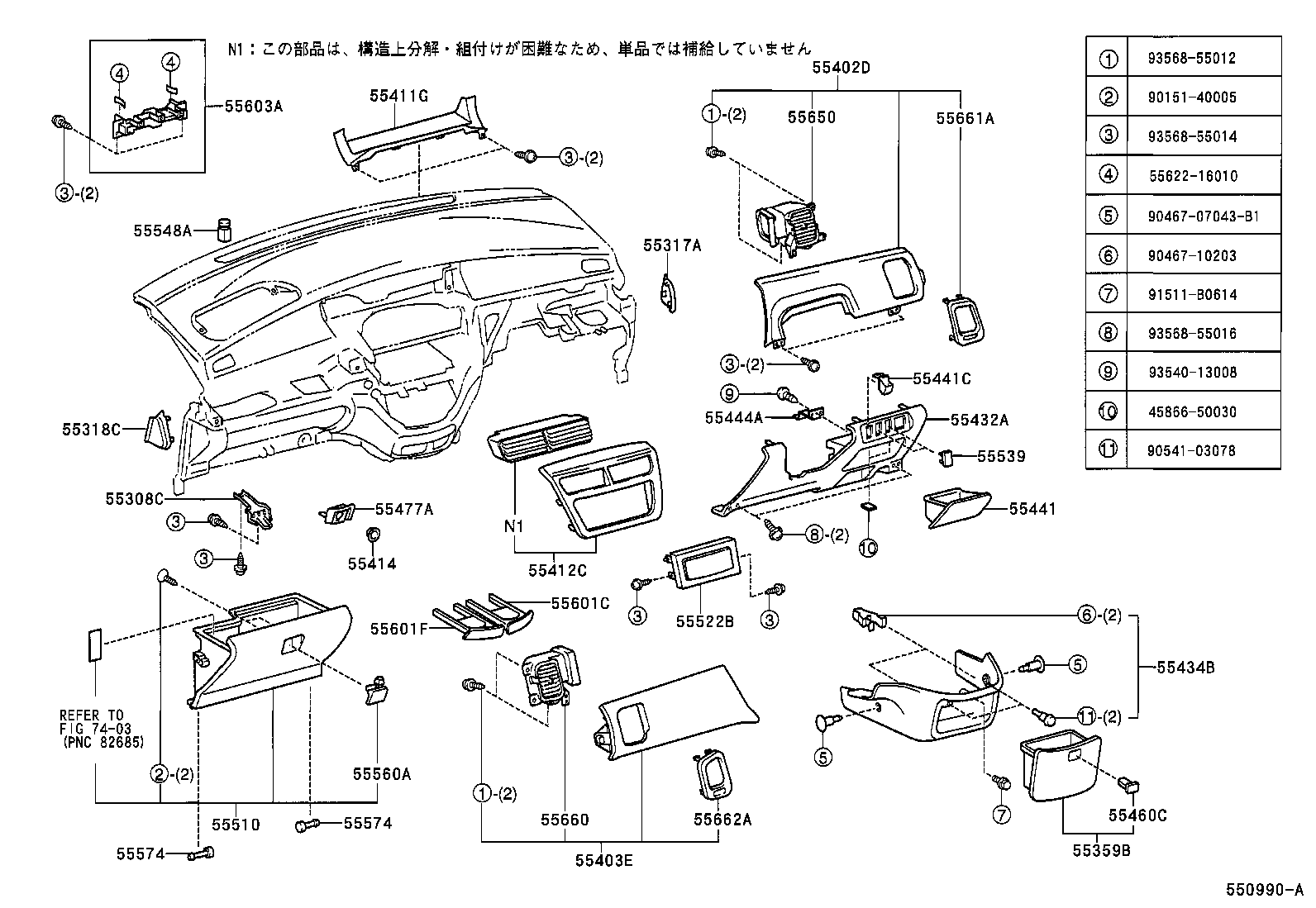

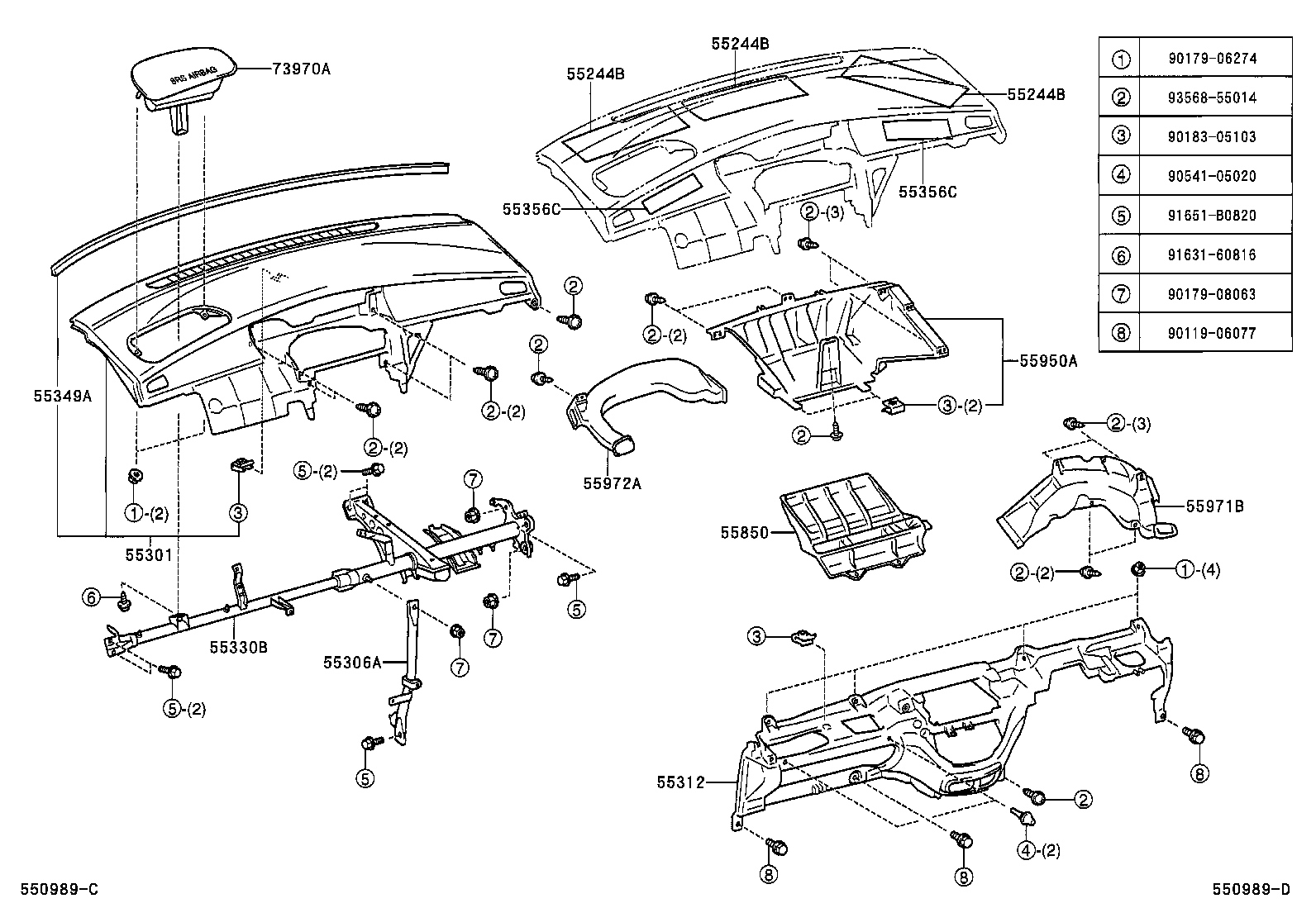

Instrument Panel & Glove Compartment
48 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55041B | Door Sub-assy, Instrument Panel Box, NO.1 |
| 55211A | Silencer, Front Panel, Upper |
| 55212A | Silencer, Front Panel, Lower |
| 55242A | Silencer, Front Panel Side, NO.1 |
| 55244B | Silencer, Front Panel Side, NO.2 |
| 55301 | Panel Sub-assy, Instrument |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55308C | Bracket Sub-assy, Instrument Panel, Center |
| 55312 | Panel, Instrument, Lower |
| 55317A | Panel, Instrument Side, RH |
| 55318C | Panel, Instrument Side, LH |
| 55327C | Patch, Instrument Panel, Upper RH |
| 55328B | Patch, Instrument Panel, Upper LH |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55331 | Reinforcement, Instrument Panel |
| 55349A | Cushion, Instrument Panel |
| 55356C | Cushion, Instrument Panel, NO.2 |
| 55359B | Box, Instrument Panel, Center |
| 55402D | Pad Sub-assy, Instrument Panel Safety, NO.1 |
| 55403E | Pad Sub-assy, Instrument Panel Safety, NO.2 |
| 55411G | Panel, Instrument Cluster Finish, NO.1 |
| 55412C | Panel, Instrument Cluster Finish, Center NO.1 |
| 55414 | Bezel, Cigar Lighter Hole |
| 55432A | Panel, Instrument Panel Finish, Lower RH |
| 55434B | Panel, Instrument Panel Finish, Lower Center |
| 55441 | Box, Instrument Panel |
| 55441C | Box, Instrument Panel Coin |
| 55444A | Spring, Instrument Panel Box |
| 55460C | Lock Assy, Instrument Panel Box |
| 55477A | Bezel, Cigarette Lighter Hole |
| 55510 | Door Assy, Glove Compartment |
| 55522B | Cover, Radio Tuner Opening |
| 55539 | Cover, Spare Switch Hole |
| 55548A | Cover, Instrument Panel Hole |
| 55560A | Lock Assy, Glove Compartment Door |
| 55574 | Shaft, Glove Compartment Door Hinge |
| 55601C | Tray Sub-assy, Instrument Panel Under |
| 55601F | Tray Sub-assy, Instrument Panel Under |
| 55603A | Case Sub-assy, Instrument Panel Cup Holder |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55661A | Bezel, Instrument Panel Register |
| 55662A | Bezel, Instrument Panel Resister, NO.2 |
| 55850 | Connector Assy, Instrument Panel Register, Center |
| 55950A | Nozzle Assy, Defroster |
| 55971B | Duct, Side Defroster Nozzle, NO.1 |
| 55972A | Duct, Side Defroster Nozzle, NO.2 |
| 73970A | Airbag Assy, Instrument Panel Passenger |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
