Toyota Opa
2000-04 → 2005-04 · chassis ACT10,ZCT1# · catalogue 276110 · Japan
Discontinued model
Data version 2005-10
Mat & Carpet
9 part groups · 2 illustrations
Part groups

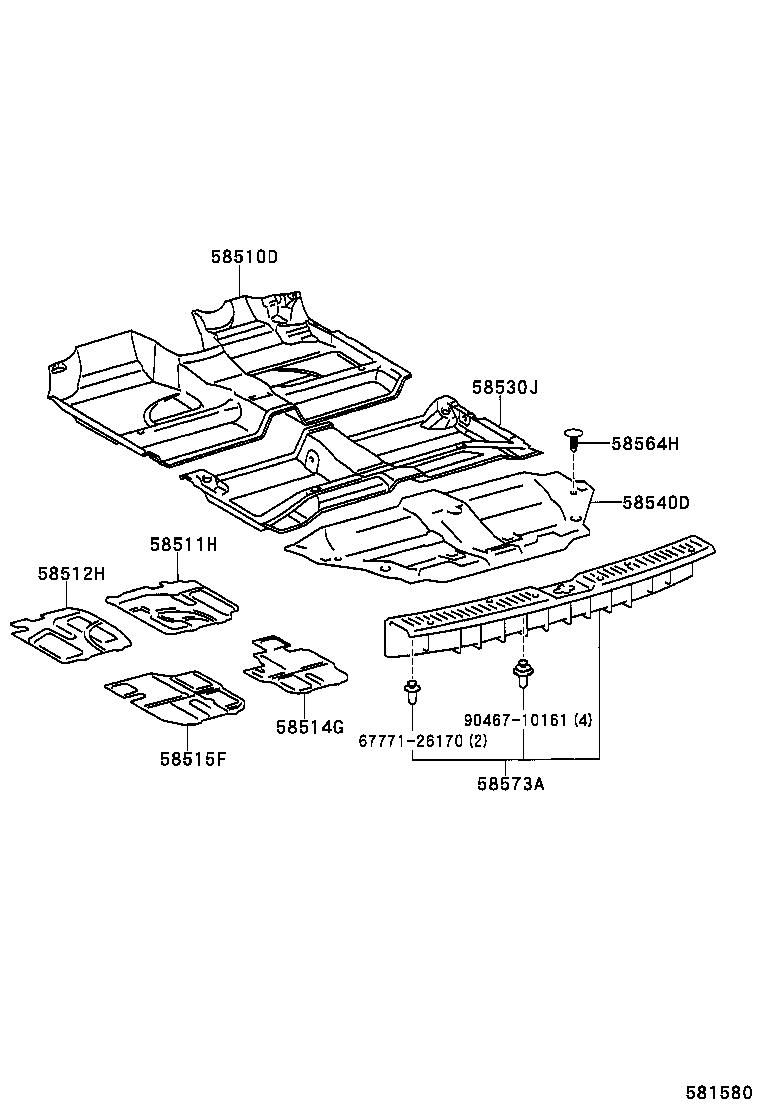

| PNC | Description |
|---|---|
| 58510D | Carpet Assy, Floor, Front |
| 58511H | Mat, Floor, Front RH |
| 58512H | Mat, Floor, Front LH |
| 58514G | Mat, Floor, Rear RH |
| 58515F | Mat, Floor, Rear LH |
| 58530J | Carpet Assy, Floor, Center |
| 58540D | Carpet Assy, Floor, Rear |
| 58564H | Clip(FOR REAR FLOOR CARPET) |
| 58573A | Plate, Rear Floor Mat Support |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
