Toyota Opa

2000-04 → 2005-04 · chassis ACT10,ZCT1# · catalogue 276110 · Japan

Discontinued model Data version 2005-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

17 part groups · 2 illustrations

Illustrations

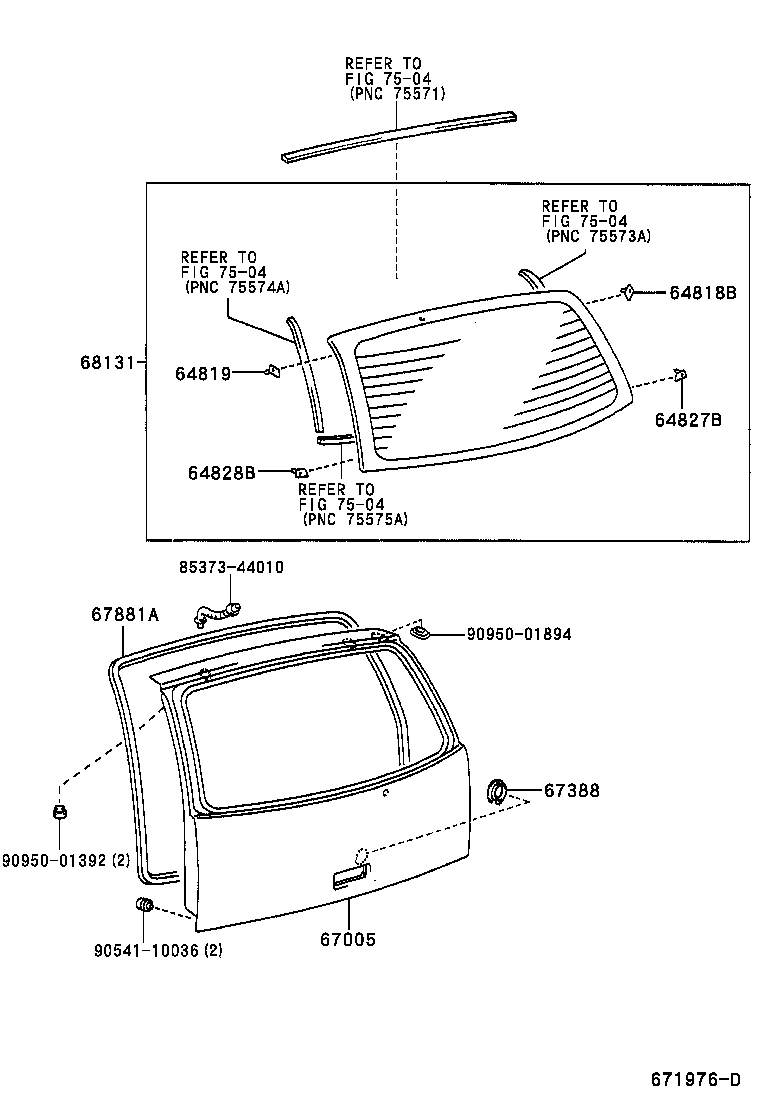

Figure 671967B 671967B 2000-04 → — Figure 671976D 671976D 2000-04 → —

Part groups

PNCDescription
64769E Knob, Jack Cover
64818B Spacer, Back Door Glass, NO.1
64819 Spacer, Back Window Glass, NO.2
64827B Clip, Back Window Glass, RH
64828B Clip, Back Window Glass, LH
67005 Panel Sub-assy, Back Door
67388 Protector, Back Door Edge
67750 Board Assy, Back Door Trim
67750A Clip(FOR BACK DOOR TRIM)
67881A Weatherstrip, Back Door
67937B Garnish, Back Door Side, RH
67937D Retainer, Door Trim
67938A Garnish, Back Door Side, LH
67939B Garnish, Back Door, Center
67939C Clip(FOR BACK DOOR CENTER GARNISH)
68131 Glass, Back Door
74811D Handle, Door Pull
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
