Toyota Opa

2000-04 → 2005-04 · chassis ACT10,ZCT1# · catalogue 276110 · Japan

Discontinued model Data version 2005-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

14 part groups · 3 illustrations

Illustrations

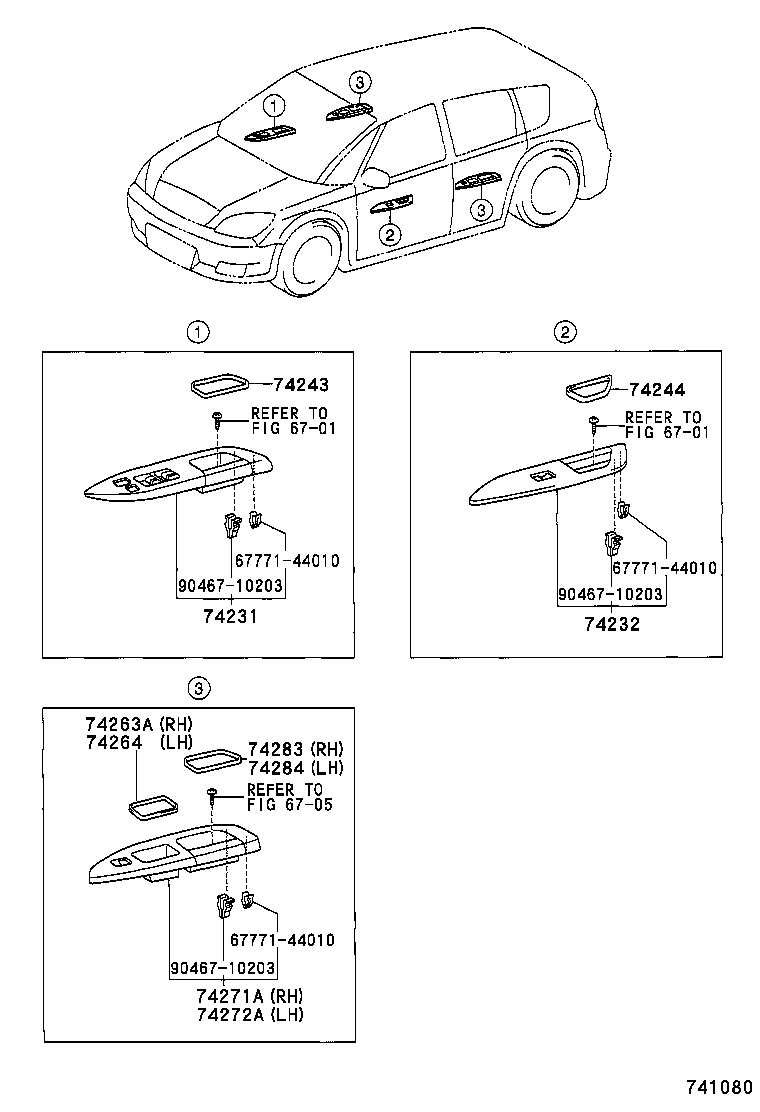

Figure 740756 740756 2000-04 → 2002-05 Figure 741080 741080 2002-05 → — Figure 740757 740757 2000-04 → —

Part groups

PNCDescription
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74243 Cover, Front Door Armrest Base, Lower RH
74244 Cover, Front Door Armrest Base, Lower LH
74263A Cover, Rear Door Armrest, NO.2 RH
74264 Cover, Rear Door Armrest, NO.2 LH
74271A Panel, Rear Door Armrest Base, Upper RH
74272A Panel, Rear Door Armrest Base, Upper LH
74283 Cover, Rear Door Armrest Base, Lower RH
74284 Cover, Rear Door Armrest Base, Lower LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74348 Holder, Visor
74610A Grip Sub-assy, Assist
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
