Toyota Opa

2000-04 → 2005-04 · chassis ACT10,ZCT1# · catalogue 276110 · Japan

Discontinued model Data version 2005-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

26 part groups · 10 illustrations

Illustrations

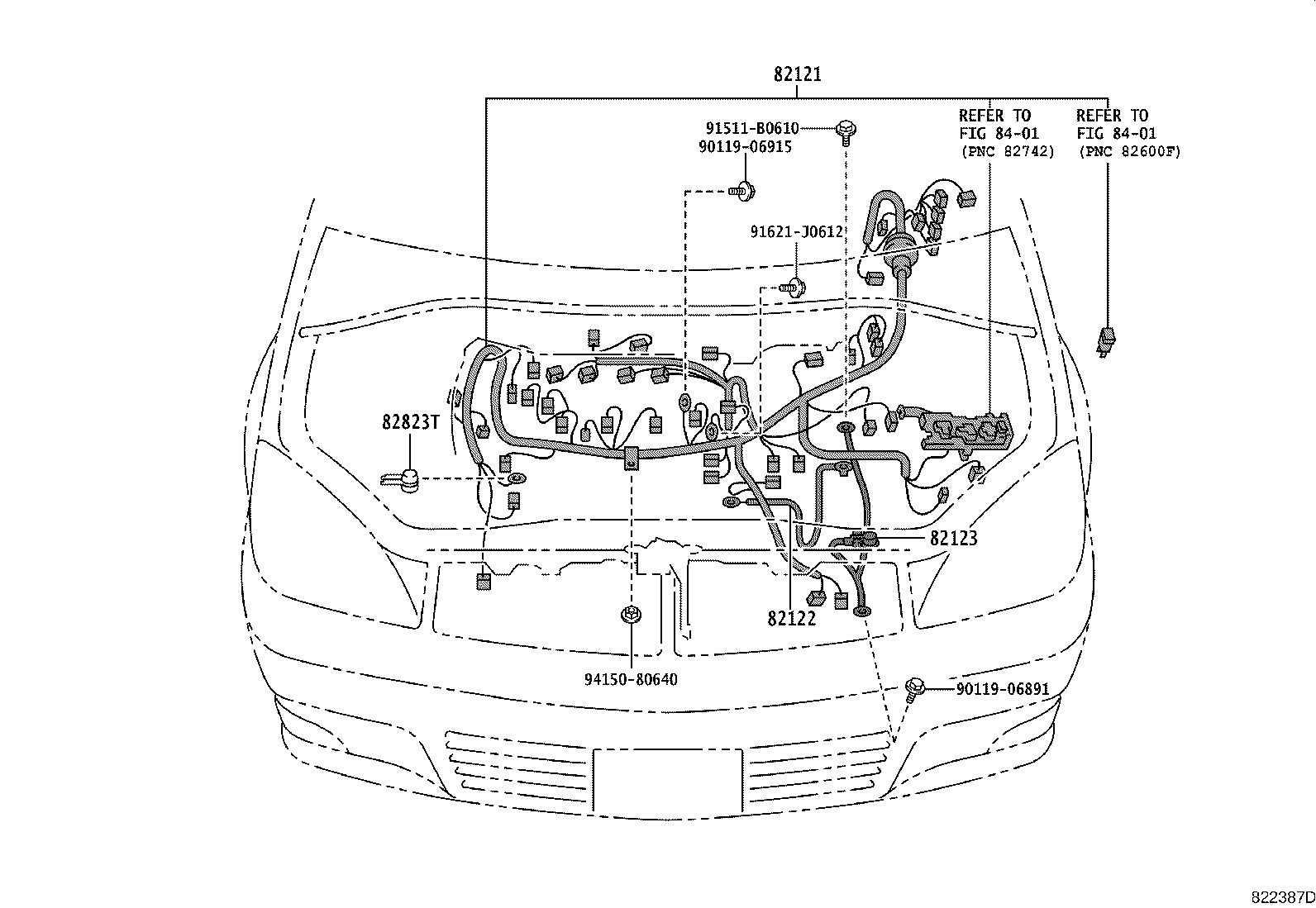

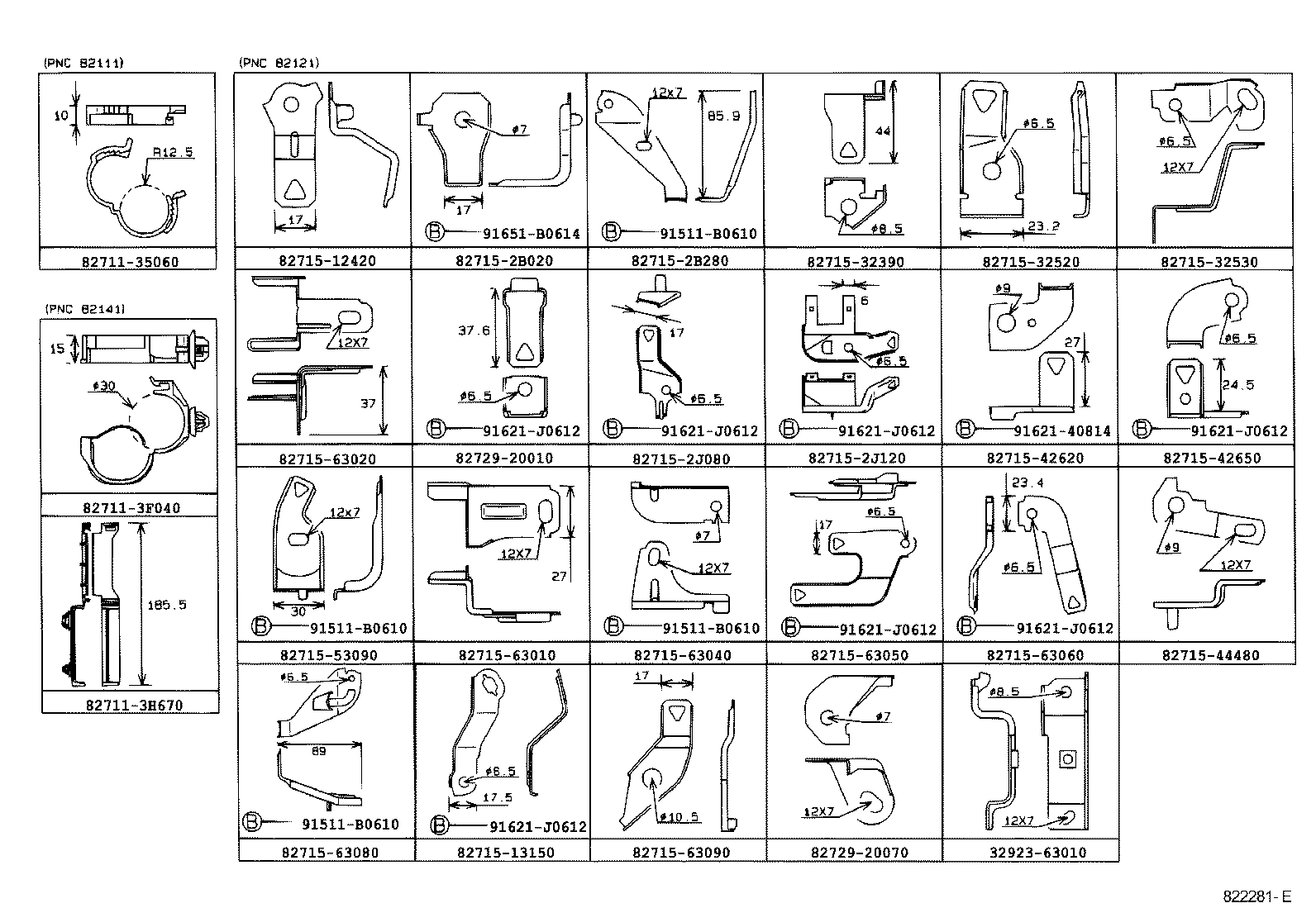

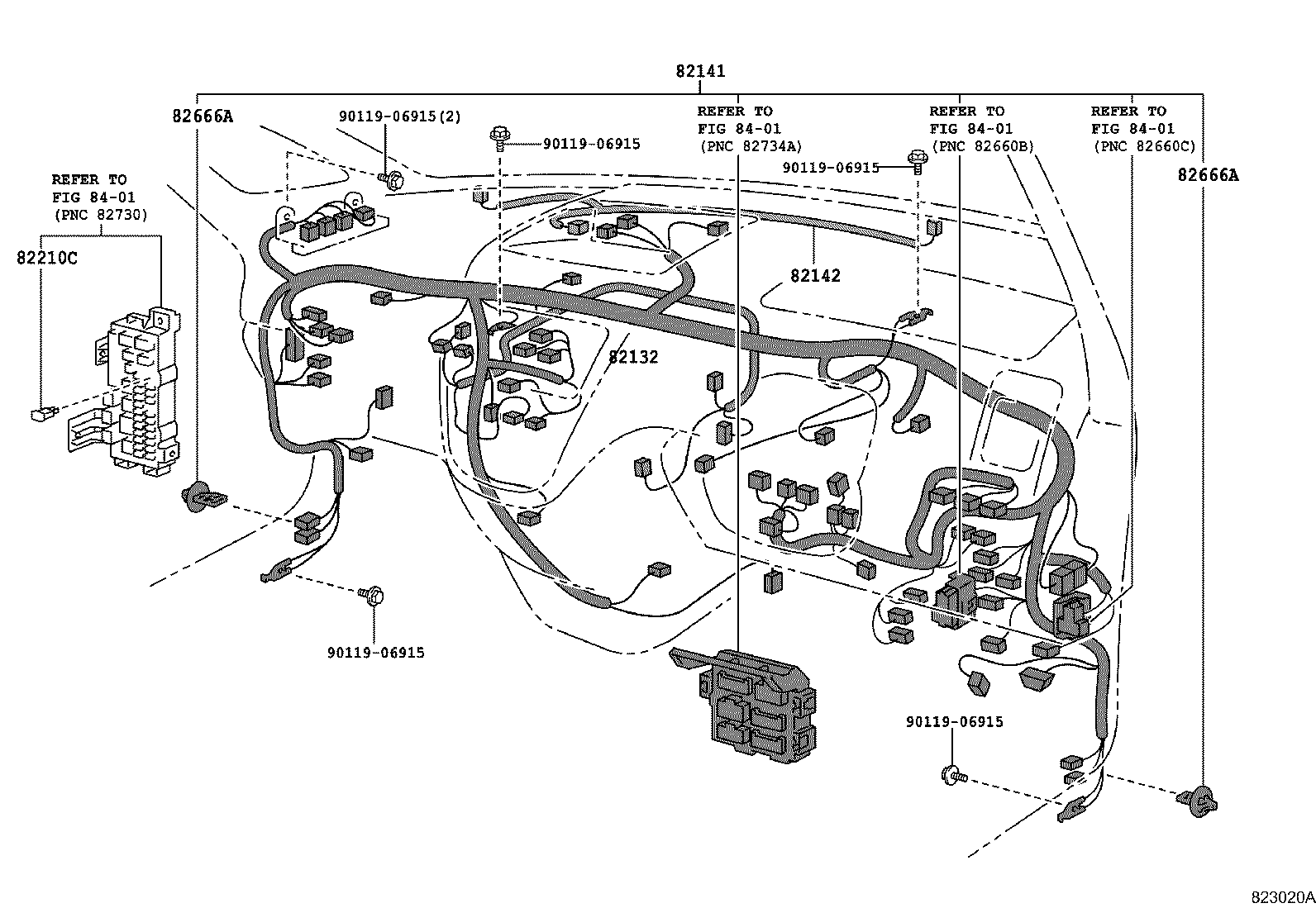

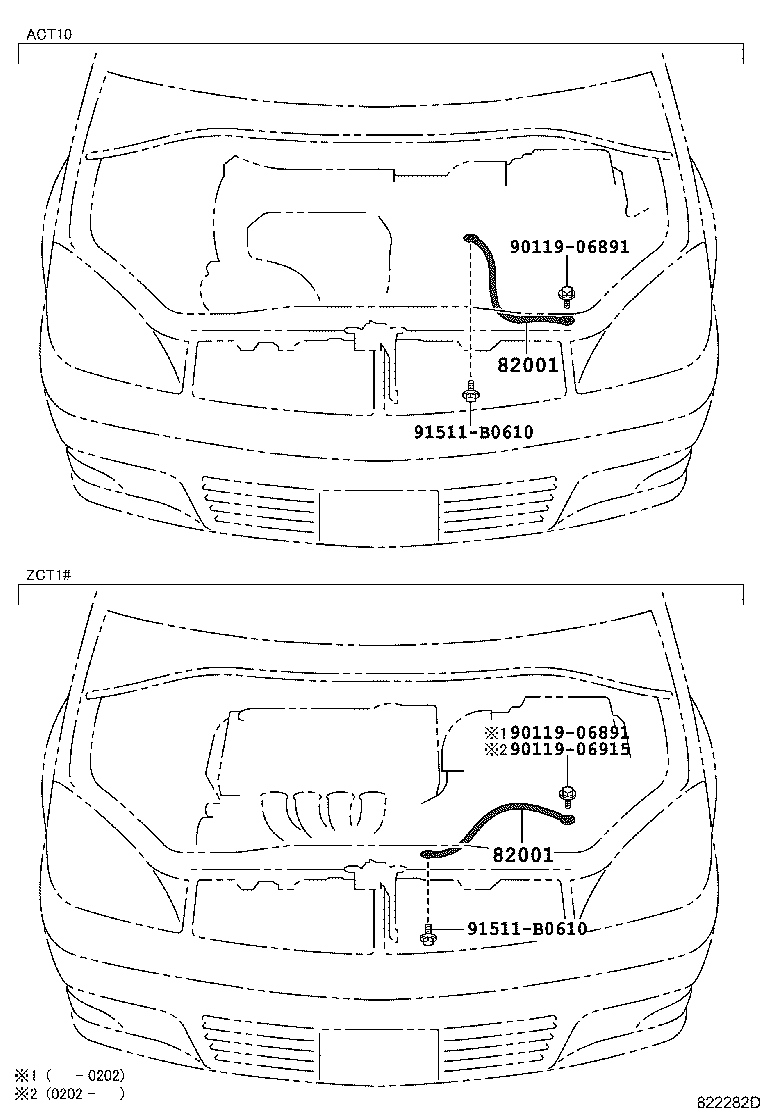

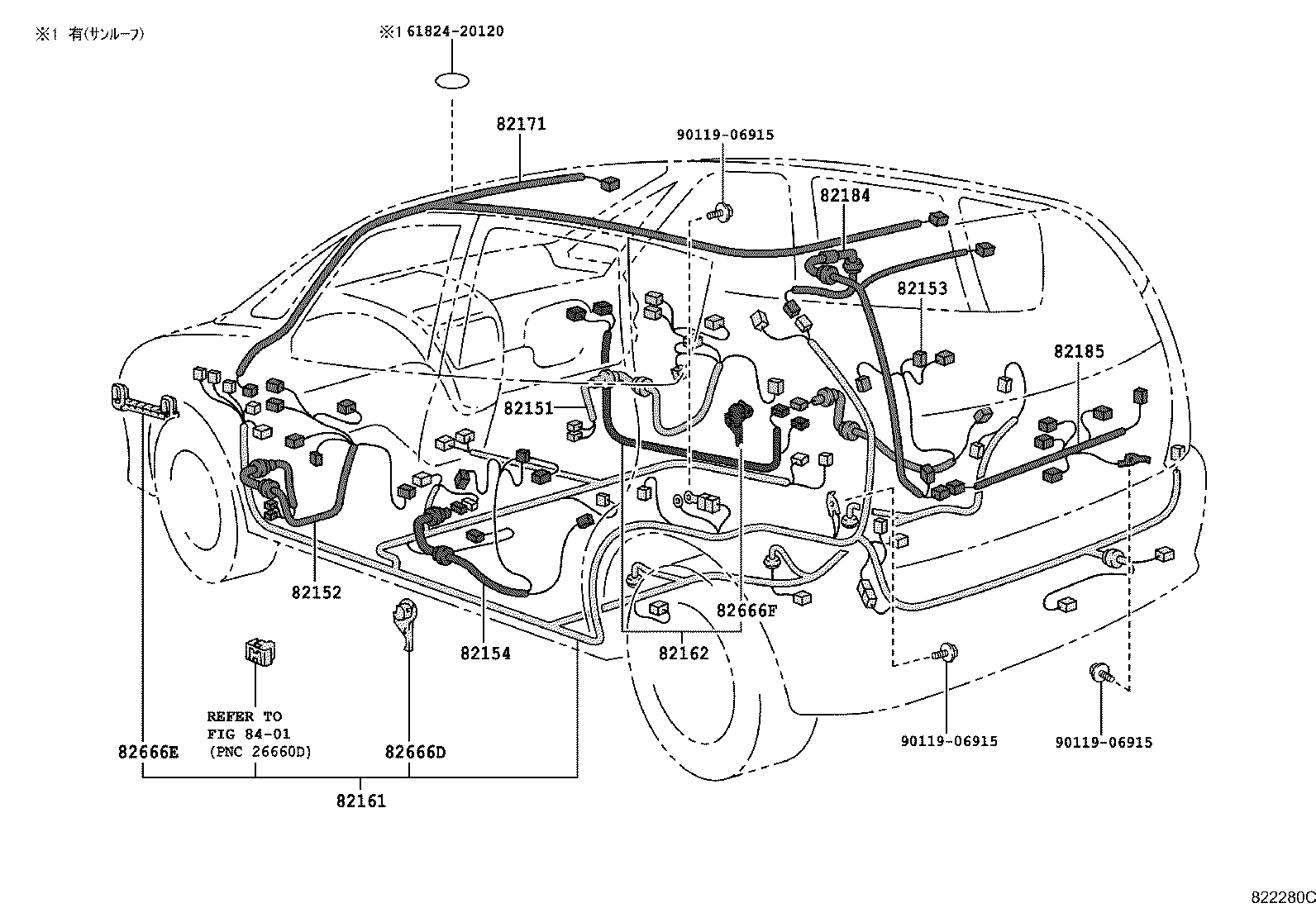

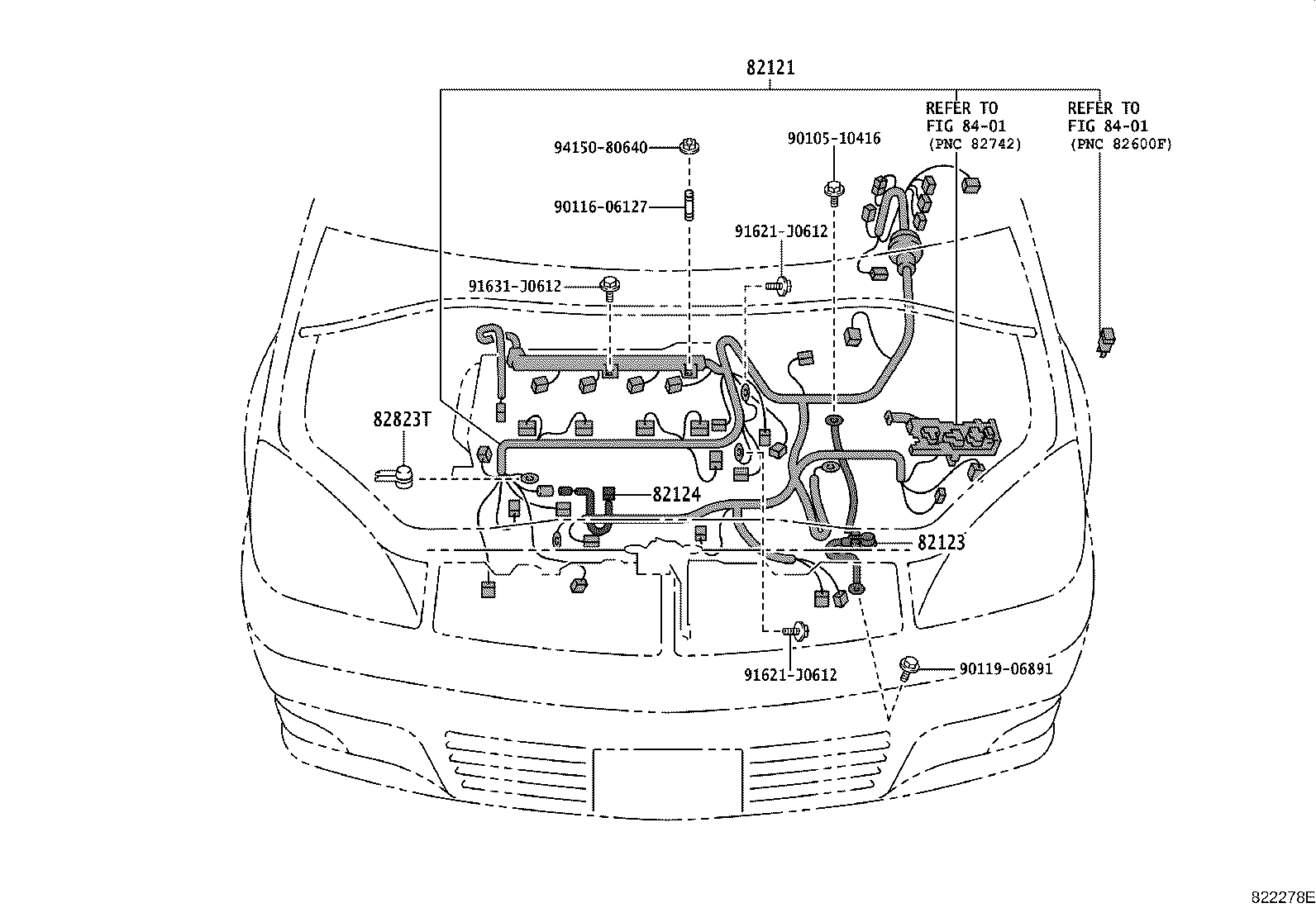

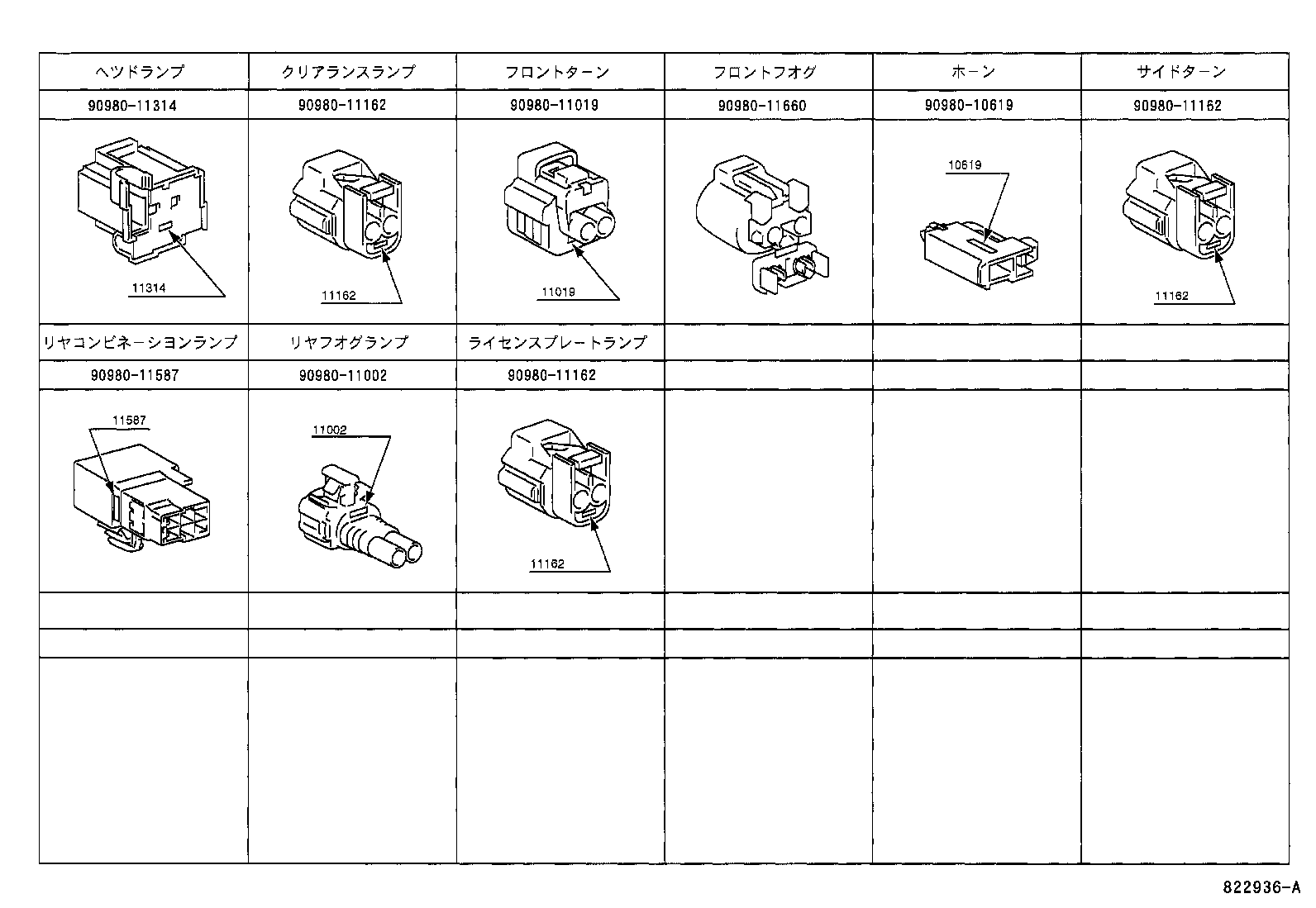

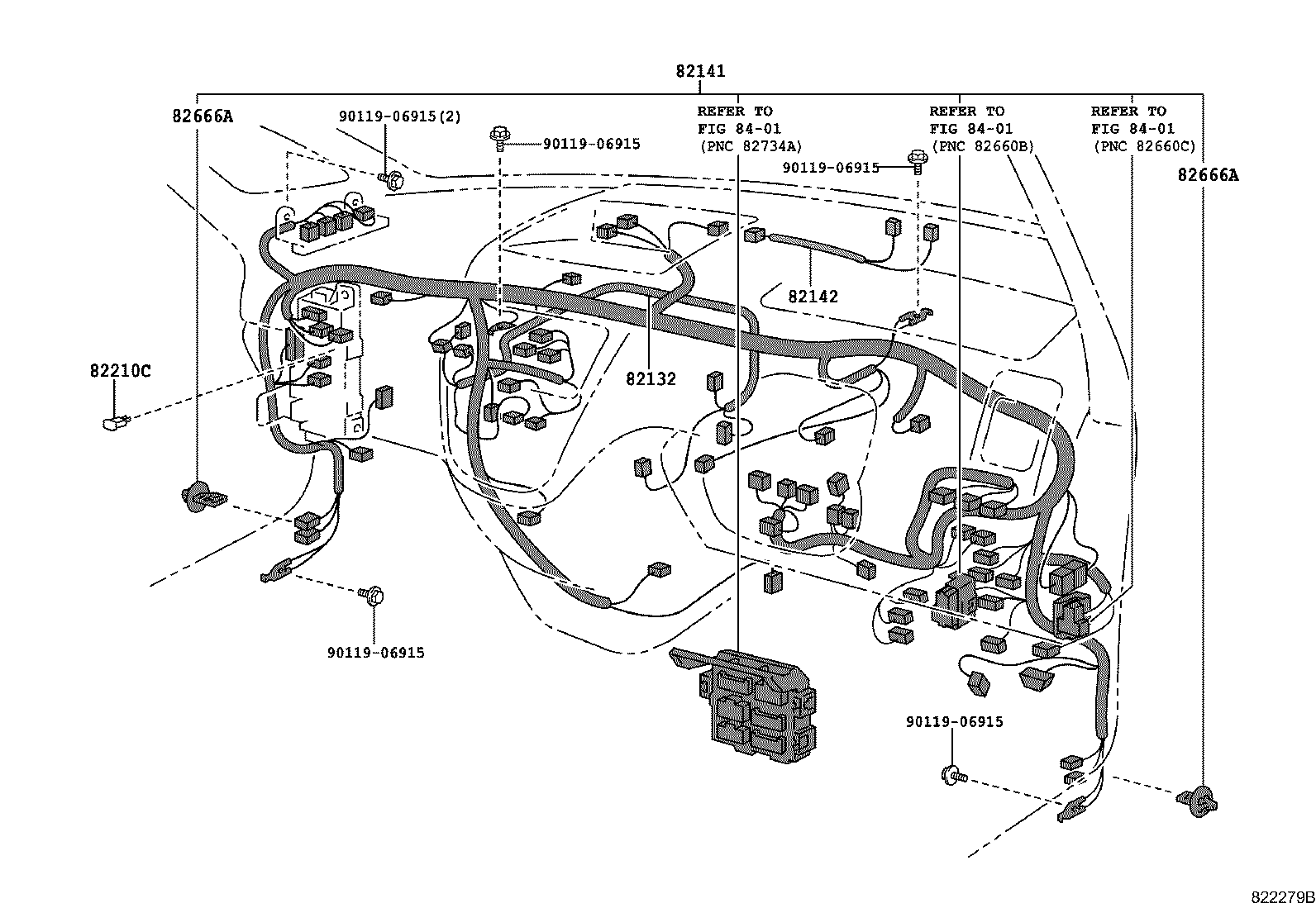

Figure 822277B 822277B 2000-04 → — Figure 822278E 822278E 2000-04 → — Figure 822387D 822387D 2000-08 → — Figure 822279B 822279B 2000-04 → 2002-05 Figure 823020A 823020A 2002-05 → — Figure 822280C 822280C 2000-04 → — Figure 822281E 822281E 2000-04 → — Figure 822282D 822282D 2000-04 → — Figure 822283 822283 2000-04 → — Figure 822936A 822936A 2000-04 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82132 Wire, Cowl, NO.2
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82210C Fusible Link
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82823T Cap, Alternator Terminal
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
