Toyota Opa

2000-04 → 2005-04 · chassis ACT10,ZCT1# · catalogue 276110 · Japan

Discontinued model Data version 2005-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

19 part groups · 2 illustrations

Illustrations

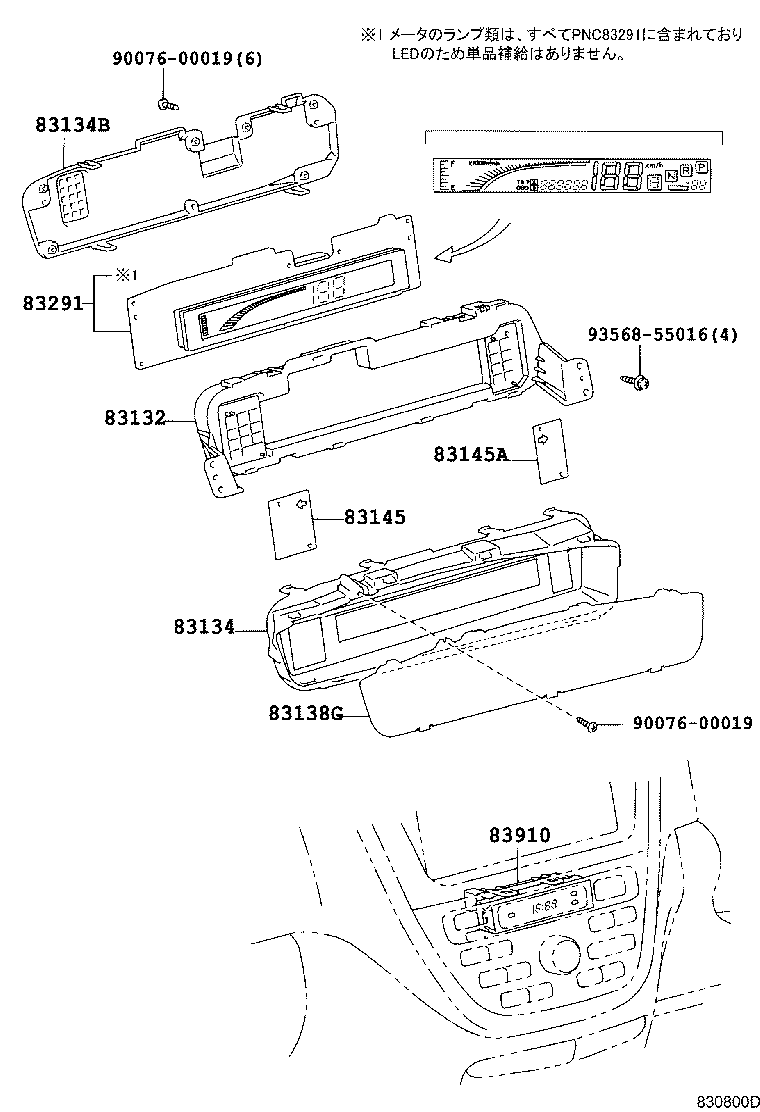

Figure 830634D 830634D 2000-04 → 2002-05 Figure 830800D 830800D 2002-05 → —

Part groups

PNCDescription
83100B Bulb, Combination Meter, NO.1
83132 Case, Combination Meter
83132B Case, Combination Meter NO.3
83132D Case, Combination Meter, NO.2
83134 Cover, Combination Meter, NO.1
83134B Cover, Combination Meter, NO.2
83138 Glass, Speedometer
83138G Glass, Combination Meter
83145 Lens, Meter, NO.1
83145A Lens, Meter, NO.2
83145H Knob, Combination Meter
83146A Cover, Speedmeter
83149 Plate, Meter Circuit
83149A Plate, Meter Circuit, NO.2
83291 Computer, Combination Meter
83857 Reflector, Combination Meter, NO.1
83910 Clock Assy
83910B Bulb, Clock Indicator
83910C Socket Sub-assy, Clock Bulb
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
