Toyota Opa

2000-04 → 2005-04 · chassis ACT10,ZCT1# · catalogue 276110 · Japan

Discontinued model Data version 2005-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

4 part groups · 2 illustrations

Illustrations

Figure 861161B

861161B 2000-04 → 2002-05

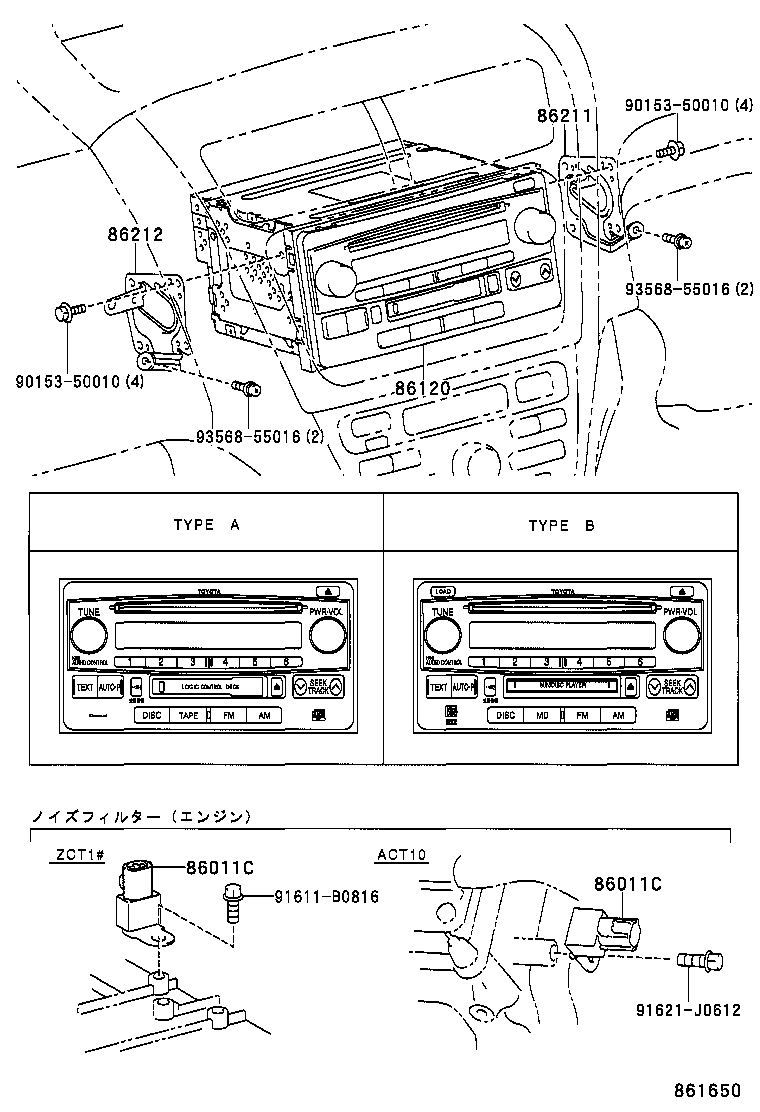

861650 2002-05 → —

Part groups

PNC	Description
86011C	Filter, Noise
86120	Receiver Assy, Radio
86211	Bracket, Radio, NO.1
86212	Bracket, Radio, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
