Toyota Opa

2000-04 → 2005-04 · chassis ACT10,ZCT1# · catalogue 276110 · Japan

Discontinued model Data version 2005-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

7 part groups · 2 illustrations

Illustrations

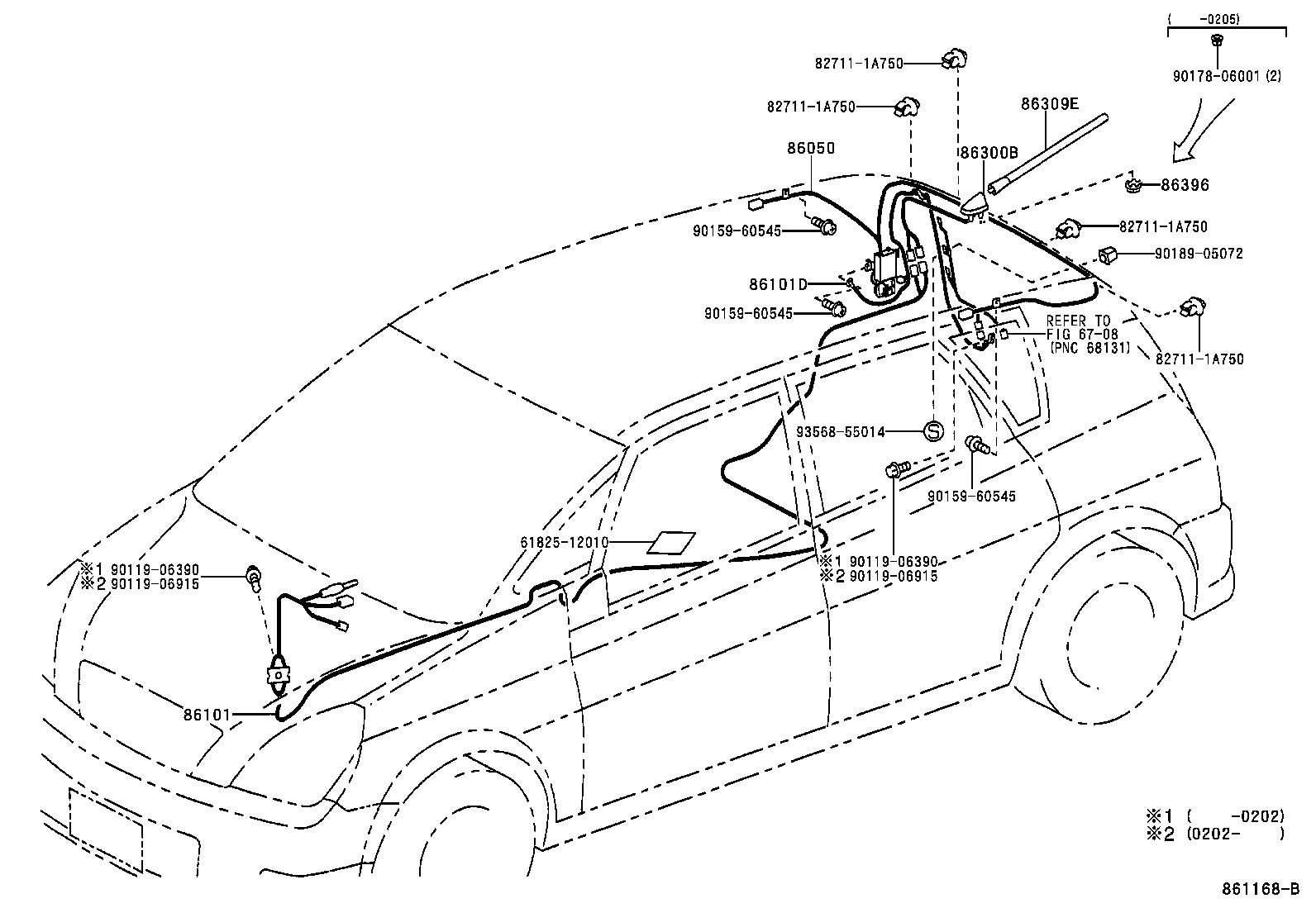

Figure 861167B 861167B 2000-04 → — Figure 861168B 861168B 2000-04 → —

Part groups

PNCDescription
86050 Antenna Assy, Television
86101 Cord Sub-assy, Antenna
86101D Cord Sub-assy, Antenna, NO.3
86300 Antenna Assy, W/Holder
86300B Antenna Assy, Amplifier, NO.1
86309E Pole Sub-assy, Roof Antenna
86396 Nut, Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
