Toyota Opa

2000-04 → 2005-04 · chassis ACT10,ZCT1# · catalogue 276110 · Japan

Discontinued model Data version 2005-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

22 part groups · 2 illustrations

Illustrations

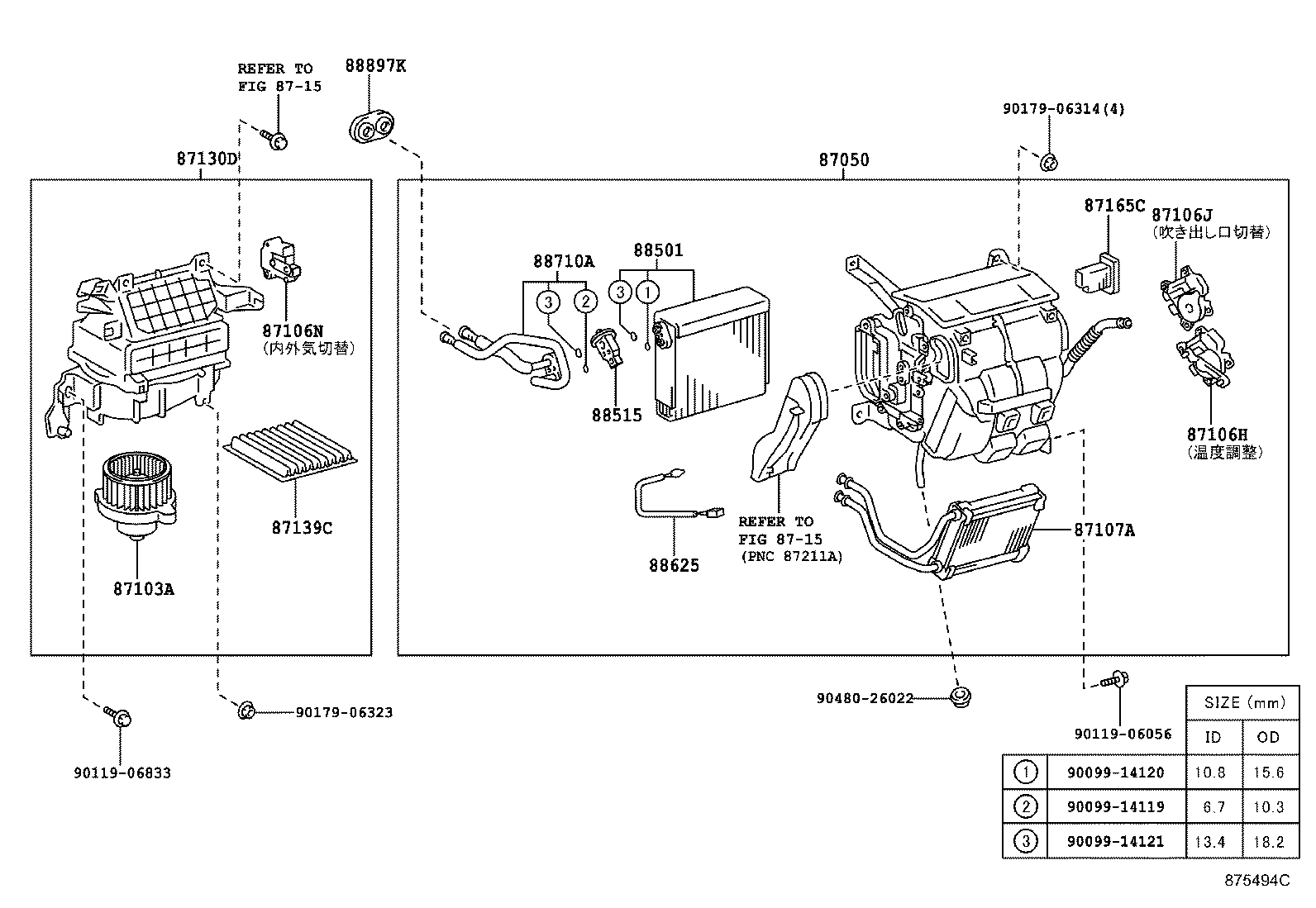

Figure 874208D 874208D 2000-04 → 2002-05 Figure 875494C 875494C 2002-05 → —

Part groups

PNCDescription
87050 Radiator Assy, Air Conditioner
87103A Motor Sub-assy, Cooling Unit, W/Fan
87106H Servo Sub-assy, Damper(FOR AIRMIX)
87106J Servo Sub-assy, Damper(FOR MODE)
87106N Servo Sub-assy, Damper(FOR RECIRCULATION)
87107A Unit Sub-assy, Heater Radiator
87130D Blower Assy
87139C Filter, Clean Air
87165C Control, Blower Motor
88501 Evaporator Sub-assy, Cooler, NO.1
88515 Valve, Cooler Expansion
88539 Hose, Cooler Unit Drain, NO.1
88578B Packing, Cooling Unit, NO.1
88578C Packing, Cooling Unit, NO.2
88625 Thermistor, Cooler, NO.1
88669B Hose, Cooler Air
88710A Tube Assy, Air Conditioner
88891S Cover, Cooler, NO.1
88891Z Bracket, Cooler Thermistor
88897K Grommet, (FOR COOLER PIPE)
88897U Pipe, Aspirator
88899K Plate, Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
