Toyota Opa

2000-04 → 2005-04 · chassis ACT10,ZCT1# · catalogue 276110 · Japan

Discontinued model Data version 2005-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

4 part groups · 5 illustrations

Illustrations

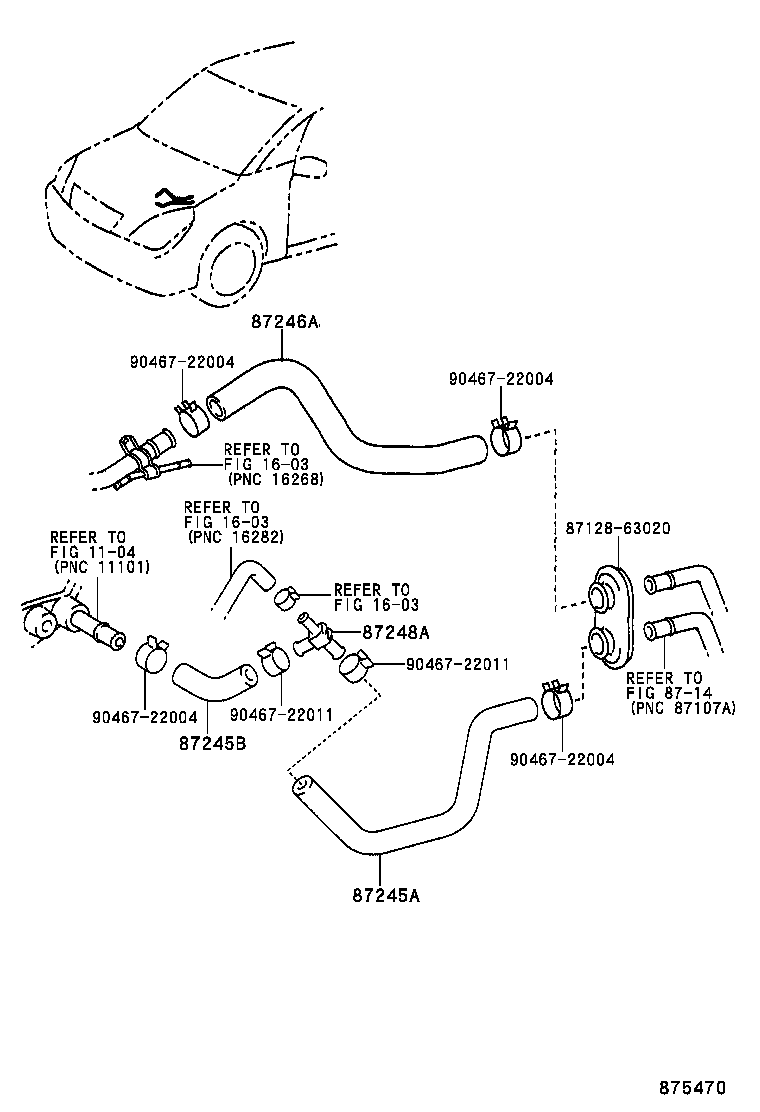

Figure 874201A 874201A 2000-04 → 2002-05 Figure 874201A 874201A 2002-05 → — Figure 874420A 874420A 2000-08 → 2002-05 Figure 875469 875469 2002-05 → — Figure 875470 875470 2002-05 → —

Part groups

PNCDescription
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87246A Hose, Heater Water, Outlet A
87248A Pipe, Heater Water Inlet, A
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
