Toyota Camry/Vista

1982-03 → 1986-07 · chassis SV1#,CV1# · catalogue 281120 · Japan

Discontinued model Data version 1987-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

30 part groups · 10 illustrations

Illustrations

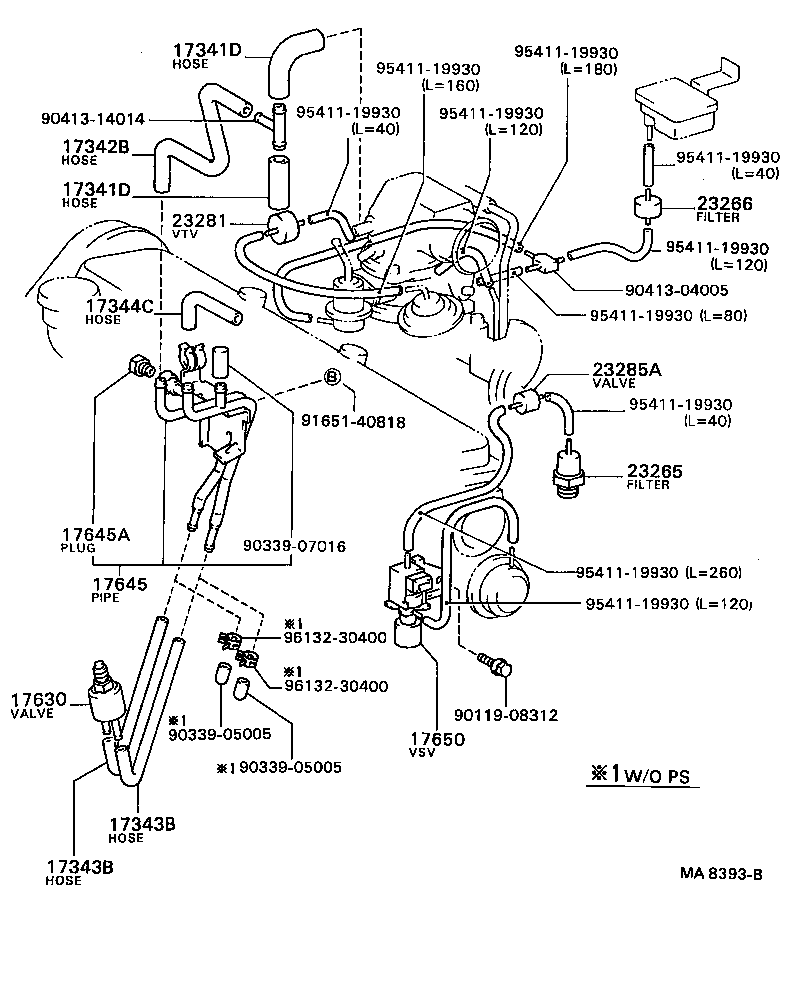

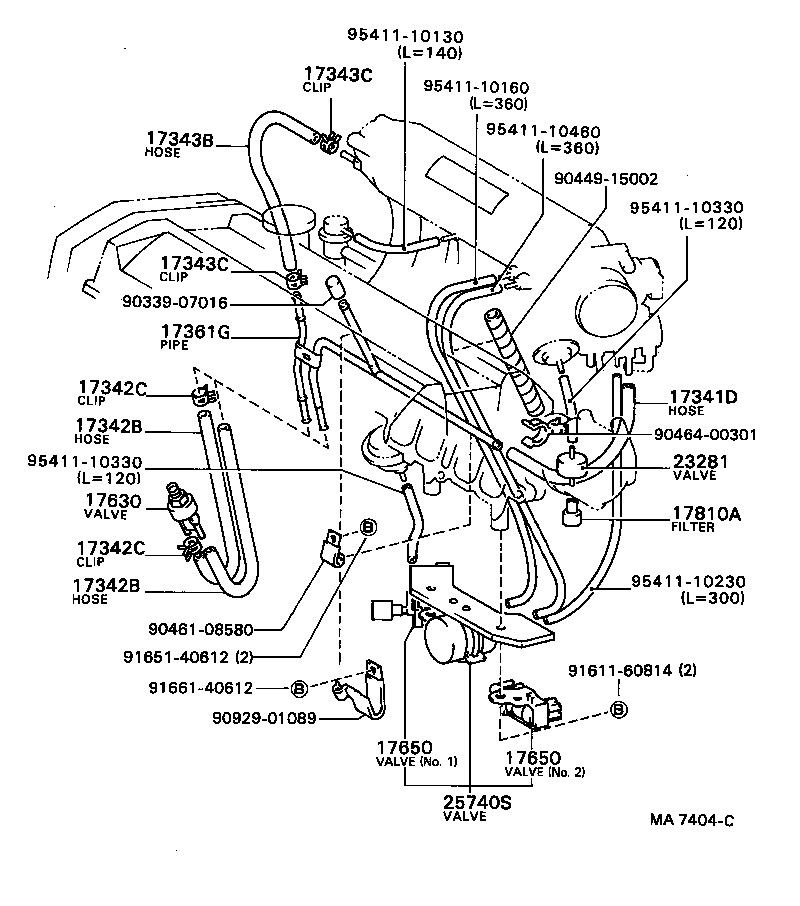

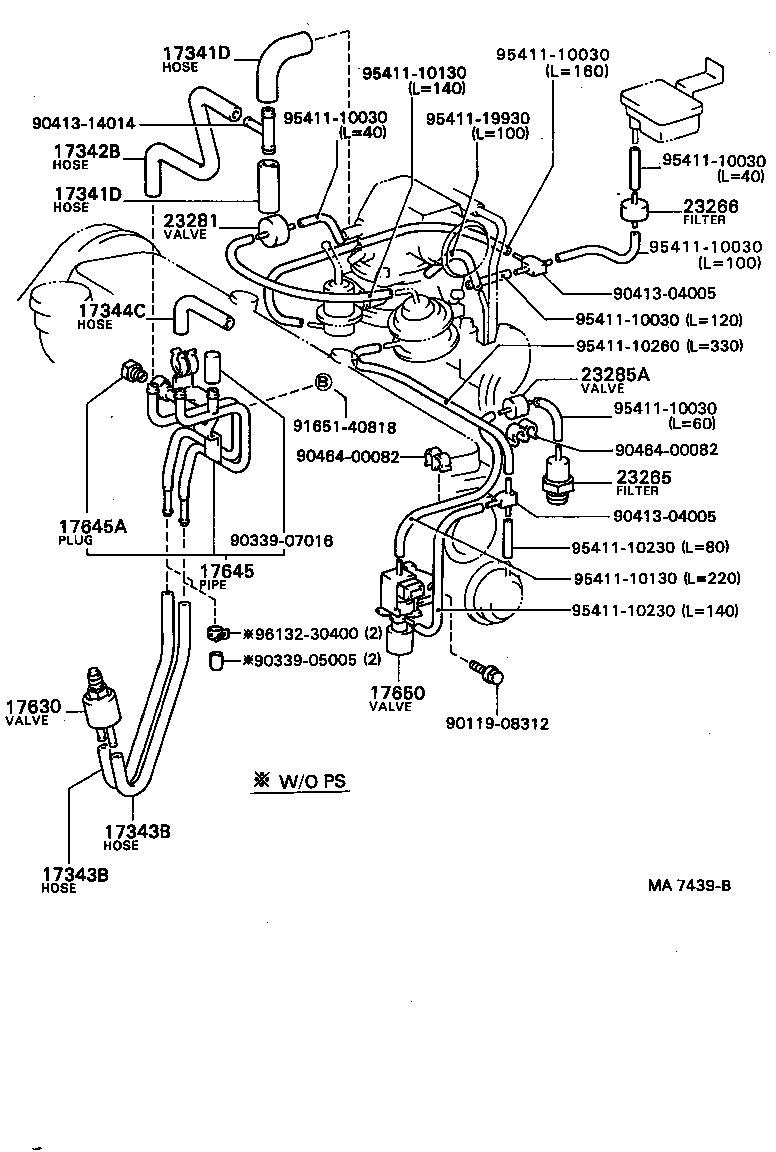

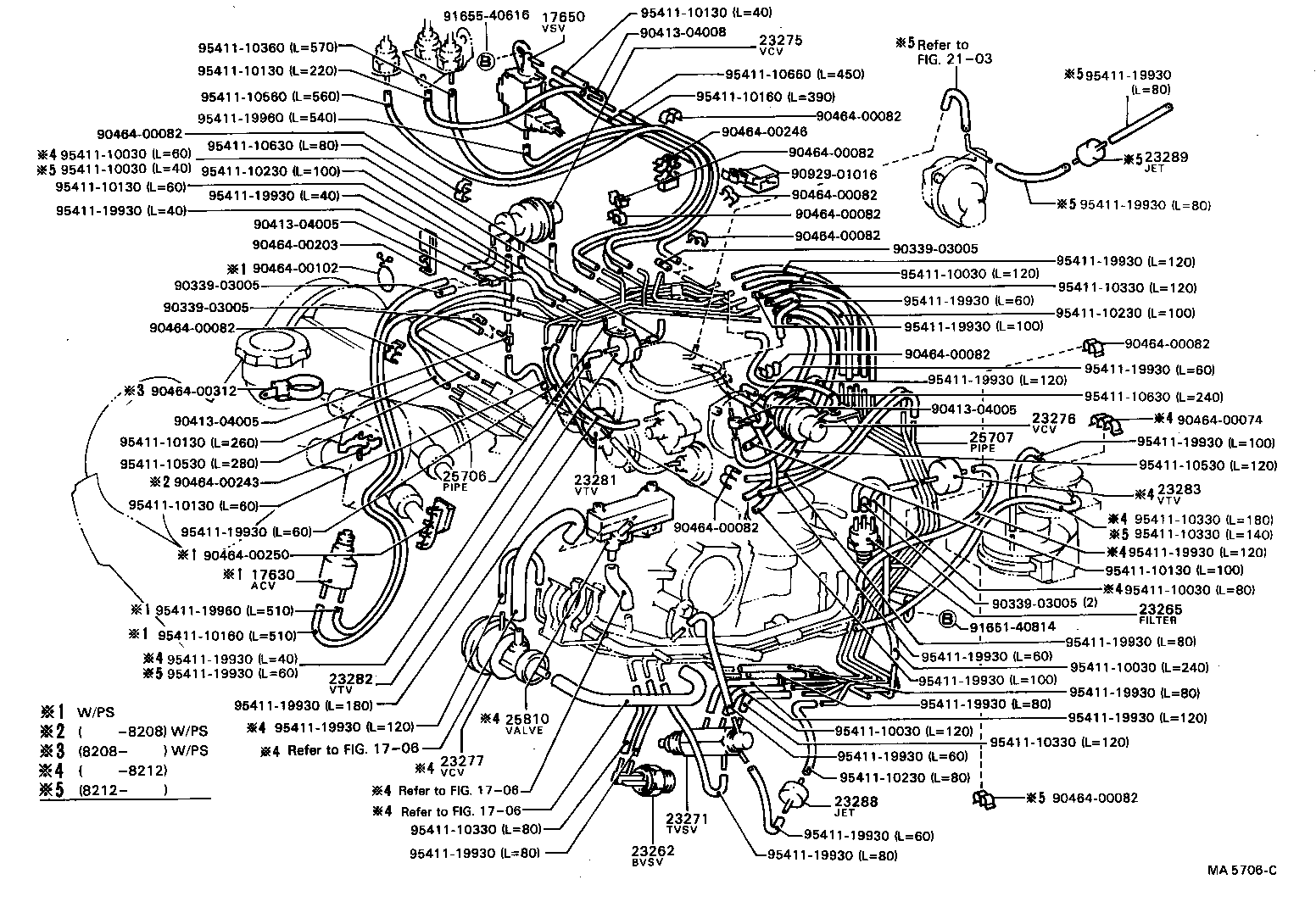

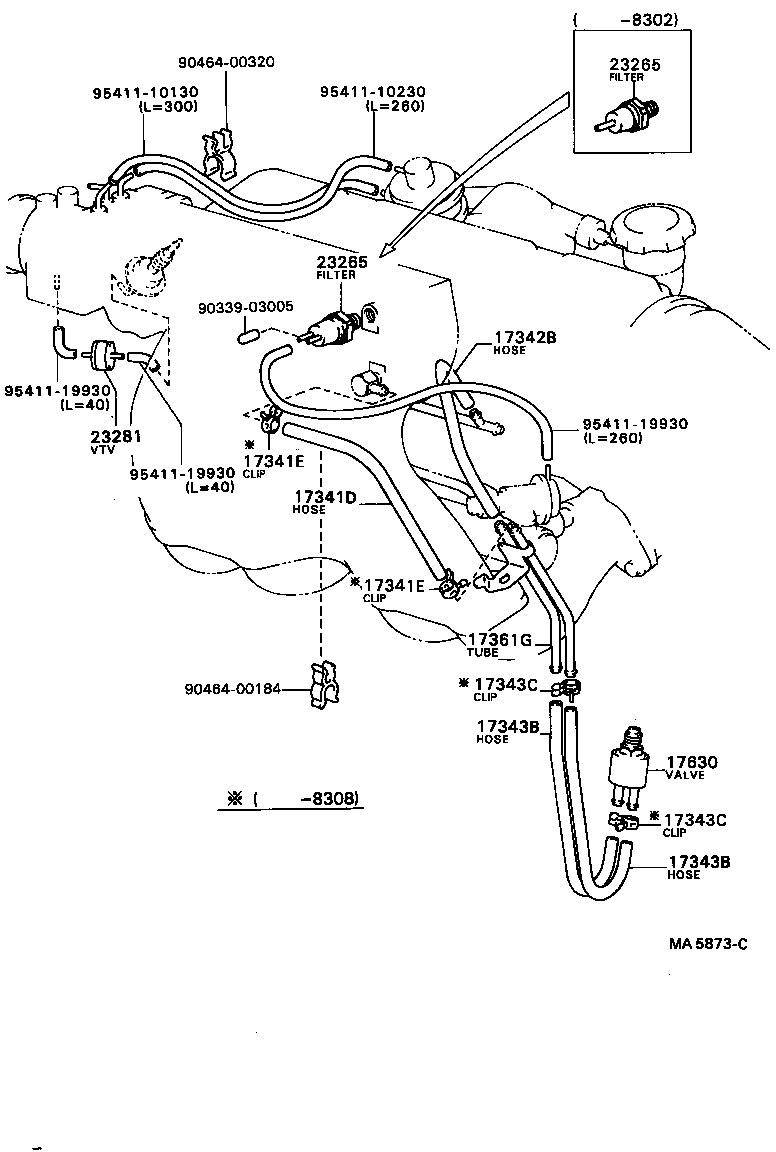

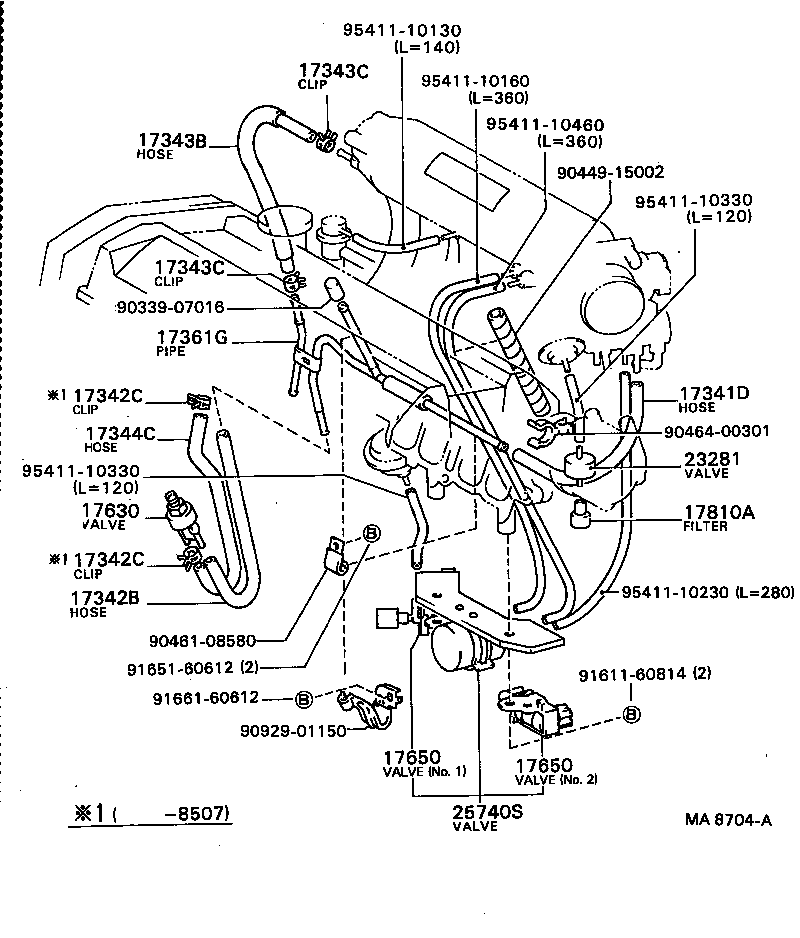

Figure MA9503 MA9503 1982-03 → — Figure MA6901B MA6901B 1983-08 → 1985-08 Figure MA8362B MA8362B 1985-08 → — Figure MA9503 MA9503 1982-03 → — Figure MA5706C MA5706C 1982-03 → 1984-06 Figure MA7439B MA7439B 1984-06 → 1985-08 Figure MA8393B MA8393B 1985-08 → — Figure MA5873C MA5873C 1982-08 → — Figure MA7404C MA7404C 1984-06 → 1985-07 Figure MA8704A MA8704A 1985-07 → —

Part groups

PNCDescription
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17344C Hose, NO.4(FOR IDLE-UP)
17361G Tube, Air(FOR IDLE-UP)
17630 Valve Assy, Air Control
17645 Pipe, Idle UP
17645A Plug(FOR IDLE UP PIPE)
17650 Valve Assy, Vacuum Switching
17810A Filter Assy, Air
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23266 Filter, Gas, NO.2
23271 Valve, Thermostatic Vacuum Switching, NO.1
23275 Valve, Vacuum Control, NO.1
23276 Valve, Vacuum Control, NO.2
23277 Valve, Vacuum Control, NO.3
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23283 Valve, Vacuum Transmitting, NO.3
23285A Valve, Check, NO.1
23288 Jet, NO.1
23289 Jet, NO.2
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25740S Valve Assy, Air Control(FOR IDLE SPEED CONTROL)
25810 Valve Assy, Bimetal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
