Toyota Camry/Vista

1982-03 → 1986-07 · chassis SV1#,CV1# · catalogue 281120 · Japan

Discontinued model Data version 1987-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

24 part groups · 3 illustrations

Illustrations

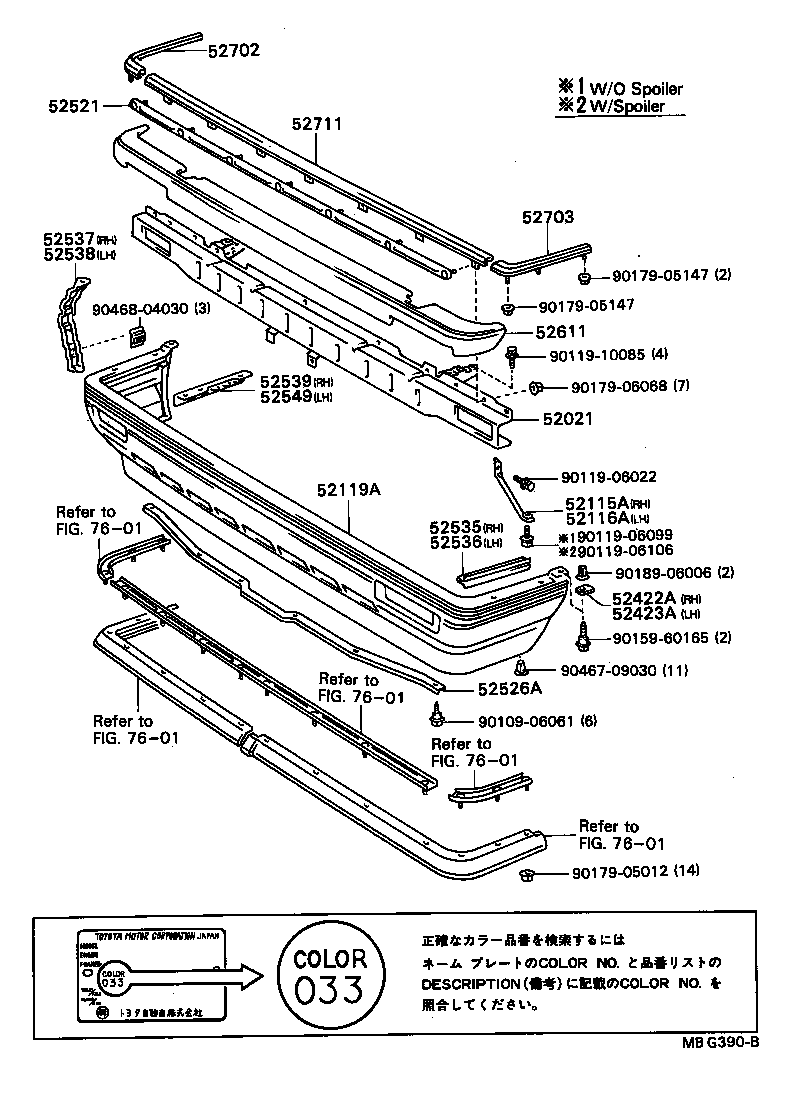

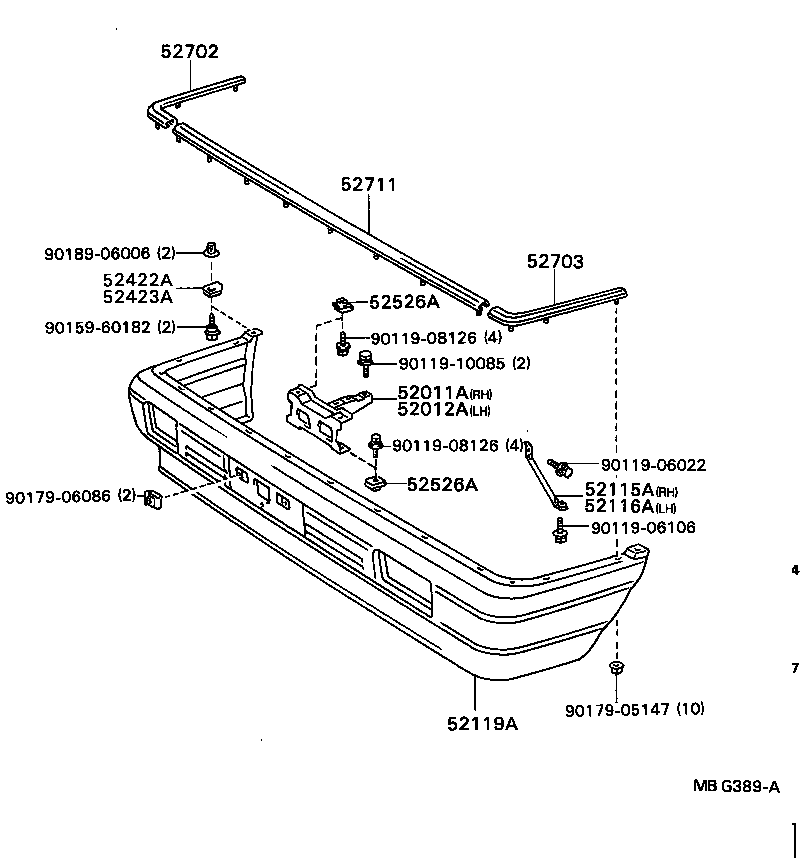

Figure MBD252C MBD252C 1982-03 → 1984-06 Figure MBG389A MBG389A 1984-06 → — Figure MBG390B MBG390B 1984-06 → —

Part groups

PNCDescription
52011A Arm Sub-assy, Front Bumper, RH
52012A Arm Sub-assy, Front Bumper, LH
52021 Reinforcement Sub-assy, Front Bumper
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52422A Pad, Front Bumper, RH
52423A Pad, Front Bumper, LH
52521 Retainer, Front Bumper, Upper Center
52525B Retainer, Front Bumper, Lower Side RH
52526A Retainer, Front Bumper, Lower NO.1
52526B Retainer, Front Bumper, Lower Side LH
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52537 Retainer, Front Bumper End, RH
52538 Retainer, Front Bumper End, LH
52539 Retainer, Front Bumper Side, NO.3 RH
52543 Seal, Front Bumper Side, RH
52544 Seal, Front Bumper Side, LH
52549 Retainer, Front Bumper Side, NO.3 LH
52611 Absorber, Front Bumper Energy
52702 Moulding Sub-assy, Front Bumper Side, RH
52703 Moulding Sub-assy, Front Bumper Side, LH
52711 Moulding, Front Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
