Toyota Camry/Vista

1982-03 → 1986-07 · chassis SV1#,CV1# · catalogue 281120 · Japan

Discontinued model Data version 1987-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

6 part groups · 3 illustrations

Illustrations

Figure MBD491E

MBD491E 1982-03 → —

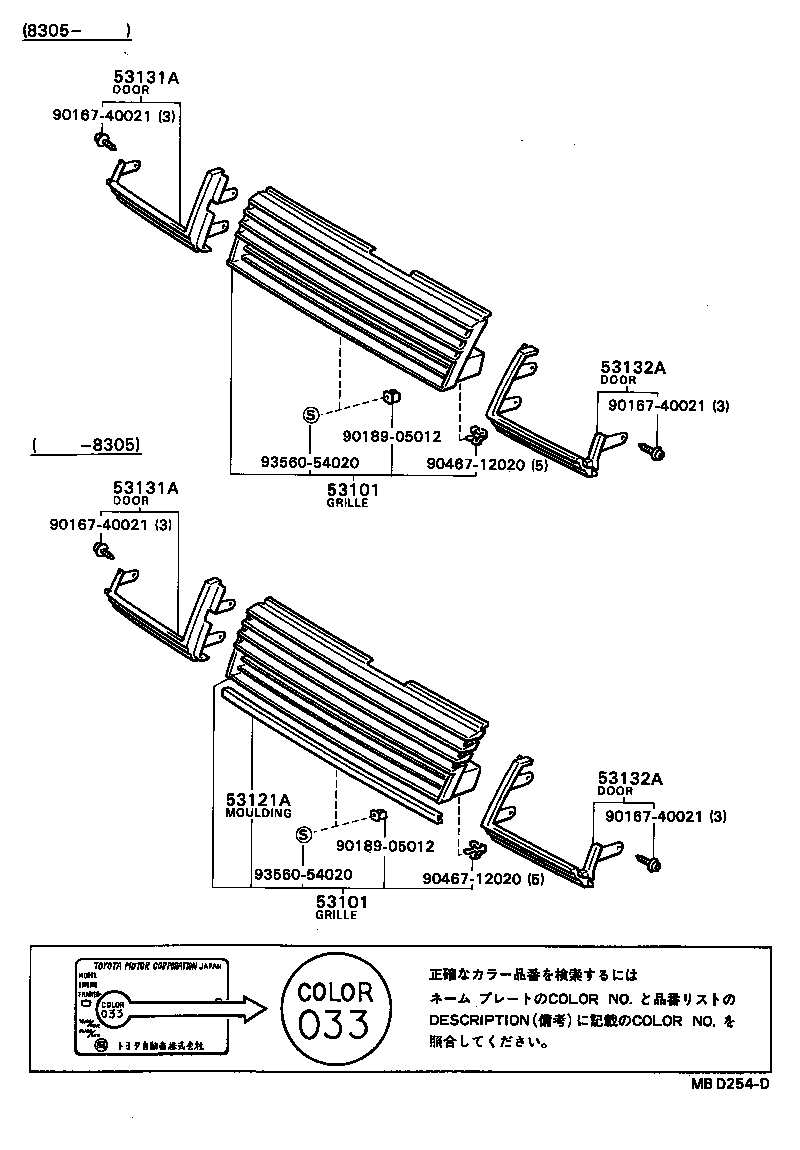

Figure MBD254D

MBD254D 1982-03 → 1984-06

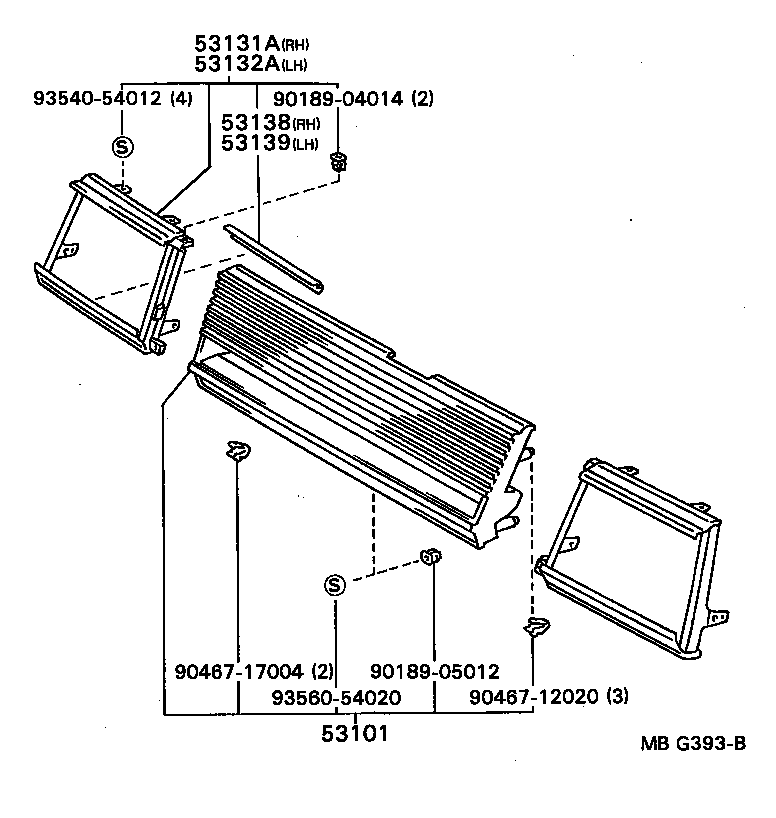

Figure MBG393B

MBG393B 1984-06 → —

Part groups

PNC	Description
53101	Grille Sub-assy, Radiator
53121A	Moulding, Radiator Grille
53131A	Door, Headlamp, RH
53132A	Door, Headlamp, LH
53138	Protector, Headlamp Door, RH
53139	Protector, Headlamp Door, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
