Toyota Camry/Vista

1982-03 → 1986-07 · chassis SV1#,CV1# · catalogue 281120 · Japan

Discontinued model Data version 1987-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

12 part groups · 4 illustrations

Illustrations

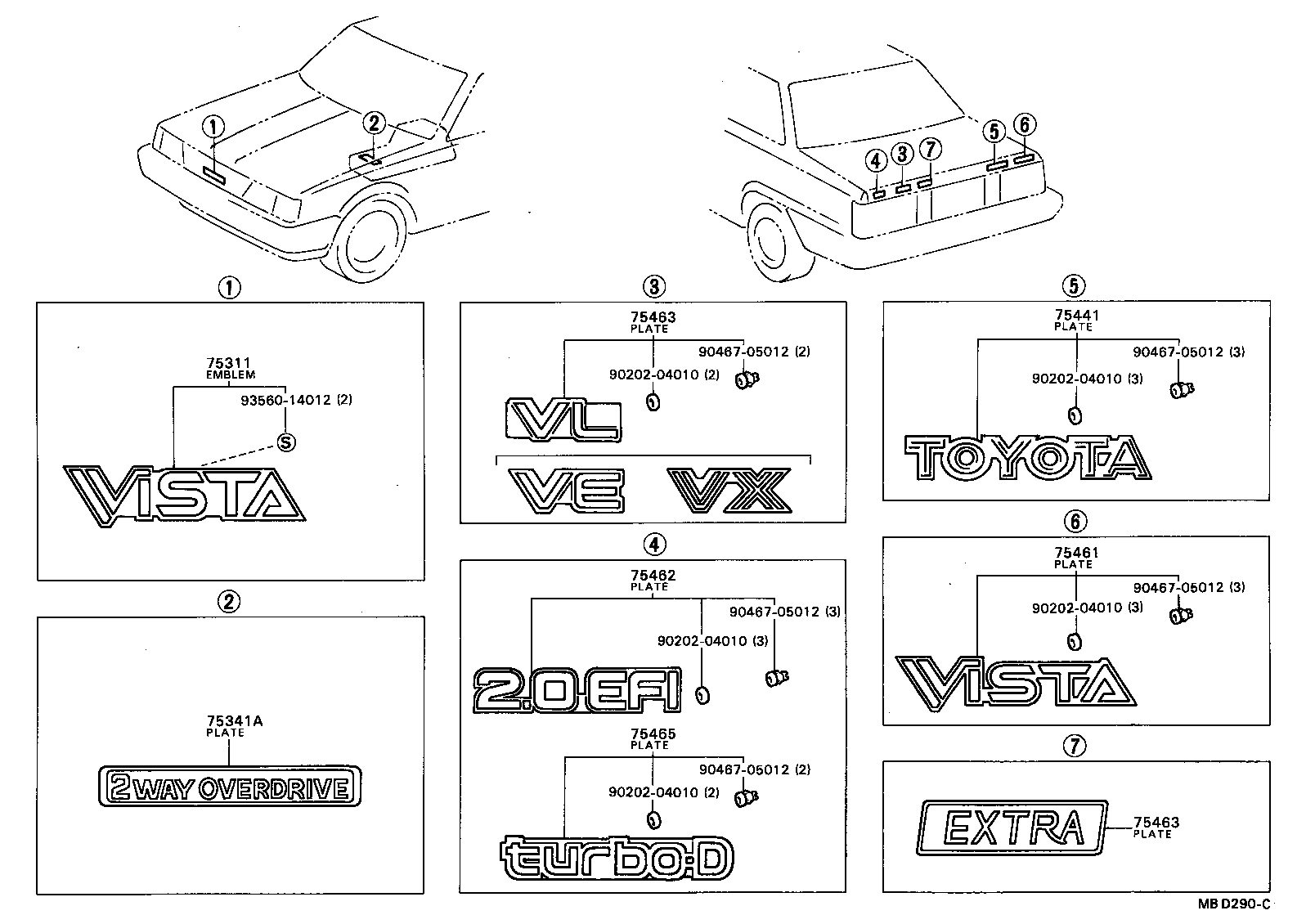

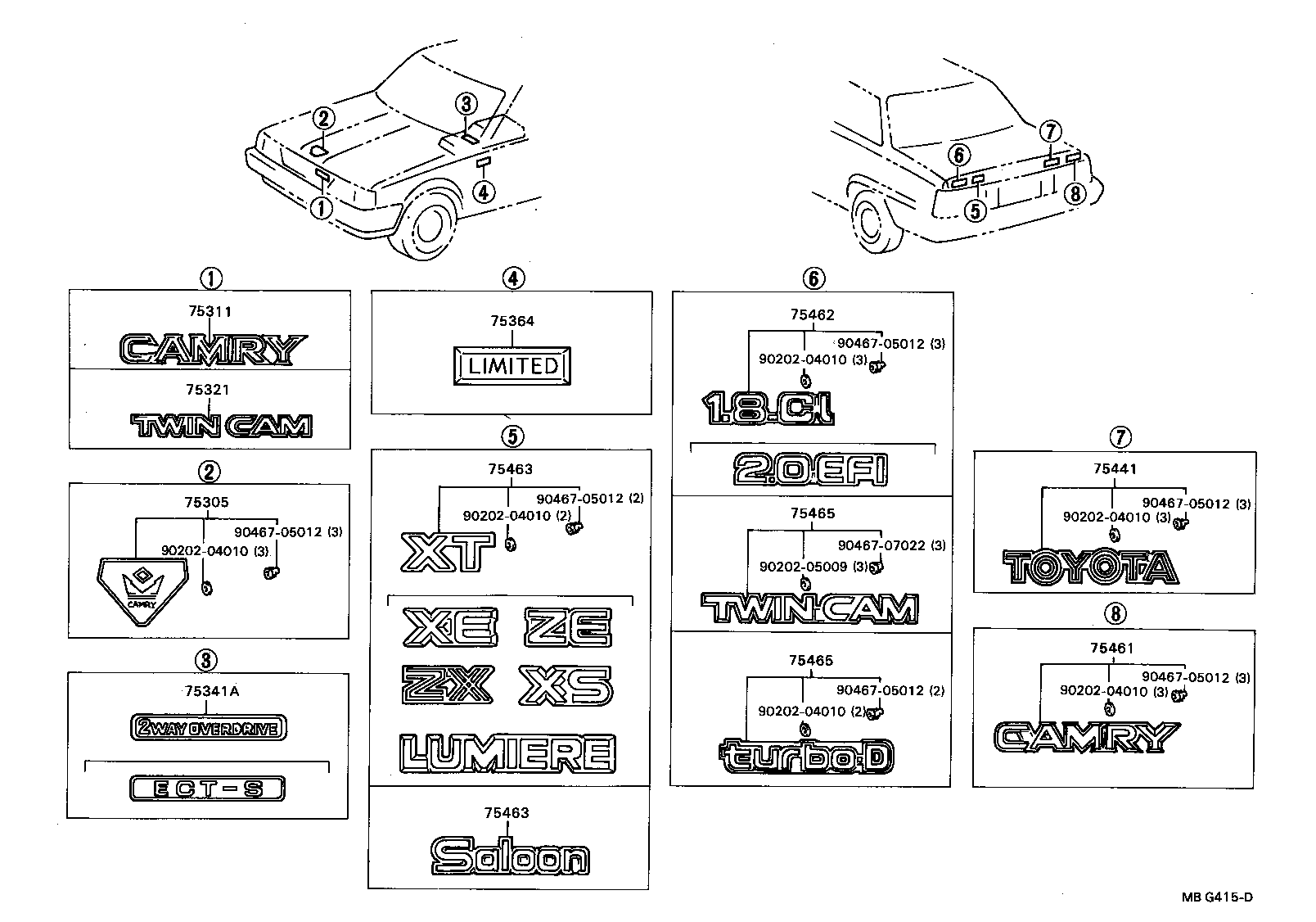

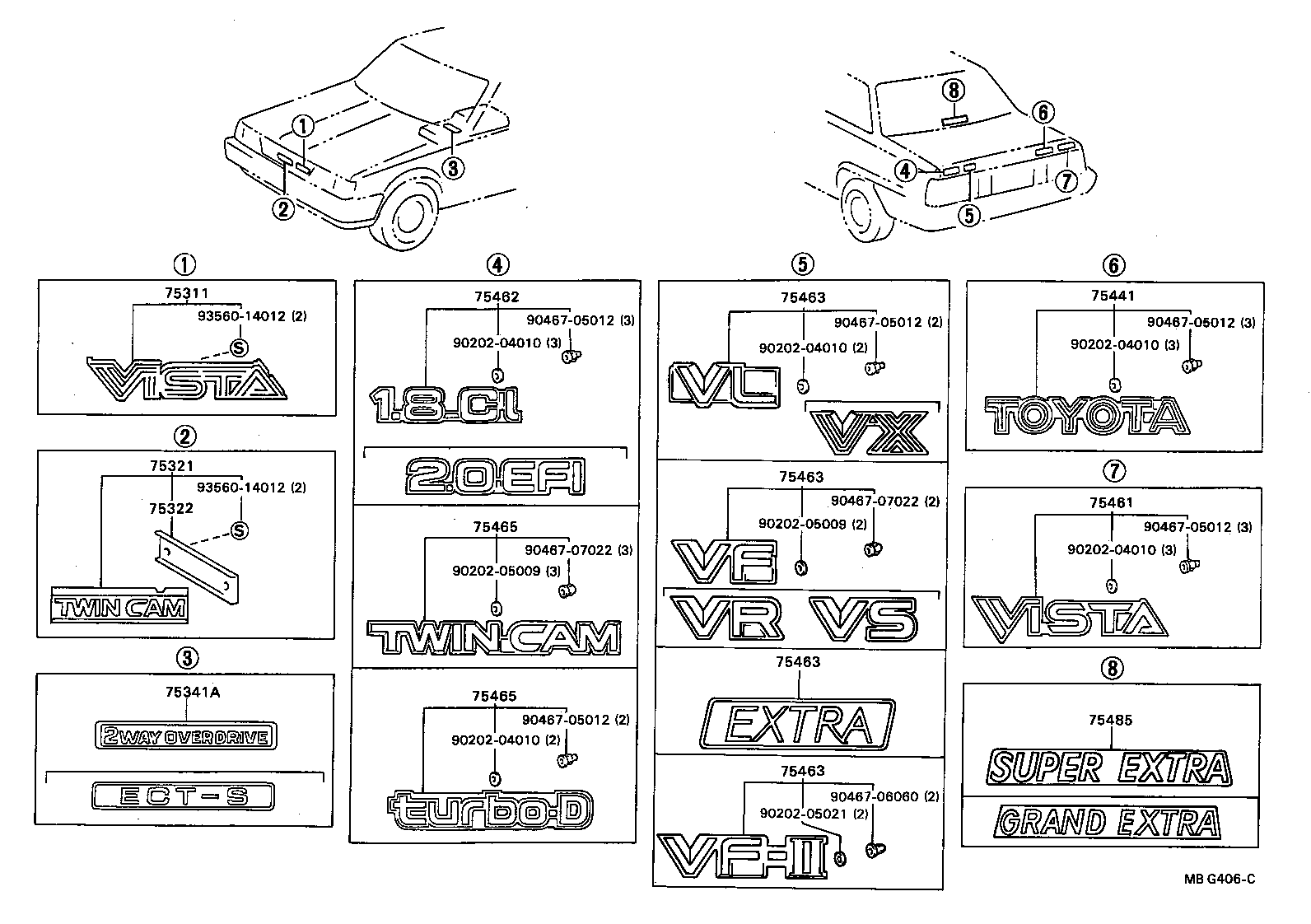

Figure MBD492C MBD492C 1982-03 → 1984-06 Figure MBD290C MBD290C 1982-03 → 1984-06 Figure MBG415D MBG415D 1984-06 → — Figure MBG406C MBG406C 1984-06 → —

Part groups

PNCDescription
75305 Emblem, Hood
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75321 Plate, Radiator Grille OR Front Panel Name
75322 Retainer, Radiator Grille Name Plate
75341A Plate, Console Box Name, NO.1
75364 Plate, Front Fender Name, NO.2 (GRADE MARK)
75441 Plate, Rear Name, NO.1
75461 Plate, Rear Name, NO.2 (MODEL MARK)
75462 Plate, Rear Name, NO.3 (DISPLACEMENT)
75463 Plate, Rear Name, NO.4 (GRADE MARK)
75465 Plate, Rear Name, NO.5 (MECHANISM)
75485 Plate, Back Window Name
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
