Toyota Camry/Vista

1982-03 → 1986-07 · chassis SV1#,CV1# · catalogue 281120 · Japan

Discontinued model Data version 1987-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

33 part groups · 2 illustrations

Illustrations

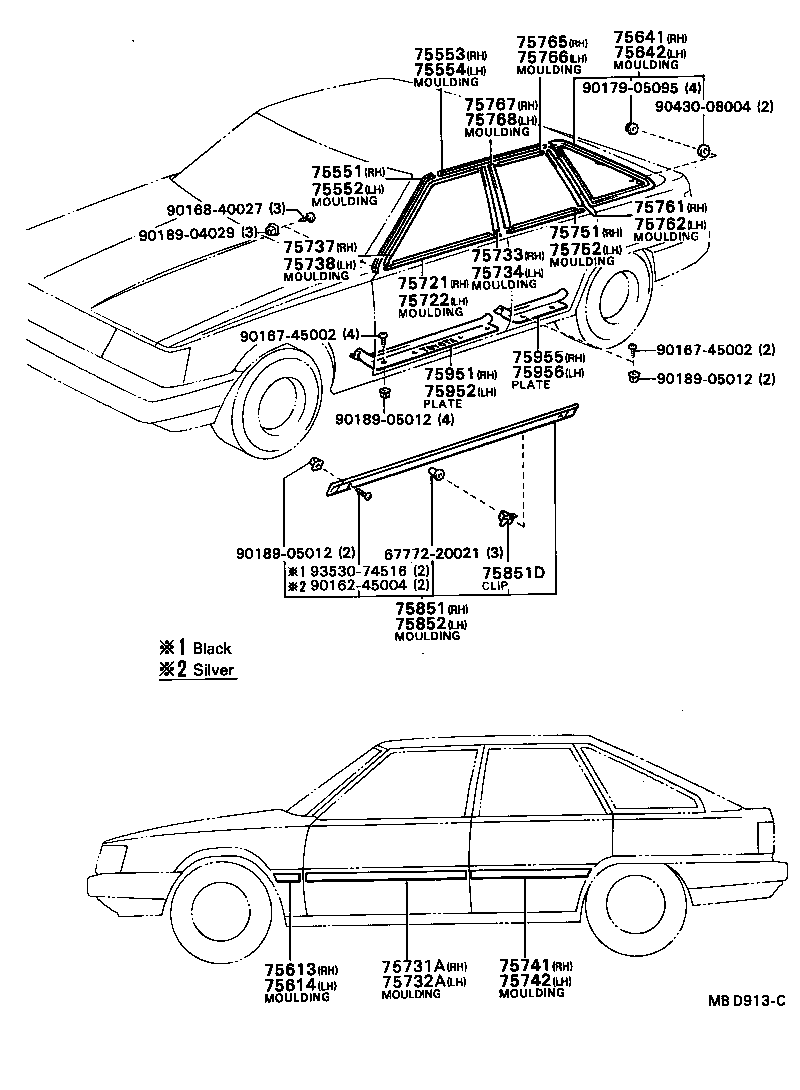

Figure MBD292D MBD292D 1982-03 → — Figure MBD913C MBD913C 1982-08 → —

Part groups

PNCDescription
75551 Moulding, Roof Drip Side Finish, RH
75552 Moulding, Roof Drip Side Finish, LH
75553 Moulding, Roof Drip Side Finish, RH
75554 Moulding, Roof Drip Side Finish, LH
75613 Moulding, Front Fender, Outside RH
75614 Moulding, Front Fender, Outside LH
75641 Moulding, Quarter Window, Outside Front RH
75642 Moulding, Quarter Window, Outside Front LH
75721 Moulding, Front Door Belt, RH
75722 Moulding, Front Door Belt, LH
75731A Moulding, Front Door, Outside RH
75732A Moulding, Front Door, Outside LH
75733 Moulding, Front Door Window Frame, Rear RH
75734 Moulding, Front Door Window Frame, Rear LH
75737 Moulding, Front Door Window Frame, Front RH
75738 Moulding, Front Door Window Frame, Front LH
75741 Moulding, Rear Door, Outside RH
75742 Moulding, Rear Door, Outside LH
75751 Moulding, Rear Door Belt, RH
75752 Moulding, Rear Door Belt, LH
75761 Moulding, Rear Door Window Frame, Rear RH
75762 Moulding, Rear Door Window Frame, Rear LH
75765 Moulding, Rear Door Window Frame, Upper RH
75766 Moulding, Rear Door Window Frame, Upper LH
75767 Moulding, Rear Door Window Frame, Front RH
75768 Moulding, Rear Door Window Frame, Front LH
75851 Moulding, Rocker Panel, RH
75851D Clip(FOR ROCKER PANEL MOULDING SET)
75852 Moulding, Rocker Panel, LH
75951 Plate, Front Door Scuff, Outside RH
75952 Plate, Front Door Scuff, Outside LH
75955 Plate, Rear Door Scuff, Outside RH
75956 Plate, Rear Door Scuff, Outside LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
