Toyota Camry/Vista
1982-03 → 1986-07 · chassis SV1#,CV1# · catalogue 281120 · Japan
Discontinued model
Data version 1987-03
Accelerator Link
20 part groups · 5 illustrations
Part groups

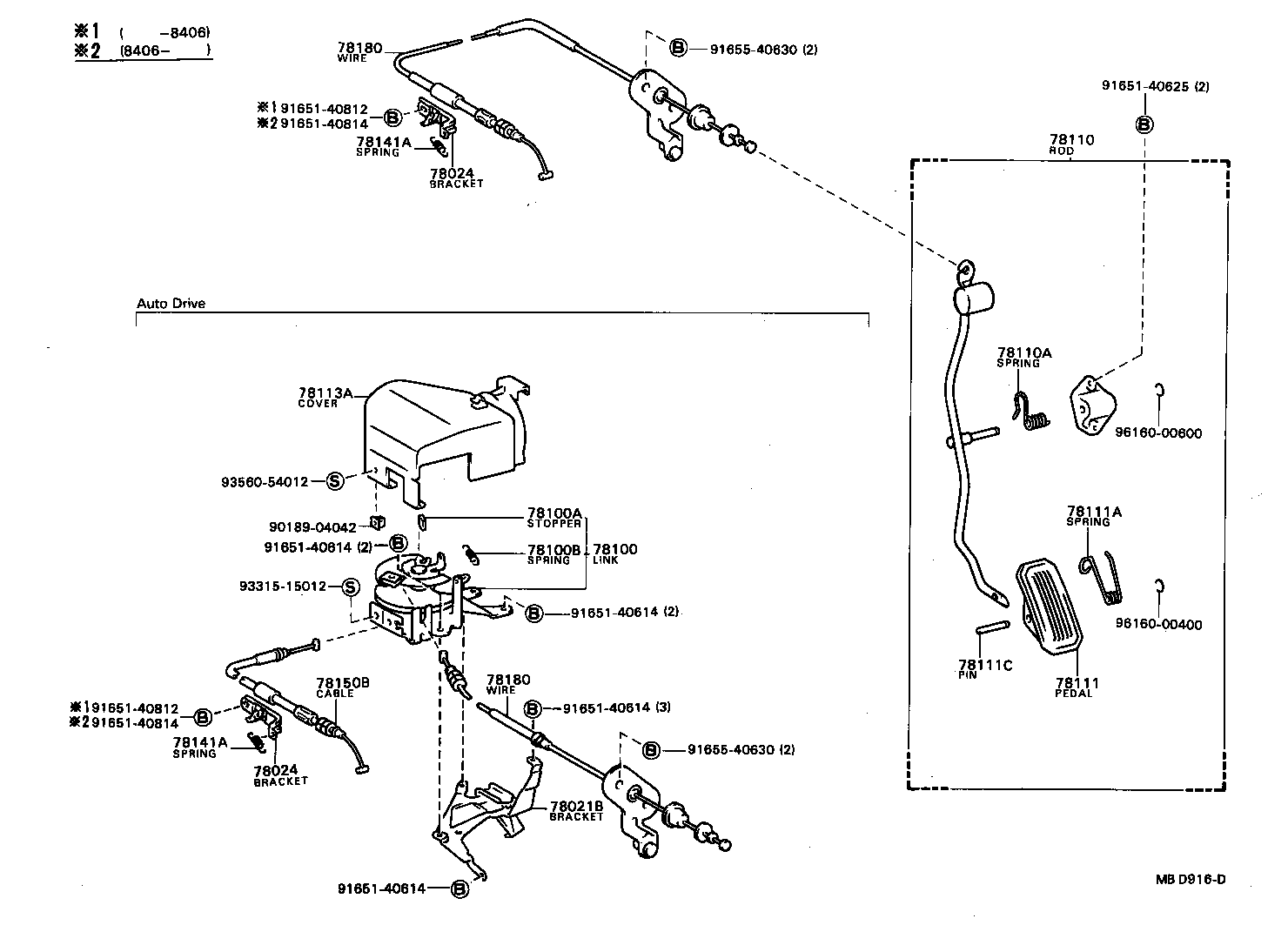

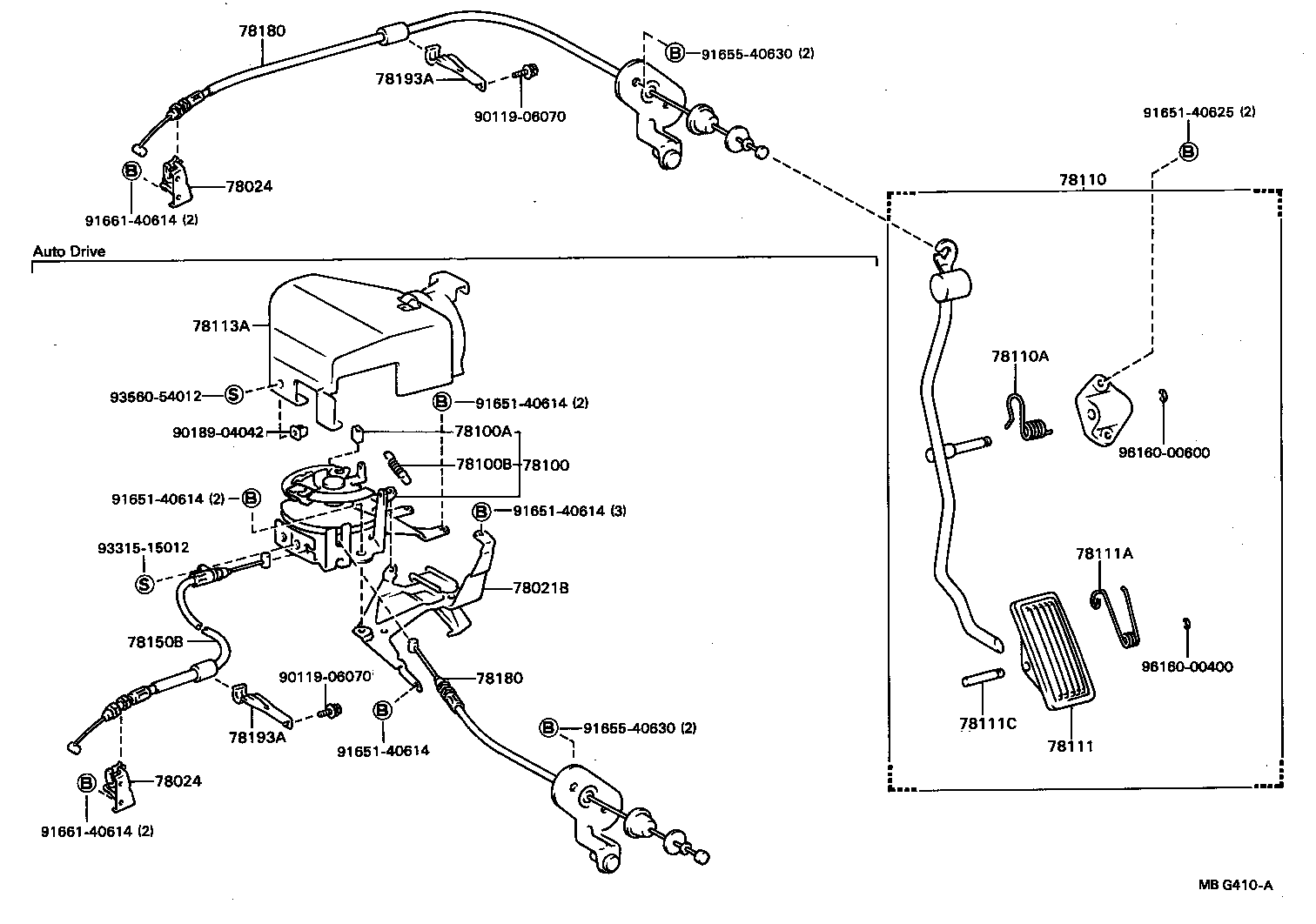

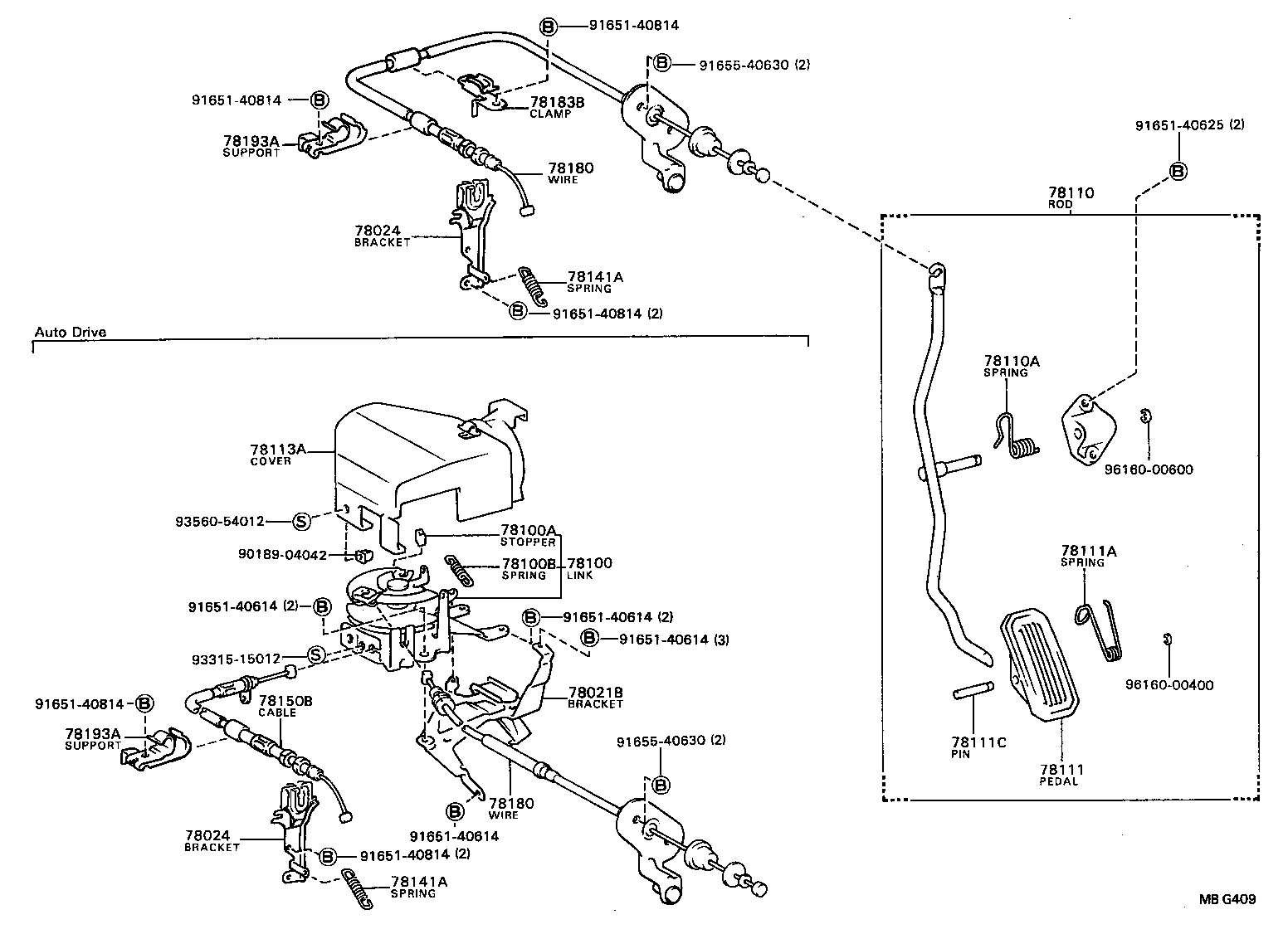

| PNC | Description |
|---|---|
| 78021B | Bracket Sub-assy, Accel Control Bellcrank |
| 78024 | Bracket Sub-assy, Accelerator Control Cable |
| 78100 | Link Assy, Accelerator |
| 78100A | Stopper, Accelerator Link |
| 78100B | Spring (FOR ACCELERATOR LINK) |
| 78110 | Rod Assy, Accelerator Pedal |
| 78110A | Spring (FOR ACCELERATOR PEDAL ROD) |
| 78111 | Pedal, Accelerator |
| 78111A | Spring (FOR ACCELERATOR PEDAL) |
| 78111C | Pin (FOR ACCELERATOR PEDAL) |
| 78113A | Cover, Auto Drive Accelerator Link |
| 78141A | Spring, Tension(FOR ACCELERATOR WIRE RETURN SPRING) |
| 78150B | Cable Assy, Accelerator Auto Drive |
| 78180 | Wire Assy, Accelerator |
| 78183B | Clamp, Accelerator Control Cable |
| 78190 | Cable Assy, Accel Control W/Throttle |
| 78193A | Support, Accelerator Control Cable, NO.3 |
| 78194A | Support, Accelerator Control Cable, NO.4 |
| 78410C | Knob, Throttle Cable |
| 78471 | Bracket, Throttle Control Cable |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
