Toyota Camry/Vista

1982-03 → 1986-07 · chassis SV1#,CV1# · catalogue 281120 · Japan

Discontinued model Data version 1987-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

13 part groups · 3 illustrations

Illustrations

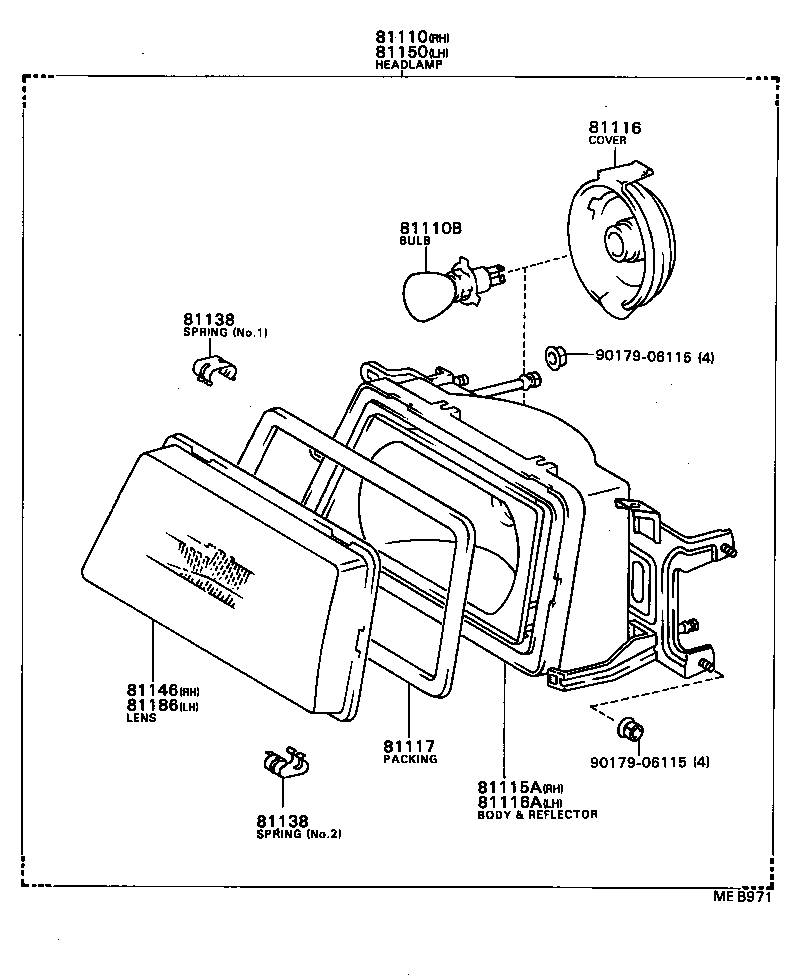

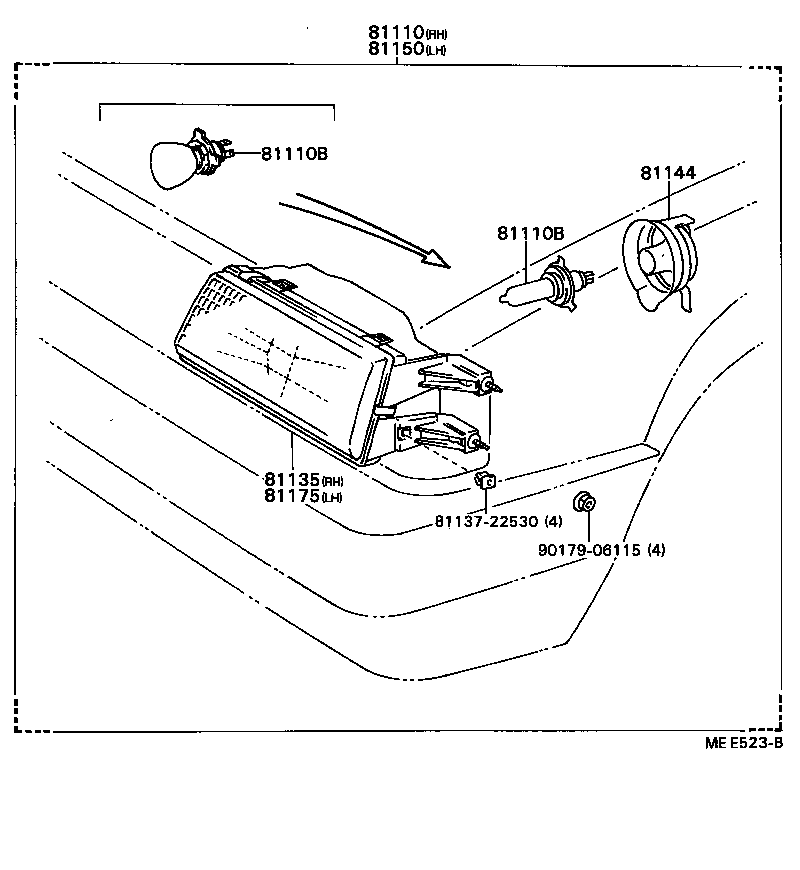

Figure MEB502A MEB502A 1982-03 → 1984-06 Figure MEB971 MEB971 1982-03 → 1984-06 Figure MEE523B MEE523B 1984-06 → —

Part groups

PNCDescription
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81115A Body And Reflector Sub-assy, Headlamp, RH
81116 Cover, Sealed Beam Unit
81116A Body And Reflector Sub-assy, Headlamp, LH
81117 Packing, Headlamp Housing
81135 Unit Assy, Headlamp, RH
81138 Spring, Headlamp
81144 Cover, Headlamp, NO.1
81146 Lens, Headlamp, RH
81150 Headlamp Assy, LH
81175 Unit Assy, Headlamp, LH
81186 Lens, Headlamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
