Toyota Camry/Vista

1982-03 → 1986-07 · chassis SV1#,CV1# · catalogue 281120 · Japan

Discontinued model Data version 1987-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Clearance Lamp

8 part groups · 2 illustrations

Illustrations

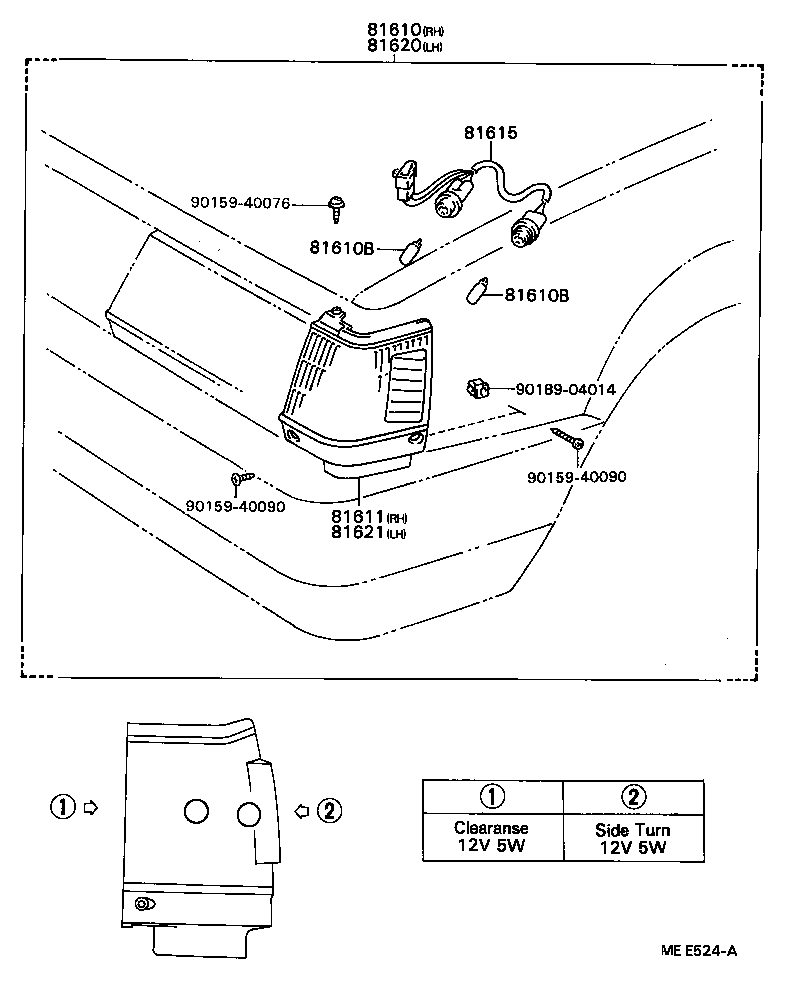

Figure MEB504A MEB504A 1982-03 → 1984-06 Figure MEE524A MEE524A 1984-06 → —

Part groups

PNCDescription
81610 Lamp Assy, Parking & Clearance, RH
81610B Bulb(FOR PARKING & CLEARANCE LAMP)
81611 Lens, Parking & Clearance Lamp, RH
81615 Socket And Wire, Clearance Lamp
81618 Bracket, Parking And Clearance Lamp, RH
81620 Lamp Assy, Parking & Clearance, LH
81621 Lens, Parking & Clearance Lamp, LH
81628 Bracket, Parking And Clearance Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
