Toyota Camry/Vista
1982-03 → 1986-07 · chassis SV1#,CV1# · catalogue 281120 · Japan
Discontinued model
Data version 1987-03

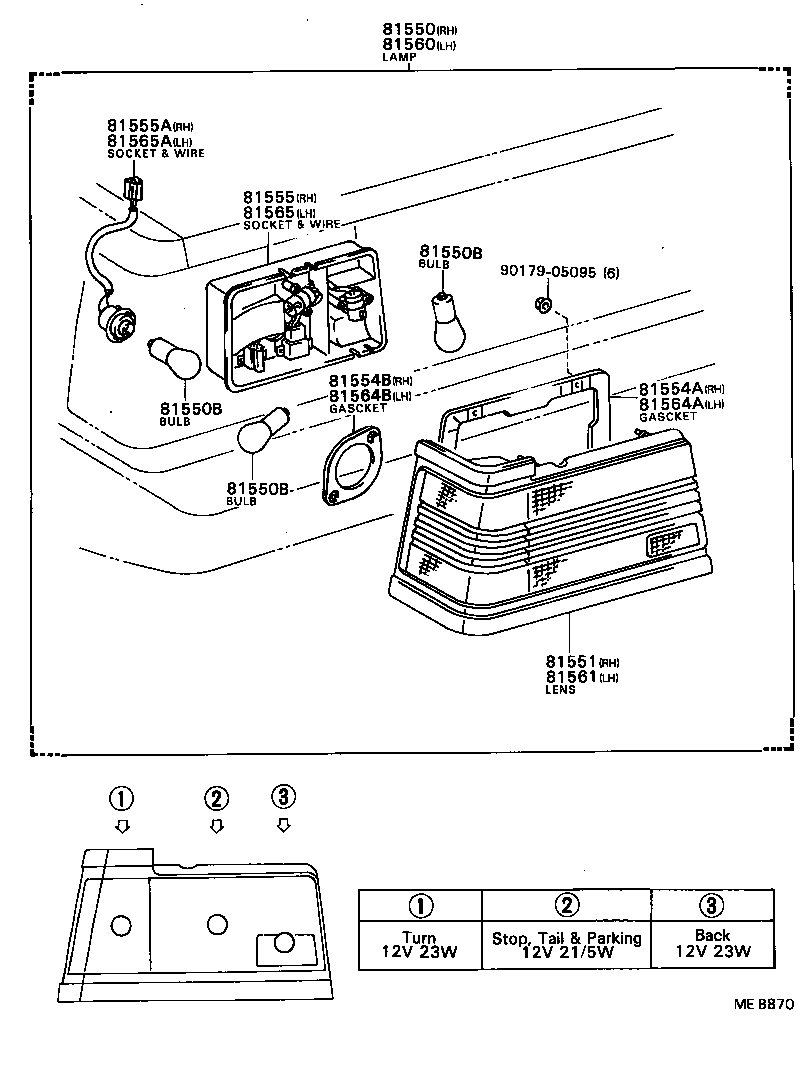

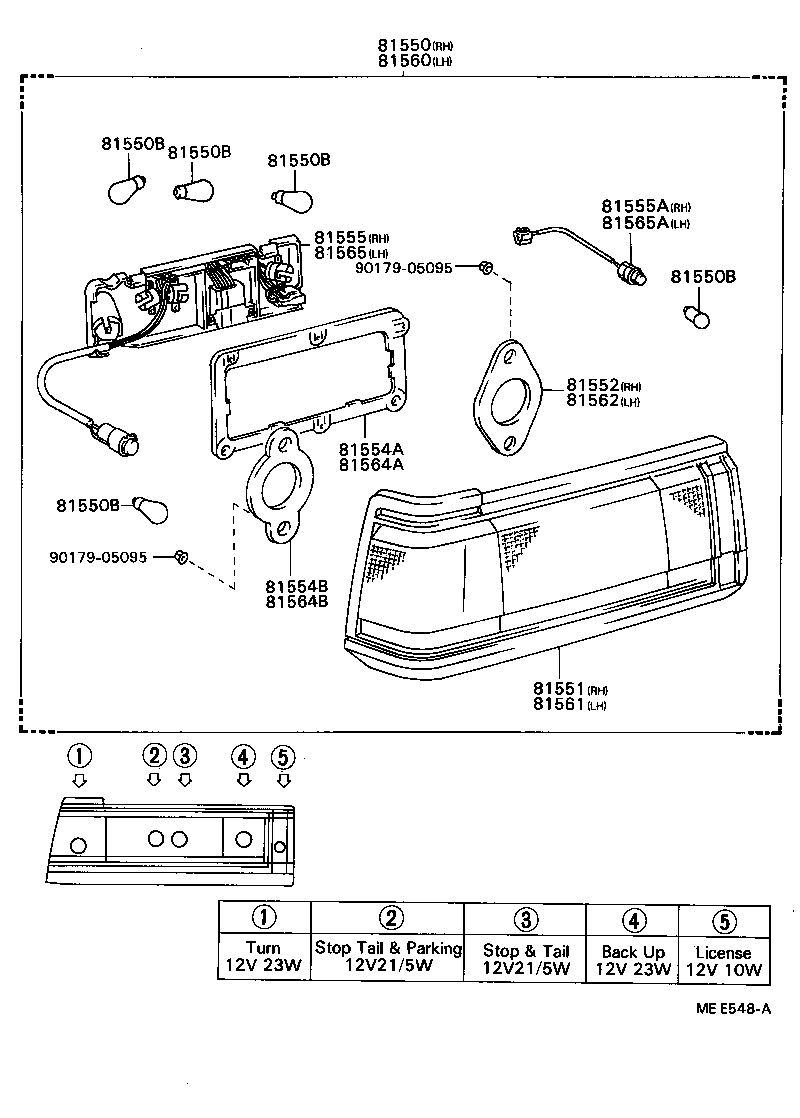

Rear Combination Lamp
15 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 81550 | Lamp Assy, Rear Combination, RH |
| 81550B | Bulb(FOR REAR COMBINATION LAMP) |
| 81551 | Lens, Rear Combination Lamp, RH |
| 81552 | Gasket, Rear Combination Lamp Lens, RH |
| 81554A | Gasket, Rear Combination Lamp Body, NO.1 RH |
| 81554B | Gasket, Rear Combination Lamp Body, NO.2 RH |
| 81555 | Socket & Wire Sub-assy, Rear Combination Lamp, RH |
| 81555A | Socket & Wire Sub-assy, Rear Combination Lamp, RH |
| 81560 | Lamp Assy, Rear Combination, LH |
| 81561 | Lens, Rear Combination Lamp, LH |
| 81562 | Gasket, Rear Combination Lamp Lens, LH |
| 81564A | Gasket, Rear Combination Lamp Body, NO.1 LH |
| 81564B | Gasket, Rear Combination Lamp Body, NO.2 LH |
| 81565 | Socket & Wire Sub-assy, Rear Combination Lamp, LH |
| 81565A | Socket & Wire Sub-assy, Rear Combination Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
