Factory parts data · Europe

Toyota Camry/Vista

1982-03 → 1986-07 · chassis SV1#,CV1# · catalogue 281120 · Japan

Discontinued model Data version 1987-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

4 part groups · 2 illustrations

Illustrations

Figure MEC112C

MEC112C 1982-03 → —

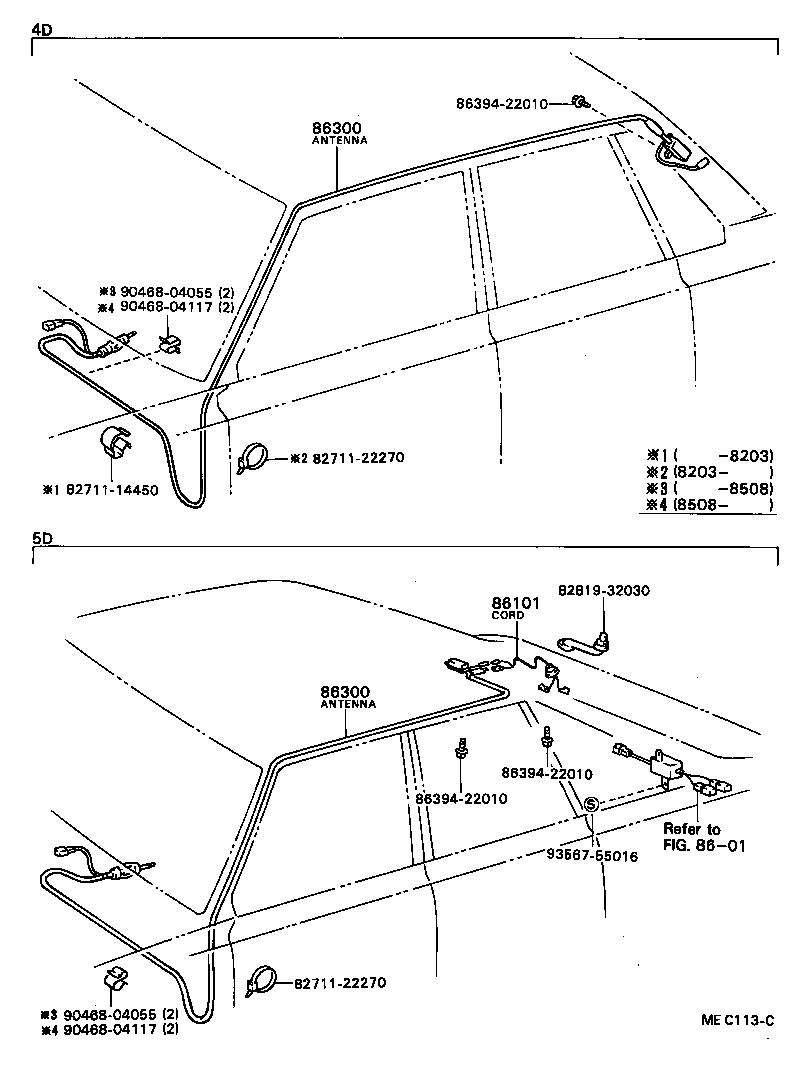

Figure MEC113C

MEC113C 1982-03 → —

Part groups

PNC	Description
86101	Cord Sub-assy, Antenna
86300	Antenna Assy, W/Holder
86393	Ornament, Antenna
86396	Nut, Antenna

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
