Toyota Camry/Vista
1982-03 → 1986-07 · chassis SV1#,CV1# · catalogue 281120 · Japan
Discontinued model
Data version 1987-03
Heating & Air Conditioning - Set

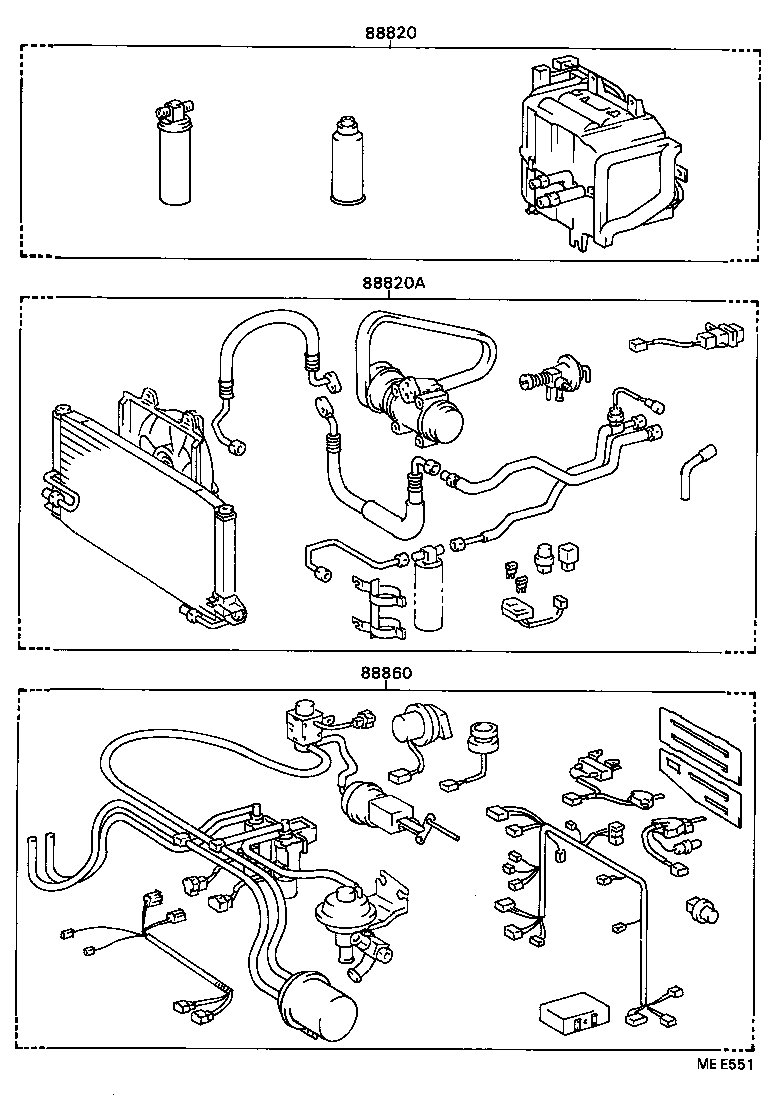

4 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88300 | Cooler & Accessory Assy |
| 88820 | Air Conditioner & Accessory Sub-assy, NO.1 |
| 88820A | Air Conditioner & Accessory Sub-assy, NO.2 |
| 88860 | Accessory Assy, Automatic Air Conditioner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
