Toyota Camry/Vista

1982-03 → 1986-07 · chassis SV1#,CV1# · catalogue 281120 · Japan

Discontinued model Data version 1987-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

24 part groups · 9 illustrations

Illustrations

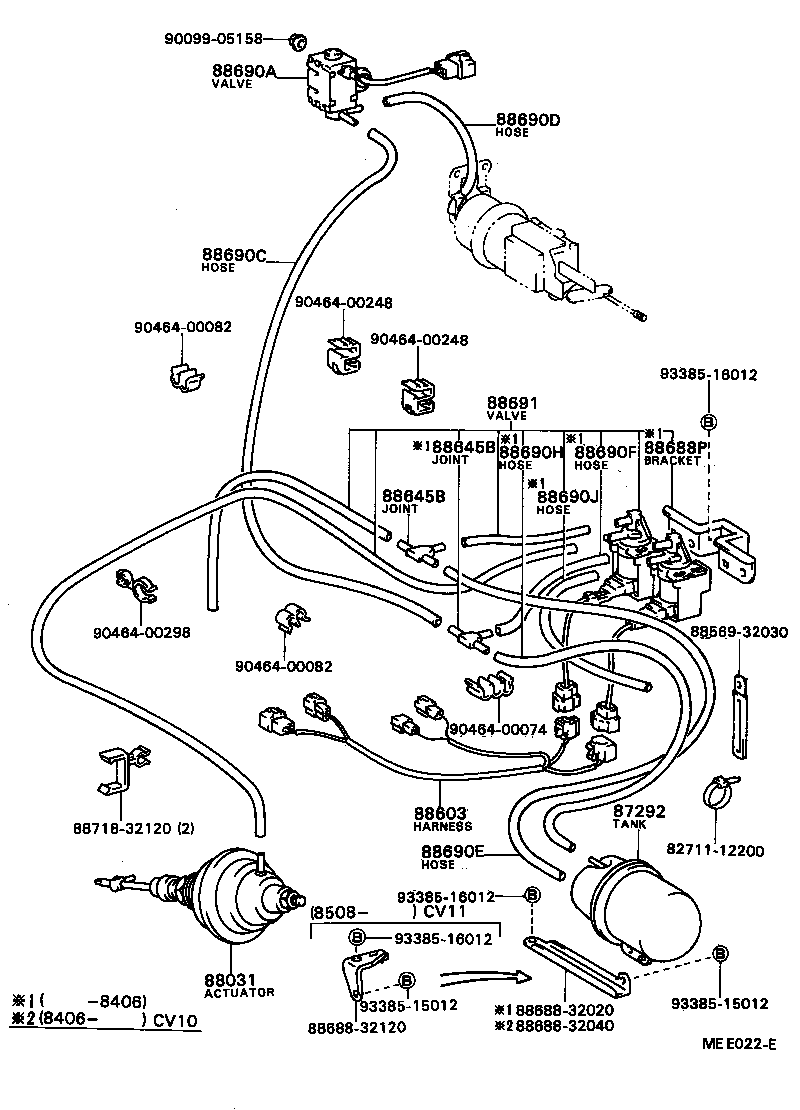

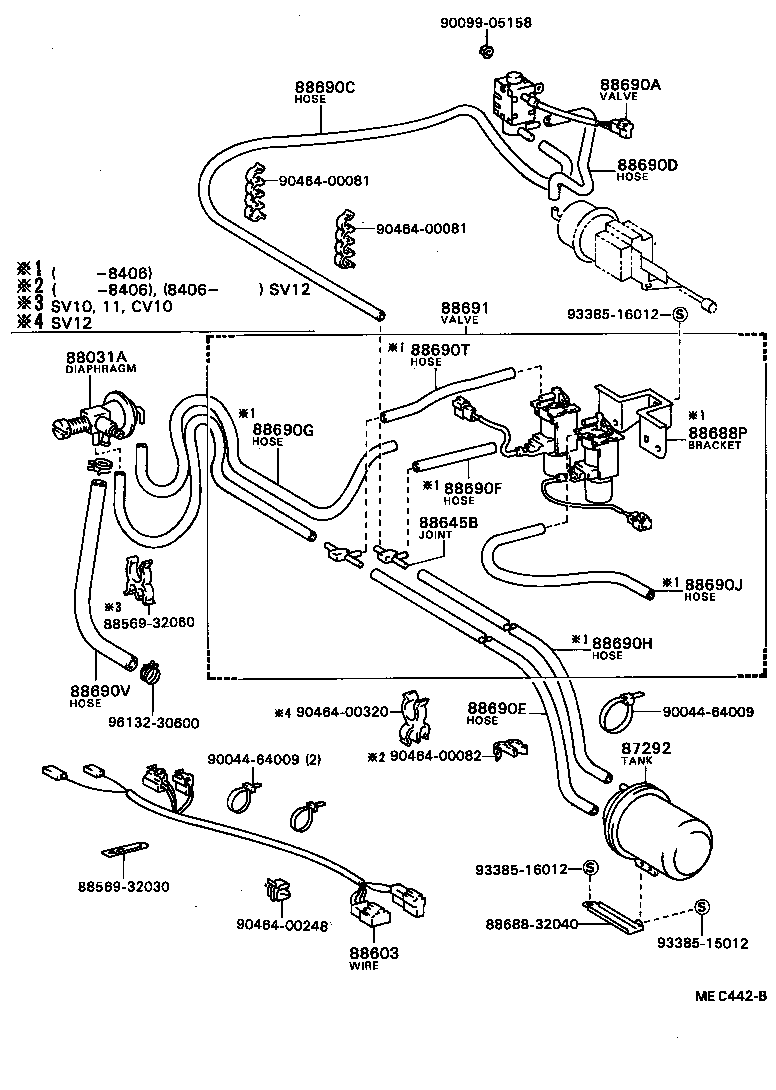

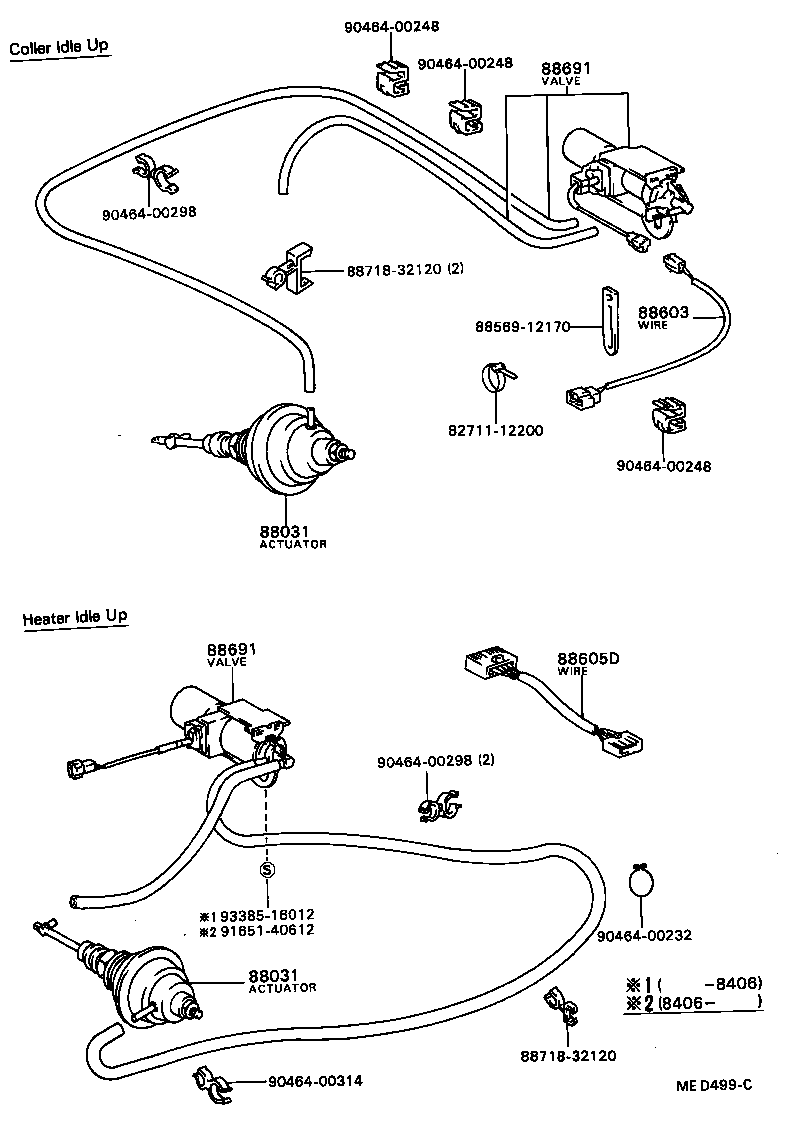

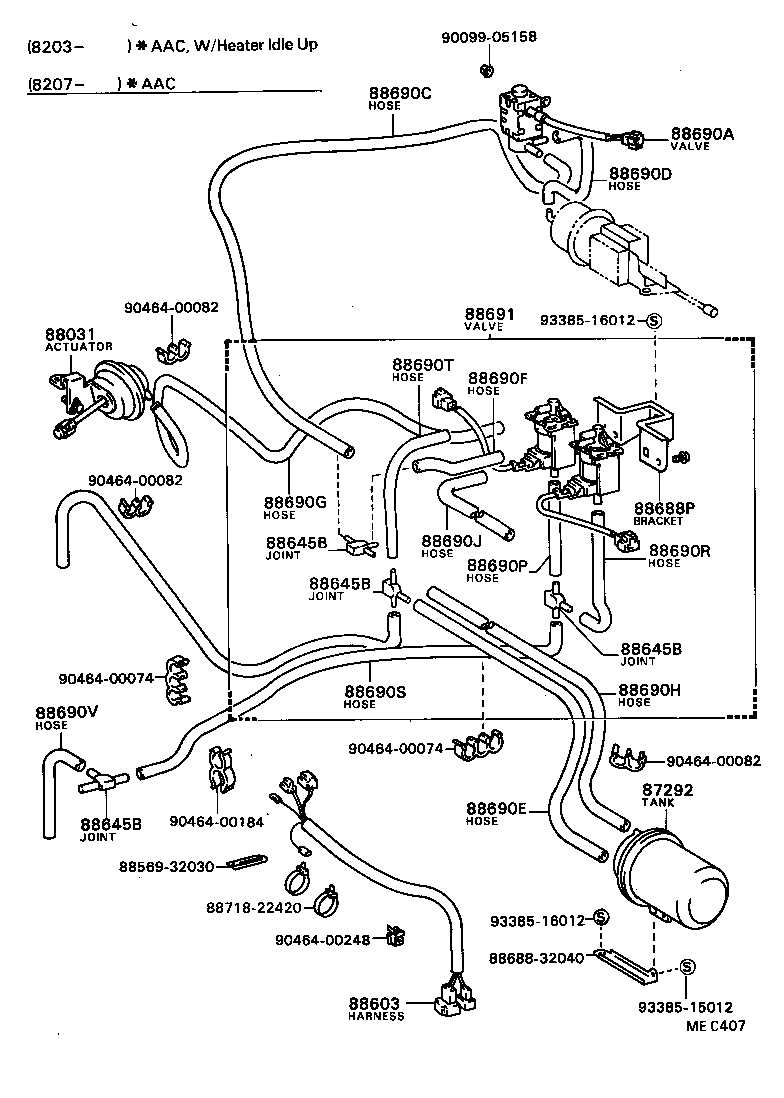

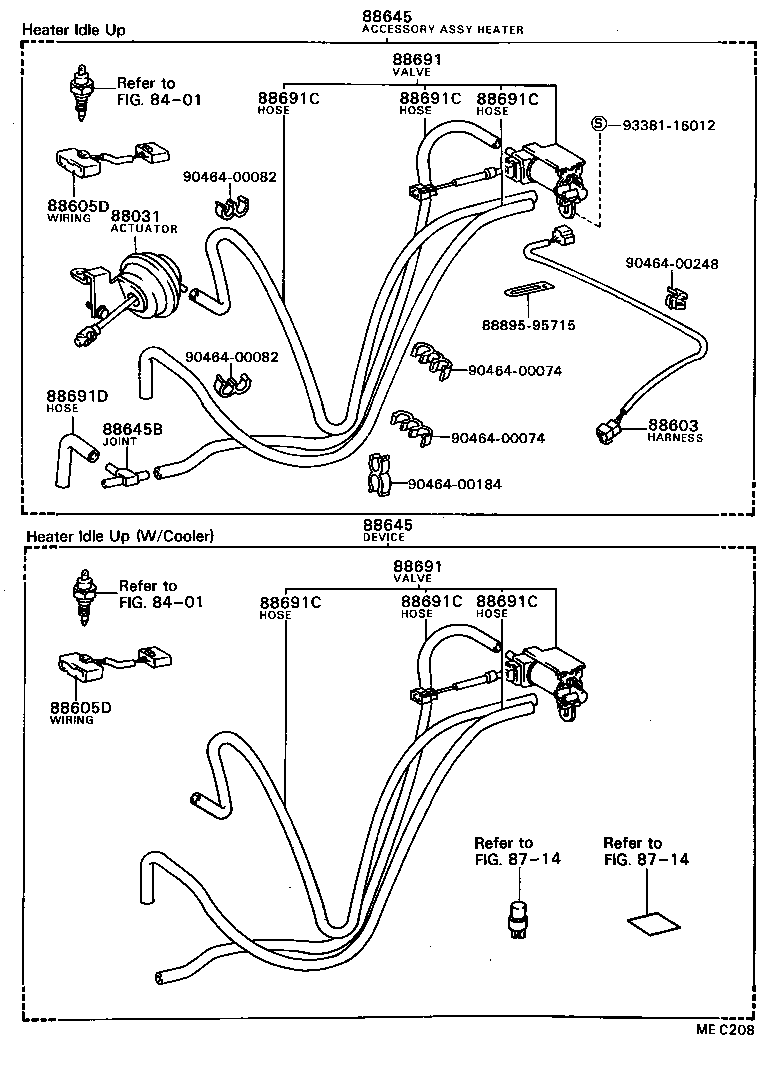

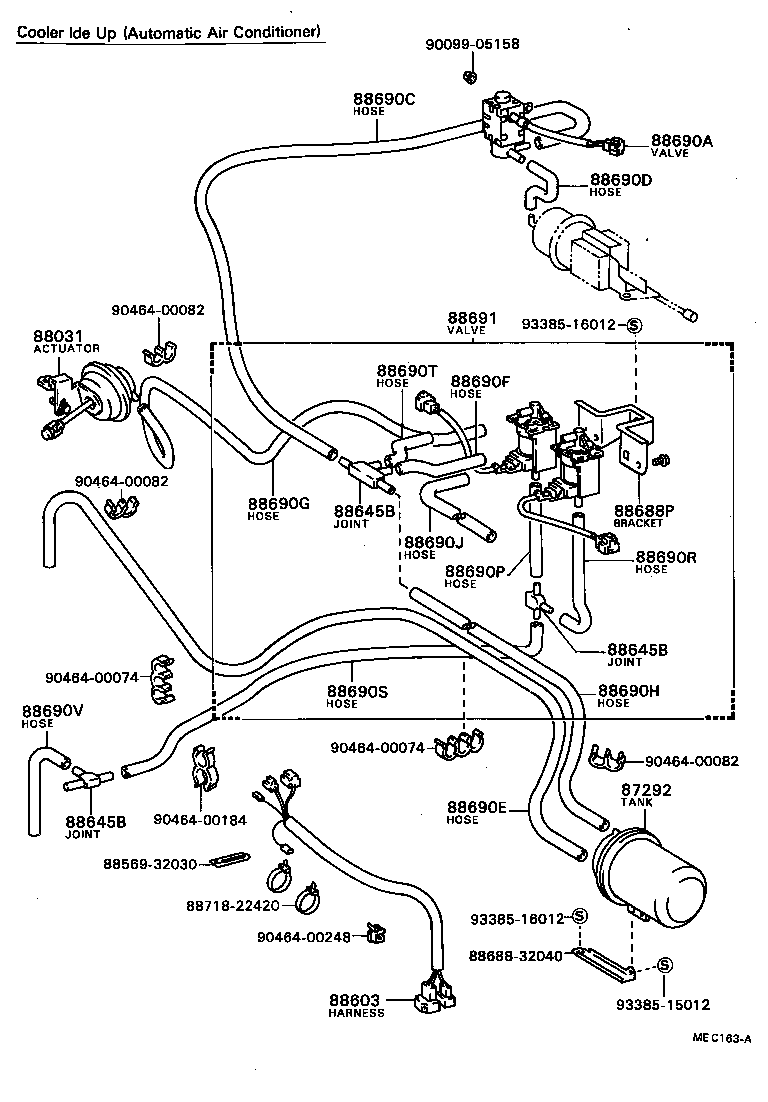

Figure MEB538E MEB538E 1982-03 → 1984-06 Figure MEE866A MEE866A 1984-06 → — Figure MEC163A MEC163A 1982-03 → 1982-07 Figure MEC407 MEC407 1982-03 → 1984-06 Figure MEC442B MEC442B 1982-03 → 1984-06 Figure MEC442B MEC442B 1984-06 → — Figure MEC208 MEC208 1982-03 → 1984-06 Figure MED499C MED499C 1983-08 → — Figure MEE022E MEE022E 1983-08 → —

Part groups

PNCDescription
87292 Tank, Vacuum
88031 Actuator Set, Idle-up
88031A Diaphragm Sub-assy, Idle-up Actuator
88603 Wire, Idle UP Device
88605D Wire, Air Conditioner
88645 Device Sub-assy, Idle UP
88645B Joint, NO.1 (FOR IDLE UP DIVICE)
88688P Bracket (FOR MAGNET VALVE)
88690A Valve Assy, Combination
88690C Hose, Vacuum, NO.1 (FOR HEATER OR AIR CONDITIONER)
88690D Hose, Vacuum, NO.2 (FOR HEATER OR AIR CONDITIONER)
88690E Hose, Vacuum, NO.3 (FOR HEATER OR AIR CONDITIONER)
88690F Hose, Vacuum, NO.4 (FOR HEATER OR AIR CONDITIONER)
88690G Hose, Vacuum, NO.5 (FOR HEATER OR AIR CONDITIONER)
88690H Hose, Vacuum, NO.6 (FOR HEATER OR AIR CONDITIONER)
88690J Hose, Vacuum, NO.7 (FOR HEATER OR AIR CONDITIONER)
88690P Hose, Vacuum, NO.8 (FOR HEATER OR AIR CONDITIONER)
88690R Hose, Vacuum, NO.9 (FOR HEATER OR AIR CONDITIONER)
88690S Hose, Vacuum, NO.10 (FOR HEATER OR AIR CONDITIONER)
88690T Hose, Vacuum, NO.11 (FOR HEATER OR AIR CONDITIONER)
88690V Hose, Vacuum, NO.13 (FOR HEATER OR AIR CONDITIONER)
88691 Valve, Magnet (FOR IDLE UP DEVICE)
88691C Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
88691D Hose, Vacuum (FOR IDLE UP DIVICE), NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
