Toyota Camry/Vista

1986-08 → 1988-08 · chassis SV2#,VZV20,CV20 · catalogue 281130 · Japan

Discontinued model Data version 1989-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

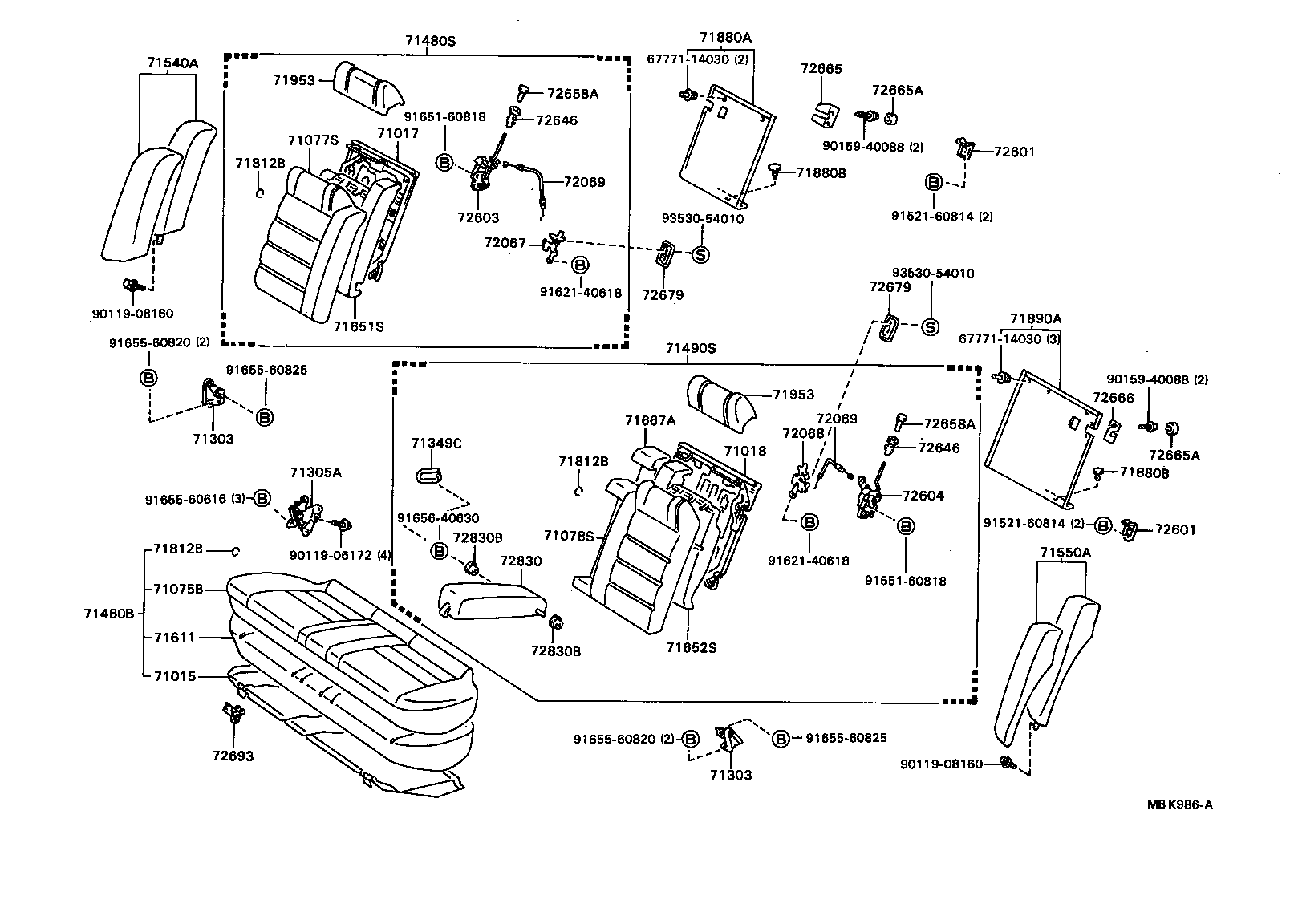

Exploded illustration MBK986A 71880A — CARPET ASSY, REAR SEATBACK BOARD, RH (6 parts) 71480S — BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) (46 parts) 6777114030 — not listed in this catalogue 71540A — BACK ASSY, REAR SIDE SEAT, RH (68 parts) 72665 — COVER, REAR SEATBACK LOCK, RH (9 parts) 71953 — PAD, REAR SEAT HEADREST (8 parts) 72665A — CAP(FOR REAR SEATBACK LOCK COVER) (9 parts) 72658A — KNOB, REAR SEATBACK LOCKING (9 parts) 9165160818 — not listed in this catalogue 72646 — GROMMET, REAR SEATBACK STOP BUTTON (9 parts) 71017 — FRAME SUB-ASSY, REAR SEATBACK, RH (3 parts) 71077S — COVER, REAR SEATBACK, RH (FOR SEPARATE TYPE) (47 parts) 9015940088 — not listed in this catalogue 72601 — STRIKER SUB-ASSY, REAR SEAT LOCK (4 parts) 71812B — CLIP(FOR REAR SEAT CUSHION COVER) (3 parts) 71880B — CLIP(FOR REAR SEATBACK CARPET) (4 parts) 72069 — CABLE SUB-ASSY, REAR SEATBACK LOCK CONTROL (3 parts) 9152160814 — not listed in this catalogue 72603 — LOCK SUB-ASSY, REAR SEATBACK, RH (3 parts) 9353054010 — not listed in this catalogue 72067 — LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH (3 parts) 9353054010 — not listed in this catalogue 72679 — BEZEL, REAR SEATBACK LOCK CONTROL (3 parts) 9162140618 — not listed in this catalogue 72679 — BEZEL, REAR SEATBACK LOCK CONTROL (3 parts) 9011908160 — not listed in this catalogue 71890A — CARPET ASSY, REAR SEATBACK BOARD, LH (6 parts) 71651S — PAD, REAR SEATBACK, RH(FOR SEPARATE TYPE) (4 parts) 6777114030 — not listed in this catalogue 9165560820 — not listed in this catalogue 71490S — BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) (46 parts) 9165560825 — not listed in this catalogue 9015940088 — not listed in this catalogue 71953 — PAD, REAR SEAT HEADREST (8 parts) 72666 — COVER, REAR SEATBACK LOCK, LH (9 parts) 72069 — CABLE SUB-ASSY, REAR SEATBACK LOCK CONTROL (3 parts) 71667A — PAD, REAR SEATBACK, CENTER A (4 parts) 72658A — KNOB, REAR SEATBACK LOCKING (9 parts) 72068 — LEVER SUB-ASSY, REAR BACK LOCK CONTROL, LH (3 parts) 71303 — HINGE SUB-ASSY, REAR SEATBACK (8 parts) 71349C — COVER, REAR SEATBACK HINGE (9 parts) 72646 — GROMMET, REAR SEATBACK STOP BUTTON (9 parts) 71018 — FRAME SUB-ASSY, REAR SEATBACK, LH (3 parts) 72665A — CAP(FOR REAR SEATBACK LOCK COVER) (9 parts) 71812B — CLIP(FOR REAR SEAT CUSHION COVER) (3 parts) 71880B — CLIP(FOR REAR SEATBACK CARPET) (4 parts) 71305A — HINGE SUB-ASSY, REAR SEATBACK, CENTER (4 parts) 72604 — LOCK SUB-ASSY, REAR SEATBACK, LH (3 parts) 9165560616 — not listed in this catalogue 9165640630 — not listed in this catalogue 9152160814 — not listed in this catalogue 72601 — STRIKER SUB-ASSY, REAR SEAT LOCK (4 parts) 71078S — COVER, REAR SEATBACK, LH(FOR SEPARATE TYPE) (47 parts) 72830B — BUSH(FOR REAR SEAT CENTER ARMREST) (8 parts) 71812B — CLIP(FOR REAR SEAT CUSHION COVER) (3 parts) 71550A — BACK ASSY, REAR SIDE SEAT, LH (68 parts) 9011906172 — not listed in this catalogue 72830 — ARMREST ASSY, REAR SEAT, CENTER (53 parts) 9162140618 — not listed in this catalogue 9165160818 — not listed in this catalogue 71075B — COVER, REAR SEAT CUSHION (FOR BENCH TYPE) (102 parts) 71460B — CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) (101 parts) 71611 — PAD, REAR SEAT CUSHION (7 parts) 71652S — PAD, REAR SEATBACK, LH(FOR SEPARATE TYPE) (4 parts) 72830B — BUSH(FOR REAR SEAT CENTER ARMREST) (8 parts) 71015 — FRAME SUB-ASSY, REAR SEAT CUSHION (4 parts) 9165560820 — not listed in this catalogue 9165560825 — not listed in this catalogue 72693 — HOOK, REAR SEAT CUSHION LOCK (3 parts) 9011908160 — not listed in this catalogue 71303 — HINGE SUB-ASSY, REAR SEATBACK (8 parts)
MBK986A · 50 callouts, 21 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
733 parts on this figure
Part number Description Fitment Price
71015 — Frame Sub-assy, Rear Seat Cushion
71015-32030 note Frame Sub-assy, Rear Seat Cushion
1987-10 → 1987-10 ended
SV20 SED VL —
71015-32030 Frame Sub-assy, Rear Seat Cushion
1987-10 → 1988-08 ended
CV20,SV20,21,VZV20 —
71015-32030 Frame Sub-assy, Rear Seat Cushion
1986-08 → 1987-10 ended
CV20,SV2#,VZV20 —
71015-32050 Frame Sub-assy, Rear Seat Cushion
1987-10 → 1988-08 ended
SV25 SED ¥7,500
71017 — Frame Sub-assy, Rear Seatback, RH
71017-32100 Frame Sub-assy, Rear Seatback, RH
1986-08 → 1987-10 ended
SV2# HT (GT,VE,VR,VX) ¥8,100
71017-32100 Frame Sub-assy, Rear Seatback, RH
1986-08 → 1987-10 ended
SV2#,VZV20 SED (GT,PRO,VR,VX,ZE,ZX) ¥8,100
71017-32100 Frame Sub-assy, Rear Seatback, RH
1987-10 → 1988-08 ended
SV20,21 HT VE;SV2#,VZV20 GT,PRO,VR,VX,ZE,ZX ¥8,100
71018 — Frame Sub-assy, Rear Seatback, LH
71018-32040 Frame Sub-assy, Rear Seatback, LH
1986-08 → 1987-10 ended
SV2# HT (GT,VE,VR,VX) ¥8,100
71018-32040 Frame Sub-assy, Rear Seatback, LH
1986-08 → 1987-10 ended
SV2#,VZV20 SED (GT,PRO,VR,VX,ZE,ZX) ¥8,100
71018-32040 Frame Sub-assy, Rear Seatback, LH
1987-10 → 1988-08 ended
SV20,21 HT VE;SV2#,VZV20 GT,PRO,VR,VX,ZE,ZX ¥8,100
71075B — Cover, Rear Seat Cushion (FOR BENCH TYPE)
71065-32170-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1988-04 → 1988-08 ended
SV21 HT VX —
71075-32430-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV20 LT,VC —
71075-32430-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV20 LT,VC —
71075-32430-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV20 LT,VC —
71075-32430-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV20 LT,VC —
71075-32430-05 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV20 LT,VC —
71075-32430-05 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV20 LT,VC —
71075-32440-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV20 VL,XT —
71075-32440-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV20 SED (VL,XT) —
71075-32440-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV20 VL,XT —
71075-32440-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV20 SED (VL,XT) —
71075-32440-05 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV20 SED (VL,XT) —
71075-32440-05 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV20 VL,XT —
71075-32450-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1986-08 → 1987-10 ended
CV20,SV2# SED (VE,ZT) —
71075-32450-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
CV20,SV20,21 SED (VE,ZT) —
71075-32450-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1986-08 → 1987-10 ended
CV20,SV2# SED (VE,ZT) —
71075-32450-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
CV20,SV20,21 SED (VE,ZT) —
71075-32450-05 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1986-08 → 1987-10 ended
CV20,SV2# SED (VE,ZT) —
71075-32450-05 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
CV20,SV20,21 SED (VE,ZT) —
71075-32460-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV20 SED (VR,ZE) —
71075-32460-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV20 SED (VR,ZE) —
71075-32460-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV20 SED (VR,ZE) ¥60,500
71075-32460-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV20 SED (VR,ZE) ¥60,500
71075-32460-05 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV20 SED (VR,ZE) ¥60,500
71075-32460-05 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV20 SED (VR,ZE) ¥60,500
71075-32470-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV21 SED GT —
71075-32470-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV21 SED GT —
71075-32470-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV21 SED GT —
71075-32470-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV21 SED GT —
71075-32470-05 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV21 SED GT —
71075-32470-05 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV21 SED GT —
71075-32490-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV20 SED VL —
71075-32490-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1987-10 ended
SV20 SED VL —
71075-32490-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
CV20 VL,XT —
71075-32490-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV20 XT —
71075-32490-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV20 SED (VL,XT) —
71075-32490-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1986-08 → 1987-10 ended
CV20 VL,XT —
71075-32490-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
CV20 VL,XT —
71075-32490-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV20 SED VL —
71075-32490-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV20 XT —
71075-32490-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV20 SED (VL,XT) —
71075-32490-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1986-08 → 1987-10 ended
CV20 VL,XT —
71075-32490-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1987-10 ended
SV20 SED VL —
71075-32490-05 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
CV20 VL,XT —
71075-32490-05 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV20 SED VL —
71075-32490-05 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV20 XT —
71075-32490-05 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV20 SED (VL,XT) —
71075-32490-05 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1986-08 → 1987-10 ended
CV20 VL,XT —
71075-32490-05 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1987-10 ended
SV20 SED VL —
71075-32500-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV21 SED (VX,ZX) —
71075-32500-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV21 SED (VX,ZX) —
71075-32500-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV21 SED (VX,ZX) —
71075-32500-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV21 SED (VX,ZX) —
71075-32500-05 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV21 SED (VX,ZX) —
71075-32500-05 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV21 SED (VX,ZX) —
71075-32550-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV25 HT VL —
71075-32550-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV25 HT VL —
71075-32550-05 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV25 HT VL —
71075-32560-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV25 HT VR —
71075-32560-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV25 HT VR —
71075-32560-05 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV25 HT VR —
71075-32570-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV25 SED (VR,ZE) —
71075-32570-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV25 SED (VR,ZE) —
71075-32570-05 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV25 SED (VR,ZE) —
71075-32580-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV25 SED (VL,XT) —
71075-32580-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV25 SED (VL,XT) —
71075-32580-05 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV25 SED (VL,XT) —
71075-32590-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV20 HT VL —
71075-32590-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV20 HT VL —
71075-32590-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV20 HT VL —
71075-32590-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV20 HT VL —
71075-32590-05 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV20 HT VL —
71075-32590-05 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV20 HT VL —
71075-32600-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV20,21 HT VE —
71075-32600-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV2# HT VE —
71075-32600-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV20,21 HT VE —
71075-32600-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV2# HT VE —
71075-32600-05 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV20,21 HT VE —
71075-32600-05 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV2# HT VE —
71075-32610-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV20 HT VR —
71075-32610-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV20 HT VR —
71075-32610-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV20 HT VR —
71075-32610-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV20 HT VR —
71075-32610-05 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV20 HT VR —
71075-32610-05 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV20 HT VR —
71075-32620-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV21 HT VX —
71075-32620-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV21 HT VX —
71075-32620-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV21 HT VX —
71075-32620-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV21 HT VX —
71075-32620-05 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV21 HT VX —
71075-32620-05 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV21 HT VX —
71075-32630-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV21 HT GT —
71075-32630-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV21 HT GT —
71075-32630-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV21 HT GT —
71075-32630-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV21 HT GT —
71075-32630-05 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV21 HT GT —
71075-32630-05 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV21 HT GT —
71075-32680-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-04 → 1987-10 ended
VZV20 —
71075-32680-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
VZV20 —
71075-32680-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-08 ended
VZV20 —
71075-32680-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-04 → 1987-10 ended
VZV20 —
71075-32750-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-12 → 1988-08 ended
CV20,SV20,21 ZT —
71077S — Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71077-32500-02 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV20,25 SED (VR,ZE) ¥28,900
71077-32500-02 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV20 SED (VR,ZE) ¥28,900
71077-32500-04 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV20 SED (VR,ZE) ¥28,900
71077-32500-04 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV20,25 SED (VR,ZE) ¥28,900
71077-32500-05 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV20,25 SED (VR,ZE) —
71077-32500-05 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV20 SED (VR,ZE) —
71077-32510-02 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV21 SED GT —
71077-32510-02 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV21 SED GT —
71077-32510-04 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV21 SED GT —
71077-32510-04 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV21 SED GT —
71077-32510-05 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV21 SED GT —
71077-32510-05 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV21 SED GT —
71077-32540-02 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV21 SED (VX,ZX) —
71077-32540-02 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV21 SED (VX,ZX) —
71077-32540-04 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV21 SED (VX,ZX) —
71077-32540-04 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV21 SED (VX,ZX) —
71077-32540-05 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV21 SED (VX,ZX) —
71077-32540-05 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV21 SED (VX,ZX) —
71077-32650-02 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV2# HT VE —
71077-32650-02 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV20,21 HT VE —
71077-32650-04 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV20,21 HT VE —
71077-32650-04 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV2# HT VE —
71077-32650-05 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV20,21 HT VE —
71077-32650-05 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV2# HT VE —
71077-32660-02 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV20,25 HT VR —
71077-32660-02 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV20 HT VR —
71077-32660-04 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV20,25 HT VR —
71077-32660-04 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV20 HT VR —
71077-32660-05 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV20,25 HT VR —
71077-32660-05 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV20 HT VR —
71077-32670-02 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV21 HT VX —
71077-32670-02 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV21 HT VX —
71077-32670-04 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV21 HT VX —
71077-32670-04 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV21 HT VX —
71077-32670-05 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV21 HT VX —
71077-32670-05 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV21 HT VX —
71077-32680-02 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV21 HT GT —
71077-32680-02 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV21 HT GT —
71077-32680-04 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV21 HT GT —
71077-32680-04 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV21 HT GT —
71077-32680-05 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV21 HT GT —
71077-32680-05 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV21 HT GT —
71077-32740-02 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
VZV20 —
71077-32740-02 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1987-04 → 1987-10 ended
VZV20 —
71077-32740-04 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
VZV20 —
71077-32740-04 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1987-04 → 1987-10 ended
VZV20 —
71077-3H070-02 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1988-04 → 1988-08 ended
SV21 HT VX —
71078S — Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71078-32220-02 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV20 SED (VR,ZE) ¥43,900
71078-32220-02 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV20,25 SED (VR,ZE) ¥43,900
71078-32220-04 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV20 SED (VR,ZE) —
71078-32220-04 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV20,25 SED (VR,ZE) —
71078-32220-05 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV20 SED (VR,ZE) —
71078-32220-05 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV20,25 SED (VR,ZE) —
71078-32230-02 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV21 SED GT —
71078-32230-02 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV21 SED GT —
71078-32230-04 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV21 SED GT —
71078-32230-04 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV21 SED GT —
71078-32230-05 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV21 SED GT —
71078-32230-05 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV21 SED GT —
71078-32250-02 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV21 SED (VX,ZX) —
71078-32250-02 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV21 SED (VX,ZX) —
71078-32250-04 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV21 SED (VX,ZX) —
71078-32250-04 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV21 SED (VX,ZX) —
71078-32250-05 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV21 SED (VX,ZX) —
71078-32250-05 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV21 SED (VX,ZX) —
71078-32310-02 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV2# HT VE —
71078-32310-02 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV20,21 HT VE —
71078-32310-04 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV20,21 HT VE —
71078-32310-04 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV2# HT VE —
71078-32310-05 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV20,21 HT VE —
71078-32310-05 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV2# HT VE —
71078-32320-02 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV20,25 HT VR —
71078-32320-02 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV20 HT VR —
71078-32320-04 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV20,25 HT VR —
71078-32320-04 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV20 HT VR —
71078-32320-05 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV20 HT VR —
71078-32320-05 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV20,25 HT VR —
71078-32330-02 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV21 HT VX —
71078-32330-02 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV21 HT VX —
71078-32330-04 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV21 HT VX —
71078-32330-04 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV21 HT VX —
71078-32330-05 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV21 HT VX —
71078-32330-05 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV21 HT VX —
71078-32340-02 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV21 HT GT —
71078-32340-02 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV21 HT GT —
71078-32340-04 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV21 HT GT —
71078-32340-04 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV21 HT GT —
71078-32340-05 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV21 HT GT —
71078-32340-05 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV21 HT GT —
71078-32410-02 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1987-04 → 1987-10 ended
VZV20 —
71078-32410-02 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
VZV20 —
71078-32410-04 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
VZV20 —
71078-32410-04 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1987-04 → 1987-10 ended
VZV20 —
71078-32540-02 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1988-04 → 1988-08 ended
SV21 HT VX —
71303 — Hinge Sub-assy, Rear Seatback
71303-32030 note Hinge Sub-assy, Rear Seatback
1986-08 → 1987-10 ended
SV2# HT (GT,VE,VR,VX) ¥2,050
71303-32030 note Hinge Sub-assy, Rear Seatback
1986-08 → 1987-10 ended
SV2#,VZV20 SED (GT,PRO,VR,VX,ZE,ZX) ¥2,050
71303-32030 note Hinge Sub-assy, Rear Seatback
1987-10 → 1988-08 ended
SV20,21 HT VE;SV20,21,VZV20 GT,PRO,VR,VX,ZE,ZX ¥2,050
71303-32040 note Hinge Sub-assy, Rear Seatback
1987-10 → 1988-08 ended
SV25 VR,ZE ¥2,030
71304-32030 note Hinge Sub-assy, Rear Seatback
1986-08 → 1987-10 ended
SV2# HT (GT,VE,VR,VX) ¥2,050
71304-32030 note Hinge Sub-assy, Rear Seatback
1986-08 → 1987-10 ended
SV2#,VZV20 SED (GT,PRO,VR,VX,ZE,ZX) ¥2,050
71304-32030 note Hinge Sub-assy, Rear Seatback
1987-10 → 1988-08 ended
SV20,21 HT VE;SV20,21,VZV20 GT,PRO,VR,VX,ZE,ZX ¥2,050
71304-32040 note Hinge Sub-assy, Rear Seatback
1987-10 → 1988-08 ended
SV25 VR,ZE ¥2,030
71305A — Hinge Sub-assy, Rear Seatback, Center
71305-32030 Hinge Sub-assy, Rear Seatback, Center
1987-10 → 1988-08 ended
SV25 VR,ZE ¥1,460
71305-32040 Hinge Sub-assy, Rear Seatback, Center
1986-08 → 1987-10 ended
SV2# HT (GT,VE,VR,VX) ¥1,470
71305-32040 Hinge Sub-assy, Rear Seatback, Center
1986-08 → 1987-10 ended
SV2#,VZV20 SED (GT,PRO,VR,VX,ZE,ZX) ¥1,470
71305-32040 Hinge Sub-assy, Rear Seatback, Center
1987-10 → 1988-08 ended
SV20,21 HT VE;SV20,21,VZV20 GT,PRO,VR,VX,ZE,ZX ¥1,470
71349C — Cover, Rear Seatback Hinge
71349-32030-02 note Cover, Rear Seatback Hinge
1986-08 → 1987-10 ended
SV2# HT (GT,VE,VR,VX) ¥640
71349-32030-02 note Cover, Rear Seatback Hinge
1986-08 → 1987-10 ended
SV2#,VZV20 SED (GT,PRO,VR,VX,ZE,ZX) ¥640
71349-32030-02 note Cover, Rear Seatback Hinge
1987-10 → 1988-07 ended
SV20,21 HT VE;SV2#,VZV20 GT,PRO,VR,VX,ZE,ZX ¥640
71349-32030-04 note Cover, Rear Seatback Hinge
1986-08 → 1987-10 ended
SV2# HT (GT,VE,VR,VX) ¥640
71349-32030-04 note Cover, Rear Seatback Hinge
1986-08 → 1987-10 ended
SV2#,VZV20 SED (GT,PRO,VR,VX,ZE,ZX) ¥640
71349-32030-04 note Cover, Rear Seatback Hinge
1987-10 → 1988-07 ended
SV20,21 HT VE;SV2#,VZV20 GT,PRO,VR,VX,ZE,ZX ¥640
71349-32030-05 note Cover, Rear Seatback Hinge
1986-08 → 1987-10 ended
SV2# SED (GT,VR,VX,ZE,ZX) —
71349-32030-05 note Cover, Rear Seatback Hinge
1987-10 → 1988-08 ended
SV20,21 HT VE;SV2# GT,VR,VX,ZE,ZX —
71349-32030-05 note Cover, Rear Seatback Hinge
1986-08 → 1987-10 ended
SV2# HT (GT,VE,VR,VX) —
71460B — Cushion Assy, Rear Seat (FOR BENCH TYPE)
71460-32430-02 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV20 LT,VC —
71460-32430-02 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV20 LT,VC —
71460-32430-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV20 LT,VC —
71460-32430-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV20 LT,VC —
71460-32430-05 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV20 LT,VC —
71460-32430-05 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV20 LT,VC —
71460-32440-02 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV20 VL,XT —
71460-32440-02 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV20 SED (VL,XT) —
71460-32440-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV20 VL,XT —
71460-32440-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV20 SED (VL,XT) —
71460-32440-05 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV20 VL,XT —
71460-32440-05 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV20 SED (VL,XT) —
71460-32450-02 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1986-08 → 1987-10 ended
CV20,SV2# SED (VE,ZT) —
71460-32450-02 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
CV20,SV20,21 SED (VE,ZT) —
71460-32450-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1986-08 → 1987-10 ended
CV20,SV2# SED (VE,ZT) —
71460-32450-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
CV20,SV20,21 SED (VE,ZT) —
71460-32450-05 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
CV20,SV20,21 SED (VE,ZT) —
71460-32450-05 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1986-08 → 1987-10 ended
CV20,SV2# SED (VE,ZT) —
71460-32460-02 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV20 SED (VR,ZE) —
71460-32460-02 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV20 SED (VR,ZE) —
71460-32460-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV20 SED (VR,ZE) —
71460-32460-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV20 SED (VR,ZE) —
71460-32460-05 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV20 SED (VR,ZE) —
71460-32460-05 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV20 SED (VR,ZE) —
71460-32470-02 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV21 SED GT —
71460-32470-02 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV21 SED GT —
71460-32470-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV21 SED GT —
71460-32470-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV21 SED GT —
71460-32470-05 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV21 SED GT —
71460-32470-05 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV21 SED GT —
71460-32480-02 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV25 HT VL —
71460-32480-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV25 HT VL —
71460-32480-05 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV25 HT VL —
71460-32490-02 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1986-08 → 1987-10 ended
CV20 VL,XT —
71460-32490-02 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV20 SED (VL,XT) —
71460-32490-02 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV20 SED VL —
71460-32490-02 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
CV20 VL,XT —
71460-32490-02 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV20 XT —
71460-32490-02 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1987-10 ended
SV20 SED VL —
71460-32490-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV20 SED VL —
71460-32490-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1986-08 → 1987-10 ended
CV20 VL,XT —
71460-32490-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV20 SED (VL,XT) —
71460-32490-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1987-10 ended
SV20 SED VL —
71460-32490-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
CV20 VL,XT —
71460-32490-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV20 XT —
71460-32490-05 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1987-10 ended
SV20 SED VL —
71460-32490-05 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV20 SED (VL,XT) —
71460-32490-05 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1986-08 → 1987-10 ended
CV20 VL,XT —
71460-32490-05 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV20 XT —
71460-32490-05 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV20 SED VL —
71460-32490-05 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
CV20 VL,XT —
71460-32500-02 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV21 SED (VX,ZX) —
71460-32500-02 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV21 SED (VX,ZX) —
71460-32500-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV21 SED (VX,ZX) —
71460-32500-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV21 SED (VX,ZX) —
71460-32500-05 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV21 SED (VX,ZX) —
71460-32500-05 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV21 SED (VX,ZX) —
71460-32550-02 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV25 HT VR —
71460-32550-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV25 HT VR —
71460-32550-05 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV25 HT VR —
71460-32560-02 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV25 SED (VR,ZE) —
71460-32560-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV25 SED (VR,ZE) —
71460-32560-05 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV25 SED (VR,ZE) —
71460-32570-02 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV25 SED (VL,XT) —
71460-32570-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV25 SED (VL,XT) —
71460-32570-05 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV25 SED (VL,XT) —
71460-32600-02 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV20 HT VL —
71460-32600-02 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV20 HT VL —
71460-32600-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV20 HT VL —
71460-32600-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV20 HT VL —
71460-32600-05 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV20 HT VL —
71460-32600-05 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV20 HT VL —
71460-32610-02 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV20,21 HT VE —
71460-32610-02 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV2# HT VE —
71460-32610-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV2# HT VE —
71460-32610-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV20,21 HT VE —
71460-32610-05 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV20,21 HT VE —
71460-32610-05 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV2# HT VE —
71460-32620-02 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV20 HT VR —
71460-32620-02 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV20 HT VR —
71460-32620-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV20 HT VR —
71460-32620-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV20 HT VR —
71460-32620-05 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV20 HT VR —
71460-32620-05 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV20 HT VR —
71460-32630-02 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV21 HT VX —
71460-32630-02 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV21 HT VX —
71460-32630-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV21 HT VX —
71460-32630-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV21 HT VX —
71460-32630-05 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV21 HT VX —
71460-32630-05 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV21 HT VX —
71460-32640-02 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV21 HT GT —
71460-32640-02 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV21 HT GT —
71460-32640-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV21 HT GT —
71460-32640-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV21 HT GT —
71460-32640-05 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
SV21 HT GT —
71460-32640-05 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1986-08 → 1987-10 ended
SV21 HT GT —
71460-32710-02 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
VZV20 —
71460-32710-02 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-04 → 1987-10 ended
VZV20 —
71460-32710-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1988-08 ended
VZV20 —
71460-32710-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-04 → 1987-10 ended
VZV20 —
71460-32740-02 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-12 → 1988-08 ended
CV20,SV20,21 ZT —
71480S — Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71480-32490-02 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV20,25 SED (VR,ZE) —
71480-32490-02 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV20 SED (VR,ZE) —
71480-32490-04 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV20 SED (VR,ZE) —
71480-32490-04 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV20,25 SED (VR,ZE) —
71480-32490-05 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV20 SED (VR,ZE) —
71480-32490-05 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV20,25 SED (VR,ZE) —
71480-32500-02 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV21 SED GT —
71480-32500-02 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV21 SED GT —
71480-32500-04 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV21 SED GT —
71480-32500-04 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV21 SED GT —
71480-32500-05 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV21 SED GT —
71480-32500-05 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV21 SED GT —
71480-32530-02 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV21 SED (VX,ZX) —
71480-32530-02 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV21 SED (VX,ZX) —
71480-32530-04 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV21 SED (VX,ZX) —
71480-32530-04 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV21 SED (VX,ZX) —
71480-32530-05 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV21 SED (VX,ZX) —
71480-32530-05 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV21 SED (VX,ZX) —
71480-32670-02 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV20,21 HT VE —
71480-32670-02 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV2# HT VE —
71480-32670-04 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV20,21 HT VE —
71480-32670-04 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV2# HT VE —
71480-32670-05 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV20,21 HT VE —
71480-32670-05 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV2# HT VE —
71480-32680-02 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV20,25 HT VR —
71480-32680-02 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV20 HT VR —
71480-32680-04 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV20,25 HT VR —
71480-32680-04 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV20 HT VR —
71480-32680-05 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV20,25 HT VR —
71480-32680-05 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV20 HT VR —
71480-32690-02 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV21 HT VX —
71480-32690-02 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV21 HT VX —
71480-32690-04 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV21 HT VX —
71480-32690-04 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV21 HT VX —
71480-32690-05 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV21 HT VX —
71480-32690-05 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV21 HT VX —
71480-32700-02 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV21 HT GT —
71480-32700-02 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV21 HT GT —
71480-32700-04 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV21 HT GT —
71480-32700-04 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV21 HT GT —
71480-32700-05 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV21 HT GT —
71480-32700-05 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV21 HT GT —
71480-32760-02 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1987-04 → 1987-10 ended
VZV20 —
71480-32760-02 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
VZV20 —
71480-32760-04 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1987-04 → 1987-10 ended
VZV20 —
71480-32760-04 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
VZV20 —
71490S — Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71490-32220-02 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV20 SED (VR,ZE) —
71490-32220-02 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV20,25 SED (VR,ZE) —
71490-32220-04 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV20 SED (VR,ZE) —
71490-32220-04 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV20,25 SED (VR,ZE) —
71490-32220-05 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV20 SED (VR,ZE) —
71490-32220-05 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV20,25 SED (VR,ZE) —
71490-32230-02 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV21 SED GT —
71490-32230-02 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV21 SED GT —
71490-32230-04 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV21 SED GT —
71490-32230-04 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV21 SED GT —
71490-32230-05 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV21 SED GT —
71490-32230-05 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV21 SED GT —
71490-32250-02 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV21 SED (VX,ZX) —
71490-32250-02 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV21 SED (VX,ZX) —
71490-32250-04 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV21 SED (VX,ZX) —
71490-32250-04 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV21 SED (VX,ZX) —
71490-32250-05 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV21 SED (VX,ZX) —
71490-32250-05 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV21 SED (VX,ZX) —
71490-32340-02 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV20,21 HT VE —
71490-32340-02 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV2# HT VE —
71490-32340-04 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV20,21 HT VE —
71490-32340-04 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV2# HT VE —
71490-32340-05 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV20,21 HT VE —
71490-32340-05 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV2# HT VE —
71490-32350-02 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV20,25 HT VR —
71490-32350-02 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV20 HT VR —
71490-32350-04 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV20,25 HT VR —
71490-32350-04 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV20 HT VR —
71490-32350-05 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV20,25 HT VR —
71490-32350-05 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV20 HT VR —
71490-32360-02 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV21 HT VX —
71490-32360-02 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV21 HT VX —
71490-32360-04 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV21 HT VX —
71490-32360-04 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV21 HT VX —
71490-32360-05 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV21 HT VX —
71490-32360-05 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV21 HT VX —
71490-32370-02 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV21 HT GT —
71490-32370-02 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV21 HT GT —
71490-32370-04 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV21 HT GT —
71490-32370-04 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV21 HT GT —
71490-32370-05 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV21 HT GT —
71490-32370-05 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV21 HT GT —
71490-32430-02 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1987-04 → 1987-10 ended
VZV20 —
71490-32430-02 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
VZV20 —
71490-32430-04 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1987-04 → 1987-10 ended
VZV20 —
71490-32430-04 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
VZV20 —
71540A — Back Assy, Rear Side Seat, RH
71540-32210-02 note Back Assy, Rear Side Seat, RH
1987-10 → 1988-08 ended
SV20,25 SED (VR,ZE) —
71540-32210-02 note Back Assy, Rear Side Seat, RH
1986-12 → 1987-10 ended
SV20 SED (VR,ZE) —
71540-32210-04 note Back Assy, Rear Side Seat, RH
1987-10 → 1988-08 ended
SV20,25 SED (VR,ZE) —
71540-32210-04 note Back Assy, Rear Side Seat, RH
1986-12 → 1987-10 ended
SV20 SED (VR,ZE) —
71540-32210-05 note Back Assy, Rear Side Seat, RH
1987-10 → 1988-08 ended
SV20,25 SED (VR,ZE) —
71540-32210-05 note Back Assy, Rear Side Seat, RH
1986-12 → 1987-10 ended
SV20 SED (VR,ZE) —
71540-32220-02 note Back Assy, Rear Side Seat, RH
1986-08 → 1986-12 ended
SV20 SED (VR,ZE) —
71540-32220-04 note Back Assy, Rear Side Seat, RH
1986-08 → 1986-12 ended
SV20 SED (VR,ZE) —
71540-32220-05 note Back Assy, Rear Side Seat, RH
1986-08 → 1986-12 ended
SV20 SED (VR,ZE) —
71540-32230-02 note Back Assy, Rear Side Seat, RH
1987-10 → 1988-08 ended
SV21 SED GT —
71540-32230-02 note Back Assy, Rear Side Seat, RH
1986-12 → 1987-10 ended
SV21 SED GT —
71540-32230-04 note Back Assy, Rear Side Seat, RH
1986-12 → 1987-10 ended
SV21 SED GT —
71540-32230-04 note Back Assy, Rear Side Seat, RH
1987-10 → 1988-08 ended
SV21 SED GT —
71540-32230-05 note Back Assy, Rear Side Seat, RH
1987-10 → 1988-08 ended
SV21 SED GT —
71540-32230-05 note Back Assy, Rear Side Seat, RH
1986-12 → 1987-10 ended
SV21 SED GT —
71540-32240-02 note Back Assy, Rear Side Seat, RH
1986-08 → 1986-12 ended
SV21 SED (VX,ZX) —
71540-32240-04 note Back Assy, Rear Side Seat, RH
1986-08 → 1986-12 ended
SV21 SED (VX,ZX) —
71540-32240-05 note Back Assy, Rear Side Seat, RH
1986-08 → 1986-12 ended
SV21 SED (VX,ZX) —
71540-32250-02 note Back Assy, Rear Side Seat, RH
1987-10 → 1988-08 ended
SV21 SED (VX,ZX) —
71540-32250-02 note Back Assy, Rear Side Seat, RH
1986-12 → 1987-10 ended
SV21 SED (VX,ZX) —
71540-32250-04 note Back Assy, Rear Side Seat, RH
1986-12 → 1987-10 ended
SV21 SED (VX,ZX) —
71540-32250-04 note Back Assy, Rear Side Seat, RH
1987-10 → 1988-08 ended
SV21 SED (VX,ZX) —
71540-32250-05 note Back Assy, Rear Side Seat, RH
1986-12 → 1987-10 ended
SV21 SED (VX,ZX) —
71540-32250-05 note Back Assy, Rear Side Seat, RH
1987-10 → 1988-08 ended
SV21 SED (VX,ZX) —
71540-32270-02 note Back Assy, Rear Side Seat, RH
1986-08 → 1986-12 ended
SV2# HT VE —
71540-32270-04 note Back Assy, Rear Side Seat, RH
1986-08 → 1986-12 ended
SV2# HT VE —
71540-32270-05 note Back Assy, Rear Side Seat, RH
1986-08 → 1986-12 ended
SV2# HT VE —
71540-32271-02 note Back Assy, Rear Side Seat, RH
1987-10 → 1988-08 ended
SV20,21 HT VE —
71540-32271-02 note Back Assy, Rear Side Seat, RH
1986-12 → 1987-10 ended
SV2# HT VE —
71540-32271-04 note Back Assy, Rear Side Seat, RH
1986-12 → 1987-10 ended
SV2# HT VE —
71540-32271-04 note Back Assy, Rear Side Seat, RH
1987-10 → 1988-08 ended
SV20,21 HT VE —
71540-32271-05 note Back Assy, Rear Side Seat, RH
1986-12 → 1987-10 ended
SV2# HT VE —
71540-32271-05 note Back Assy, Rear Side Seat, RH
1987-10 → 1988-08 ended
SV20,21 HT VE —
71540-32280-02 note Back Assy, Rear Side Seat, RH
1986-08 → 1986-12 ended
SV20 HT VR —
71540-32280-04 note Back Assy, Rear Side Seat, RH
1986-08 → 1986-12 ended
SV20 HT VR —
71540-32280-05 note Back Assy, Rear Side Seat, RH
1986-08 → 1986-12 ended
SV20 HT VR —
71540-32281-02 note Back Assy, Rear Side Seat, RH
1986-12 → 1987-10 ended
SV20 HT VR —
71540-32281-02 note Back Assy, Rear Side Seat, RH
1987-10 → 1988-08 ended
SV20,25 HT VR —
71540-32281-04 note Back Assy, Rear Side Seat, RH
1986-12 → 1987-10 ended
SV20 HT VR —
71540-32281-04 note Back Assy, Rear Side Seat, RH
1987-10 → 1988-08 ended
SV20,25 HT VR —
71540-32281-05 note Back Assy, Rear Side Seat, RH
1987-10 → 1988-08 ended
SV20,25 HT VR —
71540-32281-05 note Back Assy, Rear Side Seat, RH
1986-12 → 1987-10 ended
SV20 HT VR —
71540-32290-02 note Back Assy, Rear Side Seat, RH
1986-08 → 1986-12 ended
SV21 HT VX —
71540-32290-04 note Back Assy, Rear Side Seat, RH
1986-08 → 1986-12 ended
SV21 HT VX —
71540-32290-05 note Back Assy, Rear Side Seat, RH
1986-08 → 1986-12 ended
SV21 HT VX —
71540-32291-02 note Back Assy, Rear Side Seat, RH
1987-10 → 1988-08 ended
SV21 HT VX —
71540-32291-02 note Back Assy, Rear Side Seat, RH
1986-12 → 1987-10 ended
SV21 HT VX —
71540-32291-04 note Back Assy, Rear Side Seat, RH
1986-12 → 1987-10 ended
SV21 HT VX —
71540-32291-04 note Back Assy, Rear Side Seat, RH
1987-10 → 1988-08 ended
SV21 HT VX —
71540-32291-05 note Back Assy, Rear Side Seat, RH
1986-12 → 1987-10 ended
SV21 HT VX —
71540-32291-05 note Back Assy, Rear Side Seat, RH
1987-10 → 1988-08 ended
SV21 HT VX —
71540-32300-02 note Back Assy, Rear Side Seat, RH
1986-08 → 1986-12 ended
SV21 HT GT —
71540-32300-04 note Back Assy, Rear Side Seat, RH
1986-08 → 1986-12 ended
SV21 HT GT —
71540-32300-05 note Back Assy, Rear Side Seat, RH
1986-08 → 1986-12 ended
SV21 HT GT —
71540-32301-02 note Back Assy, Rear Side Seat, RH
1987-10 → 1988-08 ended
SV21 HT GT —
71540-32301-02 note Back Assy, Rear Side Seat, RH
1986-12 → 1987-10 ended
SV21 HT GT —
71540-32301-04 note Back Assy, Rear Side Seat, RH
1986-12 → 1987-10 ended
SV21 HT GT —
71540-32301-04 note Back Assy, Rear Side Seat, RH
1987-10 → 1988-08 ended
SV21 HT GT —
71540-32301-05 note Back Assy, Rear Side Seat, RH
1986-12 → 1987-10 ended
SV21 HT GT —
71540-32301-05 note Back Assy, Rear Side Seat, RH
1987-10 → 1988-08 ended
SV21 HT GT —
71540-32310-02 note Back Assy, Rear Side Seat, RH
1986-08 → 1986-12 ended
SV21 SED GT —
71540-32310-04 note Back Assy, Rear Side Seat, RH
1986-08 → 1986-12 ended
SV21 SED GT ¥34,100
71540-32310-05 note Back Assy, Rear Side Seat, RH
1986-08 → 1986-12 ended
SV21 SED GT —
71540-32340-02 note Back Assy, Rear Side Seat, RH
1987-04 → 1987-10 ended
VZV20 —
71540-32340-02 note Back Assy, Rear Side Seat, RH
1987-10 → 1988-08 ended
VZV20 —
71540-32340-04 note Back Assy, Rear Side Seat, RH
1987-10 → 1988-08 ended
VZV20 —
71540-32340-04 note Back Assy, Rear Side Seat, RH
1987-04 → 1987-10 ended
VZV20 —
71540-32520-02 note Back Assy, Rear Side Seat, RH
1988-04 → 1988-08 ended
SV21 HT VX —
71550A — Back Assy, Rear Side Seat, LH
71550-32210-02 note Back Assy, Rear Side Seat, LH
1986-08 → 1986-12 ended
SV20 SED (VR,ZE) —
71550-32210-04 note Back Assy, Rear Side Seat, LH
1986-08 → 1986-12 ended
SV20 SED (VR,ZE) —
71550-32210-05 note Back Assy, Rear Side Seat, LH
1986-08 → 1986-12 ended
SV20 SED (VR,ZE) —
71550-32220-02 note Back Assy, Rear Side Seat, LH
1987-10 → 1988-08 ended
SV20,25 SED (VR,ZE) —
71550-32220-02 note Back Assy, Rear Side Seat, LH
1986-12 → 1987-10 ended
SV20 SED (VR,ZE) —
71550-32220-04 note Back Assy, Rear Side Seat, LH
1987-10 → 1988-08 ended
SV20,25 SED (VR,ZE) —
71550-32220-04 note Back Assy, Rear Side Seat, LH
1986-12 → 1987-10 ended
SV20 SED (VR,ZE) —
71550-32220-05 note Back Assy, Rear Side Seat, LH
1987-10 → 1988-08 ended
SV20,25 SED (VR,ZE) —
71550-32220-05 note Back Assy, Rear Side Seat, LH
1986-12 → 1987-10 ended
SV20 SED (VR,ZE) —
71550-32230-02 note Back Assy, Rear Side Seat, LH
1986-08 → 1986-12 ended
SV21 SED (VX,ZX) —
71550-32230-04 note Back Assy, Rear Side Seat, LH
1986-08 → 1986-12 ended
SV21 SED (VX,ZX) —
71550-32230-05 note Back Assy, Rear Side Seat, LH
1986-08 → 1986-12 ended
SV21 SED (VX,ZX) —
71550-32240-02 note Back Assy, Rear Side Seat, LH
1987-10 → 1988-08 ended
SV21 SED GT —
71550-32240-02 note Back Assy, Rear Side Seat, LH
1986-12 → 1987-10 ended
SV21 SED GT —
71550-32240-04 note Back Assy, Rear Side Seat, LH
1987-10 → 1988-08 ended
SV21 SED GT —
71550-32240-04 note Back Assy, Rear Side Seat, LH
1986-12 → 1987-10 ended
SV21 SED GT —
71550-32240-05 note Back Assy, Rear Side Seat, LH
1987-10 → 1988-08 ended
SV21 SED GT —
71550-32240-05 note Back Assy, Rear Side Seat, LH
1986-12 → 1987-10 ended
SV21 SED GT —
71550-32260-02 note Back Assy, Rear Side Seat, LH
1986-08 → 1986-12 ended
SV2# HT VE —
71550-32260-04 note Back Assy, Rear Side Seat, LH
1986-08 → 1986-12 ended
SV2# HT VE —
71550-32260-05 note Back Assy, Rear Side Seat, LH
1986-08 → 1986-12 ended
SV2# HT VE —
71550-32261-02 note Back Assy, Rear Side Seat, LH
1987-10 → 1988-08 ended
SV20,21 HT VE —
71550-32261-02 note Back Assy, Rear Side Seat, LH
1986-12 → 1987-10 ended
SV2# HT VE —
71550-32261-04 note Back Assy, Rear Side Seat, LH
1986-12 → 1987-10 ended
SV2# HT VE —
71550-32261-04 note Back Assy, Rear Side Seat, LH
1987-10 → 1988-08 ended
SV20,21 HT VE —
71550-32261-05 note Back Assy, Rear Side Seat, LH
1986-12 → 1987-10 ended
SV2# HT VE —
71550-32261-05 note Back Assy, Rear Side Seat, LH
1987-10 → 1988-08 ended
SV20,21 HT VE —
71550-32270-02 note Back Assy, Rear Side Seat, LH
1986-08 → 1986-12 ended
SV20 HT VR —
71550-32270-04 note Back Assy, Rear Side Seat, LH
1986-08 → 1986-12 ended
SV20 HT VR —
71550-32270-05 note Back Assy, Rear Side Seat, LH
1986-08 → 1986-12 ended
SV20 HT VR —
71550-32271-02 note Back Assy, Rear Side Seat, LH
1987-10 → 1988-08 ended
SV20,25 HT VR —
71550-32271-02 note Back Assy, Rear Side Seat, LH
1986-12 → 1987-10 ended
SV20 HT VR —
71550-32271-04 note Back Assy, Rear Side Seat, LH
1986-12 → 1987-10 ended
SV20 HT VR —
71550-32271-04 note Back Assy, Rear Side Seat, LH
1987-10 → 1988-08 ended
SV20,25 HT VR —
71550-32271-05 note Back Assy, Rear Side Seat, LH
1986-12 → 1987-10 ended
SV20 HT VR —
71550-32271-05 note Back Assy, Rear Side Seat, LH
1987-10 → 1988-08 ended
SV20,25 HT VR —
71550-32280-02 note Back Assy, Rear Side Seat, LH
1986-08 → 1986-12 ended
SV21 HT VX —
71550-32280-04 note Back Assy, Rear Side Seat, LH
1986-08 → 1986-12 ended
SV21 HT VX —
71550-32280-05 note Back Assy, Rear Side Seat, LH
1986-08 → 1986-12 ended
SV21 HT VX —
71550-32281-02 note Back Assy, Rear Side Seat, LH
1986-12 → 1987-10 ended
SV21 HT VX —
71550-32281-02 note Back Assy, Rear Side Seat, LH
1987-10 → 1988-08 ended
SV21 HT VX —
71550-32281-04 note Back Assy, Rear Side Seat, LH
1986-12 → 1987-10 ended
SV21 HT VX —
71550-32281-04 note Back Assy, Rear Side Seat, LH
1987-10 → 1988-08 ended
SV21 HT VX —
71550-32281-05 note Back Assy, Rear Side Seat, LH
1987-10 → 1988-08 ended
SV21 HT VX —
71550-32281-05 note Back Assy, Rear Side Seat, LH
1986-12 → 1987-10 ended
SV21 HT VX —
71550-32290-02 note Back Assy, Rear Side Seat, LH
1986-08 → 1986-12 ended
SV21 HT GT —
71550-32290-04 note Back Assy, Rear Side Seat, LH
1986-08 → 1986-12 ended
SV21 HT GT —
71550-32290-05 note Back Assy, Rear Side Seat, LH
1986-08 → 1986-12 ended
SV21 HT GT —
71550-32291-02 note Back Assy, Rear Side Seat, LH
1987-10 → 1988-08 ended
SV21 HT GT —
71550-32291-02 note Back Assy, Rear Side Seat, LH
1986-12 → 1987-10 ended
SV21 HT GT —
71550-32291-04 note Back Assy, Rear Side Seat, LH
1987-10 → 1988-08 ended
SV21 HT GT —
71550-32291-04 note Back Assy, Rear Side Seat, LH
1986-12 → 1987-10 ended
SV21 HT GT —
71550-32291-05 note Back Assy, Rear Side Seat, LH
1986-12 → 1987-10 ended
SV21 HT GT —
71550-32291-05 note Back Assy, Rear Side Seat, LH
1987-10 → 1988-08 ended
SV21 HT GT —
71550-32300-02 note Back Assy, Rear Side Seat, LH
1986-08 → 1986-12 ended
SV21 SED GT —
71550-32300-04 note Back Assy, Rear Side Seat, LH
1986-08 → 1986-12 ended
SV21 SED GT —
71550-32300-05 note Back Assy, Rear Side Seat, LH
1986-08 → 1986-12 ended
SV21 SED GT —
71550-32330-02 note Back Assy, Rear Side Seat, LH
1987-10 → 1988-08 ended
VZV20 —
71550-32330-02 note Back Assy, Rear Side Seat, LH
1987-04 → 1987-10 ended
VZV20 —
71550-32330-04 note Back Assy, Rear Side Seat, LH
1987-10 → 1988-08 ended
VZV20 —
71550-32330-04 note Back Assy, Rear Side Seat, LH
1987-04 → 1987-10 ended
VZV20 —
71550-32340-02 note Back Assy, Rear Side Seat, LH
1987-10 → 1988-08 ended
SV21 SED (VX,ZX) —
71550-32340-02 note Back Assy, Rear Side Seat, LH
1986-12 → 1987-10 ended
SV21 SED (VX,ZX) —
71550-32340-04 note Back Assy, Rear Side Seat, LH
1986-12 → 1987-10 ended
SV21 SED (VX,ZX) —
71550-32340-04 note Back Assy, Rear Side Seat, LH
1987-10 → 1988-08 ended
SV21 SED (VX,ZX) —
71550-32340-05 note Back Assy, Rear Side Seat, LH
1986-12 → 1987-10 ended
SV21 SED (VX,ZX) —
71550-32340-05 note Back Assy, Rear Side Seat, LH
1987-10 → 1988-08 ended
SV21 SED (VX,ZX) —
71550-32520-02 note Back Assy, Rear Side Seat, LH
1988-04 → 1988-08 ended
SV21 HT VX —
71611 — Pad, Rear Seat Cushion
71611-32110 Pad, Rear Seat Cushion
1986-08 → 1987-10 ended
CV20,SV2#,VZV20 SED —
71611-32110 note Pad, Rear Seat Cushion
1987-10 → 1987-10 ended
SV20 SED VL —
71611-32110 Pad, Rear Seat Cushion
1987-10 → 1988-08 ended
CV20,SV20,21,VZV20 SED —
71611-32130 Pad, Rear Seat Cushion
1987-10 → 1988-08 ended
SV25 HT ¥27,100
71611-32140 Pad, Rear Seat Cushion
1986-08 → 1987-10 ended
SV2# HT ¥25,200
71611-32140 Pad, Rear Seat Cushion
1987-10 → 1988-08 ended
SV20,21 HT ¥25,200
71611-32150 Pad, Rear Seat Cushion
1987-10 → 1988-08 ended
SV25 SED ¥29,300
71651S — Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71651-32080 Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV2#,VZV20 SED (GT,PRO,VR,VX,ZE,ZX) ¥14,300
71651-32080 Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV2#,VZV20 SED (GT,PRO,VR,VX,ZE,ZX) ¥14,300
71651-32120 Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV2# HT (GT,VE,VR,VX) ¥18,300
71651-32120 Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV2# HT (GT,VE,VR,VX) ¥18,300
71652S — Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71652-32050 Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV2#,VZV20 SED (GT,PRO,VR,VX,ZE,ZX) ¥14,300
71652-32050 Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV2#,VZV20 SED (GT,PRO,VR,VX,ZE,ZX) ¥14,300
71652-32090 Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
1986-08 → 1987-10 ended
SV2# HT (GT,VE,VR,VX) ¥18,300
71652-32090 Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
1987-10 → 1988-08 ended
SV2# HT (GT,VE,VR,VX) ¥18,300
71667A — Pad, Rear Seatback, Center A
71667-32010 Pad, Rear Seatback, Center A
1986-08 → 1987-10 ended
SV2#,VZV20 SED (GT,PRO,VR,VX,ZE,ZX) ¥5,900
71667-32010 Pad, Rear Seatback, Center A
1987-10 → 1988-08 ended
SV2#,VZV20 SED (GT,PRO,VR,VX,ZE,ZX) ¥5,900
71667-32020 Pad, Rear Seatback, Center A
1986-08 → 1987-10 ended
SV2# HT (GT,VE,VR,VX) ¥2,700
71667-32020 Pad, Rear Seatback, Center A
1987-10 → 1988-08 ended
SV2# HT (GT,VE,VR,VX) ¥2,700
71812B — Clip(FOR REAR SEAT CUSHION COVER)
90468-18071 Clip(FOR REAR SEAT CUSHION COVER)
1986-08 → 1987-10 ended
CV20,SV2#,VZV20 ¥160
90468-18071 Clip(FOR REAR SEAT CUSHION COVER)
1987-10 → 1988-08 ended
SV25 HT;CV20,SV20,21,VZV20 ¥160
90468-18071 note Clip(FOR REAR SEAT CUSHION COVER)
1987-10 → 1987-10 ended
SV20 SED VL ¥160
71880A — Carpet Assy, Rear Seatback Board, RH
71880-32010-03 note Carpet Assy, Rear Seatback Board, RH
1986-08 → 1987-03 ended
SV2# HT (GT,VE,VR,VX) ¥3,940
71880-32010-03 note Carpet Assy, Rear Seatback Board, RH
1986-08 → 1987-03 ended
SV2# SED (GT,VR,VX,ZE,ZX) ¥3,940
71880-32011-03 note Carpet Assy, Rear Seatback Board, RH
1987-03 → 1987-10 ended
SV2# HT (GT,VE,VR,VX) ¥3,950
71880-32011-03 note Carpet Assy, Rear Seatback Board, RH
1987-03 → 1987-10 ended
SV2#,VZV20 SED (GT,PRO,VR,VX,ZE,ZX) ¥3,950
71880-32011-03 note Carpet Assy, Rear Seatback Board, RH
1987-10 → 1988-08 ended
SV20,21 HT VE;SV20,21,VZV20 GT,PRO,VR,VX,ZE,ZX ¥3,950
71880-32040-03 note Carpet Assy, Rear Seatback Board, RH
1987-10 → 1988-08 ended
SV25 VR,ZE ¥3,920
71880B — Clip(FOR REAR SEATBACK CARPET)
90467-06016-01 note Clip(FOR REAR SEATBACK CARPET)
1987-10 → 1988-08 ended
SV25 VR,ZE ¥180
90467-09066 Clip(FOR REAR SEATBACK CARPET)
1986-08 → 1987-10 ended
SV2#,VZV20 SED (GT,PRO,VR,VX,ZE,ZX) ¥300
90467-09066 Clip(FOR REAR SEATBACK CARPET)
1986-08 → 1987-10 ended
SV2# HT (GT,VE,VR,VX) ¥300
90467-09066 Clip(FOR REAR SEATBACK CARPET)
1987-10 → 1988-08 ended
SV20,21 HT VE;SV20,21,VZV20 GT,PRO,VR,VX,ZE,ZX ¥300
71890A — Carpet Assy, Rear Seatback Board, LH
71890-32010-03 note Carpet Assy, Rear Seatback Board, LH
1986-08 → 1987-03 ended
SV2# SED (GT,VR,VX,ZE,ZX) —
71890-32010-03 note Carpet Assy, Rear Seatback Board, LH
1986-08 → 1987-03 ended
SV2# HT (GT,VE,VR,VX) —
71890-32011-03 note Carpet Assy, Rear Seatback Board, LH
1987-03 → 1987-10 ended
SV2# HT (GT,VE,VR,VX) ¥3,950
71890-32011-03 note Carpet Assy, Rear Seatback Board, LH
1987-03 → 1987-10 ended
SV2#,VZV20 SED (GT,PRO,VR,VX,ZE,ZX) ¥3,950
71890-32011-03 note Carpet Assy, Rear Seatback Board, LH
1987-10 → 1988-08 ended
SV20,21 HT VE;SV20,21,VZV20 GT,PRO,VR,VX,ZE,ZX ¥3,950
71890-32050-03 note Carpet Assy, Rear Seatback Board, LH
1987-10 → 1988-08 ended
SV25 VR,ZE ¥3,920
71953 — Pad, Rear Seat Headrest
71953-32080 Pad, Rear Seat Headrest
1986-08 → 1988-08 ended
CV20,SV2# SED (LT,VC,VE,VL,XT,ZT) ¥3,440
71953-32080 note Pad, Rear Seat Headrest
1987-10 → 1987-10 ended
SV20 SED VL ¥3,440
71953-32090 note Pad, Rear Seat Headrest
1986-08 → 1987-10 ended
SV2#,VZV20 SED (GT,PRO,VR,VX,ZE,ZX) ¥5,400
71953-32090 note Pad, Rear Seat Headrest
1987-10 → 1988-08 ended
SV2#,VZV20 SED (GT,PRO,VR,VX,ZE,ZX) ¥5,400
71953-32100 Pad, Rear Seat Headrest
1986-08 → 1987-10 ended
SV20 HT VL ¥3,440
71953-32100 Pad, Rear Seat Headrest
1987-10 → 1988-08 ended
SV20,25 HT VL ¥3,440
71954-32010 note Pad, Rear Seat Headrest
1986-08 → 1987-10 ended
SV2#,VZV20 SED (GT,PRO,VR,VX,ZE,ZX) ¥5,400
71954-32010 note Pad, Rear Seat Headrest
1987-10 → 1988-08 ended
SV2#,VZV20 SED (GT,PRO,VR,VX,ZE,ZX) ¥5,400
72067 — Lever Sub-assy, Rear Back Lock Control, RH
72067-20010 Lever Sub-assy, Rear Back Lock Control, RH
1986-08 → 1987-10 ended
SV2# HT (GT,VE,VR,VX) ¥1,010
72067-20010 Lever Sub-assy, Rear Back Lock Control, RH
1986-08 → 1987-10 ended
SV2#,VZV20 SED (GT,PRO,VR,VX,ZE,ZX) ¥1,010
72067-20010 Lever Sub-assy, Rear Back Lock Control, RH
1987-10 → 1988-08 ended
SV20,21 HT VE;SV2#,VZV20 GT,PRO,VR,VX,ZE,ZX ¥1,010
72068 — Lever Sub-assy, Rear Back Lock Control, LH
72068-20010 Lever Sub-assy, Rear Back Lock Control, LH
1986-08 → 1987-10 ended
SV2# HT (GT,VE,VR,VX) ¥1,010
72068-20010 Lever Sub-assy, Rear Back Lock Control, LH
1986-08 → 1987-10 ended
SV2#,VZV20 SED (GT,PRO,VR,VX,ZE,ZX) ¥1,010
72068-20010 Lever Sub-assy, Rear Back Lock Control, LH
1987-10 → 1988-08 ended
SV20,21 HT VE;SV2#,VZV20 GT,PRO,VR,VX,ZE,ZX ¥1,010
72069 — Cable Sub-assy, Rear Seatback Lock Control
72069-32010 Cable Sub-assy, Rear Seatback Lock Control
1987-10 → 1988-08 ended
SV20,21 HT VE;SV2#,VZV20 GT,PRO,VR,VX,ZE,ZX ¥930
72069-32010 Cable Sub-assy, Rear Seatback Lock Control
1986-08 → 1987-10 ended
SV2#,VZV20 SED (GT,PRO,VR,VX,ZE,ZX) ¥930
72069-32010 Cable Sub-assy, Rear Seatback Lock Control
1986-08 → 1987-10 ended
SV2# HT (GT,VE,VR,VX) ¥930
72601 — Striker Sub-assy, Rear Seat Lock
72601-12080 Striker Sub-assy, Rear Seat Lock
1987-10 → 1988-08 ended
SV25 VR,ZE ¥610
72601-32010 Striker Sub-assy, Rear Seat Lock
1986-08 → 1987-10 ended
SV2# HT (GT,VE,VR,VX) ¥1,010
72601-32010 Striker Sub-assy, Rear Seat Lock
1986-08 → 1987-10 ended
SV2#,VZV20 SED (GT,PRO,VR,VX,ZE,ZX) ¥1,010
72601-32010 Striker Sub-assy, Rear Seat Lock
1987-10 → 1988-08 ended
SV20,21 HT VE;SV20,21,VZV20 GT,PRO,VR,VX,ZE,ZX ¥1,010
72603 — Lock Sub-assy, Rear Seatback, RH
72603-32010 Lock Sub-assy, Rear Seatback, RH
1986-08 → 1987-10 ended
SV2# HT (GT,VE,VR,VX) ¥3,510
72603-32010 Lock Sub-assy, Rear Seatback, RH
1986-08 → 1987-10 ended
SV2#,VZV20 SED (GT,PRO,VR,VX,ZE,ZX) ¥3,510
72603-32010 Lock Sub-assy, Rear Seatback, RH
1987-10 → 1988-08 ended
SV20,21 HT VE;SV2#,VZV20 GT,PRO,VR,VX,ZE,ZX ¥3,510
72604 — Lock Sub-assy, Rear Seatback, LH
72604-32010 Lock Sub-assy, Rear Seatback, LH
1986-08 → 1987-10 ended
SV2# HT (GT,VE,VR,VX) ¥3,510
72604-32010 Lock Sub-assy, Rear Seatback, LH
1986-08 → 1987-10 ended
SV2#,VZV20 SED (GT,PRO,VR,VX,ZE,ZX) ¥3,510
72604-32010 Lock Sub-assy, Rear Seatback, LH
1987-10 → 1988-08 ended
SV20,21 HT VE;SV2#,VZV20 GT,PRO,VR,VX,ZE,ZX ¥3,510
72646 — Grommet, Rear Seatback Stop Button
72646-32020-02 note Grommet, Rear Seatback Stop Button
1986-08 → 1987-10 ended
SV2#,VZV20 SED (GT,PRO,VR,VX,ZE,ZX) ¥500
72646-32020-02 note Grommet, Rear Seatback Stop Button
1987-10 → 1988-08 ended
SV20,21 HT VE;SV2#,VZV20 GT,PRO,VR,VX,ZE,ZX ¥500
72646-32020-02 note Grommet, Rear Seatback Stop Button
1986-08 → 1987-10 ended
SV2# HT (GT,VE,VR,VX) ¥500
72646-32020-04 note Grommet, Rear Seatback Stop Button
1986-08 → 1987-10 ended
SV2# HT (GT,VE,VR,VX) ¥500
72646-32020-04 note Grommet, Rear Seatback Stop Button
1986-08 → 1987-10 ended
SV2#,VZV20 SED (GT,PRO,VR,VX,ZE,ZX) ¥500
72646-32020-04 note Grommet, Rear Seatback Stop Button
1987-10 → 1988-08 ended
SV20,21 HT VE;SV2#,VZV20 GT,PRO,VR,VX,ZE,ZX ¥500
72646-32020-05 note Grommet, Rear Seatback Stop Button
1986-08 → 1987-10 ended
SV2# HT (GT,VE,VR,VX) ¥500
72646-32020-05 note Grommet, Rear Seatback Stop Button
1986-08 → 1987-10 ended
SV2# SED (GT,VR,VX,ZE,ZX) ¥500
72646-32020-05 note Grommet, Rear Seatback Stop Button
1987-10 → 1988-08 ended
SV20,21 HT VE;SV2# GT,VR,VX,ZE,ZX ¥500
72658A — Knob, Rear Seatback Locking
72658-23010-02 note Knob, Rear Seatback Locking
1986-08 → 1987-10 ended
SV2# HT (GT,VE,VR,VX) ¥740
72658-23010-02 note Knob, Rear Seatback Locking
1986-08 → 1987-10 ended
SV2#,VZV20 SED (GT,PRO,VR,VX,ZE,ZX) ¥740
72658-23010-02 note Knob, Rear Seatback Locking
1987-10 → 1988-07 ended
SV20,21 HT VE;SV2#,VZV20 GT,PRO,VR,VX,ZE,ZX ¥740
72658-23010-14 note Knob, Rear Seatback Locking
1986-08 → 1987-10 ended
SV2# HT (GT,VE,VR,VX) ¥740
72658-23010-14 note Knob, Rear Seatback Locking
1987-10 → 1988-07 ended
SV20,21 HT VE;SV2#,VZV20 GT,PRO,VR,VX,ZE,ZX ¥740
72658-23010-14 note Knob, Rear Seatback Locking
1986-08 → 1987-10 ended
SV2#,VZV20 SED (GT,PRO,VR,VX,ZE,ZX) ¥740
72658-23010-15 note Knob, Rear Seatback Locking
1986-08 → 1987-10 ended
SV2# HT (GT,VE,VR,VX) ¥740
72658-23010-15 note Knob, Rear Seatback Locking
1987-10 → 1988-08 ended
SV20,21 HT VE;SV2# GT,VR,VX,ZE,ZX ¥740
72658-23010-15 note Knob, Rear Seatback Locking
1986-08 → 1987-10 ended
SV2# SED (GT,VR,VX,ZE,ZX) ¥740
72665 — Cover, Rear Seatback Lock, RH
72665-32030-02 note Cover, Rear Seatback Lock, RH
1986-08 → 1987-10 ended
SV2# HT (GT,VE,VR,VX) ¥600
72665-32030-02 note Cover, Rear Seatback Lock, RH
1986-08 → 1987-10 ended
SV2#,VZV20 SED (GT,PRO,VR,VX,ZE,ZX) ¥600
72665-32030-02 note Cover, Rear Seatback Lock, RH
1987-10 → 1988-08 ended
SV20,21 HT VE;SV2#,VZV20 GT,PRO,VR,VX,ZE,ZX ¥600
72665-32030-04 note Cover, Rear Seatback Lock, RH
1986-08 → 1987-10 ended
SV2# HT (GT,VE,VR,VX) ¥600
72665-32030-04 note Cover, Rear Seatback Lock, RH
1986-08 → 1987-10 ended
SV2#,VZV20 SED (GT,PRO,VR,VX,ZE,ZX) ¥600
72665-32030-04 note Cover, Rear Seatback Lock, RH
1987-10 → 1988-08 ended
SV20,21 HT VE;SV2#,VZV20 GT,PRO,VR,VX,ZE,ZX ¥600
72665-32030-05 note Cover, Rear Seatback Lock, RH
1986-08 → 1987-10 ended
SV2# SED (GT,VR,VX,ZE,ZX) —
72665-32030-05 note Cover, Rear Seatback Lock, RH
1987-10 → 1988-08 ended
SV20,21 HT VE;SV2# GT,VR,VX,ZE,ZX —
72665-32030-05 note Cover, Rear Seatback Lock, RH
1986-08 → 1987-10 ended
SV2# HT (GT,VE,VR,VX) —
72665A — Cap(FOR REAR SEATBACK LOCK COVER)
90339-10001-22 note Cap(FOR REAR SEATBACK LOCK COVER)
1986-08 → 1987-10 ended
SV2#,VZV20 SED (GT,PRO,VR,VX,ZE,ZX) ¥180
90339-10001-22 note Cap(FOR REAR SEATBACK LOCK COVER)
1986-08 → 1987-10 ended
SV2# HT (GT,VE,VR) ¥180
90339-10001-22 note Cap(FOR REAR SEATBACK LOCK COVER)
1987-10 → 1988-07 ended
SV20,21 HT VE;SV2#,VZV20 GT,PRO,VR,VX,ZE,ZX ¥180
90339-10001-24 note Cap(FOR REAR SEATBACK LOCK COVER)
1986-08 → 1987-10 ended
SV2# HT (GT,VE,VR) ¥180
90339-10001-24 note Cap(FOR REAR SEATBACK LOCK COVER)
1987-10 → 1988-07 ended
SV20,21 HT VE;SV2#,VZV20 GT,PRO,VR,VX,ZE,ZX ¥180
90339-10001-24 note Cap(FOR REAR SEATBACK LOCK COVER)
1986-08 → 1987-10 ended
SV2#,VZV20 SED (GT,PRO,VR,VX,ZE,ZX) ¥180
90339-10001-45 note Cap(FOR REAR SEATBACK LOCK COVER)
1986-08 → 1987-10 ended
SV2# HT (GT,VE,VR) ¥180
90339-10001-45 note Cap(FOR REAR SEATBACK LOCK COVER)
1986-08 → 1987-10 ended
SV2# SED (GT,VR,VX,ZE,ZX) ¥180
90339-10001-45 note Cap(FOR REAR SEATBACK LOCK COVER)
1987-10 → 1988-08 ended
SV20,21 HT VE;SV2# GT,VR,VX,ZE,ZX ¥180
72666 — Cover, Rear Seatback Lock, LH
72665-32030-02 note Cover, Rear Seatback Lock, LH
1986-08 → 1987-10 ended
SV2# HT (GT,VE,VR,VX) ¥600
72665-32030-02 note Cover, Rear Seatback Lock, LH
1986-08 → 1987-10 ended
SV2#,VZV20 SED (GT,PRO,VR,VX,ZE,ZX) ¥600
72665-32030-02 note Cover, Rear Seatback Lock, LH
1987-10 → 1988-08 ended
SV20,21 HT VE;SV2#,VZV20 GT,PRO,VR,VX,ZE,ZX ¥600
72665-32030-04 note Cover, Rear Seatback Lock, LH
1986-08 → 1987-10 ended
SV2# HT (GT,VE,VR,VX) ¥600
72665-32030-04 note Cover, Rear Seatback Lock, LH
1986-08 → 1987-10 ended
SV2#,VZV20 SED (GT,PRO,VR,VX,ZE,ZX) ¥600
72665-32030-04 note Cover, Rear Seatback Lock, LH
1987-10 → 1988-08 ended
SV20,21 HT VE;SV2#,VZV20 GT,PRO,VR,VX,ZE,ZX ¥600
72665-32030-05 note Cover, Rear Seatback Lock, LH
1986-08 → 1987-10 ended
SV2# HT (GT,VE,VR,VX) —
72665-32030-05 note Cover, Rear Seatback Lock, LH
1986-08 → 1987-10 ended
SV2# SED (GT,VR,VX,ZE,ZX) —
72665-32030-05 note Cover, Rear Seatback Lock, LH
1987-10 → 1988-08 ended
SV20,21 HT VE;SV2# GT,VR,VX,ZE,ZX —
72679 — Bezel, Rear Seatback Lock Control
72679-16010-33 note Bezel, Rear Seatback Lock Control
1986-08 → 1987-10 ended
SV2#,VZV20 SED (GT,PRO,VR,VX,ZE,ZX) ¥1,010
72679-16010-33 note Bezel, Rear Seatback Lock Control
1987-10 → 1988-08 ended
SV20,21 HT VE;SV2#,VZV20 GT,PRO,VR,VX,ZE,ZX ¥1,010
72679-16010-33 note Bezel, Rear Seatback Lock Control
1986-08 → 1987-10 ended
SV2# HT (GT,VE,VR,VX) ¥1,010
72693 — Hook, Rear Seat Cushion Lock
72693-16010 Hook, Rear Seat Cushion Lock
1987-10 → 1988-08 ended
SV25 VR,ZE ¥650
72693-20010 Hook, Rear Seat Cushion Lock
1986-08 → 1987-10 ended
CV20,SV2#,VZV20 ¥640
72693-20010 Hook, Rear Seat Cushion Lock
1987-10 → 1988-08 ended
SV25 VL,XT;CV20,SV20,21,VZV20 ¥640
72830 — Armrest Assy, Rear Seat, Center
72830-32120-02 note Armrest Assy, Rear Seat, Center
1987-10 → 1988-08 ended
CV20,SV20,21 SED (VE,ZT) —
72830-32120-02 note Armrest Assy, Rear Seat, Center
1986-08 → 1987-10 ended
CV20,SV2# SED (VE,ZT) —
72830-32120-04 note Armrest Assy, Rear Seat, Center
1987-10 → 1988-08 ended
CV20,SV20,21 SED (VE,ZT) —
72830-32120-04 note Armrest Assy, Rear Seat, Center
1986-08 → 1987-10 ended
CV20,SV2# SED (VE,ZT) —
72830-32120-05 note Armrest Assy, Rear Seat, Center
1986-08 → 1987-10 ended
CV20,SV2# SED (VE,ZT) —
72830-32120-05 note Armrest Assy, Rear Seat, Center
1987-10 → 1988-08 ended
CV20,SV20,21 SED (VE,ZT) —
72830-32140-02 note Armrest Assy, Rear Seat, Center
1987-12 → 1988-08 ended
CV20,SV20,21 ZT —
72830-32150-02 note Armrest Assy, Rear Seat, Center
1986-08 → 1987-10 ended
SV20 SED (VR,ZE) ¥29,400
72830-32150-02 note Armrest Assy, Rear Seat, Center
1987-10 → 1988-08 ended
SV20,25 SED (VR,ZE) ¥29,400
72830-32150-04 note Armrest Assy, Rear Seat, Center
1986-08 → 1987-10 ended
SV20 SED (VR,ZE) —
72830-32150-04 note Armrest Assy, Rear Seat, Center
1987-10 → 1988-08 ended
SV20,25 SED (VR,ZE) —
72830-32150-05 note Armrest Assy, Rear Seat, Center
1986-08 → 1987-10 ended
SV20 SED (VR,ZE) —
72830-32150-05 note Armrest Assy, Rear Seat, Center
1987-10 → 1988-08 ended
SV20,25 SED (VR,ZE) —
72830-32160-02 note Armrest Assy, Rear Seat, Center
1986-08 → 1987-10 ended
SV21 SED GT —
72830-32160-02 note Armrest Assy, Rear Seat, Center
1987-10 → 1988-08 ended
SV21 SED GT —
72830-32160-04 note Armrest Assy, Rear Seat, Center
1986-08 → 1987-10 ended
SV21 SED GT —
72830-32160-04 note Armrest Assy, Rear Seat, Center
1987-10 → 1988-08 ended
SV21 SED GT —
72830-32160-05 note Armrest Assy, Rear Seat, Center
1986-08 → 1987-10 ended
SV21 SED GT —
72830-32160-05 note Armrest Assy, Rear Seat, Center
1987-10 → 1988-08 ended
SV21 SED GT —
72830-32180-02 note Armrest Assy, Rear Seat, Center
1986-08 → 1987-10 ended
SV21 SED (VX,ZX) ¥29,400
72830-32180-02 note Armrest Assy, Rear Seat, Center
1987-10 → 1988-08 ended
SV21 SED (VX,ZX) ¥29,400
72830-32180-04 note Armrest Assy, Rear Seat, Center
1987-10 → 1988-08 ended
SV21 SED (VX,ZX) —
72830-32180-04 note Armrest Assy, Rear Seat, Center
1986-08 → 1987-10 ended
SV21 SED (VX,ZX) —
72830-32180-05 note Armrest Assy, Rear Seat, Center
1987-10 → 1988-08 ended
SV21 SED (VX,ZX) —
72830-32180-05 note Armrest Assy, Rear Seat, Center
1986-08 → 1987-10 ended
SV21 SED (VX,ZX) —
72830-32190-02 note Armrest Assy, Rear Seat, Center
1986-08 → 1987-10 ended
SV2# HT VE —
72830-32190-02 note Armrest Assy, Rear Seat, Center
1987-10 → 1988-08 ended
SV20,21 HT VE —
72830-32190-04 note Armrest Assy, Rear Seat, Center
1986-08 → 1987-10 ended
SV2# HT VE —
72830-32190-04 note Armrest Assy, Rear Seat, Center
1987-10 → 1988-08 ended
SV20,21 HT VE —
72830-32190-05 note Armrest Assy, Rear Seat, Center
1986-08 → 1987-10 ended
SV2# HT VE —
72830-32190-05 note Armrest Assy, Rear Seat, Center
1987-10 → 1988-08 ended
SV20,21 HT VE —
72830-32200-02 note Armrest Assy, Rear Seat, Center
1986-08 → 1987-10 ended
SV20 HT VR —
72830-32200-02 note Armrest Assy, Rear Seat, Center
1987-10 → 1988-08 ended
SV20,25 HT VR —
72830-32200-04 note Armrest Assy, Rear Seat, Center
1986-08 → 1987-10 ended
SV20 HT VR —
72830-32200-04 note Armrest Assy, Rear Seat, Center
1987-10 → 1988-08 ended
SV20,25 HT VR —
72830-32200-05 note Armrest Assy, Rear Seat, Center
1986-08 → 1987-10 ended
SV20 HT VR —
72830-32200-05 note Armrest Assy, Rear Seat, Center
1987-10 → 1988-08 ended
SV20,25 HT VR —
72830-32210-02 note Armrest Assy, Rear Seat, Center
1986-08 → 1987-10 ended
SV21 HT VX —
72830-32210-02 note Armrest Assy, Rear Seat, Center
1987-10 → 1988-08 ended
SV21 HT VX —
72830-32210-04 note Armrest Assy, Rear Seat, Center
1986-08 → 1987-10 ended
SV21 HT VX —
72830-32210-04 note Armrest Assy, Rear Seat, Center
1987-10 → 1988-08 ended
SV21 HT VX —
72830-32210-05 note Armrest Assy, Rear Seat, Center
1986-08 → 1987-10 ended
SV21 HT VX —
72830-32210-05 note Armrest Assy, Rear Seat, Center
1987-10 → 1988-08 ended
SV21 HT VX —
72830-32220-02 note Armrest Assy, Rear Seat, Center
1987-10 → 1988-08 ended
SV21 HT GT —
72830-32220-02 note Armrest Assy, Rear Seat, Center
1986-08 → 1987-10 ended
SV21 HT GT —
72830-32220-04 note Armrest Assy, Rear Seat, Center
1987-10 → 1988-08 ended
SV21 HT GT —
72830-32220-04 note Armrest Assy, Rear Seat, Center
1986-08 → 1987-10 ended
SV21 HT GT —
72830-32220-05 note Armrest Assy, Rear Seat, Center
1987-10 → 1988-08 ended
SV21 HT GT —
72830-32220-05 note Armrest Assy, Rear Seat, Center
1986-08 → 1987-10 ended
SV21 HT GT —
72830-32250-02 note Armrest Assy, Rear Seat, Center
1987-04 → 1987-10 ended
VZV20 —
72830-32250-02 note Armrest Assy, Rear Seat, Center
1987-10 → 1988-08 ended
VZV20 —
72830-32250-04 note Armrest Assy, Rear Seat, Center
1987-10 → 1988-08 ended
VZV20 —
72830-32250-04 note Armrest Assy, Rear Seat, Center
1987-04 → 1987-10 ended
VZV20 —
72830B — Bush(FOR REAR SEAT CENTER ARMREST)
90386-06002 note Bush(FOR REAR SEAT CENTER ARMREST)
1986-08 → 1987-10 ended
SV2# HT (GT,VE,VR,VX) ¥220
90386-06002 note Bush(FOR REAR SEAT CENTER ARMREST)
1986-08 → 1987-10 ended
SV2#,VZV20 SED (GT,PRO,VR,VX,ZE,ZX) ¥220
90386-06002 Bush(FOR REAR SEAT CENTER ARMREST)
1986-08 → 1987-10 ended
CV20,SV2# SED (VE,ZT) ¥220
90386-06002 note Bush(FOR REAR SEAT CENTER ARMREST)
1987-10 → 1988-08 ended
SV20,21 HT VE;SV2#,VZV20 GT,PRO,VR,VX,ZE,ZX ¥220
90386-06002 Bush(FOR REAR SEAT CENTER ARMREST)
1987-10 → 1988-08 ended
CV20,SV20,21 SED (VE,ZT) ¥220
90386-06028 note Bush(FOR REAR SEAT CENTER ARMREST)
1986-08 → 1987-10 ended
SV2# HT (GT,VE,VR,VX) ¥190
90386-06028 note Bush(FOR REAR SEAT CENTER ARMREST)
1986-08 → 1987-10 ended
SV2#,VZV20 SED (GT,PRO,VR,VX,ZE,ZX) ¥190
90386-06028 note Bush(FOR REAR SEAT CENTER ARMREST)
1987-10 → 1988-08 ended
SV20,21 HT VE;SV2#,VZV20 GT,PRO,VR,VX,ZE,ZX ¥190
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
