Toyota Camry/Vista
1986-08 → 1988-08 · chassis SV2#,VZV20,CV20 · catalogue 281130 · Japan
Discontinued model
Data version 1989-04

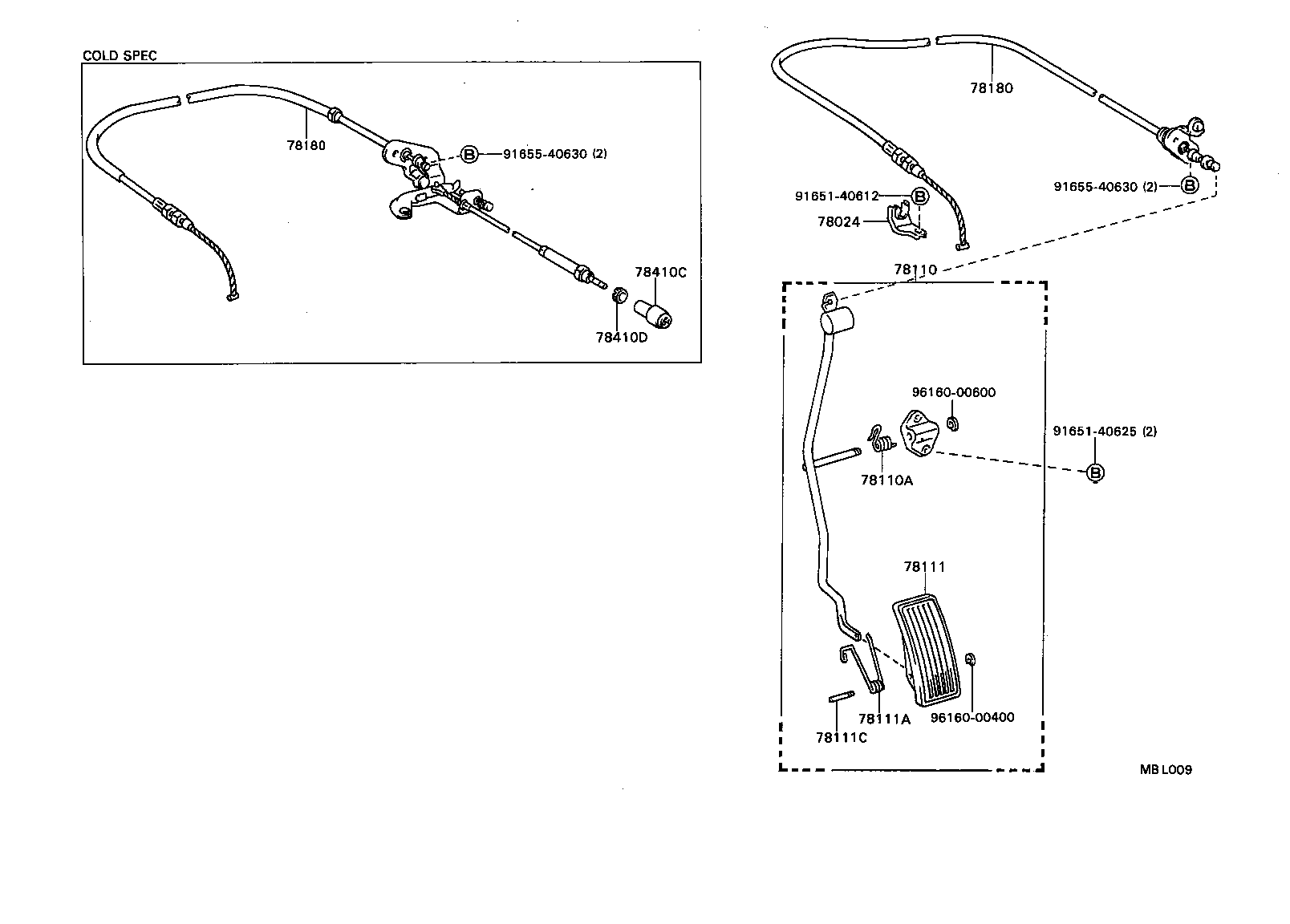

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 78024 — Bracket Sub-assy, Accelerator Control Cable | ||||
| 78024-20010 |
Bracket Sub-assy, Accelerator Control Cable
1986-08 → 1988-08
ended
|
SV20 | — | |
| 78024-20070 |
Bracket Sub-assy, Accelerator Control Cable
1986-08 → 1988-08
ended
|
SV21 GT | ¥2,160 | |
| 78024-32040 |
Bracket Sub-assy, Accelerator Control Cable
1986-08 → 1988-08
ended
|
CV20 | ¥2,170 | |
| 78024-32070 |
Bracket Sub-assy, Accelerator Control Cable
1986-08 → 1988-08
ended
|
SV21,25 VE,VL,VR,VX,XT,ZE,ZT,ZX | ¥3,010 | |
| 78024-32070 |
Bracket Sub-assy, Accelerator Control Cable
1987-10 → 1988-08
ended
|
SV21,25 VE,VL,VR,VX,XT,ZE,ZT,ZX | ¥3,010 | |
| 78024-32110 |
Bracket Sub-assy, Accelerator Control Cable
1987-04 → 1988-08
ended
|
VZV20 | ¥3,010 | |
| 78110 — Rod Assy, Accelerator Pedal | ||||
| 78120-32060 |
Rod Assy, Accelerator Pedal
1986-08 → 1988-08
ended
|
SV20 | ¥2,760 | |
| 78120-32070 |
Rod Assy, Accelerator Pedal
1986-08 → 1988-08
ended
|
CV20,SV21,VZV20 4FC | ¥3,240 | |
| 78120-32080 |
Rod Assy, Accelerator Pedal
1987-10 → 1988-08
ended
|
CV20,SV21,25,VZV20 5F | ¥3,240 | |
| 78120-32080 |
Rod Assy, Accelerator Pedal
1986-08 → 1987-10
ended
|
CV20,SV21,VZV20 5F | ¥3,240 | |
| 78110A — Spring (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-18025 |
Spring (FOR ACCELERATOR PEDAL ROD)
1986-08 → 1987-10
ended
|
CV20,SV21,VZV20 4FC | ¥550 | |
| 90508-18025 |
Spring (FOR ACCELERATOR PEDAL ROD)
1986-08 → 1988-08
ended
|
SV20;CV20,SV21,VZV20 4FC | ¥550 | |
| 90508-18025 |
Spring (FOR ACCELERATOR PEDAL ROD)
1987-10 → 1988-08
ended
|
SV20;CV20,SV21,VZV20 4FC | ¥550 | |
| 90508-23069 |
Spring (FOR ACCELERATOR PEDAL ROD)
1986-08 → 1987-10
ended
|
CV20,SV21,VZV20 5F | ¥550 | |
| 90508-23069 |
Spring (FOR ACCELERATOR PEDAL ROD)
1987-10 → 1988-08
ended
|
CV20,SV21,25,VZV20 5F | ¥550 | |
| 78111 — Pedal, Accelerator | ||||
| 78111-12100 |
Pedal, Accelerator
1986-08 → 1988-08
ended
|
CV20,SV2#,VZV20 | ¥1,220 | |
| 78111A — Spring (FOR ACCELERATOR PEDAL) | ||||
| 90508-23003 |
Spring (FOR ACCELERATOR PEDAL)
1986-08 → 1988-08
ended
|
CV20,SV2#,VZV20 | ¥230 | |
| 90508-23069 |
Spring (FOR ACCELERATOR PEDAL)
1986-08 → 1987-10
ended
|
CV20,SV21,VZV20 5F | ¥550 | |
| 78111C — Pin (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
Pin (FOR ACCELERATOR PEDAL)
1986-08 → 1988-08
ended
|
CV20,SV2#,VZV20 | ¥230 | |
| 78180 — Wire Assy, Accelerator | ||||
| 78180-32100 |
Wire Assy, Accelerator
1986-08 → 1988-08
ended
|
CV20 | ¥4,750 | |
| 78180-32130 |
Wire Assy, Accelerator
1986-08 → 1988-08
ended
|
SV20 | ¥7,500 | |
| 78180-32140 |
Wire Assy, Accelerator
1986-08 → 1986-10
ended
|
SV21 GT | ¥7,400 | |
| 78180-32160 note |
Wire Assy, Accelerator
1986-08 → 1987-10
ended
|
SV2#,VZV20 GT,PRO,VR,VX,ZE,ZX | ¥3,420 | |
| 78180-32160 note |
Wire Assy, Accelerator
1987-10 → 1988-08
ended
|
SV2#,VZV20 GT,PRO,VR,VX,ZE,ZX | ¥3,420 | |
| 78180-32180 |
Wire Assy, Accelerator
1986-08 → 1988-08
ended
|
SV21,25 VE,VL,VR,VX,XT,ZE,ZT,ZX | ¥3,520 | |
| 78180-32180 |
Wire Assy, Accelerator
1987-10 → 1988-08
ended
|
SV21,25 VE,VL,VR,VX,XT,ZE,ZT,ZX | ¥3,520 | |
| 78180-32200 |
Wire Assy, Accelerator
1987-04 → 1988-08
ended
|
VZV20 | ¥3,350 | |
| 78180-32210 |
Wire Assy, Accelerator
1986-10 → 1988-08
ended
|
SV21 GT | ¥3,270 | |
| 78180-32290 note |
Wire Assy, Accelerator
1987-04 → 1987-10
ended
|
SV21,VZV20 GT,PRO | ¥3,460 | |
| 78180-32290 note |
Wire Assy, Accelerator
1987-10 → 1988-08
ended
|
SV21,25,VZV20 GT,PRO,VR,ZE | ¥3,460 | |
| 78190-32020 note |
Wire Assy, Accelerator
1986-08 → 1988-08
ended
|
CV20 5F | ¥15,400 | |
| 78410C — Knob, Throttle Cable | ||||
| 78411-22010 |
Knob, Throttle Cable
1986-08 → 1988-08
ended
|
CV20 5F | ¥630 | |
| 78410D — Nut, Throttle | ||||
| 90179-11007 |
Nut, Throttle
1986-08 → 1988-08
ended
|
CV20 5F | ¥130 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
