Toyota Camry/Vista
1986-08 → 1988-08 · chassis SV2#,VZV20,CV20 · catalogue 281130 · Japan
Discontinued model
Data version 1989-04

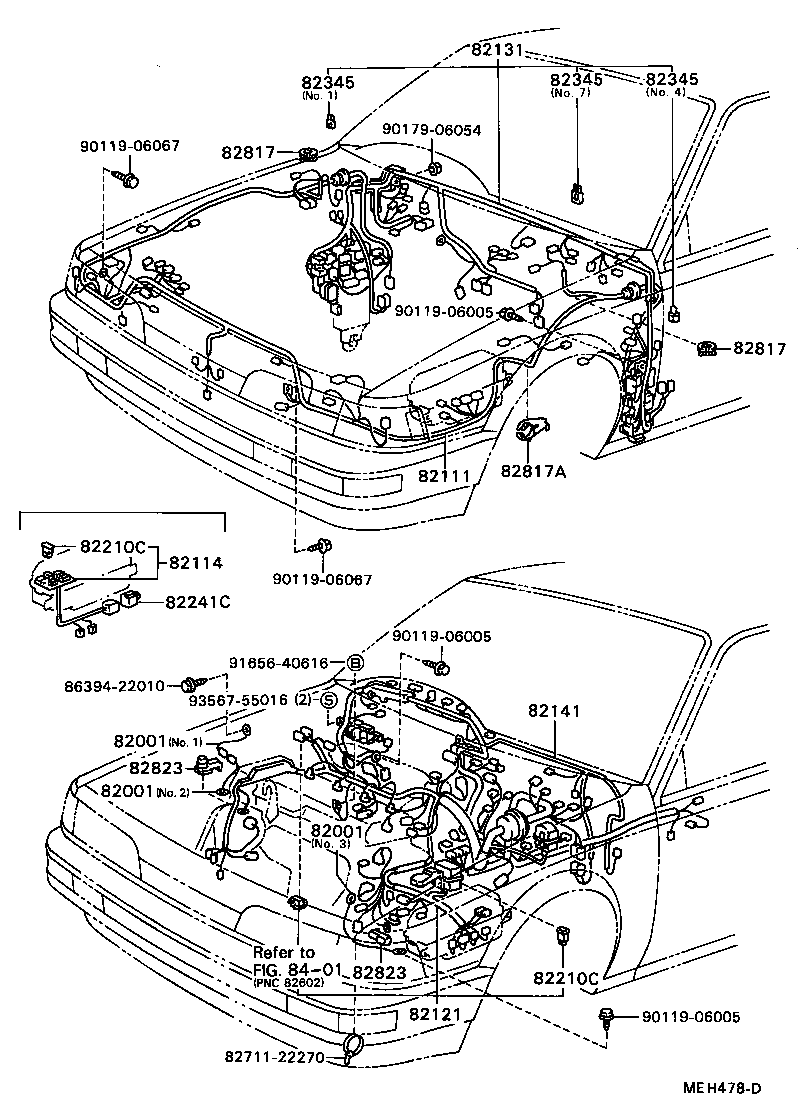

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82001 — Cable, Bond, NO.1 | ||||
| 90980-07136 note |
Cable, Bond, NO.1
1986-08 → 1987-10
ended
|
SV2# | ¥790 | |
| 90980-07136 note |
Cable, Bond, NO.1
1987-10 → 1988-08
ended
|
SV2# | ¥790 | |
| 90980-07205 note |
Cable, Bond, NO.1
1986-08 → 1987-10
ended
|
SV20 | ¥580 | |
| 90980-07205 note |
Cable, Bond, NO.1
1987-10 → 1988-08
ended
|
SV20 | ¥580 | |
| 90980-07206 note |
Cable, Bond, NO.1
1986-08 → 1987-04
ended
|
SV2# | ¥610 | |
| 90980-07239 note |
Cable, Bond, NO.1
1987-10 → 1988-05
ended
|
SV21 GT | ¥340 | |
| 90980-07239 note |
Cable, Bond, NO.1
1986-08 → 1987-10
ended
|
SV21 GT | ¥340 | |
| 90980-07270 note |
Cable, Bond, NO.1
1987-10 → 1988-08
ended
|
VZV20 | ¥410 | |
| 90980-07270 note |
Cable, Bond, NO.1
1987-04 → 1987-10
ended
|
VZV20 | ¥410 | |
| 90980-07280 note |
Cable, Bond, NO.1
1986-08 → 1987-10
ended
|
SV21 VE,VX,ZT,ZX | ¥610 | |
| 90980-07280 note |
Cable, Bond, NO.1
1987-10 → 1988-08
ended
|
SV21,25 VE,VL,VR,VX,XT,ZE,ZT,ZX | ¥610 | |
| 90980-07287 note |
Cable, Bond, NO.1
1987-04 → 1987-10
ended
|
SV2#,VZV20 | ¥610 | |
| 90980-07287 note |
Cable, Bond, NO.1
1987-10 → 1988-08
ended
|
SV2#,VZV20 | ¥610 | |
| 90980-07307 note |
Cable, Bond, NO.1
1988-05 → 1988-08
ended
|
SV21 GT | ¥510 | |
| 82111 — Wire, Engine Room Main | ||||
| 82111-32030 |
Wire, Engine Room Main
1986-08 → 1988-03
ended
|
SV2# | ¥40,900 | |
| 82111-32031 |
Wire, Engine Room Main
1988-03 → 1988-08
ended
|
SV2# | ¥45,900 | |
| 82111-32040 note |
Wire, Engine Room Main
1987-10 → 1988-03
ended
|
SV2# VE,VL,XT,ZT | ¥59,100 | |
| 82111-32040 note |
Wire, Engine Room Main
1987-10 → 1988-03
ended
|
SV21 GT | ¥59,100 | |
| 82111-32040 note |
Wire, Engine Room Main
1987-10 → 1988-03
ended
|
SV20,21 VR,VX,ZE,ZX | ¥59,100 | |
| 82111-32040 note |
Wire, Engine Room Main
1987-10 → 1988-03
ended
|
SV25 VR,ZE | ¥59,100 | |
| 82111-32040 note |
Wire, Engine Room Main
1986-08 → 1987-10
ended
|
SV2# GT,VE,VL,VR,VX,XT,ZE,ZT,ZX | ¥59,100 | |
| 82111-32041 note |
Wire, Engine Room Main
1988-03 → 1988-08
ended
|
SV25 VR,ZE | ¥59,100 | |
| 82111-32041 note |
Wire, Engine Room Main
1988-03 → 1988-08
ended
|
SV20,21 VR,VX,ZE,ZX | ¥59,100 | |
| 82111-32041 note |
Wire, Engine Room Main
1988-03 → 1988-08
ended
|
SV21 GT | ¥59,100 | |
| 82111-32041 note |
Wire, Engine Room Main
1988-03 → 1988-08
ended
|
SV2# VE,VL,XT,ZT | ¥59,100 | |
| 82111-32050 note |
Wire, Engine Room Main
1987-04 → 1987-10
ended
|
SV21 GT | ¥63,000 | |
| 82111-32051 note |
Wire, Engine Room Main
1987-10 → 1988-03
ended
|
SV21 GT | ¥70,600 | |
| 82111-32051 note |
Wire, Engine Room Main
1987-10 → 1988-03
ended
|
SV25 VL,XT | ¥70,600 | |
| 82111-32051 note |
Wire, Engine Room Main
1987-10 → 1988-03
ended
|
SV25 VR,ZE | ¥70,600 | |
| 82111-32052 note |
Wire, Engine Room Main
1988-03 → 1988-08
ended
|
SV25 VR,ZE | ¥70,600 | |
| 82111-32052 note |
Wire, Engine Room Main
1988-03 → 1988-08
ended
|
SV25 VL,XT | ¥70,600 | |
| 82111-32052 note |
Wire, Engine Room Main
1988-03 → 1988-08
ended
|
SV21 GT | ¥70,600 | |
| 82111-32060 |
Wire, Engine Room Main
1986-08 → 1988-03
ended
|
CV20 5F | ¥52,600 | |
| 82111-32061 |
Wire, Engine Room Main
1988-03 → 1988-08
ended
|
CV20 5F | ¥59,100 | |
| 82111-32070 |
Wire, Engine Room Main
1986-08 → 1988-03
ended
|
CV20 4FC | ¥52,600 | |
| 82111-32071 |
Wire, Engine Room Main
1988-03 → 1988-08
ended
|
CV20 4FC | ¥59,100 | |
| 82111-32170 |
Wire, Engine Room Main
1987-04 → 1988-03
ended
|
VZV20 | ¥52,600 | |
| 82111-32171 |
Wire, Engine Room Main
1988-03 → 1988-08
ended
|
VZV20 | ¥59,100 | |
| 82111-32180 note |
Wire, Engine Room Main
1987-10 → 1988-03
ended
|
VZV20 | ¥63,000 | |
| 82111-32180 note |
Wire, Engine Room Main
1987-04 → 1987-10
ended
|
VZV20 | ¥63,000 | |
| 82111-32181 note |
Wire, Engine Room Main
1988-03 → 1988-08
ended
|
VZV20 | ¥70,600 | |
| 82114 — Wire, Engine Room, NO.4 | ||||
| 82114-32030 |
Wire, Engine Room, NO.4
1986-08 → 1988-08
ended
|
SV2# | ¥3,190 | |
| 82114-32050 |
Wire, Engine Room, NO.4
1986-08 → 1988-08
ended
|
CV20 5F | — | |
| 82121 — Wire, Engine | ||||
| 82121-32330 |
Wire, Engine
1987-04 → 1988-08
ended
|
VZV20 5F | ¥98,800 | |
| 82121-32580 |
Wire, Engine
1986-08 → 1986-08
ended
|
SV20 5F | — | |
| 82121-32581 |
Wire, Engine
1986-08 → 1988-08
ended
|
SV20 5F | ¥70,900 | |
| 82121-32590 |
Wire, Engine
1986-08 → 1986-08
ended
|
SV20 4FC | — | |
| 82121-32591 |
Wire, Engine
1986-08 → 1988-04
ended
|
SV20 4FC | ¥70,900 | |
| 82121-32592 |
Wire, Engine
1988-04 → 1988-08
ended
|
SV20 4FC | ¥79,100 | |
| 82121-32600 |
Wire, Engine
1986-08 → 1986-08
ended
|
SV21 5F (VE,VX,ZT,ZX) | — | |
| 82121-32601 |
Wire, Engine
1986-08 → 1987-08
ended
|
SV21 5F (VE,VX,ZT,ZX) | ¥80,900 | |
| 82121-32602 |
Wire, Engine
1987-08 → 1988-08
ended
|
SV21,25 5F (VE,VL,VR,VX,XT,ZE,ZT,ZX) | ¥90,400 | |
| 82121-32610 |
Wire, Engine
1986-08 → 1986-08
ended
|
SV21 4FC (VE,VX,ZT,ZX) | — | |
| 82121-32611 |
Wire, Engine
1986-08 → 1987-08
ended
|
SV21 4FC (VE,VX,ZT,ZX) | ¥87,000 | |
| 82121-32612 |
Wire, Engine
1987-08 → 1988-04
ended
|
SV21 4FC (VE,VX,ZT,ZX) | ¥97,300 | |
| 82121-32613 |
Wire, Engine
1988-04 → 1988-08
ended
|
SV21 4FC (VE,VX,ZT,ZX) | ¥97,300 | |
| 82121-32620 |
Wire, Engine
1986-08 → 1986-08
ended
|
SV21 5F GT | — | |
| 82121-32621 |
Wire, Engine
1986-08 → 1987-02
ended
|
SV21 5F GT | — | |
| 82121-32622 |
Wire, Engine
1987-02 → 1988-08
ended
|
SV21 5F GT | ¥80,900 | |
| 82121-32630 |
Wire, Engine
1986-08 → 1986-08
ended
|
SV21 4FC GT | — | |
| 82121-32631 |
Wire, Engine
1986-08 → 1987-02
ended
|
SV21 4FC GT | — | |
| 82121-32632 |
Wire, Engine
1987-02 → 1988-08
ended
|
SV21 4FC GT | ¥87,000 | |
| 82121-32640 |
Wire, Engine
1986-08 → 1988-08
ended
|
CV20 5F | ¥70,900 | |
| 82121-32650 |
Wire, Engine
1986-08 → 1988-08
ended
|
CV20 4FC | ¥80,900 | |
| 82121-32840 |
Wire, Engine
1987-04 → 1988-08
ended
|
VZV20 4FC | ¥98,800 | |
| 82131 — Wire, Cowl | ||||
| 82131-3H130 |
Wire, Cowl
1986-08 → 1987-08
ended
|
CV20,SV20 LT,VC,VL,XT | ¥43,500 | |
| 82131-3H131 |
Wire, Cowl
1987-10 → 1988-08
ended
|
CV20,SV20,25 LT,VC,VL,XT | ¥43,500 | |
| 82131-3H131 |
Wire, Cowl
1987-08 → 1987-10
ended
|
CV20,SV20 LT,VC,VL,XT | ¥43,500 | |
| 82131-3H140 |
Wire, Cowl
1986-08 → 1987-08
ended
|
SV20 VR,ZE | ¥58,400 | |
| 82131-3H141 |
Wire, Cowl
1987-08 → 1987-10
ended
|
SV20 VR,ZE | ¥58,300 | |
| 82131-3H141 |
Wire, Cowl
1987-10 → 1988-08
ended
|
SV20,25 VR,ZE | ¥58,300 | |
| 82131-3H150 note |
Wire, Cowl
1986-08 → 1987-08
ended
|
SV20 VR,ZE | ¥58,400 | |
| 82131-3H151 note |
Wire, Cowl
1987-08 → 1987-10
ended
|
SV20 VR,ZE | ¥58,300 | |
| 82131-3H151 note |
Wire, Cowl
1987-10 → 1988-08
ended
|
SV20,25 VR,ZE | ¥58,300 | |
| 82131-3H160 |
Wire, Cowl
1986-08 → 1987-08
ended
|
SV21 GT,VX,ZX | ¥66,500 | |
| 82131-3H161 |
Wire, Cowl
1987-08 → 1988-08
ended
|
SV21 GT,VX,ZX | ¥66,500 | |
| 82131-3H170 note |
Wire, Cowl
1986-08 → 1987-08
ended
|
SV21 GT,VX,ZX | ¥79,700 | |
| 82131-3H171 note |
Wire, Cowl
1987-08 → 1987-10
ended
|
SV21 GT,VX,ZX | ¥79,700 | |
| 82131-3H171 note |
Wire, Cowl
1987-10 → 1988-08
ended
|
SV21 VX,ZX | ¥79,700 | |
| 82131-3H171 note |
Wire, Cowl
1987-10 → 1988-08
ended
|
SV21 GT | ¥79,700 | |
| 82131-3H330 |
Wire, Cowl
1986-08 → 1987-08
ended
|
CV20,SV2# VE,ZT | ¥58,400 | |
| 82131-3H331 |
Wire, Cowl
1987-08 → 1987-10
ended
|
CV20,SV2# VE,ZT | ¥58,300 | |
| 82131-3H331 note |
Wire, Cowl
1987-10 → 1988-08
ended
|
SV25 VL,XT | ¥58,300 | |
| 82131-3H331 note |
Wire, Cowl
1987-10 → 1988-08
ended
|
CV20,SV20 VL | ¥58,300 | |
| 82131-3H331 note |
Wire, Cowl
1987-08 → 1987-10
ended
|
CV20,SV20 VL | ¥58,300 | |
| 82131-3H331 |
Wire, Cowl
1987-10 → 1988-08
ended
|
CV20,SV20,21 VE,ZT | ¥58,300 | |
| 82131-3H430 |
Wire, Cowl
1987-04 → 1988-08
ended
|
VZV20 | ¥71,500 | |
| 82131-3H820 note |
Wire, Cowl
1987-12 → 1988-08
ended
|
CV20,SV20,21 ZT | ¥58,300 | |
| 82141 — Wire, Instrument Panel | ||||
| 82141-32010 |
Wire, Instrument Panel
1986-08 → 1987-08
ended
|
CV20,SV20 5F (LT,VC,VL,XT) | ¥35,000 | |
| 82141-32011 |
Wire, Instrument Panel
1987-10 → 1988-08
ended
|
CV20,SV20,25 5F (LT,VC,VL,XT) | ¥97,300 | |
| 82141-32011 |
Wire, Instrument Panel
1987-08 → 1987-10
ended
|
CV20,SV20 5F (LT,VC,VL,XT) | ¥97,300 | |
| 82141-32020 |
Wire, Instrument Panel
1986-08 → 1987-09
ended
|
CV20,SV20 4FC (VL,XT) | ¥38,900 | |
| 82141-32021 |
Wire, Instrument Panel
1987-10 → 1988-08
ended
|
CV20,SV20 4FC (VL,XT) | ¥38,900 | |
| 82141-32021 |
Wire, Instrument Panel
1987-09 → 1987-10
ended
|
CV20,SV20 4FC (VL,XT) | ¥38,900 | |
| 82141-32030 |
Wire, Instrument Panel
1986-08 → 1987-10
ended
|
CV20,SV2# 5F (VE,VR,VX,ZE,ZT,ZX) | ¥40,900 | |
| 82141-32031 |
Wire, Instrument Panel
1987-10 → 1988-08
ended
|
CV20,SV2# 5F (VE,VR,VX,ZE,ZT,ZX) | ¥45,900 | |
| 82141-32040 |
Wire, Instrument Panel
1986-08 → 1987-10
ended
|
CV20,SV2# 4FC (VE,VR,VX,ZE,ZT,ZX) | ¥52,600 | |
| 82141-32040 |
Wire, Instrument Panel
1987-10 → 1988-08
ended
|
CV20,SV20,21 4FC (VE,VR,VX,ZE,ZT,ZX) | ¥52,600 | |
| 82141-32050 |
Wire, Instrument Panel
1986-08 → 1988-08
ended
|
SV21 GT | ¥52,600 | |
| 82141-32060 note |
Wire, Instrument Panel
1986-08 → 1987-08
ended
|
SV21 GT,VX,ZX | ¥52,600 | |
| 82141-32061 note |
Wire, Instrument Panel
1987-10 → 1988-08
ended
|
SV21,25 GT,VR,VX,ZE,ZX | ¥59,100 | |
| 82141-32061 note |
Wire, Instrument Panel
1987-08 → 1987-10
ended
|
SV21 GT,VX,ZX | ¥59,100 | |
| 82141-32180 |
Wire, Instrument Panel
1987-04 → 1988-08
ended
|
VZV20 | ¥52,600 | |
| 82141-32190 note |
Wire, Instrument Panel
1987-04 → 1987-10
ended
|
VZV20 | ¥52,600 | |
| 82141-32190 note |
Wire, Instrument Panel
1987-10 → 1988-08
ended
|
VZV20 | ¥52,600 | |
| 82210C — Fusible Link | ||||
| 90982-08188 note |
Fusible Link
1986-08 → 1987-10
ended
|
CV20,SV2#,VZV20 | ¥710 | |
| 90982-08188 note |
Fusible Link
1987-10 → 1988-08
ended
|
CV20,SV2#,VZV20 | ¥710 | |
| 90982-08189 note |
Fusible Link
1986-08 → 1987-10
ended
|
CV20,SV2#,VZV20 | ¥440 | |
| 90982-08189 note |
Fusible Link
1987-10 → 1988-08
ended
|
CV20,SV2#,VZV20 | ¥440 | |
| 90982-08203 note |
Fusible Link
1986-08 → 1987-10
ended
|
CV20,SV2#,VZV20 | ¥460 | |
| 90982-08203 note |
Fusible Link
1987-10 → 1988-04
ended
|
CV20,SV2#,VZV20 | ¥460 | |
| 90982-08203 note |
Fusible Link
1988-04 → 1988-08
ended
|
SV20,21 5F;SV21 4FC GT;CV20,SV25,VZV20 | ¥460 | |
| 90982-08246 note |
Fusible Link
1988-04 → 1988-08
ended
|
SV20,21 4FC (VE,VL,VR,VX,XT,ZE,ZT,ZX) | ¥440 | |
| 82241C — Wire, Relay | ||||
| 82241-32020 note |
Wire, Relay
1986-08 → 1987-10
ended
|
CV20 5F | ¥300 | |
| 82241-32020 note |
Wire, Relay
1986-08 → 1987-10
ended
|
SV2# | ¥300 | |
| 82241-32020 note |
Wire, Relay
1987-10 → 1988-08
ended
|
SV20,21;CV20,SV25 5F | ¥300 | |
| 82345 — Diode | ||||
| 82345-12050 note |
Diode
1987-12 → 1988-08
ended
|
CV20,SV20,21 ZT | ¥790 | |
| 82345-12050 note |
Diode
1986-08 → 1987-10
ended
|
CV20 4FC | ¥790 | |
| 82345-12050 note |
Diode
1987-10 → 1988-08
ended
|
CV20,SV20,21,VZV20 GT,PRO,VE,VX,ZT,ZX | ¥790 | |
| 82345-12050 note |
Diode
1987-10 → 1988-08
ended
|
SV20;CV20 4FC | ¥790 | |
| 82345-12050 note |
Diode
1987-10 → 1988-08
ended
|
SV25 VL,XT | ¥790 | |
| 82345-12050 note |
Diode
1987-10 → 1988-08
ended
|
SV20,25 VR,ZE | ¥790 | |
| 82345-12050 note |
Diode
1987-10 → 1988-08
ended
|
CV20,SV20 VL | ¥790 | |
| 82345-12050 note |
Diode
1986-08 → 1987-10
ended
|
SV20 | ¥790 | |
| 82345-12050 note |
Diode
1986-08 → 1987-10
ended
|
CV20,SV2#,VZV20 GT,PRO,VE,VR,VX,ZE,ZT,ZX | ¥790 | |
| 82345-12050 note |
Diode
1987-08 → 1987-10
ended
|
CV20,SV20 VL | ¥790 | |
| 82345-20060 note |
Diode
1987-08 → 1987-10
ended
|
CV20,SV20 VL | ¥850 | |
| 82345-20060 note |
Diode
1986-08 → 1987-10
ended
|
CV20,SV2# VE,ZT | ¥850 | |
| 82345-20060 note |
Diode
1987-10 → 1988-08
ended
|
CV20,SV20 VL | ¥850 | |
| 82345-20060 note |
Diode
1987-10 → 1988-08
ended
|
SV25 VL,XT | ¥850 | |
| 82345-20060 note |
Diode
1987-10 → 1988-08
ended
|
CV20,SV20,21 VE,ZT | ¥850 | |
| 82345-22051 note |
Diode
1986-08 → 1987-10
ended
|
SV20 4FC | ¥980 | |
| 82345-22051 note |
Diode
1987-10 → 1988-08
ended
|
SV20 4FC | ¥980 | |
| 82345-32010 note |
Diode
1986-08 → 1987-10
ended
|
SV20 5F | ¥850 | |
| 82345-32010 note |
Diode
1987-10 → 1988-08
ended
|
SV20 5F | ¥850 | |
| 82345-32020 note |
Diode
1987-10 → 1988-08
ended
|
CV20,SV20 VL | ¥1,030 | |
| 82345-32020 note |
Diode
1987-10 → 1988-08
ended
|
CV20,SV20,21,VZV20 GT,PRO,VE,VX,ZT,ZX | ¥1,030 | |
| 82345-32020 note |
Diode
1987-10 → 1988-08
ended
|
SV25 VL,XT | ¥1,030 | |
| 82345-32020 note |
Diode
1986-08 → 1987-10
ended
|
CV20,SV2#,VZV20 GT,PRO,VE,VX,ZT,ZX | ¥1,030 | |
| 82345-32020 note |
Diode
1987-08 → 1987-10
ended
|
CV20,SV20 VL | ¥1,030 | |
| 82817 — Protector, Wiring Harness, NO.1 | ||||
| 82817-32420 |
Protector, Wiring Harness, NO.1
1986-08 → 1988-08
ended
|
CV20,SV2#,VZV20 | ¥310 | |
| 82817A — Protector, Wiring Harness, NO.2 | ||||
| 82817-32310 |
Protector, Wiring Harness, NO.2
1986-08 → 1988-03
ended
|
CV20,SV2#,VZV20 | — | |
| 82823 — Cap, Terminal, NO.1 | ||||
| 82823-20030 note |
Cap, Terminal, NO.1
1986-08 → 1987-10
ended
|
SV2#,VZV20 LT,PRO,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX | ¥670 | |
| 82823-20030 note |
Cap, Terminal, NO.1
1987-10 → 1988-08
ended
|
SV2# LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX | ¥670 | |
| 82823-20030 note |
Cap, Terminal, NO.1
1987-10 → 1988-08
ended
|
VZV20 | ¥670 | |
| 82823-20040 note |
Cap, Terminal, NO.1
1986-08 → 1987-10
ended
|
CV20 | ¥520 | |
| 82823-20040 note |
Cap, Terminal, NO.1
1987-10 → 1988-08
ended
|
CV20 | ¥520 | |
| 82823-22050 note |
Cap, Terminal, NO.1
1986-08 → 1987-10
ended
|
SV2# | ¥390 | |
| 82823-22050 note |
Cap, Terminal, NO.1
1987-10 → 1988-08
ended
|
SV2# LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX | ¥390 | |
| 82823-22050 note |
Cap, Terminal, NO.1
1987-10 → 1988-08
ended
|
SV21 GT | ¥390 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
